DJI Matrice 350 RTK | DJI M350 RTK Drone
An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
55-Min Max Flight Time
IP55 Rating
DJI O3 Enterprise Transmission
DJI RC Plus
400 Battery Cycles
6-Directional Sensing & Positioning
Night-Vision FPV Camera
Multi-Payload Support

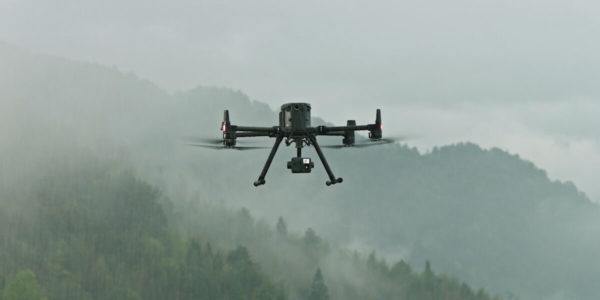

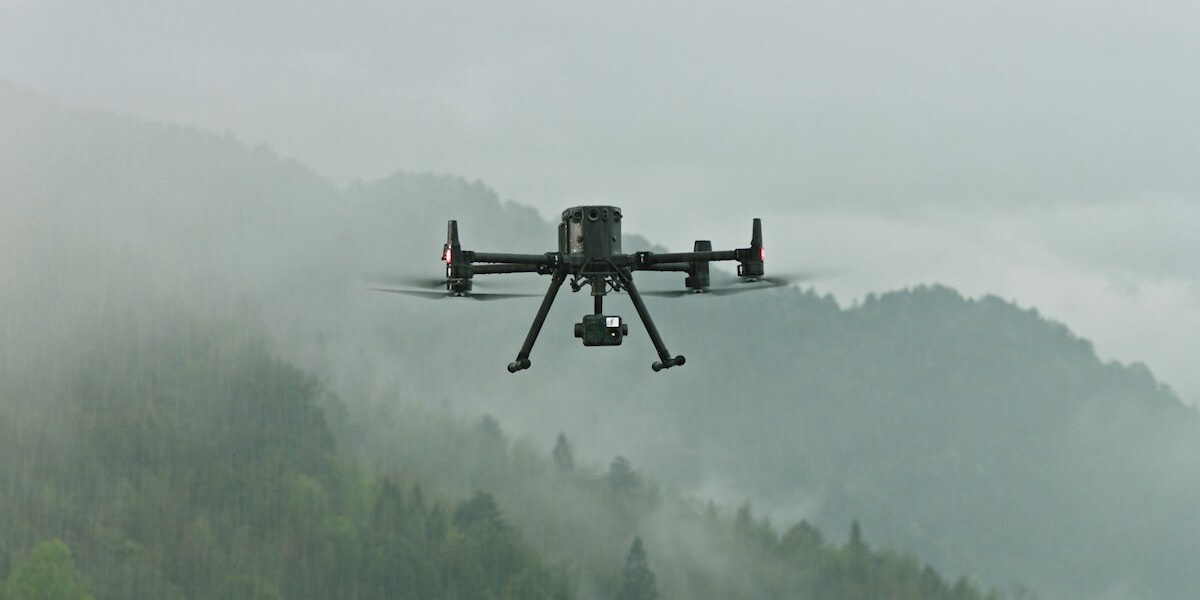

Effortlessly Powerful Flight Performance
Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.
55 mins
Max Flight Time
IP55
Protection Rating
2.7 kg
Max Payload
7000 m
Max Flight Altitude
12 m/s
Max Wind Speed Resistance
-20° to 50° C
(-4° to 122° F)
(-4° to 122° F)
Operating Temperature
Play Video
Stay Stable With New Transmission System
O3 Enterprise Transmission
Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, [5] and a max transmission distance of 20 km. [6] Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.
Play Video

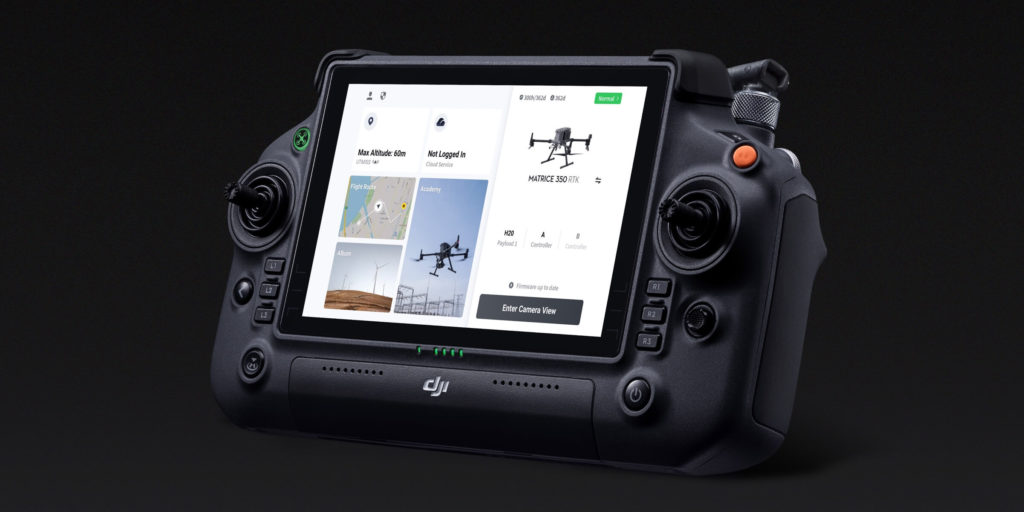

New Control Experience
DJI RC Plus
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.
Play Video
Built Ready for Harsh Environments
IP54 rated, [2] DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.

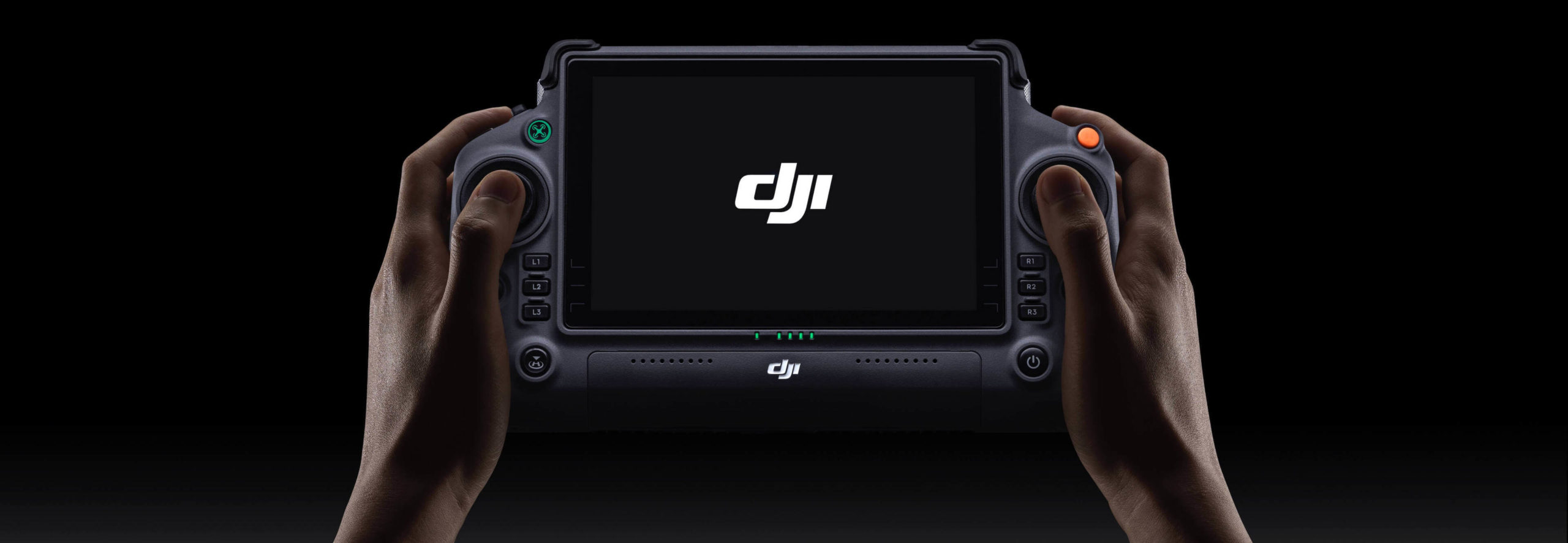

Smooth and Efficient Control
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.
Play Video
DJI Pilot 2
The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.
Upgraded Battery System

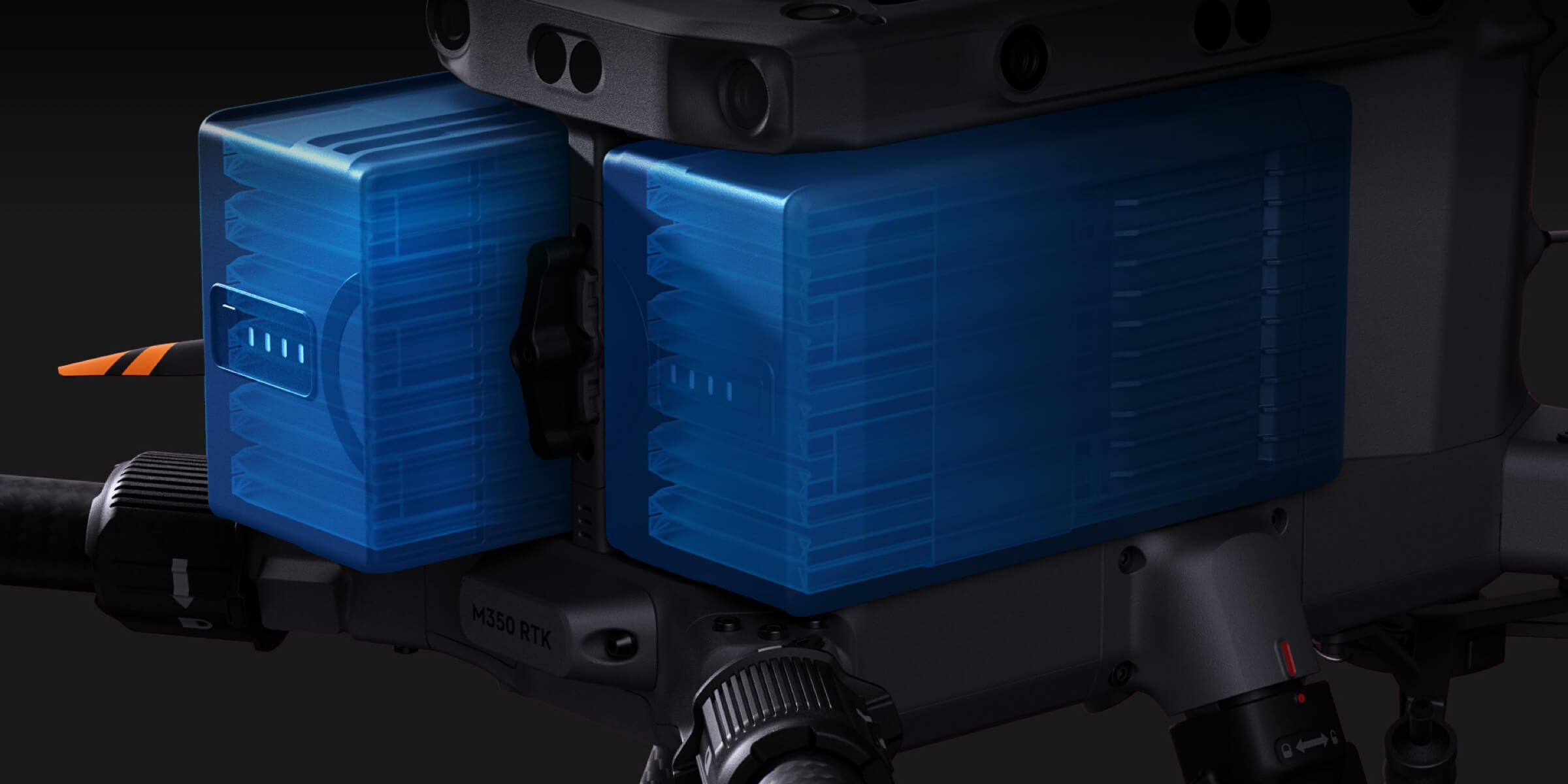

New Dual-Battery System
The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, [3] reducing the cost of a single flight.

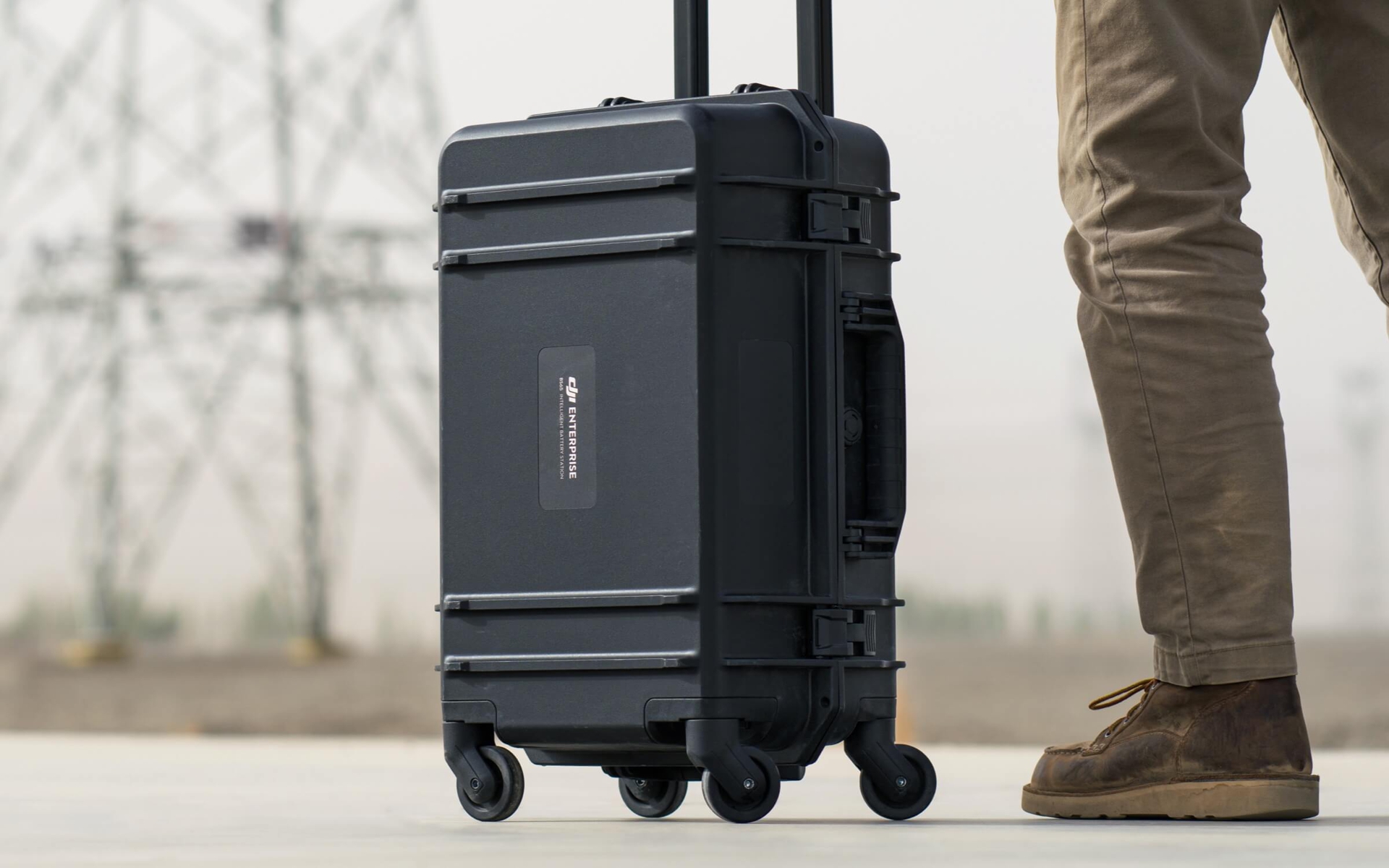

Next-Gen Intelligent Battery Station
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.
Multiple Charging Modes
Intelligent Management
Effortless Transitions

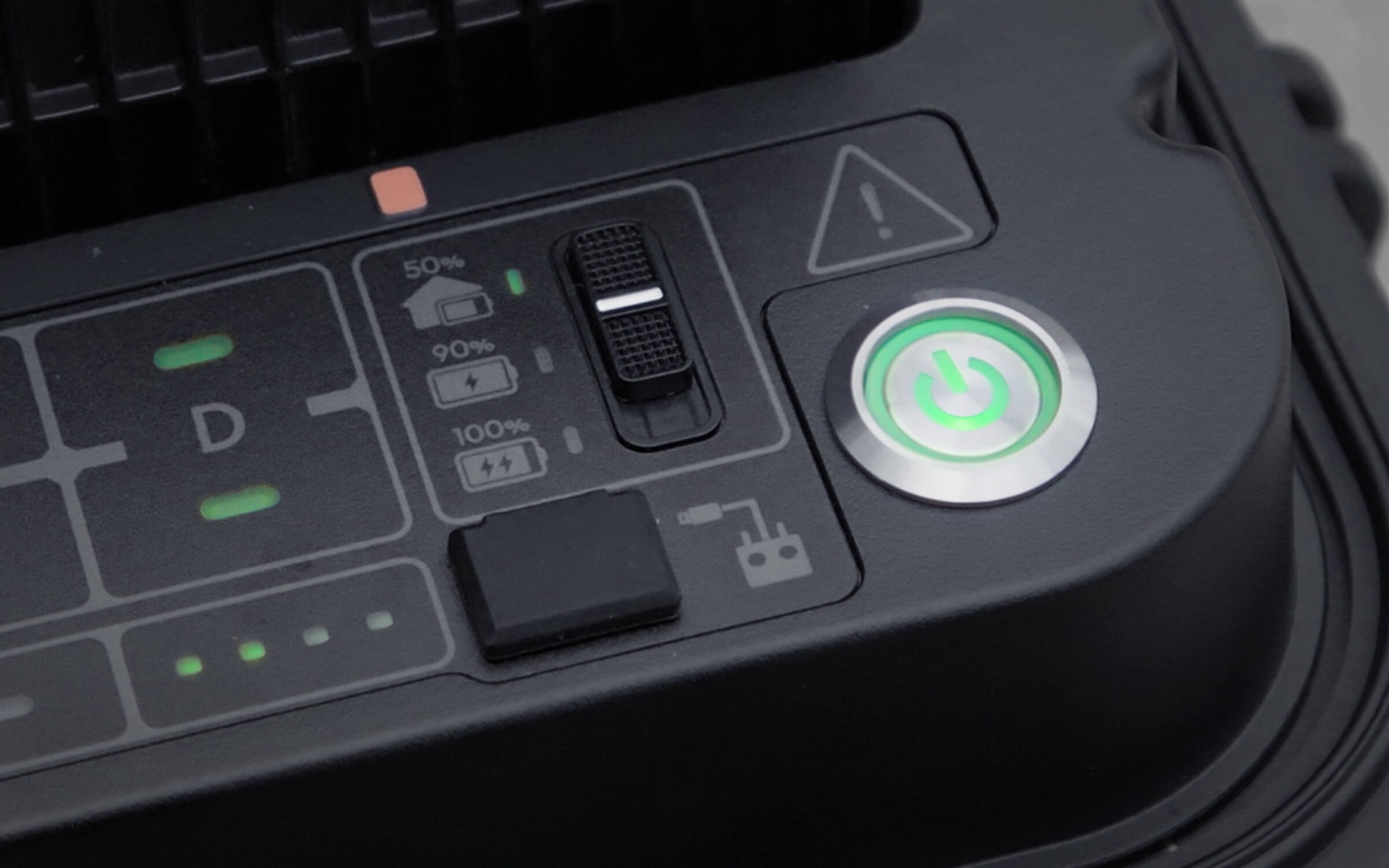

Multiple Charging Modes
In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.

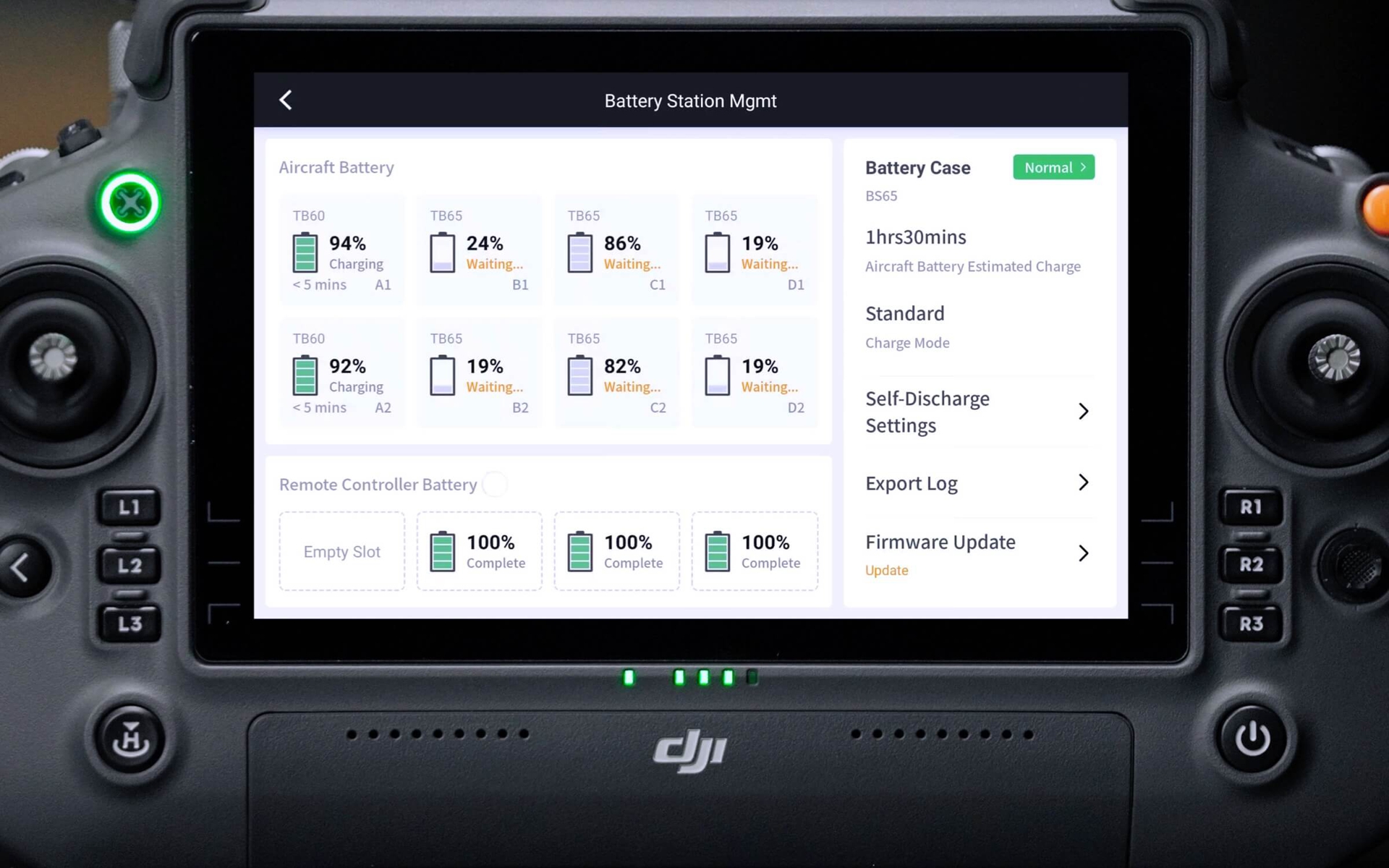

Intelligent Management
When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.
Effortless Transitions
The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.
Enhanced Flight Safety
Arm Lock Indicator
Night-Vision FPV Camera
6-Directional Sensing & Positioning
CSM Radar
Multi-Layered Redundancy Design
Arm Lock Indicator
Night-Vision FPV Camera
Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night.
6-Directional Sensing & Positioning
The Matrice 350 RTK is designed with a six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight.
CSM Radar
With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. The effective detection range is up to 30 m, further improving flight safety.
Multi-Layered Redundancy Design
Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to maximumly ensure flight safety, allowing you to cope with harsh operating environments more confidently.
Powerful Payloads
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, [11] and single upward gimbal, and has an E-Port open interface. With a max payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operation scenarios like public safety, inspection, and mapping.
Intelligent Operation
Play Video
High-Precision Mapping
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow [12] or Smart Oblique [13] for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.
Air-to-Ground Coordination
With functions like the high-precision PinPoint and cloud-based real-time mapping, [14] the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.
Play Video
Play Video
Automated Precision Inspection
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, [15] the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.
Extensive Accessories

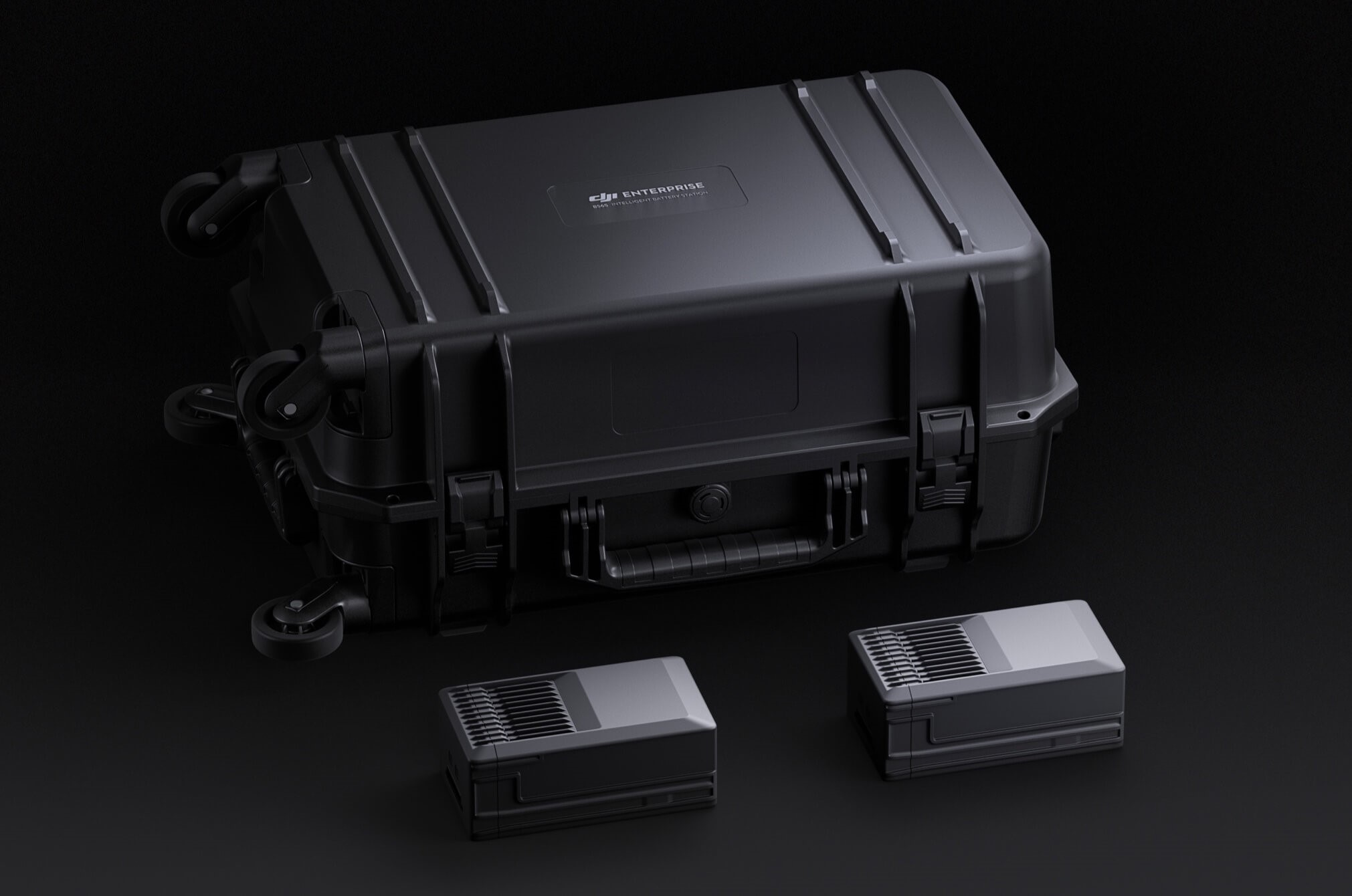

BS65 Intelligent Battery Station
The battery station provides a one-stop solution for battery charging, storage, and transport. The new Storage Mode and Ready-to-Fly Mode improve charging efficiency and extend the battery life. The new design of 360°-movement wheels facilitates more convenient transportation and transitions.
CSM Radar
The CSM Radar can be mounted on top of the drone to further ensure flight safety. The effective detection range can reach 30 m. [10] The radar can accurately detect subtle obstacles upward or within the horizontal 360° range to avoid them in time.

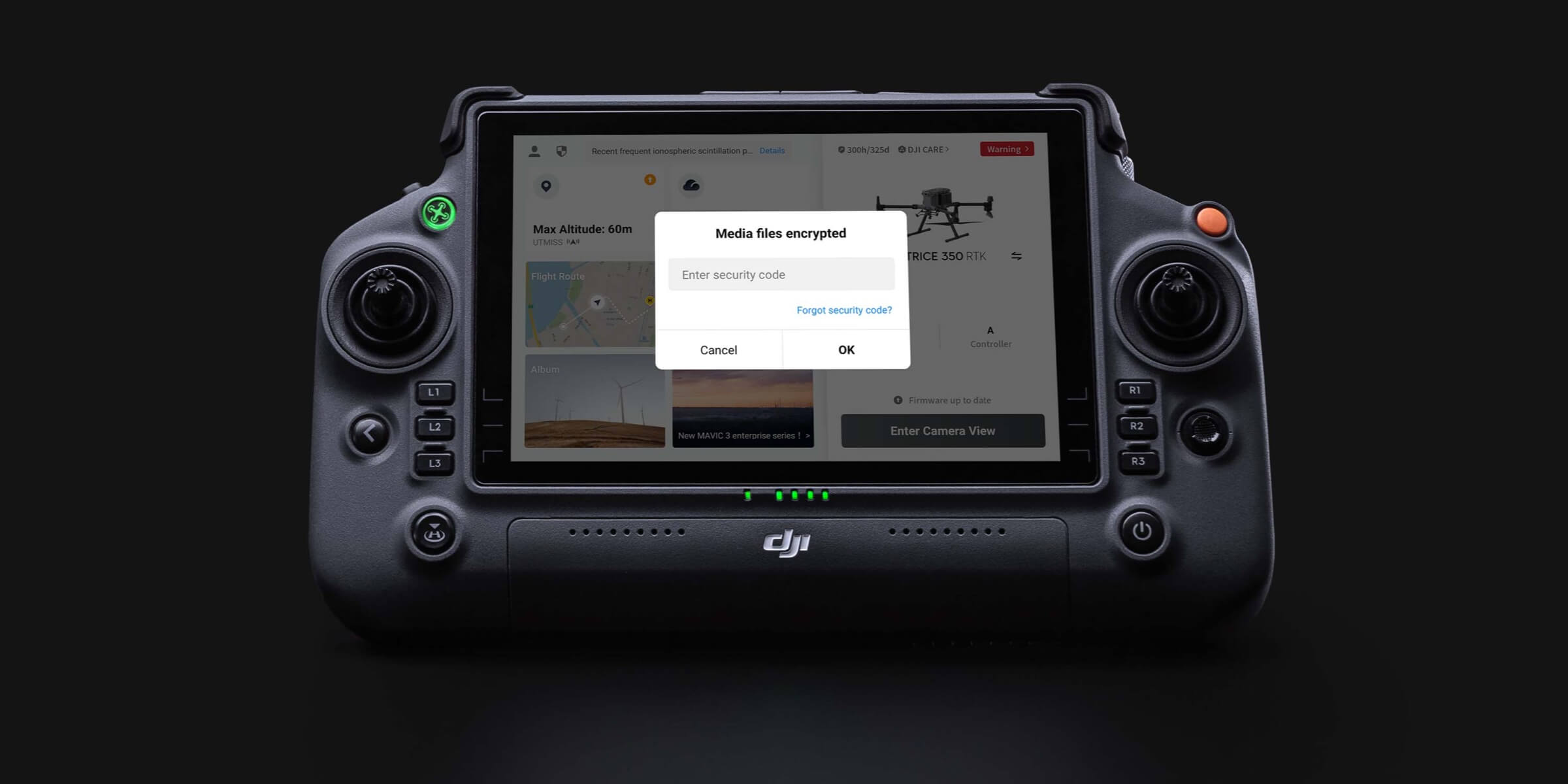

User Data Security
Media Data Encryption
Local Data Mode
One-Tap Clear All Device Data
AES-256 Video Transmission Encryption
Cloud API
Aircraft
| Dimensions (unfolded, without propellers) | 810×670×430 mm (L×W×H) |
| Dimensions (folded, with propellers) | 430×420×430 mm (L×W×H) |
| Diagonal Wheelbase | 895 mm |
| Weight (with single downward gimbal) | Without batteries: Approx. 3.77 kg |
| With two TB65 batteries: Approx. 6.47 kg | |
| Single Gimbal Damper’s Max Payload | 960 g |
| Max Takeoff Weight | 9.2 kg |
| Operating Frequency | 2.4000-2.4835 GHz |
| 5.150-5.250 GHz (CE: 5.170-5.250 GHz) | |
| 5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4000-2.4835 GHz: |
| < 33 dBm (FCC) | |
| < 20 dBm (CE/SRRC/MIC) | |
| 5.150-5.250 GHz (CE: 5.170-5.250 GHz): | |
| < 23 dBm (CE) | |
| 5.725-5.850 GHz: | |
| < 33 dBm (FCC/SRRC) | |
| < 14 dBm (CE) | |
| Hovering Accuracy (with moderate or no wind) | Vertical: |
| ±0.1 m (with vision positioning) | |
| ±0.5 m (with GNSS positioning) | |
| ±0.1 m (with RTK positioning) | |
| Horizontal: | |
| ±0.3 m (with vision positioning) | |
| ±1.5 m (with GNSS positioning) | |
| ±0.1 m (with RTK positioning) | |
| RTK Positioning Accuracy (RTK FIX) | 1 cm + 1 ppm (horizontal) |
| 1.5 cm + 1 ppm (vertical) | |
| Max Angular Velocity | Pitch: 300°/s |
| Yaw: 100°/s | |
| Max Pitch Angle | 30° |
| When in N mode and with the forward vision system enabled: 25°. | |
| Max Ascent Speed | 6 m/s |
| Max Descent Speed (vertical) | 5 m/s |
| Max Tilted Descent Speed | 7 m/s |
| Max Horizontal Speed | 23 m/s |
| Max Flight Altitude | 5000 m |
| When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg. | |
| 7000 m | |
| When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg. | |
| Max Wind Speed Resistance | 12 m/s |
| Max Flight Time | 55 minutes |
| Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until | |
| Supported DJI Gimbals | Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1 |
| Supported Gimbal Configurations | Single downward gimbal Single upward gimbal Dual downward gimbals Single downward gimbal + single upward gimbal Dual downward gimbals + single upward gimbal |
| Ingress Protection Rating | IP55 The IP rating is not permanently effective and may decrease due to product wear and tear. |
| Global Navigation Satellite System | GPS + GLONASS + BeiDou + Galileo |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
Remote Controller
| Screen | 7.02-inch LCD touchscreen |
| Resolution | 1920×1200 |
| Max Brightness | 1200 nits |
| Weight | Approx. 1.25 kg (without WB37 battery) |
| Approx. 1.42 kg (with WB37 battery) | |
| Global Navigation Satellite System | GPS + Galileo + BeiDou |
| Built-in Battery | Type: Li-ion (6500 [email protected] V) |
| Charging Type: Battery station or USB-C charger | |
| Charging Time: 2 hours | |
| Chemical System: LiNiCoAlO2 | |
| External Battery (WB37 Intelligent Battery) | Capacity: 4920 mAh |
| Voltage: 7.6 V | |
| Type: Li-ion | |
| Energy: 37.39 Wh | |
| Chemical System: LiCoO2 | |
| Ingress Protection Rating | IP54 |
| Operating Time | Built-in Battery: approx. 3.3 hours |
| Built-in Battery + External Battery: approx. 6 hours | |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Operating Frequency | 2.4000-2.4835 GHz |
| 5.725-5.850 GHz | |
| Transmitter Power (EIRP) | 2.4000-2.4835 GHz: |
| < 33 dBm (FCC) | |
| < 20 dBm (CE/SRRC/MIC) | |
| 5.725-5.850 GHz: | |
| < 33 dBm (FCC) | |
| < 14 dBm (CE) | |
| < 23 dBm (SRRC) | |
| Wi-Fi Protocol | Wi-Fi 6 |
| Wi-Fi Operating Frequency | 2.4000-2.4835 GHz |
| 5.150-5.250 GHz | |
| 5.725-5.850 GHz | |
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Operating Frequency | 2.4000-2.4835 GHz |
Video Transmission
| Video Transmission System | DJI O3 Enterprise Transmission |
| Antenna | 4 video transmission antennas, 2T4R |
| Max Transmission Distance (unobstructed, free of interference) | 20 km (FCC) |
| 8 km (CE/SRRC/MIC) | |
| Max Transmission Distance (with interference) | Low Interference and Obstructed by Buildings: approx. 0-0.5 km |
| Low Interference and Obstructed by Trees: approx. 0.5-3 km | |
| Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km | |
| Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km | |
| Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km | |
| Measured Transmission Distance. FCC Compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app. |
Vision System
| Obstacle Sensing Range | Forward/Backward/Left/Right: 0.7-40 m Upward/Downward: 0.6-30 m |
| FOV | Forward/Backward/Downward: 65° (horizontal), 50° (vertical) Left/Right/Upward: 75° (horizontal), 60° (vertical) |
| Operating Environment | Surfaces with discernible patterns and adequate lighting (lux > 15) |
Infrared Sensing System
| Obstacle Sensing Range | 0.1-8 m |
| FOV | 30° (±15°) |
| Operating Environment | Large, diffuse, and reflective obstacles (reflectivity > 10%) |
LED Auxiliary Light
| Effective Illumination Distance | 5 m |
| Illumination Type | 60 Hz, solid glow |
FPV Camera
| Resolution | 1080p |
| FOV | 142° |
| Frame Rate | 30fps |
Intelligent Flight Battery
| Model | TB65 |
| Capacity | 5880 mAh |
| Voltage | 44.76 V |
| Type | Li-ion |
| Energy | 263.2 Wh |
| Weight | Approx. 1.35 kg |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Ideal Storage Temperature | 22° to 30° C (71.6° to 86° F) |
| Charging Temperature | -20° to 40° C (-4° to 104° F) |
| Charging Time (220V power supply) | Approx. 60 minutes to fully charge two TB65 batteries; Approx. 30 minutes to charge from 20% to 90% |
| Charging Time (110V power supply) | Approx. 70 minutes to fully charge two TB65 batteries; Approx. 40 minutes to charge from 20% to 90% |
Please note that charging at low temperatures may reduce battery life, and it is recommended to charge within the recommended temperature range for optimal performance.
Intelligent Battery Station
| Dimensions | 580×358×254 mm (L×W×H) |
| Net Weight | Approx. 8.98 kg |
| Compatible Stored Items | Eight TB65 Intelligent Flight Batteries Four WB37 Intelligent Batteries |
| Input Voltage | 100-120 VAC, 50-60 Hz 220-240 VAC, 50-60 Hz |
| Max Input Power | 1070 W |
| Output Power | 100-120 V: 750 W 220-240 V: 992 W |
| Operating Temperature | -20° to 40° C (-4° to 104° F) |
Aircraft
What is the ingress protection (IP) rating of M350 RTK? Can I fly the drone in the rain?
M350 RTK is IP55 rated.
The IP rating is not permanently effective and may decrease due to wear and tear. Do not fly in rain heavier than 100 mm/24 hr.
Which propellers come with M350 RTK?
M350 RTK comes with the standard 2110s Propellers. You can also use the optional 2112 High-Altitude Low-Noise Propellers.
Can I use the propellers of M300 RTK on M350 RTK?
Yes, but only one type of propeller can be used simultaneously. Do not mix two types of propellers during use.
Can I replace the propellers of M350 RTK by myself?
Yes. When replacing the propellers, please also replace the corresponding screws and attach a proper amount of threadlocker (threadlocker 243 is recommended) to the surface of the new screws.
Battery
How long does it take to fully charge two TB65 Intelligent Flight Batteries?
With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.
Does M350 RTK support the TB60 Intelligent Flight Battery?
Yes, but only two TB60 batteries can be used simultaneously. Do not mix TB60 and TB65 batteries during use.
Why does the battery heat up during long-term storage?
During long-term storage, the battery will automatically discharge to approximately 50% to ensure storage safety and extend battery life. It is normal for the battery to feel slightly warm during this process.
Can I use the TB65 Intelligent Flight Battery in low-temperature environments?
Yes. The operating temperature of the TB65 Intelligent Flight Battery is -20° to 50° C (-4° to 122° F). When the battery is used in low-temperature environments, the battery life will be reduced. Please schedule the flight time properly. To ensure optimal performance, it is recommended to keep the battery temperature above 15° C (59° F) before flying.
For charging in environments of -20° to 5° C (-4° to 41° F), the battery will automatically heat up before starting the charging process. Once installed on the aircraft and powered on, the battery, if at a low temperature, will automatically heat up to maintain a temperature of approximately 16° to 20° C (60.8° to 68° F).
What is the service life of the TB65 Intelligent Flight Battery?
There are three ways to calculate the service life, including 12 months, 400 cycles, and 120 days of high-power storage. The final service life depends which comes first.
Can I carry the TB65 Intelligent Flight Battery onto an airplane?
The energy of the TB65 Intelligent Flight Battery is 263 Wh, so it cannot be carried onto an airplane according to airline regulations.
How do the fans of the BS65 Intelligent Battery Station work?
The fans automatically turn on or off and adjust rotation speed according to the ambient temperature and battery temperature.
How many batteries can be charged by the BS65 Intelligent Battery Station simultaneously?
The BS65 Intelligent Battery Station can store eight TB65 Intelligent Flight Batteries and four WB37 Intelligent Batteries at the same time. It can charge two TB65 batteries and one WB37 battery simultaneously. Batteries with the highest battery level will be charged first, followed by others with lower levels.
Remote Controller
How do I charge DJI RC Plus?
The charger for the remote controller is integrated in the BS65 Intelligent Battery Station. You can charge the remote controller by connecting it to the battery station with the USB-C cable.
Is M350 RTK compatible with the remote controller of M300 RTK?
No.
Can I use DJI RC Plus with M300 RTK or the M30 Series?
Yes. Please update the firmware of DJI RC Plus to v01.02.04.40 or higher, select the corresponding drone model in DJI Pilot 2, and then complete the linking.
Payloads
Which payloads are compatible with M350 RTK?
Zenmuse H20N, Zenmuse L1, Zenmuse P1, Zenmuse H20/H20T, and third-party payloads developed based on the Payload SDK.
How many payloads can be mounted on M350 RTK simultaneously?
M350 RTK supports mounting up to three payloads simultaneously, with the single upward gimbal and dual downward gimbals used together.
RTK
Can I use M350 RTK for precision surveying?
M350 RTK can perform precision surveying when equipped with Zenmuse P1, Zenmuse L1, or a third-party payload developed based on the Payload SDK. For details, please leave your contact information at the bottom of the page, and we will contact you as soon as possible.
Does M350 RTK support the post-processed kinematic (PPK) technology?
When M350 RTK is mounted with Zenmuse P1 or Zenmuse L1, the task folder stores photos/point clouds, GNSS observations, and image log files, which are used for PPK post-processing calculations.
How does M350 RTK obtain real-time differential data?
M350 RTK supports obtaining real-time differential data in the following ways:
- Connect the aircraft to the D-RTK 2 Mobile Station (supporting RTCM3.2 protocol) via DJI Pilot 2.
- Connect the remote controller to the custom Network RTK service based on NTRIP protocol (supporting RTCM3.0/RTCM3.1/RTCM3.2 protocols) via a Wi-Fi hotspot.
Can one D-RTK 2 Mobile Station support multiple M350 RTK simultaneously?
Yes, there is no limit to the number of drones that can be used simultaneously.
Firmware
How do I update the firmware?
You can update firmware in the following ways:
- Connect the aircraft to a computer and use DJI Assistant 2 (Enterprise Series) to update the firmware of the aircraft, remote controller, and D-RTK 2 Mobile Station.
- Use DJI Pilot 2 to update the firmware of the aircraft, remote controller, and Intelligent Battery Station.
- Visit the official DJI website to download the offline firmware update package for the aircraft, Intelligent Battery Station, and remote controller. Then, insert an SD card storing the firmware package into the remote controller for offline update.
For details, please refer to the user manual.
SDK
What changes have been made to the E-Port compared to the Onboard SDK port?
E-Port is a new-generation expansion port of DJI Enterprise drones. E-Port has the same pin definition as the Onboard SDK port, but the USB link requires that the third-party payload be used as a secondary device (opposite to the Onboard SDK port). In terms of software, E-Port only supports Payload SDK V3 or later versions, and is not compatible with Onboard SDK. For technical support.
Which kinds of SDK development does M350 RTK support?
M350 RTK supports Payload SDK, Mobile SDK, and Cloud API. For technical support.
Can I use third-party Payload SDK payloads compatible with the M200 Series and M300 RTK directly on M350 RTK?
Third-party payloads developed based on the Skyport V2 or X-Port can be compatible with M350 RTK after updating the adapter and third-party firmware. For other questions, please contact the corresponding payload provider or DJI Support.
Other
Which accessories are compatible with both M300 RTK and M350 RTK?
For details, please refer to the Accessory Compatibility List on the Downloads page.
What are the versions and areas of use of M350 RTK?
M350 RTK has two versions, including a Chinese version and a general version. The former can be used in China only, and the latter can be used in non-China regions. Please consult your local after-sales center or dealer about product availability.
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the warp and weft M350 RTK flight platform, and different types of PSDK loads can be quickly removed and replaced.
The FC30 EQUIPPED WITH A THREE-LOAD SUPPORT is designed for the DJI FlyCart 30 carrier and can support up to three ET4 FOUR DROP KIT at the same time, achieving 12-stage drops with a maximum payload of 120kg.
