Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

IP44 Rating
-20°C to 50°C Operating Temperature
Night Scene Mode
Active Image Stabilization and EIS
12 MP Wide Camera
82.9° DFOV
20 MP Zoom Camera
23× Hybrid Optical Zoom
Laser Rangefinder 1200 m

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
IP44 Rating
-20°C to 50°C Operating Temperature
Night Scene Mode
Active Image Stabilization and EIS
12 MP Wide Camera
82.9° DFOV
20 MP Zoom Camera
23× Hybrid Optical Zoom
Laser Rangefinder 1200 m

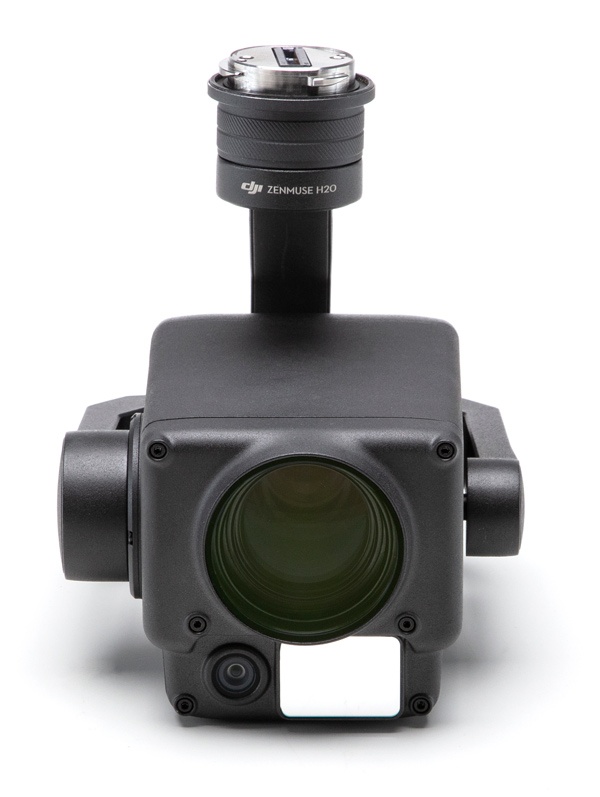

“H” For Hybrid
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

12 MP Wide Camera
82.9° DFOV
20 MP Zoom Camera
23× Hybrid Optical Zoom
Night Scene Mode
Laser RangeFinder
1200 m Max Range
IP44 Rating -20°C to 50°C Operating Temperature Active Image Stabilization and EIS

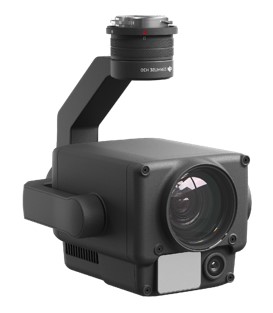

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Powerful Zoom Camera

  • 23× Hybrid Optical Zoom, 200× Max Zoom
  • 20 MP 1/1.7” CMOS Sensor
  • Video Resolution: 4K/30fps

Wide Camera

  • Equivalent Focal Length: 24mm, DFOV: 82.9°
  • 12 MP 1/2.3” CMOS Sensor

Laser Rangefinder

  • Range: 3 m – 1200 m
  • Accuracy: ± (0.2 m + D×0.15%)

Radiometric Thermal Camera

  • DFOV: 40.6°
  • Resolution: 640×512, Frame Rate: 30fps
  • Thermal Sensitivity: ≤ 50mk@f1.0 (NEDT)

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

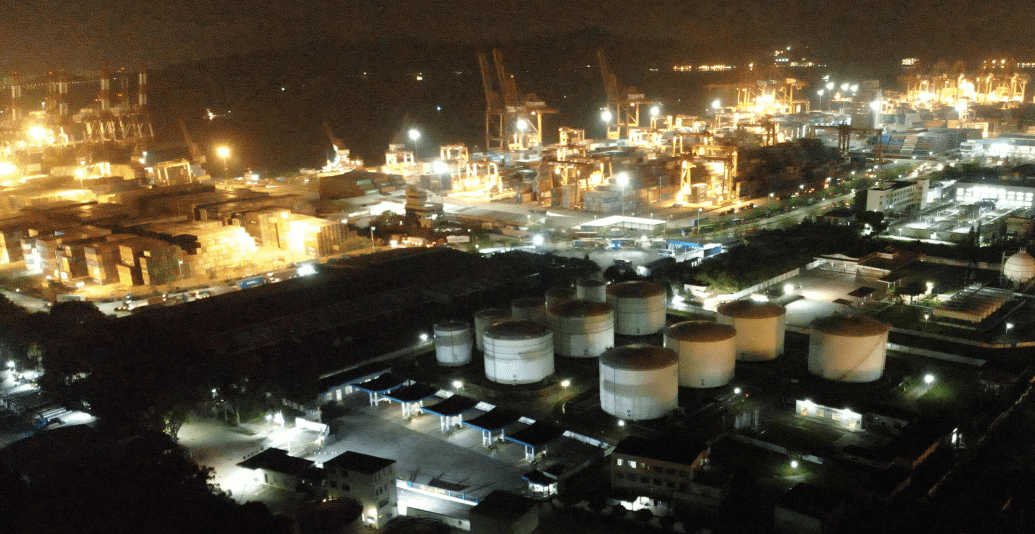

Wide picture. See the full picture without missing any details wherever, whenever your mission takes place.

Intelligent Features

Isotherms
Visualize a specific band of temperatures to find what is important.

Color Palettes
Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Specs

General

Weight

Zenmuse H20: 678±5 g
Zenmuse H20T: 828±5 g

Dimensions

Zenmuse H20: 150×114×151 mm
Zenmuse H20T: 167×135×161 mm

Ingress Protection Rating

IP44

Operating Temperature

-20° to 50° C (Temperature Measurement is only available between -10° to 50° C)

Storage Temperature

-20° to 60° C

Laser Safety

Class 1M (IEC 60825-1:2014)

Supported Aircraft

Matrice 300 RTK

Gimbal

Angular Vibration Range

±0.01°

Mount

Detachable

Controllable Range

Pitch: -120° to +30°
Yaw: ±320°

Mechanical Range

Pitch: -132.5° to +42.5°
Yaw: ±330°
Roll: -90° to +60°

Zoom Camera

Sensor

1/1.7″ CMOS, 20 MP

Lens

DFOV: 66.6°-4°
Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

Focus Mode

MF/AF-C/AF-S

Exposure Mode

Auto, Manual

Exposure Compensation

±3.0 (1/3 increments)

Metering Mode

Spot metering, Center-weighted metering

AE LOCK

Supported

Electronic Shutter Speed

1 ~ 1/8000 s

ISO Range

Video: 100 – 25600
Photo: 100 – 25600

Video Resolution

3840×2160@30fps, 1920×1080@30fps

Video Format

MP4

Video subtitles

Supported

Photo Size

5184 × 3888

Photo Format

JPEG

Wide Camera

Sensor

1/2.3″ CMOS, 12 MP

Lens

DFOV: 82.9°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞

Exposure Mode

Auto

Exposure Compensation

±3.0 (1/3 increments)

Metering Mode

Spot metering, Center-weighted metering

AE LOCK

Supported

Shutter Speed

1 ~ 1/8000

ISO Range

Video: 100 – 25600
Photo: 100 – 25600

Video Resolution

1920×1080@30fps

Video Format

MP4

Video subtitles

Supported

Photo Size

4056 x 3040

Photo Format

JPEG

Thermal Camera (Zenmuse H20T)

Sensor

Uncooled VOx Microbolometer

Lens

DFOV: 40.6°
Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞

Digital Zoom

1x, 2x, 4x, 8x

Video Resolution

640×512 @ 30 Hz

Video Format

MP4

Image Resolution

640×512

Image Format

R-JPEG (16 bit)

Pixel Pitch

12 μm

Spectral Band

8-14 μm

Sensitivity (NETD)

≤50 mK @ f/1.0

Temperature Measurement Method

Spot Meter, Area Measurement

Scene Range

-40 °C to 150 °C (High Gain)
-40 °C to 550 °C (Low Gain)

Temperature alert

Supported

FFC

Auto/ manual

Palette

White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Rangefinder

Wave length

905 nm

Measurement range

3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)

Measurement accuracy

± (0.2 m + D×0.15%)
D is the distance to a vertical surface

Features

Hybrid Optical Zoom

23×

Max. Zoom

200×

One Click Capture

One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously

Point to Aim

Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

Night Scene

Supported (zoom camera)

Timestamp

Including GPS, date, and time

Storage

Supported SD Card

MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

Supported File Systems

FAT32 (≤ 32 GB), exFAT (> 32 GB)

Recommended Micro SD Cards

TOSHIBA EXCERIA PRO 32GB micro SD HC II
SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
TOSHIBA EXCERIA PRO 64GB micro SD XC II
SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
SAMSUNG_EVO_128GB_micro SD 3 XC I
TOSHIBA EXCERIA M303E 32GB micro SD HC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303E 64GB micro SD XC I
TOSHIBA EXCERIA M303 128GB micro SD XC I
SAMSUNG_EVO_64GB_micro SD 3 XC I
