Altum Sensor Kit with DJI SkyPort for Matrice 210 V1

A revolutionary 3-in-1 solution for unparalleled sensing in a compact package. Ready to integrate with DJI SkyPort compatible drones (Matrice 300, Matrice 200 V1 and V2, and Matrice 210 V1 and V2).

  • Simultaneous capture of five discrete spectral bands and thermal images.
  • Enhanced image resolution on multispectral images enabling high resolution applications.
  • High capacity USB storage.
  • DLS 2 with embedded GPS for easier integration, enhanced light calibration.

A revolutionary 3-in-1 solution for unparalleled sensing in a compact package. Ready to integrate with DJI SkyPort compatible drones (Matrice 300, Matrice 200 V1 and V2, and Matrice 210 V1 and V2).

  • Simultaneous capture of five discrete spectral bands and thermal images.
  • Enhanced image resolution on multispectral images enabling high resolution applications.
  • High capacity USB storage.
  • DLS 2 with embedded GPS for easier integration, enhanced light calibration.

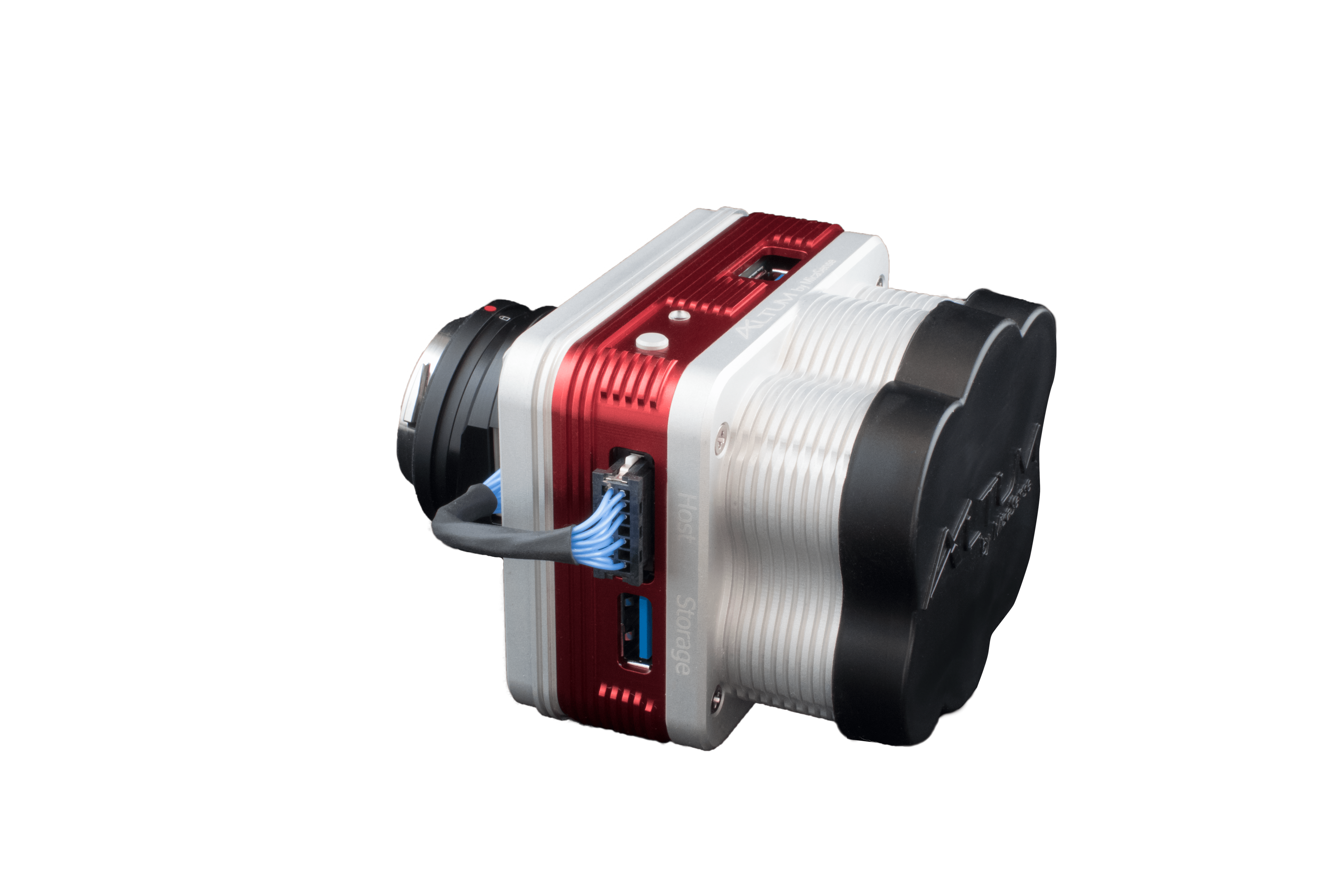

The Altum SkyPort sensor kit comes with: Altum sensor, SkyPort adapter, lens cover, external storage device (USB 3.0) – 128 GB, calibrated reflectance panel, new DLS 2 light sensor with integrated GPS, cables, compass, hard carrying case, and DLS2 mast kit .

*Integration with DJI M210 RTK drone has not been validated, therefore we cannot ensure compatibility.

FLY using Atlas Flight or Pix4Dcapture to plan your mission and configure the camera
PROCESS with software like Pix4Dmapper or Agisoft PhotoScan. Or create your own tools using our github tutorials.
ANALYZE calibrated and aligned outputs in whichever software works for you.

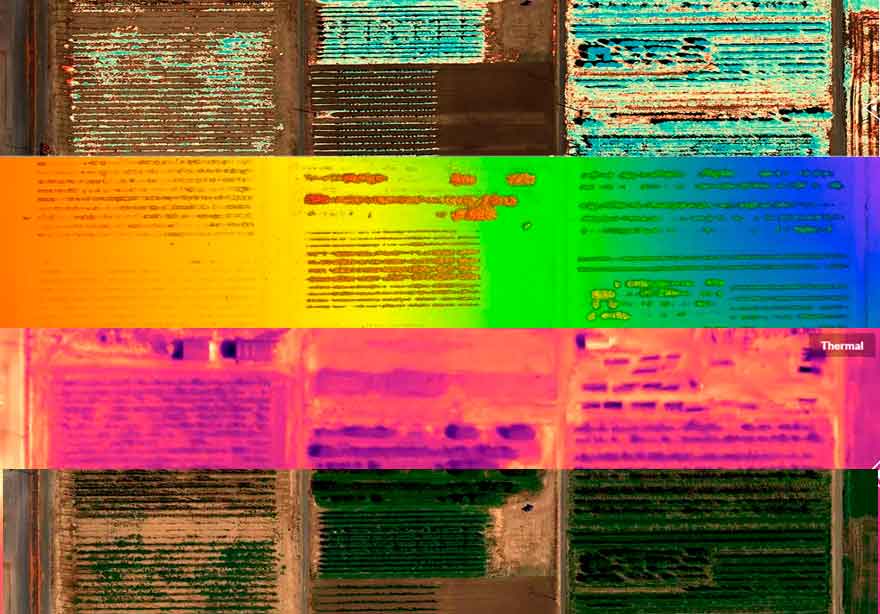

Discover the power of layersScroll through the high-res RGB, multispectral, and thermal images below and discover not only
pre-existing irrigation leaks, but new leaks in this Washington vineyard.

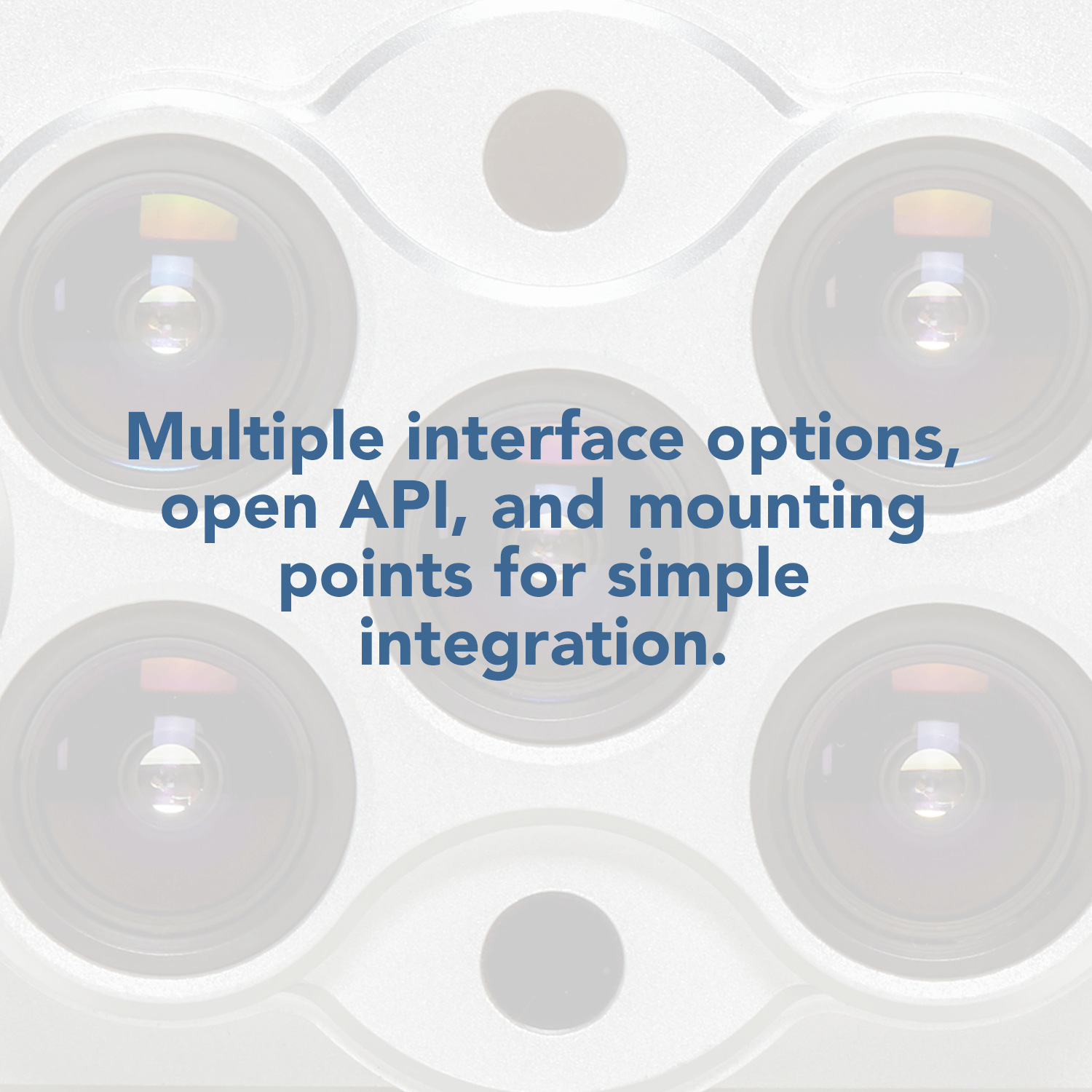

More detail from 400 ft. Five high-resolution lenses mean you get detailed plant health imagery (5.2 cm GSD) and detailed Digital Surface Models all from 400 ft.Ready for Your Drone Open API’s and multiple interface options mean that Altum can work with a wide variety of drones. To integrate Altum, work with our integration partners or view our available integration kits

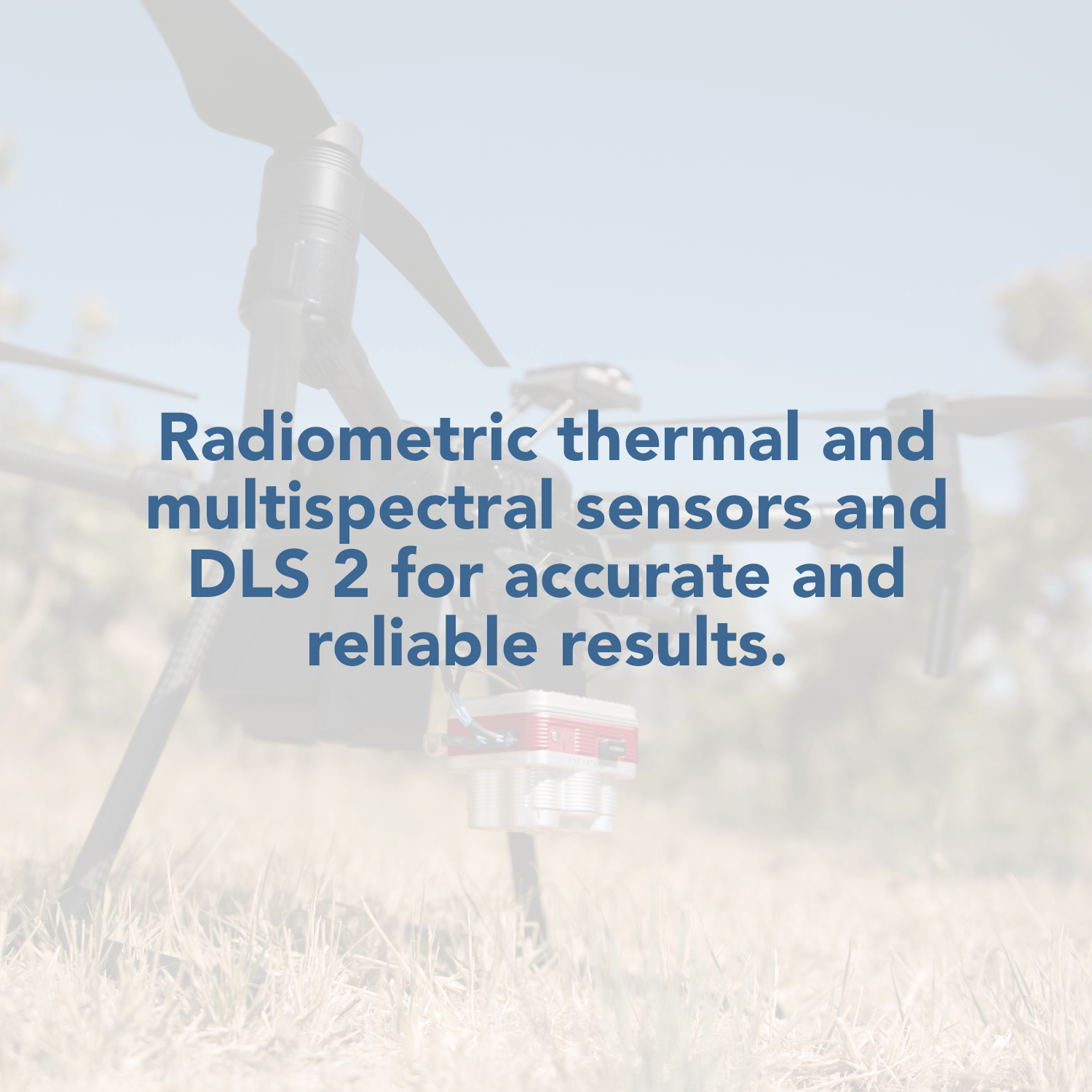

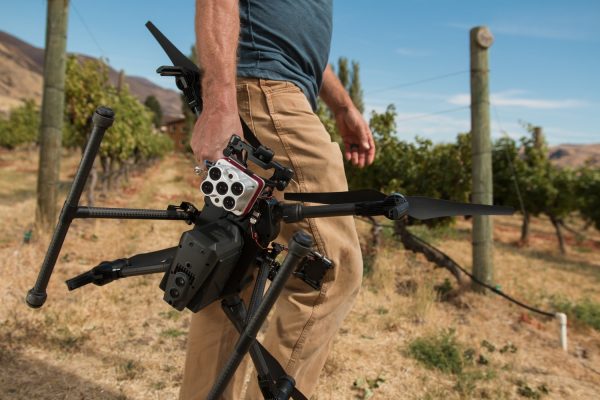

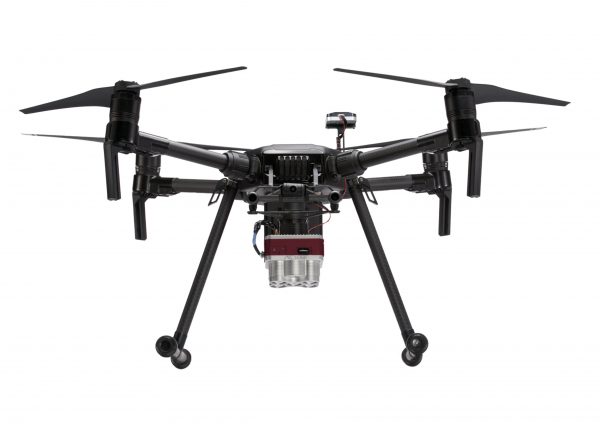

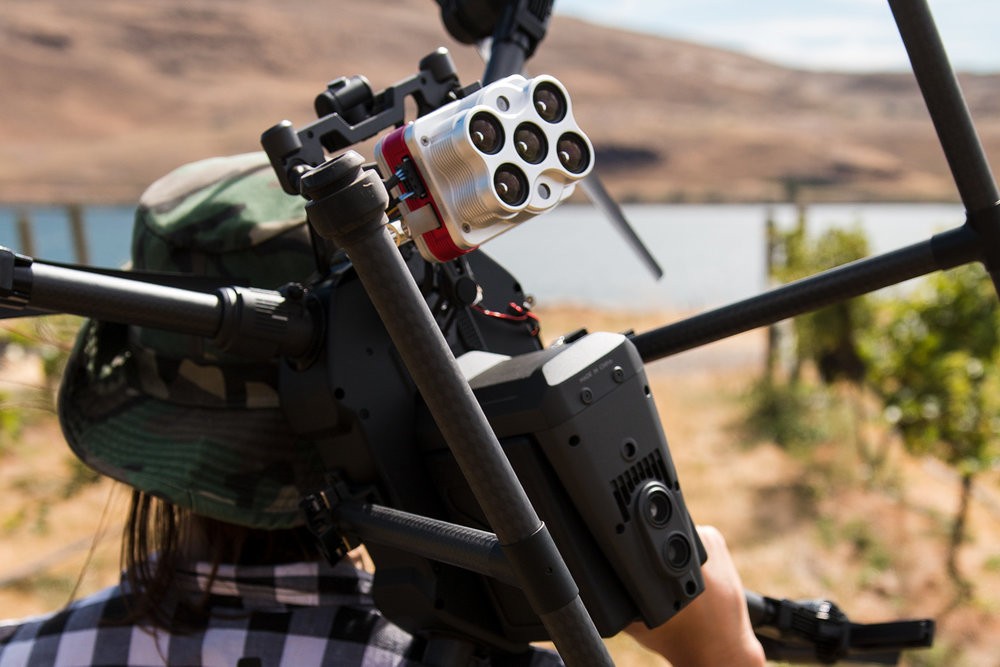

Altum for DJI SkyPort A plug and play integration right out of the box, Altum is available with the DJI SkyPort, enabling seamless integration with the DJI Matrice 200 series professional drones.Altum comes with DLS 2, our next generation light sensor. With cutting-edge technology for irradiance and sun angle measurements, it provides more accurate, reliable data, substantially improves radiometric accuracy, and greatly reduces post-processing time.

Optimized for drones, Altum is ready to integrate. And, because it also contains an integrated GPS, setup with any aircraft is streamlined.

Dig deeper into what you can do with Altum

Benefits Recap:

Capture aligned high-resolution, multispectral, and thermal imagery using only one sensor. Generate analytics for phenotyping, irrigation, and plant health from one data set.

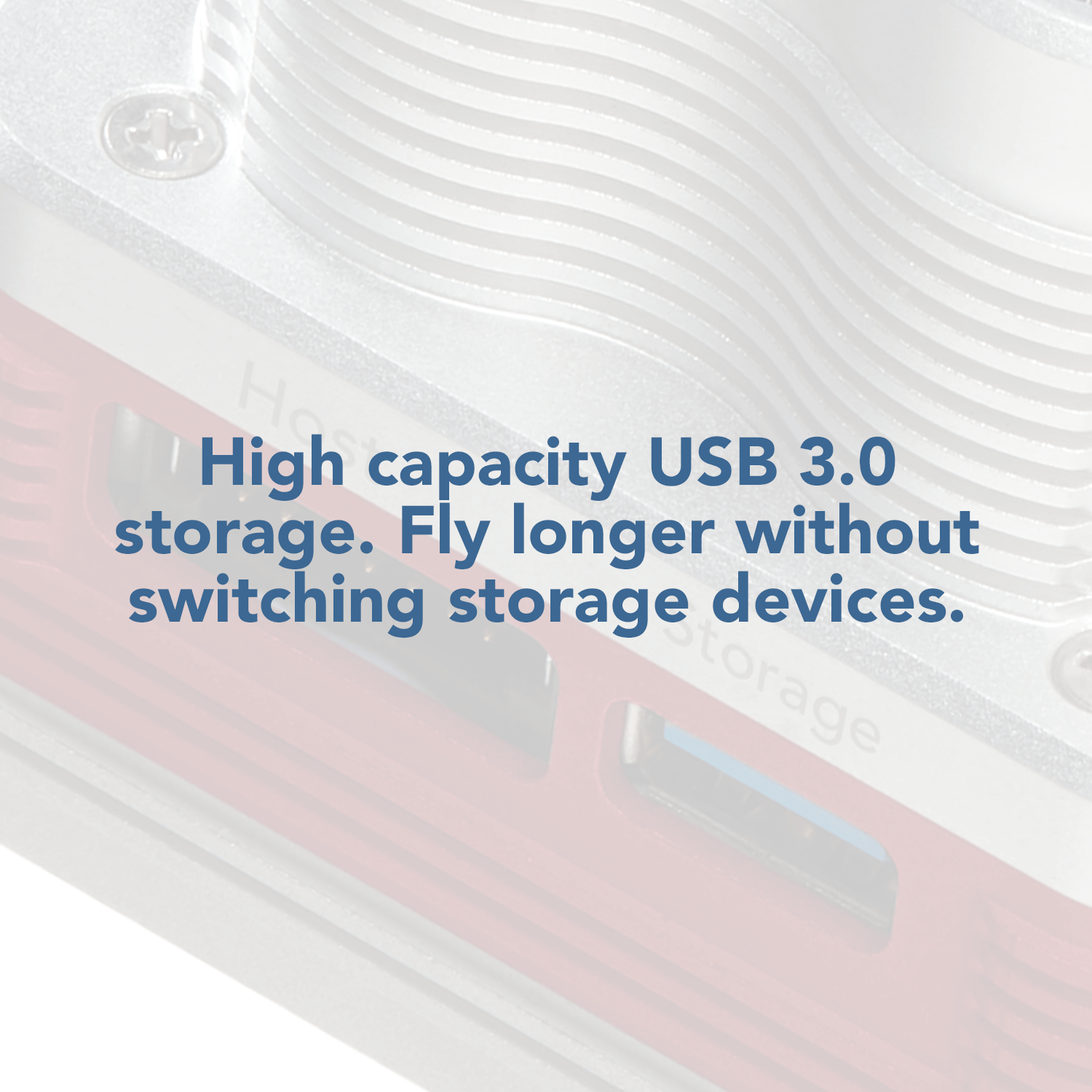

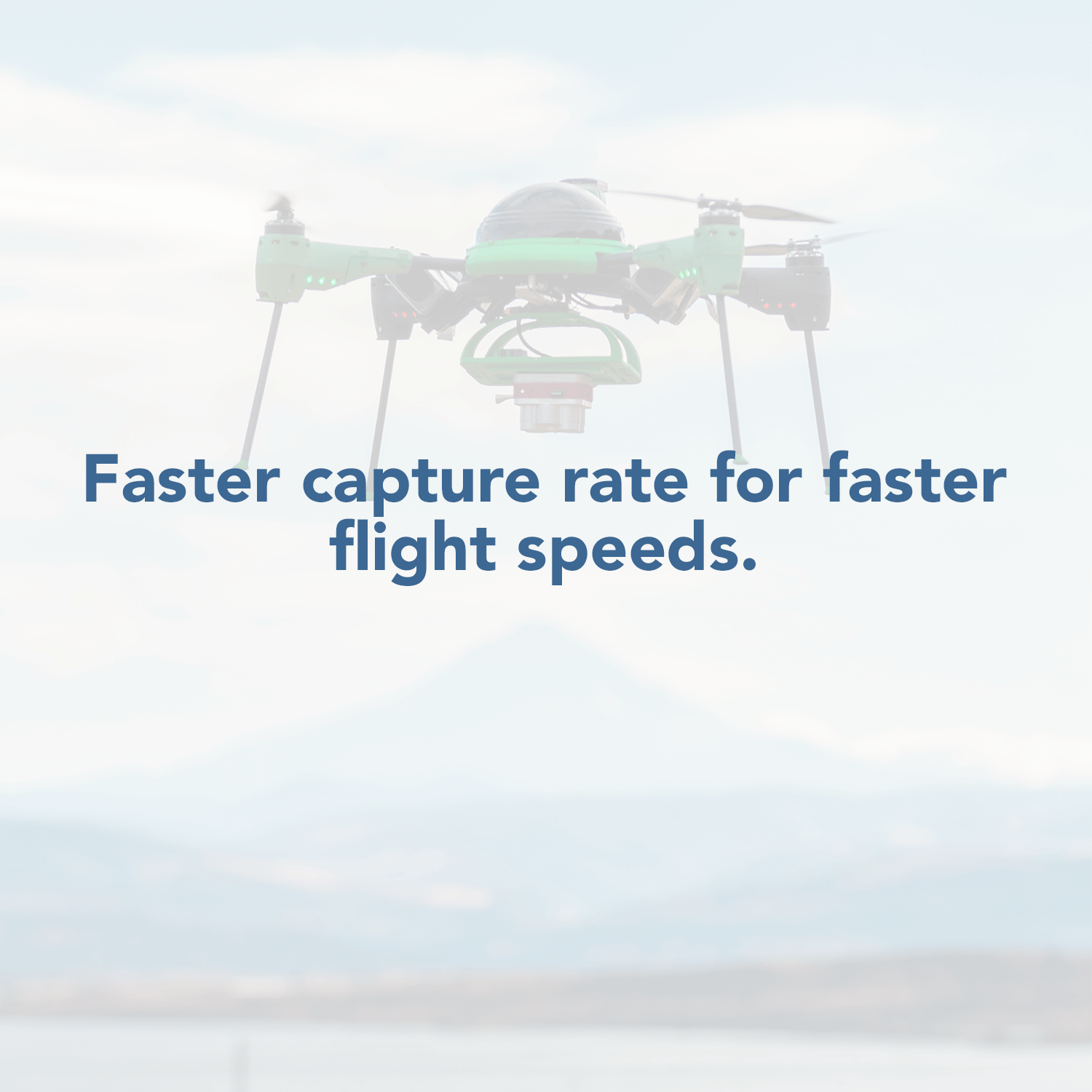

Improved resolution means more accurate digital surface models, easier stitching at lower altitudes, and better plant classification and plant counting. High-capacity USB storage means you can fly longer and cover more acreage. No more changing SD cards! Fast capture rate enables faster flight speeds and lower flight altitudes. Communication and triggering options allow for a customized integration; choose the configuration that best suits your project. Standard 16 bit TIFF file ouputs give you full access to raw data so you can process it on the platform of your choosing. DLS 2 features enhanced reflectance calibration, and combined GPS and DLS to simplify integration.



Weight: Altum + DLS 2: 406.5 g (14.34 oz)
Altum: 357 g (12.6 oz)
DLS2: 49 g (1.73 oz)
Wi-Fi Adapter: 2 g (0.07 oz)
USB stick: 9 g (0.32 oz)
Dimensions: 8.2 cm x 6.7 cm x 6.45 cm
(3.2 in x 2.6 in x 2.5 in)
External Power: 4.9 – 25.2 V
Power Input: 5.5/7.0/10W (standby, average, peak)
Spectral Bands: Blue, green, red, red edge, near infrared (NIR)
RGB Color Output: High-resolution, global shutter, aligned with all bands
Thermal: LWIR thermal infrared8-14um. Radiometrically calibrated
Sensor Resolution: 2064 x 1544 (3.2 MP per EO band) at 120m (400ft) AGL 81cm per pixel (thermal) at 120m
Ground Sample Distance (GSD): 5.2 cm per pixel (per EO band) at 120 m (~400 ft) AGL
81 cm per pixel (thermal) at 120 m
Capture Rate: 1 capture per second (all bands), 12-bit RAW
Interfaces: Aircraft: Trigger input, top of frame out, 1 PPS out. 3.3V isolated IO
2x USB 3.0 SuperSpeed ports for WiFi or Ethernet and USB 3.0 Storage
Field of View: 48° x 37° (multispectral)
57° x 44° (thermal)
Focal Length: 8 mm (multispectral)
1.77 mm (thermal)
Storage: USB 3.0 compatible storage devices
