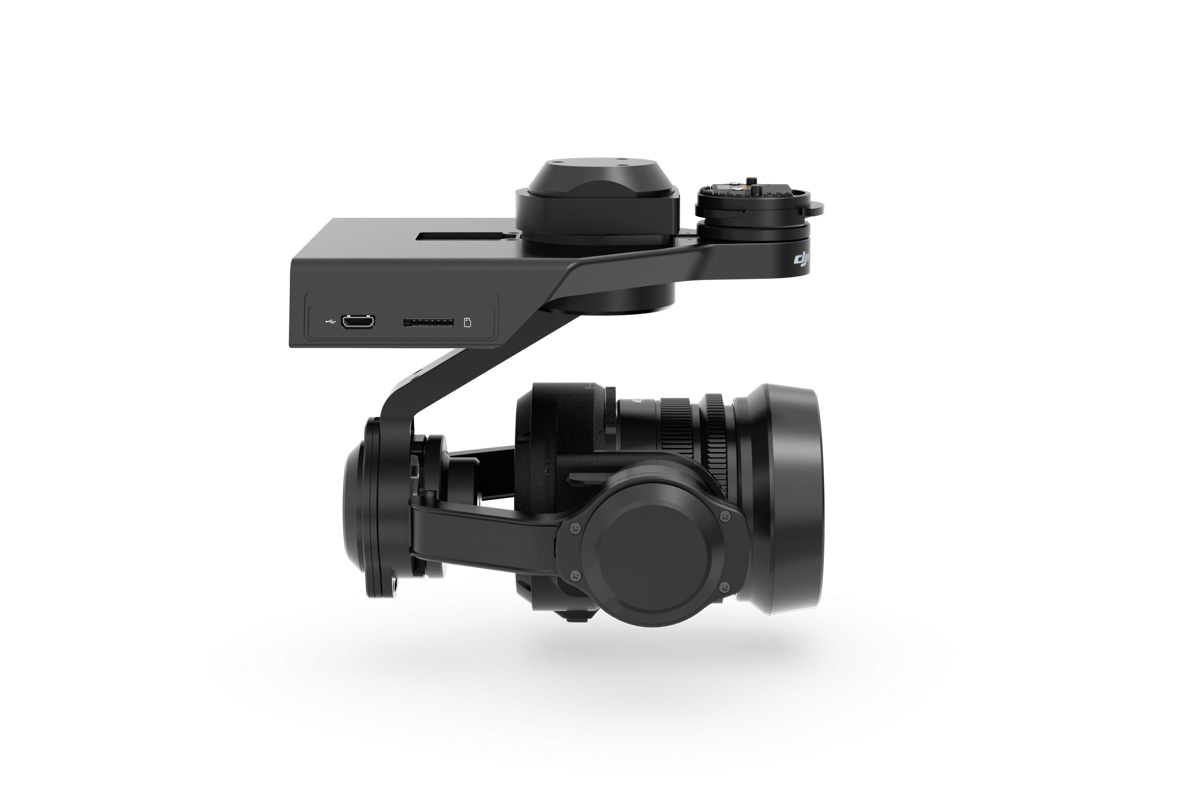

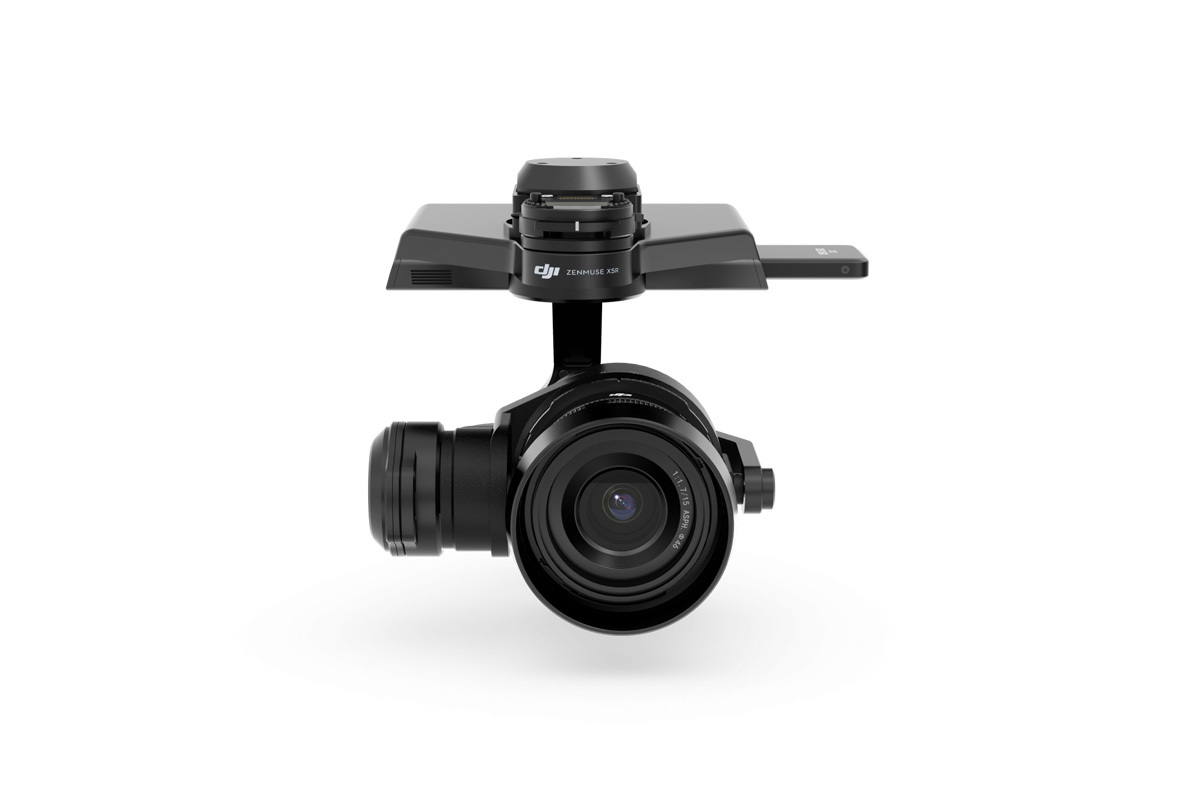

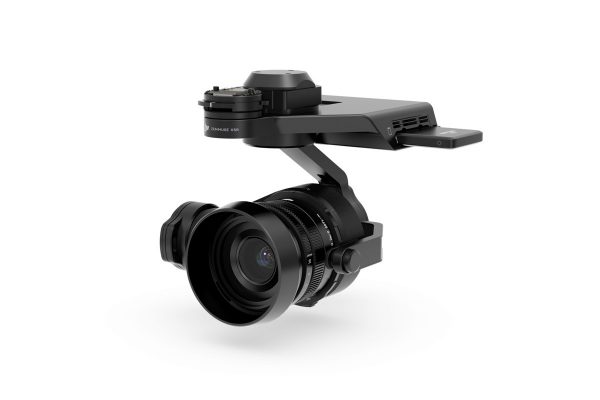

DJI Zenmuse X5R

  • The Micro Four Thirds aerial camera capable of recording lossless 4K videos in RAW. The framerate of up to 30fps and 1.7Gbps average bitrate (2.4Gbps maximum bitrate)
  • 16MP photographs
  • 12.8 stops of dynamic range

Note:

  • When using the Zenmuse X5 Series cameras, it is necessary to replace the original vibration absorbing board designed for the Inspire 1 V1.0’s standard Zenmuse X3 camera with the Zenmuse X5 Vibration Absorbing Board.
  • Zenmuse X5 cameras require the “Landing Gear Risers” for use with Inspire 1 V2.0 that is sold separately.
  • Zenmuse X5 cameras require an adaptor for use with Osmo that is sold separately. This adaptor will be available soon.

RECORD THE WORLD IN RAW
Get ready to experience the wonder of RAW. The Zenmuse X5R is the world’s first Micro Four Thirds aerial camera capable of recording lossless 4K videos in RAW. With a framerate of up to 30fps and 1.7Gbps average bitrate (2.4Gbps maximum bitrate), the X5R empowersyou to capture breathtaking professional-level footage every time. Packed with a powerful MFT sensor, the camera also takes 16MP imageswith stunning details, while the integrated 3-axis stabilization gimbal keeps the camera level. Finally, an aerial camera that’s truly fit forthe professionals.
INCREASED DYNAMIC RANGE
With 12.8 stops of dynamic range, shadows and highlights in everything you capture is brought out in perfect clarity.
REDUCED COMPRESSION FOR AMAZING DETAILS
The Zenmuse X5R gives you lossless 4K RAW video and crystal clear 16 megapixel photos. No other dedicated aerial camera can capture the same level ofdetail in every frame and every shot, even at distances that defy the imagination.
REVOLUTIONARY SENSOR
Built inside the Zenmuse X5R is a powerful Micro Four Thirds sensor that’s absolutely revolutionary for an aerial camera. With a sensor eight times the size of that in the previous X3 camera included with the Inspire 1, this new MFT sensor enables high quality, high sensitivity image recording at an ISO range of 100-25600. With a sophisticated balance of high-resolving power, accurate gradation, and low noise, you are realizing your artistic and creative vision as never before.
BUILT FOR THE SKY
To create the first fully integrated, professional aerial imaging system, the Zenmuse X5R was engineered and designed from the very beginning to be perfectly compatible with the Inspire 1, DJI’s most advanced quadcopter. With 360 degree camera movement and dual controller support, the Inspire 1 is the favorite ready-to-fly aerial platform for enthusiasts and professionals worldwide. Now, with a simple installation procedure, you can upgrade the camera on your Inspire 1 to the Zenmuse X5R, vastly increasing its imaging capabilities while retaining its ease of use and reliability.
COMPLETE CONTROL
With the Zenmuse X5R, you have an unprecedented level of control right at your fingertips. In the intuitive auto-focus mode, you can tell the camera to focus on a specific area by simply tapping on the screen of your mobile device, as easy as using the camera on a smartphone. Manual/Auto focus, shutter, white balance and aperture control are also available, giving you unlimited freedom to create any kind of shot you want. With the Zenmuse X5R, you are in complete control.
RAW POWER
With the Zenmuse X5R, DJI has brought the power of RAW to a dedicated aerial camera for the first time. Capable of recording 4K (3840 x 2160) videos in RAW at up to 30fps, the Zenmuse X5R gives you the ability to capture every video with all of its original data intact, giving you complete control to edit every single frame in post as a RAW file. Coupled with a maximum bitrate of an astonishing 2.4Gbps, the 4K videos recorded by the Zenmuse X5R will amaze you with a level of detail and clarity that’s absolutely unmatched by any other aerial camera.
BRILLIANT PHOTOGRAPHS
Thanks to its large MFT sensor, the Zenmuse X5R is capable of producing print-ready 16 MP still frames with an incredible amount of details. With high quality, high sensitivity image recording capabilities, the Zenmuse X5R captures photographs, in both JPEG and RAW, that will meet the highest of standards. The extra pixels (25% increase over the original Inspire 1 camera) not only provide you with more detailed images, but also more room to work with in post-processing. P/S/A/M shooting modes are all available, providing you with the freedom to shoot the way you want.
WORLD-LEADING STABILIZATION
Perfectly integrated with the camera, a 3-axis gimbal utilizes DJI’s world-leading stabilization technology to automatically stabilize your camera in flight. This gimbal communicates constantly with the aircraft as you fly, and powerful brushless motors instantly respond to every minor movement to keep the camera level, even when capturing long exposure or time-lapse content. So focus on what you want to shoot, knowing that the resulting footage will be stable and ready to use.
DJI GO APP
With an intuitive interface, DJI GO enables you to control the Zenmuse X5R camera remotely, adjust every setting on the fly, and focus the camera directly on what you want to capture. From 360 degree camera movements to a full range of manual settings including aperture, focus, shutter speed, and white balance, you are ready to control every aspect of the camera with DJI GO.
COMPACT AND DURABLE
The pinnacle of DJI’s industrial engineering capabilities, the Zenmuse X5R is precisely manufactured with high-grade magnesium alloys, enabling it to withstand heavy field use. Compact and lightweight to enable easy transportation and long flight times, the Zenmuse X5R is ready to come with you on every shoot.
PRECISE FOCUS CONTROL
As you fly, focus can be remotely adjusted using the GO app or the DJI Focus system. Simply plug this new follow focus controller into the Inspire 1 remote to have an accurate, familiar physical focus wheel that controls the way your shots look.

Tech Specs:

ZENMUSE X5
ZENMUSE X5R

General

Dimensions 120mm (W) x 135mm (H) x 140mm (D) 136mm (W) x 125mm (H) x 131mm (D)
WEIGHT (STANDARD LENS, BALANCING RING, LENS HOOD, MICRO SD CARD INCLUDED)
526 g 583 g
STATIC OUTPUT POWER
8 W 19.5W
PEAK OUTPUT POWER
13W 25W
OPERATING TEMPERATURE
32° to 104° F (0° to 40° C) 32° to 104° F (0° to 40° C)

Camera

LENS
Replaceable lens
M43 mount supporting auto-focus
Replaceable lens
M43 mount supporting auto-focus
SUPPORTED LENSES
DJI MFT 15mm f/1.7 ASPH *
Panasonic Lumix 15mm f/1.7 *
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8 *
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ *
(photography only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
(photopraphy only)
*Requires a balancing weight
DJI MFT 15mm f/1.7 ASPH *
Panasonic Lumix 15mm f/1.7 *
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8 *
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ *
(photography only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
(photopraphy only)
*Requires a balancing weight
SENSOR
4/3-inch CMOS sensor 4/3-inch CMOS sensor
EFFECTIVE PIXELS
1600 M 1600 M
MAX RESOLUTION
4608×3456 4608×3456
ISO RANGE
100~25600 100~25600
ELECTRONIC SHUTTER SPEED
8 to 1/8000 s 8 to 1/8000 s
FIELD OF VIEW (FOV)
15mm/ f1.7:72°
12mm/ f2.0:84°
15mm/ f1.7:72°
12mm/ f2.0:84°
STILL PHOTOGRAPHY MODES
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (5/7/10/20/30 sec)
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (5/7/10/20/30 sec)
VIDEO RESOLUTION
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);
FHD: 1920×1080 (24/25/30/48/50/60p)
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);
FHD: 1920×1080 (24/25/30/48/50/60p)
MAX VIDEO BITRATE
60 Mbps 2.4Gbps (Average: 1.7 Gbps)
SUPPORTED FILE FORMATS
FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F)
FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F), JPEG-Lossless(RAW)
SUPPORTED STORAGE DEVICES
Class 10 or UHS-1 or above Micro SD cards
Max capacity of 64 GB
Class 10 or UHS-1 or above Micro SD cards with Max capacity of 64GB
SSD with Capacity of 512GB (ZENMUSE X5R)

Default Lens

NAME
DJI MFT 15mm f/1.7 ASPH DJI MFT 15mm f/1.7 ASPH
FOCAL LENGTH
f=15 mm (35 mm film camera equivalent: 30 mm) f=15 mm (35 mm film camera equivalent: 30 mm)
APERTURE TYPE
7 diaphragm blades/circular aperture diaphragm 7 diaphragm blades/circular aperture diaphragm
MAXIMUM APERTURE
F1.7 F1.7
MINIMUM APERTURE VALUE
F16 F16
LENS CONSTRUCTION
9 elements in 7 groups (3 aspherical elements) 9 elements in 7 groups (3 aspherical elements)
IN FOCUS DISTANCE
0.2 m to ∞ (from the focus distance reference line) 0.2 m to ∞ (from the focus distance reference line)
MOUNT
Micro 4/3 Micro 4/3
FIELD OF VIEW (FOV)
72° 72°
MAX. DIAMETER
Approx. 57.5 mm Approx. 57.5 mm
OVERALL LENGTH
Approx. 36 mm Approx. 36 mm
MASS
Approx. 115 g Approx. 115 g

Gimbal

MODEL
Zenmuse X5 Zenmuse X5R
ANGULAR VIBRATION RANGE
±0.02° ±0.02°
MOUNT
Detachable Detachable
CONTROLLABLE RANGE
Pitch: -90° to +30°
Pan: ±320°
Pitch: -90° to +30°
Pan: ±320°
MAX CONTROLLABLE SPEED
Pitch: 120°/s
Pan: 180°/s
Pitch: 120°/s
Pan: 180°/s
