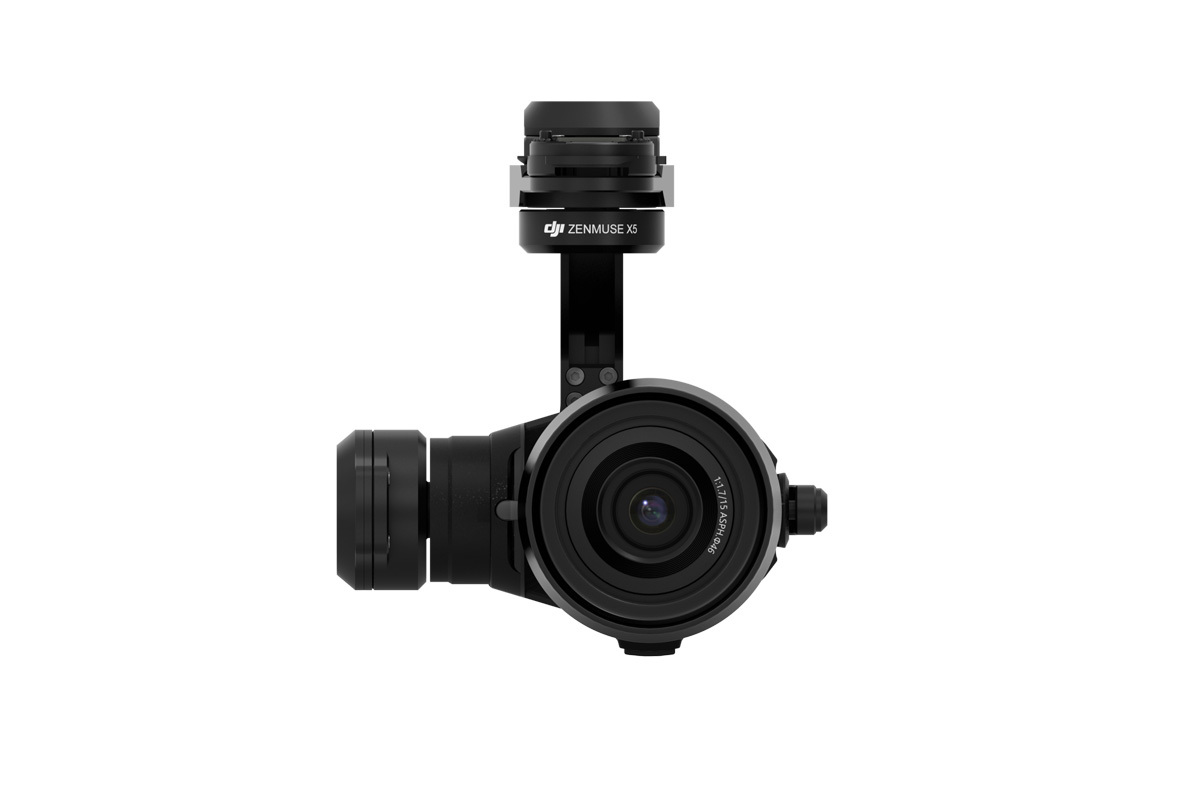

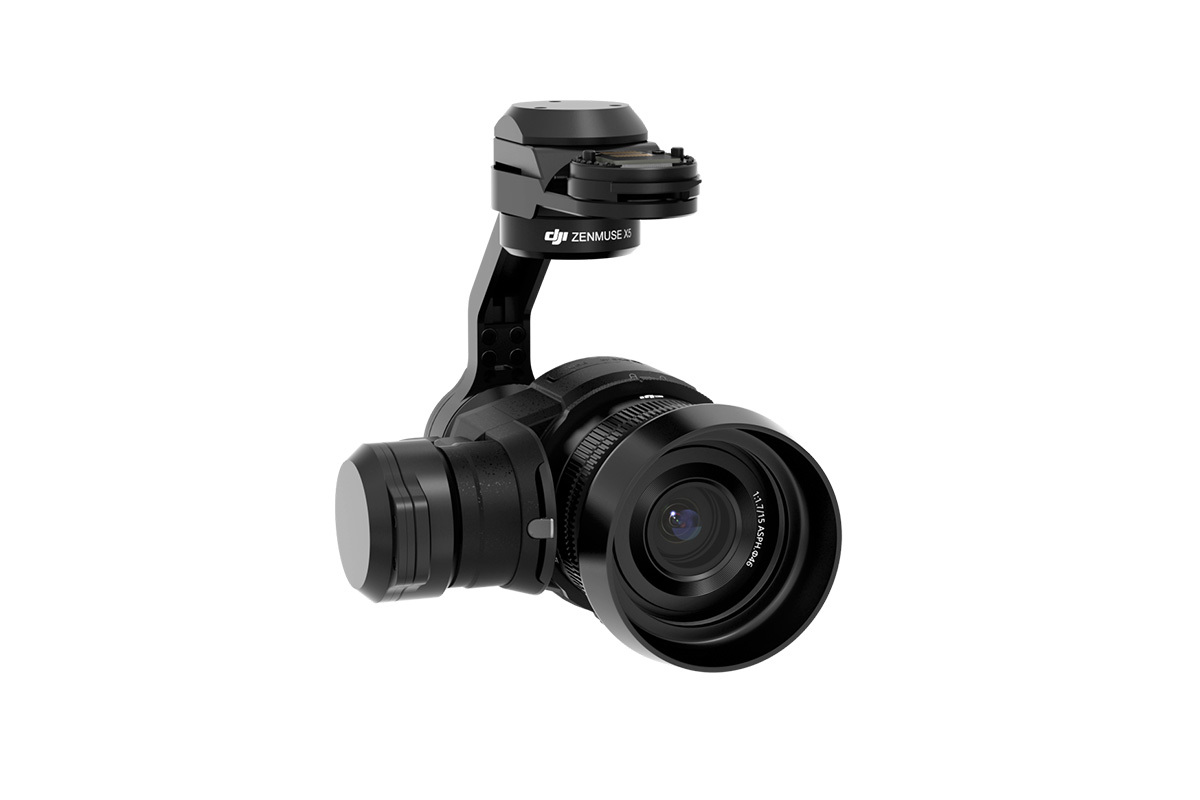

DJI Zenmuse X5

  • 4K video at up to 30fps
  • Record at 4096×2160 (24fps) or 3840×2160 (30/25fps)
  • 16MP photographs
  • 12.8 stops of dynamic range
  • Zenmuse X Series Cameras Comparison

Note:

  • When using the Zenmuse X5 Series cameras, it is necessary to replace the original vibration absorbing board designed for the Inspire 1 V1.0’s standard Zenmuse X3 camera with the Zenmuse X5 Vibration Absorbing Board.
  • Zenmuse X5 cameras require the “Landing Gear Risers” for use with Inspire 1 V2.0 that is sold separately.
  • Zenmuse X5 cameras require an adaptor for use with Osmo that is sold separately. This adaptor will be available soon.



ZENMUSE X5
ZENMUSE X5R

General

Dimensions 120mm (W) x 135mm (H) x 140mm (D) 136mm (W) x 125mm (H) x 131mm (D)
WEIGHT (STANDARD LENS, BALANCING RING, LENS HOOD, MICRO SD CARD INCLUDED)
526 g 583 g
STATIC OUTPUT POWER
8 W 19.5W
PEAK OUTPUT POWER
13W 25W
OPERATING TEMPERATURE
32° to 104° F (0° to 40° C) 32° to 104° F (0° to 40° C)

Camera

LENS
Replaceable lens
M43 mount supporting auto-focus
Replaceable lens
M43 mount supporting auto-focus
SUPPORTED LENSES
DJI MFT 15mm f/1.7 ASPH *
Panasonic Lumix 15mm f/1.7 *
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8 *
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ *
(photography only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
(photopraphy only)
*Requires a balancing weight
DJI MFT 15mm f/1.7 ASPH *
Panasonic Lumix 15mm f/1.7 *
Olympus M. ED 12mm f/2.0
Olympus M.Zuiko 17mm f/1.8 *
Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ *
(photography only)
Olympus M.Zuiko 25mm f1.8
Olympus M.Zuiko 45mm f1.8
(photopraphy only)
*Requires a balancing weight
SENSOR
4/3-inch CMOS sensor 4/3-inch CMOS sensor
EFFECTIVE PIXELS
1600 M 1600 M
MAX RESOLUTION
4608×3456 4608×3456
ISO RANGE
100~25600 100~25600
ELECTRONIC SHUTTER SPEED
8 to 1/8000 s 8 to 1/8000 s
FIELD OF VIEW (FOV)
15mm/ f1.7:72°
12mm/ f2.0:84°
15mm/ f1.7:72°
12mm/ f2.0:84°
STILL PHOTOGRAPHY MODES
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (5/7/10/20/30 sec)
Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias
Time-lapse (5/7/10/20/30 sec)
VIDEO RESOLUTION
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);
FHD: 1920×1080 (24/25/30/48/50/60p)
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p);
FHD: 1920×1080 (24/25/30/48/50/60p)
MAX VIDEO BITRATE
60 Mbps 2.4Gbps (Average: 1.7 Gbps)
SUPPORTED FILE FORMATS
FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F)
FAT32 / exFAT
Photo: JPEG, DNG
Video: MP4, MOV (MPEG-4/AVC/H.264F), JPEG-Lossless(RAW)
SUPPORTED STORAGE DEVICES
Class 10 or UHS-1 or above Micro SD cards
Max capacity of 64 GB
Class 10 or UHS-1 or above Micro SD cards with Max capacity of 64GB
SSD with Capacity of 512GB (ZENMUSE X5R)

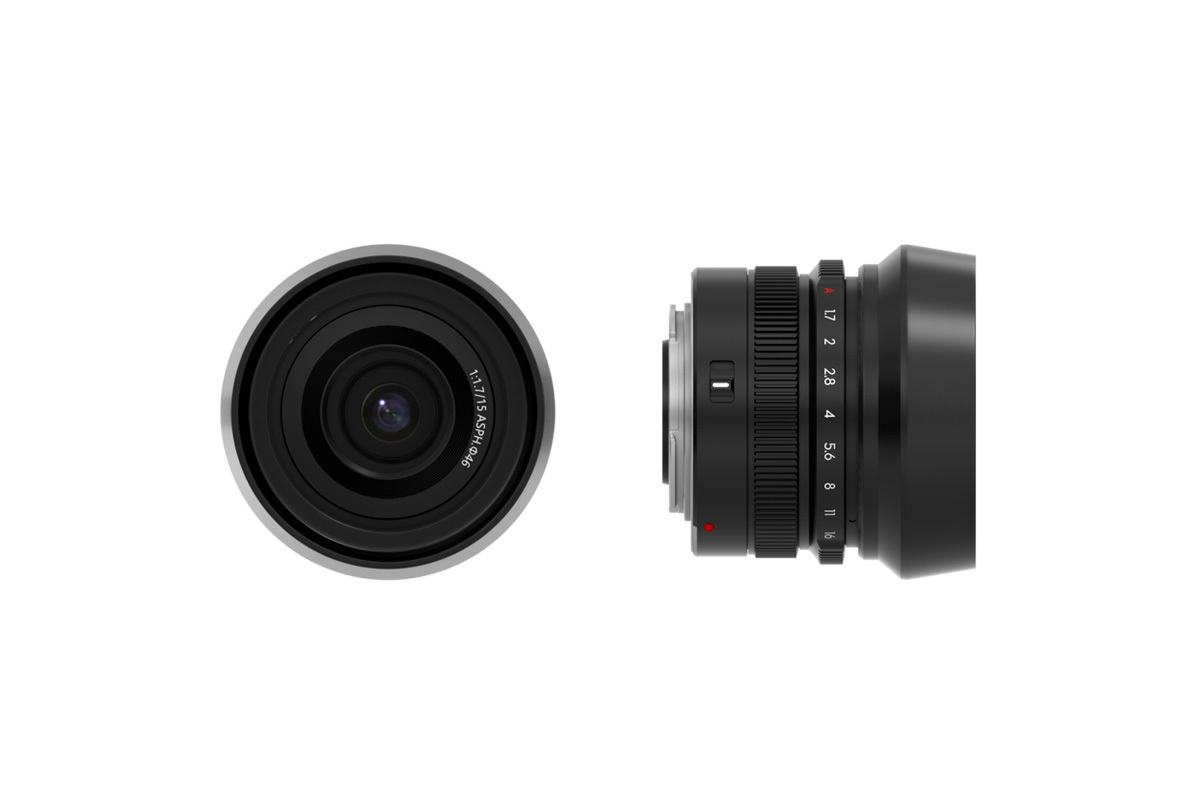

Default Lens

NAME
DJI MFT 15mm f/1.7 ASPH DJI MFT 15mm f/1.7 ASPH
FOCAL LENGTH
f=15 mm (35 mm film camera equivalent: 30 mm) f=15 mm (35 mm film camera equivalent: 30 mm)
APERTURE TYPE
7 diaphragm blades/circular aperture diaphragm 7 diaphragm blades/circular aperture diaphragm
MAXIMUM APERTURE
F1.7 F1.7
MINIMUM APERTURE VALUE
F16 F16
LENS CONSTRUCTION
9 elements in 7 groups (3 aspherical elements) 9 elements in 7 groups (3 aspherical elements)
IN FOCUS DISTANCE
0.2 m to ∞ (from the focus distance reference line) 0.2 m to ∞ (from the focus distance reference line)
MOUNT
Micro 4/3 Micro 4/3
FIELD OF VIEW (FOV)
72° 72°
MAX. DIAMETER
Approx. 57.5 mm Approx. 57.5 mm
OVERALL LENGTH
Approx. 36 mm Approx. 36 mm
MASS
Approx. 115 g Approx. 115 g

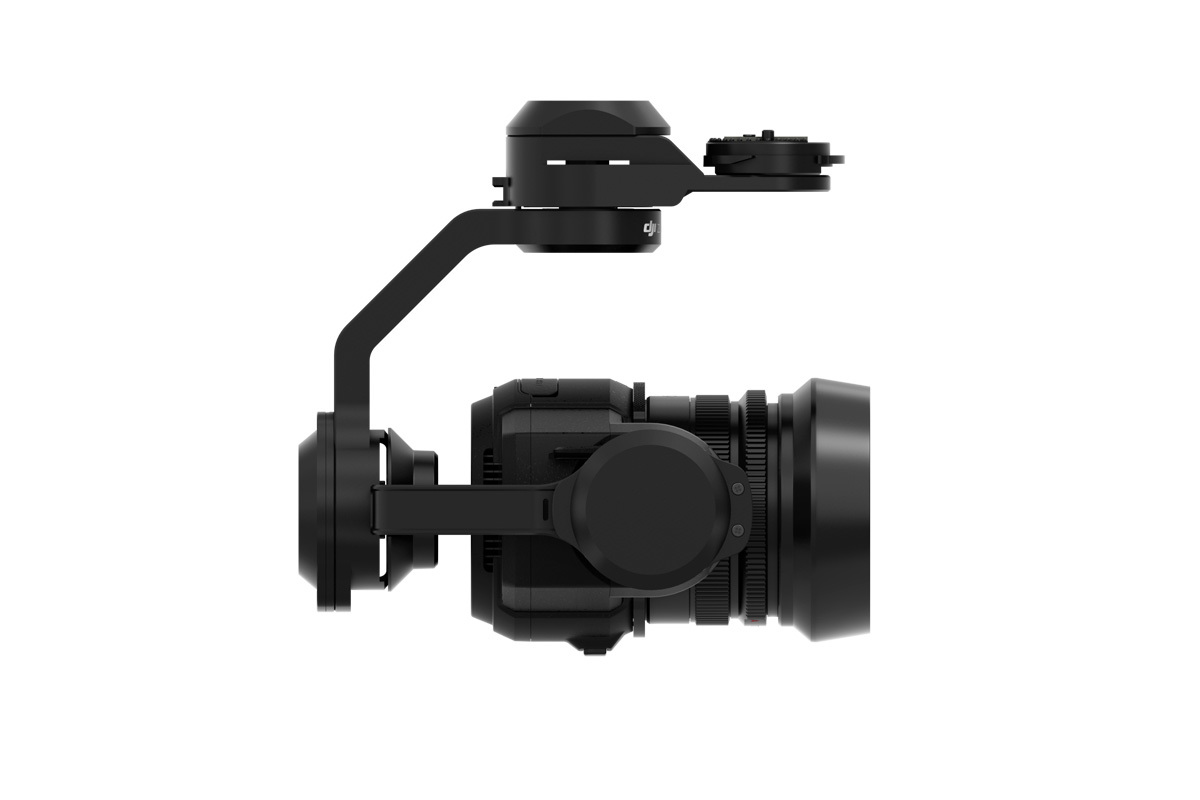

Gimbal

MODEL
Zenmuse X5 Zenmuse X5R
ANGULAR VIBRATION RANGE
±0.02° ±0.02°
MOUNT
Detachable Detachable
CONTROLLABLE RANGE
Pitch: -90° to +30°
Pan: ±320°
Pitch: -90° to +30°
Pan: ±320°
MAX CONTROLLABLE SPEED
Pitch: 120°/s
Pan: 180°/s
Pitch: 120°/s
Pan: 180°/s
