UgCS Expert LIDAR Toolset

The UgCS LIDAR toolset unlocks the full potential of LIDARs enabling effective remote sensing without human error. Delivers everything that UgCS Pro delivers plus LIDAR capabilities.

  • Save time on mission planning with flight patterns and turns designed specifically for LIDAR surveys
  • Acquire high-quality laser data with preset IMU initialization patterns and anti-shake LIDAR turns
  • High accuracy of acquired data ensures getting desired results with one trip to the field

Supports most popular LIDAR platforms: DJI, YellowScan, Riegl, PhoenixLIDAR, LIDAR USA, GeoCue, Rock Robotics, & GeoSun LIDAR

Categories ,

UAV-based LIDAR mapping

Unlock the full potential of LIDAR survey missions with UgCS LIDAR toolset

Product by sph engineering

UgCS LIDAR toolset unlocks the full potential of LIDARs making remote sensing most effective with no human errors

Advantages of UgCS LIDAR tools

Flight planning

Save time on mission planning with flight patterns and turns designed specifically for LIDAR surveys

Flight

Acquire high-quality laser data with preset IMU initialization patterns and anti-shake LIDAR turns

Post-flight

High accuracy of laser data acquired during the flight ensures getting desired results with one trip to the field

UgCS LIDAR toolset is currently supported for DJI drones

DJI M300 Series

DJI M600 series

with integrated cameras

DJI Matrice 200/210 series

Supported LIDARs

UgCS supports most popular UAV-based LIDARs:

UgCS LIDAR toolset in action

How-To: Drone-based LIDAR missions planning

Part 1/4 LIDAR calibration
Part 2/4 LIDAR area scan
Part 3/4 LIDAR corridor scan
Part 4/4 Turns and buffer

Key Features

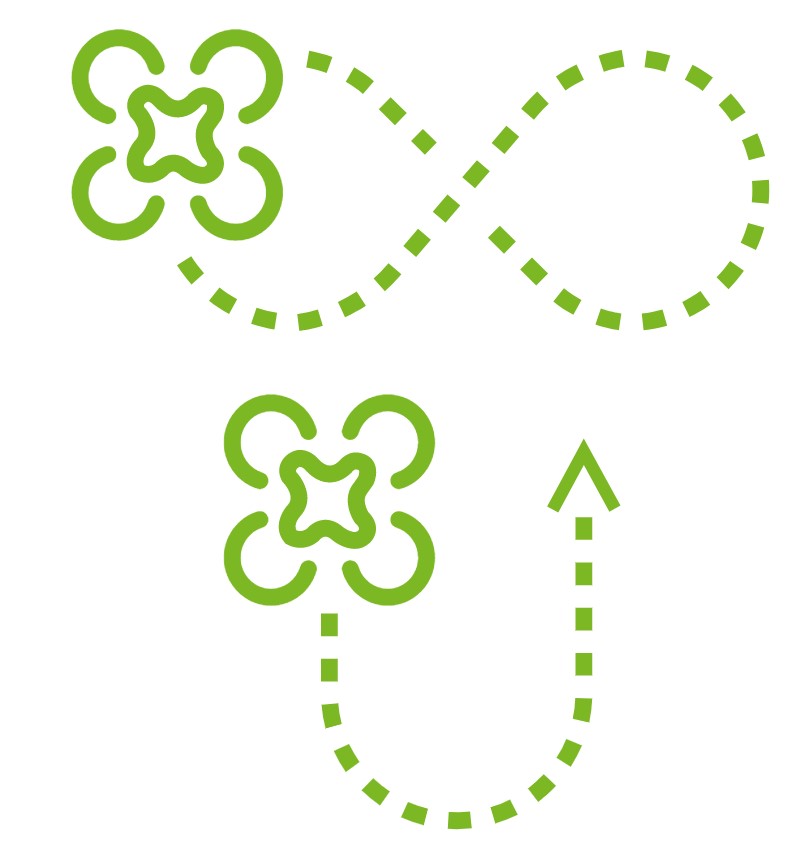

Precise calibration

Increase the accuracy of laser data with automated IMU calibration commands. UgCS supports the two most popular IMU calibration patterns: Eight-figure and U-figure

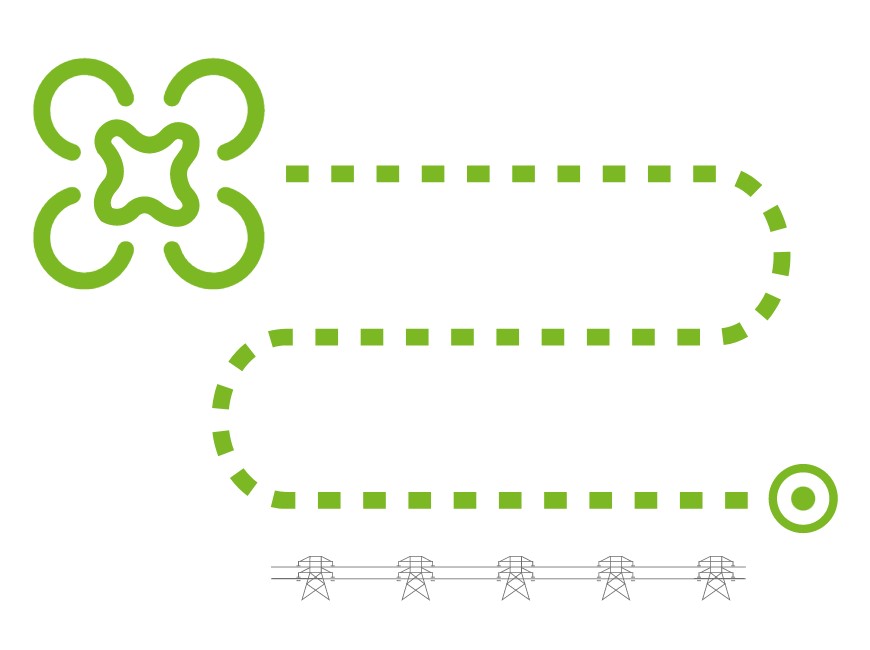

Flight patterns for route planning

Based on the area of your interest, set up LIDAR Area scanning for areas like construction sites, open-pit mines, and forests, or employ LIDAR Corridor scanning for linear objects like power lines or pipelines

Anti-shake turns

Reduce shaking of the sensor, while accurately following the trajectory, with bank or loop turns applied automatically

Constant line spacing and buffer

Automatically calculate required line spacing and overlap to ensure desired point cloud density and improve coverage on area borders

Сommon LIDAR applications

Plan and fly LIDAR survey missions with UgCS
Power line inspections
Road inspections
Construction
Mining
Archaeology
Forestry

Customers in 150+ countries use SPH Engineering solutions daily for drone mission planning, flight control, and data management.
