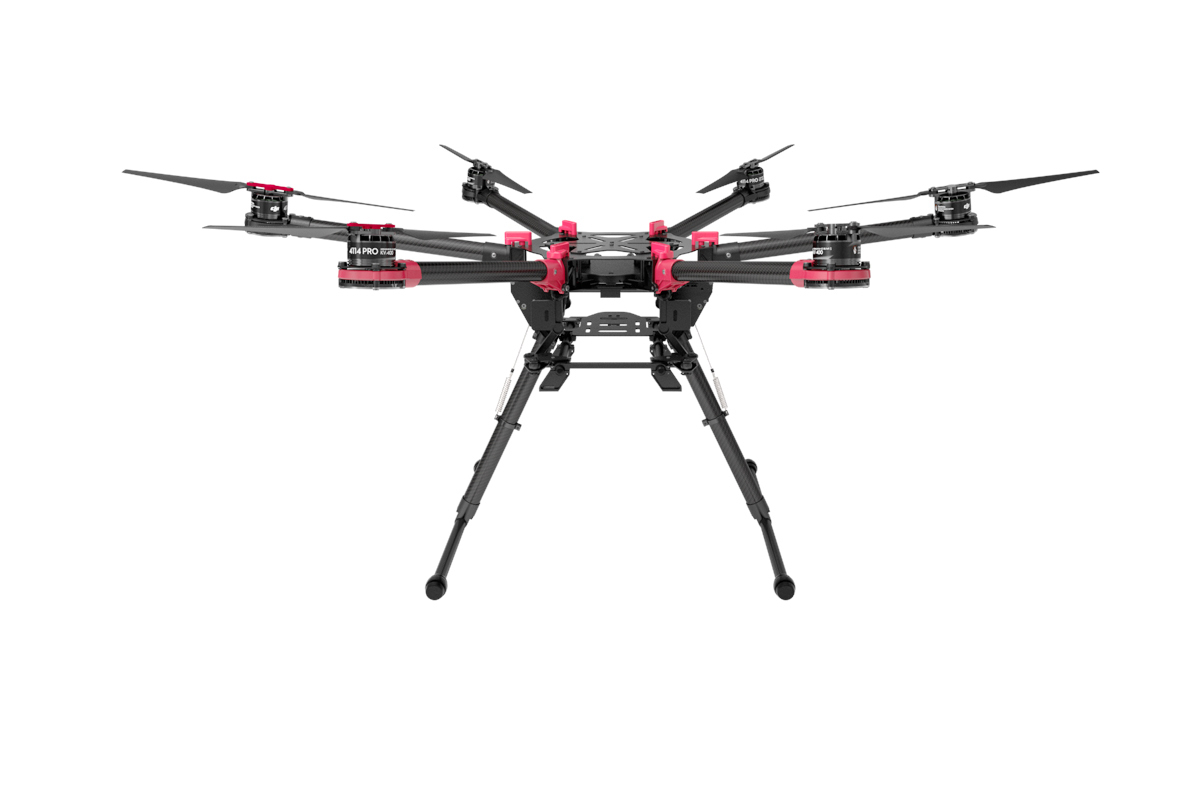

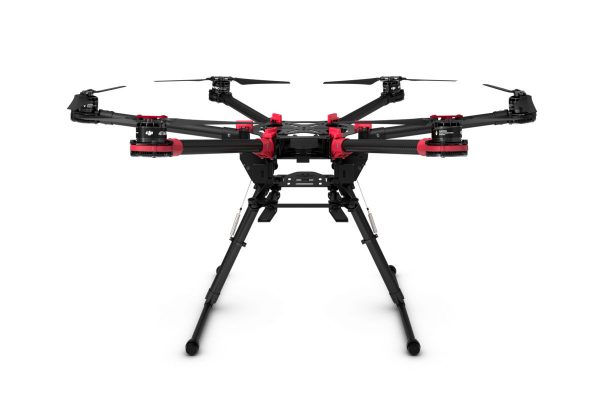

DJI Spreading Wings S900

  • Lightweight, Strong and Stable
  • Highly Portable, Easy to Carry
  • New Power Distribution System
  • Removable Upper Center Board
  • Sparkproof Plug
  • Professional Quality
  • Wide Range of Shooting Angles
  • Retractable Landing Gear
  • Compatible with Zenmuse Gimbals
  • Reduced Vibrations, Clearer Footage
  • Greater Power
  • Innovative Arm Design

  • LIGHTWEIGHT, STRONG AND STABLE
    The S900’s arms and landing gear are made of sturdy carbon fiber, greatly reducing weight while increasing stability and strength. This enables a long flight time without sacrificing performance.
  • HIGHLY PORTABLE, EASY TO CARRY
    With arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. Never before has a professional hexacoptor been so portable and easy to transport.
  • REMOVABLE UPPER CENTER BOARD
    The upper center board can be removed, allowing easy access to install your flight controller and IMU, and giving you a convenient way to setup the power distribution system. Even installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before. This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
  • NEW POWER DISTRIBUTION SYSTEM
    A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
  • SPARKPROOF PLUG
    Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
  • PROFESSIONAL QUALITY
    Weighing just 3.3kg, the S900 has a maximum takeoff weight of 8.2kg. This means you can easily carry most cameras and gimbals. Used with a 6S 12000mAh battery, it can fly for up to 18 minutes.
  • WIDE RANGE OF SHOOTING ANGLES
    Retractable landing gear and a special low gimbal mounting bracket gives you an extremely wide range of possible shooting angles and camera motions.
  • COMPATIBLE WITH ZENMUSE GIMBALS
    DJI’s Zenmuse camera gimbals are known for their stability, providing smooth footage capture in even the most difficult of conditions. The S900 fully supports the Zenmuse Z15, GH3, GH4, and BMPCC gimbals.
  • REDUCED VIBRATIONS, CLEARER FOOTAGE
    The S900’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
  • GREATER POWER
    A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S900 a maximum thrust of 2.5Kg.
    Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
  • INNOVATIVE ARM DESIGN
    Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Specs

Frame

Diagonal Wheelbase
900mm
Frame Arm Length
358mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
316g
Center Frame Diameter
272mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1185g
Landing Gear Size
460mm(Length)×450mm(Width)×360mm(Height)

Motor

Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g

ESC

Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(With Radiators)
35g

Foldable Propeller (1552/1552R)

Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g

Flight Parameters

Takeoff Weight
4.7Kg ~ 8.2Kg
Total Weight
3.3Kg
Power Battery
LiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption
3000W
Hover Power Consumption
1000W (@6.8Kg Takeoff Weight)
Hover Time
18min (@12000mAh& 6.8Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C

Gain Value Settings

For A2 Flight Controller
Basic: Roll 110%, Pitch 110%, Yaw 120%
Attitude: Roll 220%, Pitch 220%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 160%, Pitch 160%, Yaw 160%
Attitude: Roll 190%, Pitch 190%, Vertical 100%
