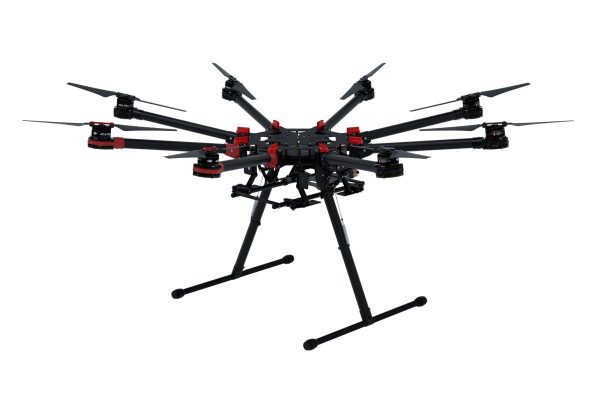

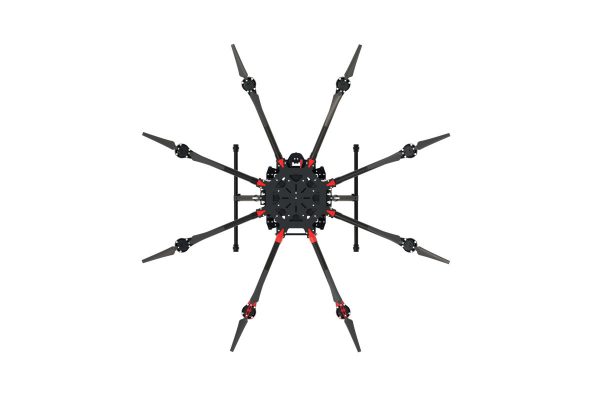

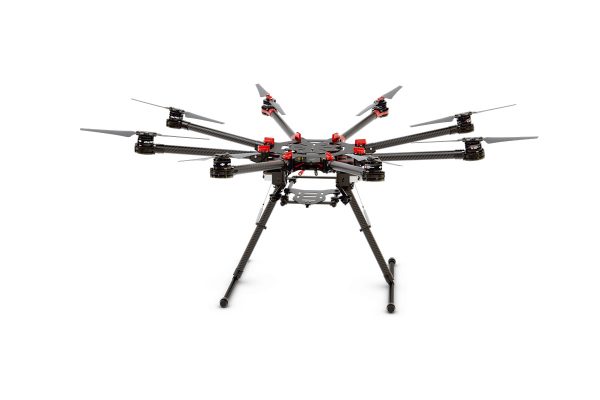

DJI Spreading Wings S1000+

  • Large Carrying Capacity, Strong and Stable
  • Highly Portable, with Foldable Arms
  • New Power Distribution System
  • Removable Upper Center Board
  • Sparkproof Plug
  • Professional Quality
  • Wide Range of Shooting Angles
  • Retractable Landing Gear
  • Compatible with Zenmuse Gimbals
  • Reduced Vibrations, Clearer Footage
  • Greater Power
  • Innovative Arm Design

  • LARGE CARRYING CAPACITY, STRONG AND STABLE
    Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.
  • HIGHLY PORTABLE, WITH FOLDABLE ARMS
    With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
  • REMOVABLE UPPER CENTER BOARD
    The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
    This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
  • NEW POWER DISTRIBUTION SYSTEM
    A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
  • SPARKPROOF PLUG
    Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
  • PROFESSIONAL QUALITY
    Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.
  • WIDE RANGE OF SHOOTING ANGLES
    Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
  • COMPATIBLE WITH ZENMUSE GIMBALS
    Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.
  • REDUCED VIBRATIONS, CLEARER FOOTAGE
    The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
  • GREATER POWER
    A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
    Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
  • INNOVATIVE ARM DESIGN
    Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

Specs

Frame

Diagonal Wheelbase
1045mm
Frame Arm Length
386mm
Frame Arm Weight
(Including Motor, ESC, Propeller )
325g
Center Frame Diameter
337mm
Center Frame Weight (With Landing Gear Mounting Base, Servos)
1520g
Landing Gear Size
460mm(Length)×511mm(Width)×305mm(Height)

Motor

Stator Size
41×14mm
KV
400rpm/V
Max Power
500W
Weight(With Cooling Fan)
158g

ESC

Working Current
40A
Working Voltage
6S LiPo
Signal Frequency
30Hz ~ 450Hz
Drive PWM Frequency
8KHz
Weight(With Radiators)
35g

Foldable Propeller (1552/1552R)

Material
High strength performance engineered plastics
Size
15×5.2inch
Weight
13g

Flight Parameters

Takeoff Weight
6.0Kg ~ 11.0Kg
Total Weight
4.4Kg
Power Battery
LiPo (6S,10000mAh~20000mAh,15C(Min))
Max Power Consumption
4000W
Hover Power Consumption
1500W (@9.5Kg Takeoff Weight)
Hover Time
15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature
-10 °C ~ +40 °C

Gain Value Settings

For A2 Flight Controller
Basic: Roll 120%, Pitch 120%, Yaw 120%
Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M Flight Controller
Basic: Roll 130%, Pitch 130%, Yaw 120%
Attitude: Roll 180%, Pitch 180%, Vertical 120%
