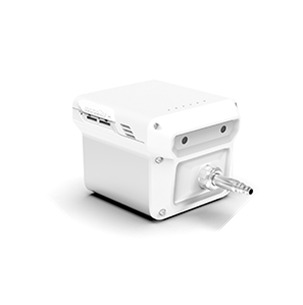

Sniffer4d V2 Multi-gas Detection System

  • Designed to be carried by drones & ground vehicles
  • Captures georeferenced & timestamped gas & particle concentrations
  • Real-time data transmission via LTE networks
  • Multi-gas Detection Hardware
  • Up to 9 Parameters at a Time
  • Size 157 x 103 x 87mm
  • Weight 400 – 500g

Sniffer4D is a complete drone-based multi-gas detection system which consists of a drone-mounted gas detection device and powerful analytic software. Sniffer4D is able to measure and visualize real-time gas concentration distribution, providing timely & actionable information for industries such as environmental protection, inspection and emergency response. Through DJI SkyPort, Sniffer4D can be seamlessly integrated with DJI M300 RTK and M210 series.

Up to 9 Parameters at a Time | Verified Data Quality | Cellular Connectivity | Plug & Play | Front & Back Warning Lights

Ultra-short Warm-up Time | Expansion Ports | API | OTA Update

Sense Up to 9 Gases at a Time

Sniffer4D is able to sense up to 9 gas and particle concentrations at one time. Users can flexibly choose or alter their sensor configurations that suit their applications and budgets.

Available Parameters (choose up to 9)

PM2.5        PM10        SO2        CO        NO2        O2        O3        VOCs

LEL / CH4        CO2        H2S       NH3        HCl        H2        Cl2        PH3

Gas Sampling                  Wind Speed & Direction                 Radiation

Other Customized Parameters…

Examples:

– PM, O3, NO2, CO, SO2, VOCs for ambient air monitoring;
– VOCs, CH4, CO, Cl2, O2, NO2, H2S for HAZMAT response;
– VOCs, CH4, H2S, SO2 for oil & gas plant leak detection.

See Your Real-time Data, Anywhere

Sniffer4D’s built-in cellular connectivity* & US-based Cloud server enable secure real-time data transmission with unlimited range to decision makers in different locations.

*Supports 4G/LTE/3G/EDGE/GPRS

Advanced Real-time Visualization

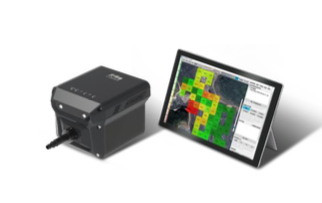

Sniffer4D Mapper software visualizes and analyzes data from one or multiple Sniffer4D(s) in real time, providing intuitive & insightful information for decision makers.

One-click Result Delivery

After a mission, simply click a button to generate a mission report containing key results, or a CSV datasheet containing all the raw data. Reporting your work has never been easier.

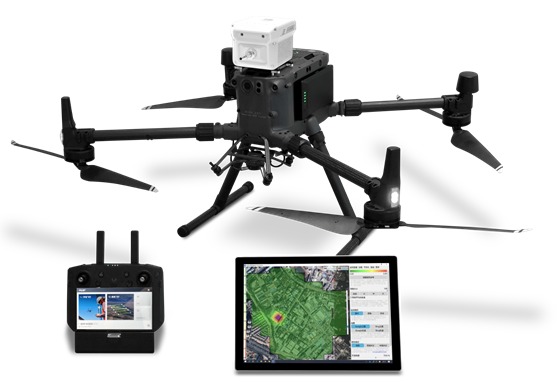

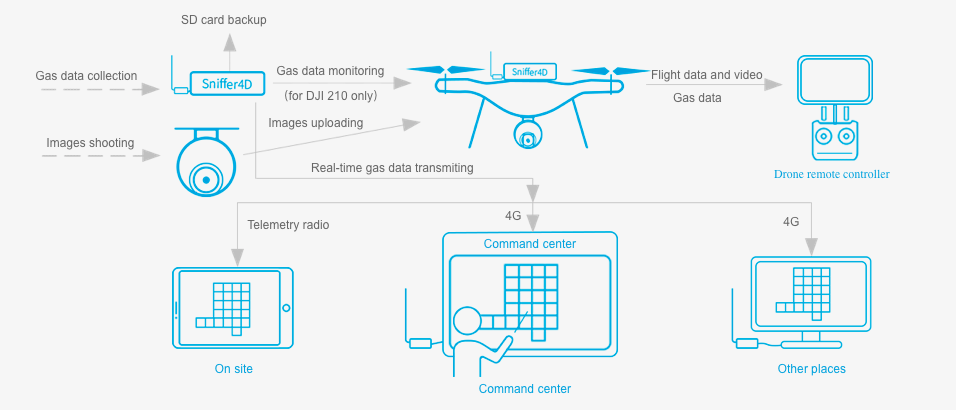

The drone carries a Sniffer4D and a stabilized camera together – gas data from Sniffer4D, pictures from the camera and flight data from the drone are transmitted to the remote controller of the drone in real time (only for DJI M210). Meanwhile, Sniffer4D is able to transmit real-time gas data to multiple PCs at the mission site, control center or other places through its independent 4G/telemetry radio. Sniffer4D also backs up mission data to the onboard SD card at the same time.

sniffer4d

Data can be transmitted to different places in real time.

Our software provides intuitive visualizations for effective and timely decision making.

Data can be transmitted to multiple places

S4DM_VISUAL_EN



Compatible drone Platform:

M300RTK M200 series

Application

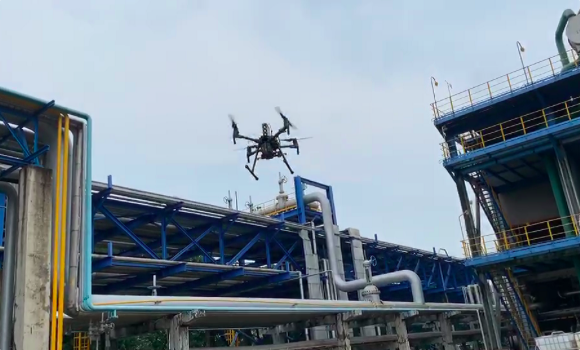

Leak Detection
First Responder

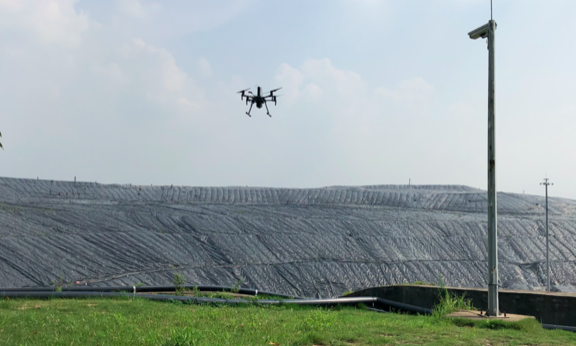

Environmental Monitoring
Measuring Fuel Sulfur Content (FSC) of ships

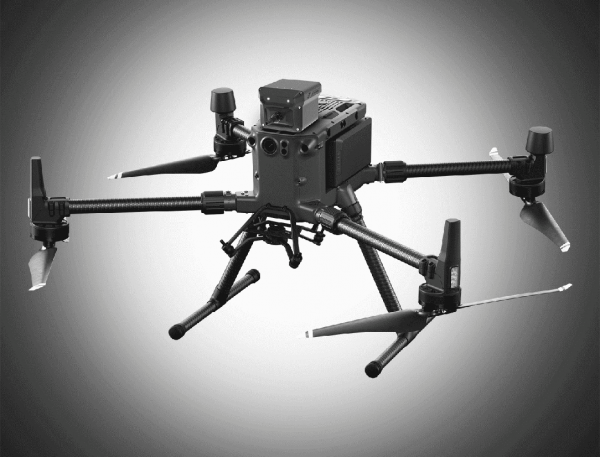

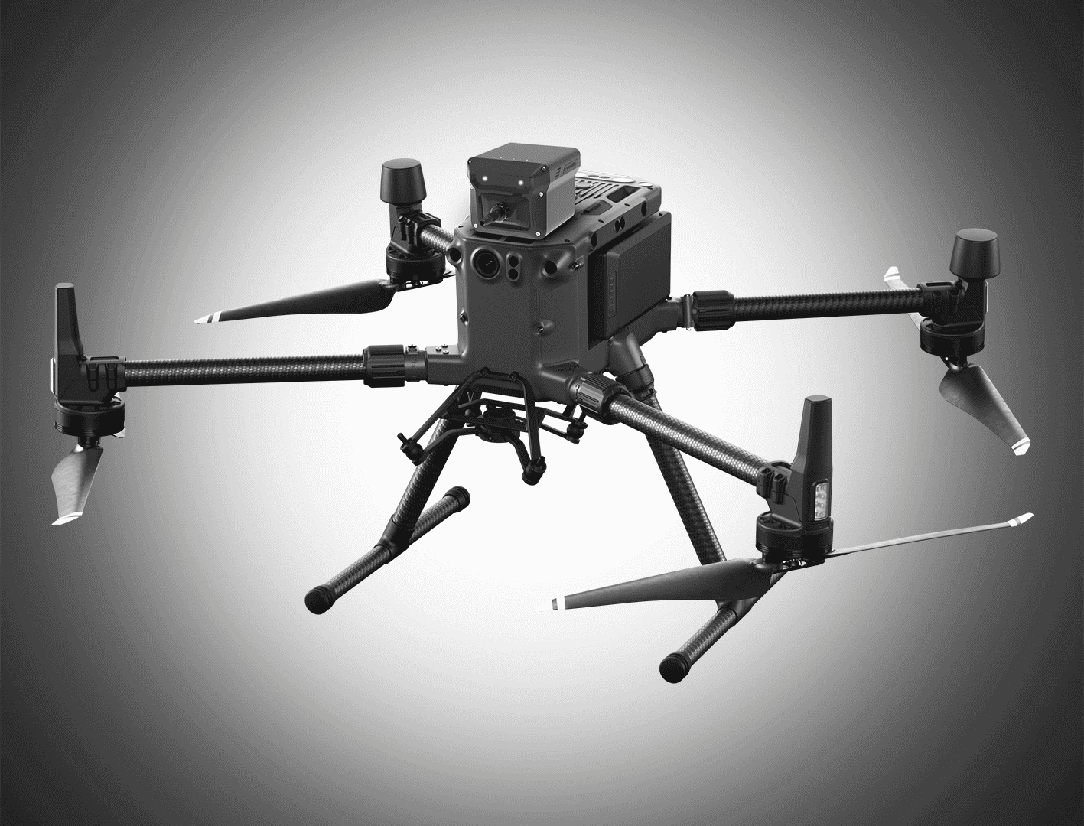

Matrice 350 RTK

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Buy
GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Buy
Laser Falcon methane detector

Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.

The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.
