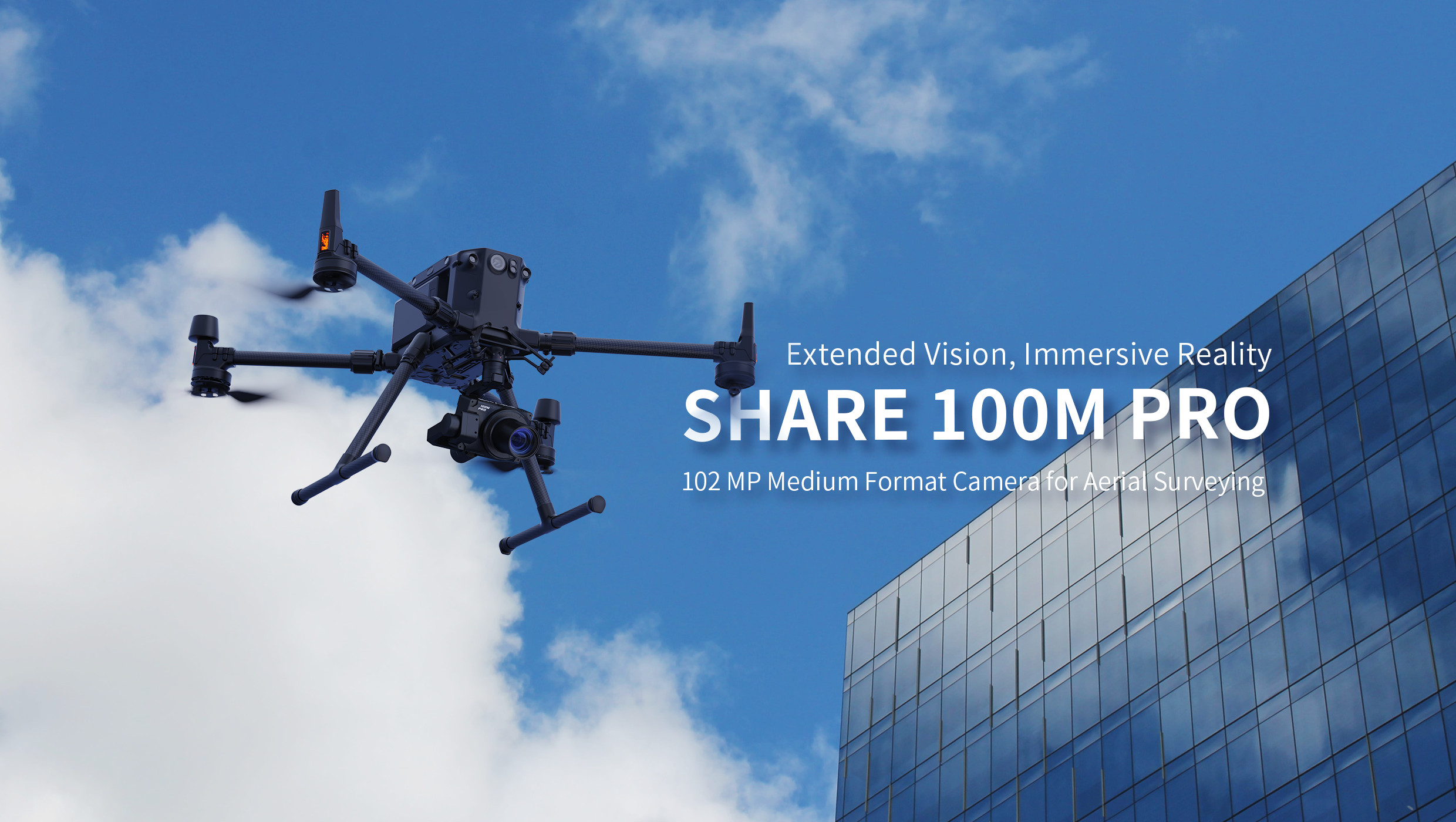

SHARE 100M PRO
102 MP Medium Format Camera for Aerial Surveying. Equipped with a medium format sensor of 43.8×32.9mm, covering 1.7 times larger range than 35mm full-frame format.
Superior Performance
Make the Most of Every Flight
Equipped with a medium format sensor of 43.8×32.9mm, covering 1.7 times larger range than 35mm full-frame format. Images collected keeps a high level of color fidelity and reveal more details in highlights and shadows.
Back-Illuminated CMOS makes no compromise on the light-reaching color filter array, which helps to generate a better-performance image.
Solid Fundation for Digital Twin Constuction
Millimeter-Level 3D Modeling
Image performance of medium format sensor brings image quality, color reproduction, and resolution to the next level. A firm fundamental to construct high quality digital asset, embracing more vivid details in realistic 3D modelling.
Solid Fundation for Digital Twin Constuction
Image performance of medium format sensor brings image quality, color reproduction, and resolution to the next level. A firm fundamental to construct high quality digital asset, embracing more vivid details in realistic 3D modelling.
Versatile Platform Supported
Multiple Operation Mode Available for Diverse Mission Needs.
Easy-to-detach DJI X-Port gimbal supported to connect with DJI M300 RTK.
Standard J30J universal circular connector bring-with and the voltage of 12-50V, 100M can be used for aerial surveying on fixed-wing aircraft.

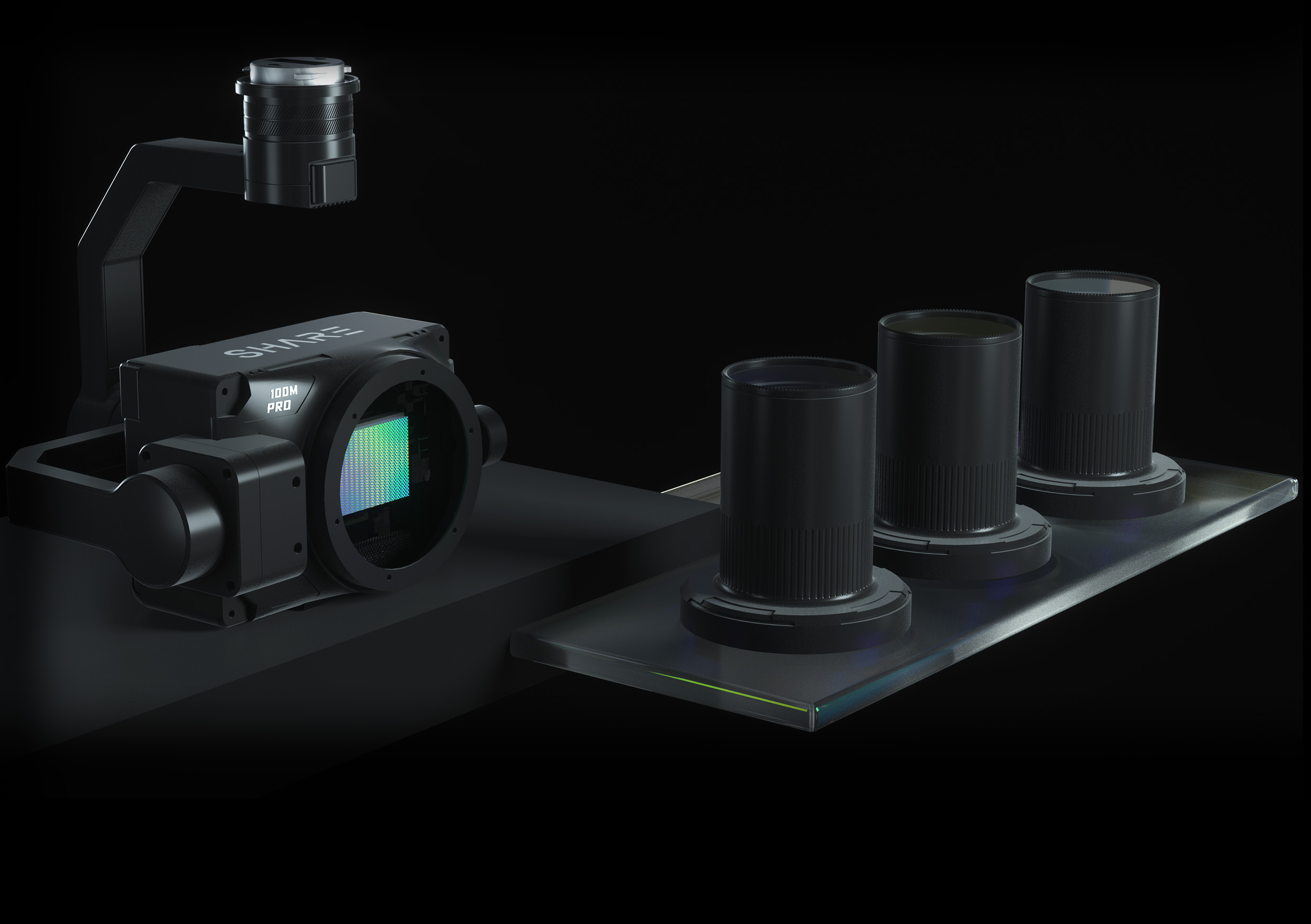

Powered by SML Lenses
Optional Lenses of 50mm, 70mm, 75mm Are Available
SHARE S-ML lens is designed for professional aerial surveying with the leading optical technology, stable and wide FOV.
Three lenses are assemblied by multi-aspherical lenses with distortion parameter smaller than 0.15%, building a more precise model.
Capture Finest Details
3D Data Acquisition in A Close Distance of 24 Meters
With the help of gimbal and minimal focus distance of 24m, data collected through 100M can realize the level of 1.8mm-level realistic 3D modeling.
Minimum Customized Shooting Internal 1s/time
Minimal shooting internal 1s/time guarantees overlap rate requirement for data fixed-wing aircraft collecting in high-speed flight.
Elevated Productivity
Faster, Higher, Still No GCPs Needed
Succeeding SHARE UAV’s mature technology of aerial surveying with no GCPs, 100M can realize microsecond-level TimeSync 2.0 -synchronization and record a precise POS data.
Extra for Drone 4K Video Shooting
More Than A Surveying Camera
SHARE 100M Pro supports 4K 30fps aerial videography for its medium frame sensor. 10-bit panel output makes full use of camera’s big coverage range.
Built-in TYPE-C3.0
Enjoy Flash Data Input&Output
Equipped with a medium format sensor of 43.8×32.9mm, covering 1.7 times larger range than 35mm full-frame format. Images collected keeps a high level of color fidelity and reveal more details in highlights and shadows.
Back-Illuminated CMOS makes no compromise on the light-reaching color filter array, which helps to generate a better-performance image.
Parameters Adjustment through Bluetooth
Compatible with A Wide Range of Aircraft (fixed wings included)
Directly set up parameters on Pilot when payload on DJI M300 RTK. Also available for bluetooth connected adjustment on mobile when on fixed wing vertical takeoff in the assist of SDM.
| Product Name | SHARE 100M PRO |
| Dimensions | 123*85*149mm (without gimbal) 166*207*177mm (with gimbal and 50mm lens） |
| Weight | 670g(without gimbal), 1045g(with gimbal) |
| Protection Rating | IP53 |
| Aircraft Support | DJI M300 RTK, Third-party multi-rotor drone and fixed-wing Aircraft |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 55℃ |
| External power | DC 12-50V |
| Interfaces | DJI X-Port & J30J Universal Port |
| Effective Pixels | 102 MP |
| Sensor | 43.8*32.9mm(Medium Frame)； |
| Pixel Size | 3.76μm |
| Image Size | 4:3 （11648×8736 px） |
| ISO Range | 100-1600 |
| Shutter Sped | 1/1250,1/1000,1/800,1/640,1/500 |
| Storage | 512GB*2 |
| Internal Time | ≥1s |
| Parameter Adjuster | DJI Pilot/Bluetooth Application |
| Data Storage | Integrated Data Storage Module |
| Working Mode | Flight Controller trigger/isochronism trigger/Isometry Trigger |
| Image Transimission | Live-View Image Transmission |
| Focal Length | Standard：50mm；Customizable：70mm/75mm |
| Aperture | F5.6 |
| Shooting Distance | ≥24m |
| Video Formats | MOV/MP4 |
| Video Size | [4K(3840×2160)] |
| Frame rate | 30fps |
| Stabilization | 3-axis (Pitch Yaw Roll) |
| Mechanical Range | Pan: -125° to +40° Tilt: -320° to +320° Roll: ±55° |
