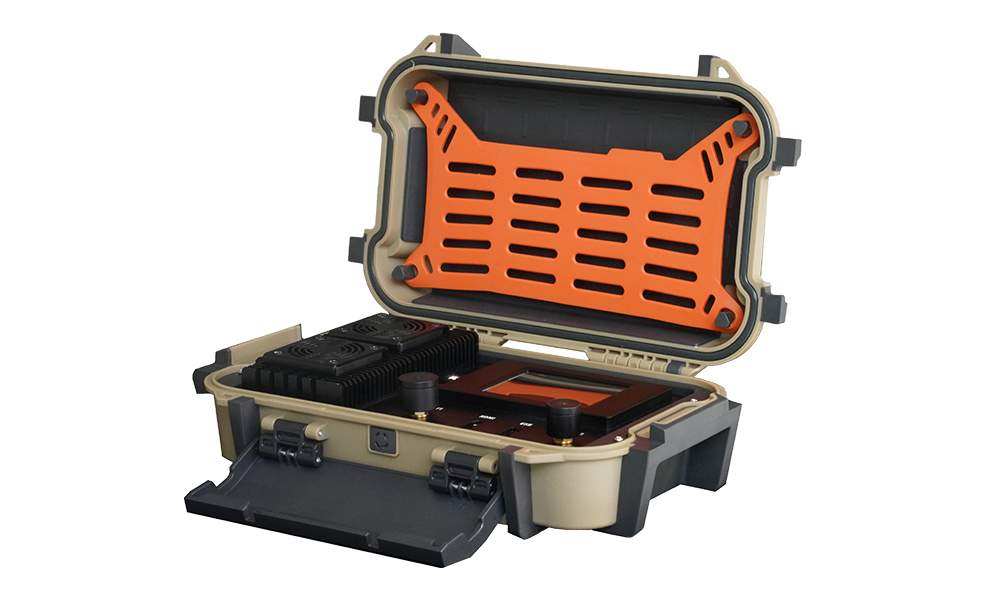

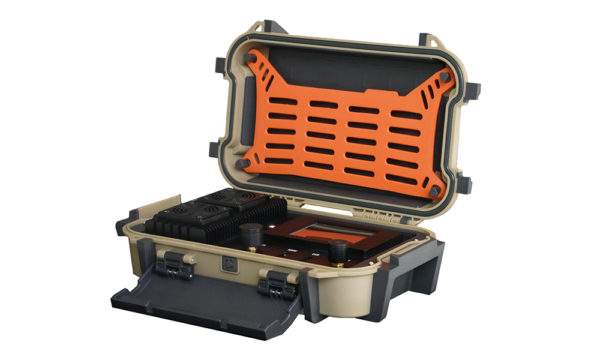

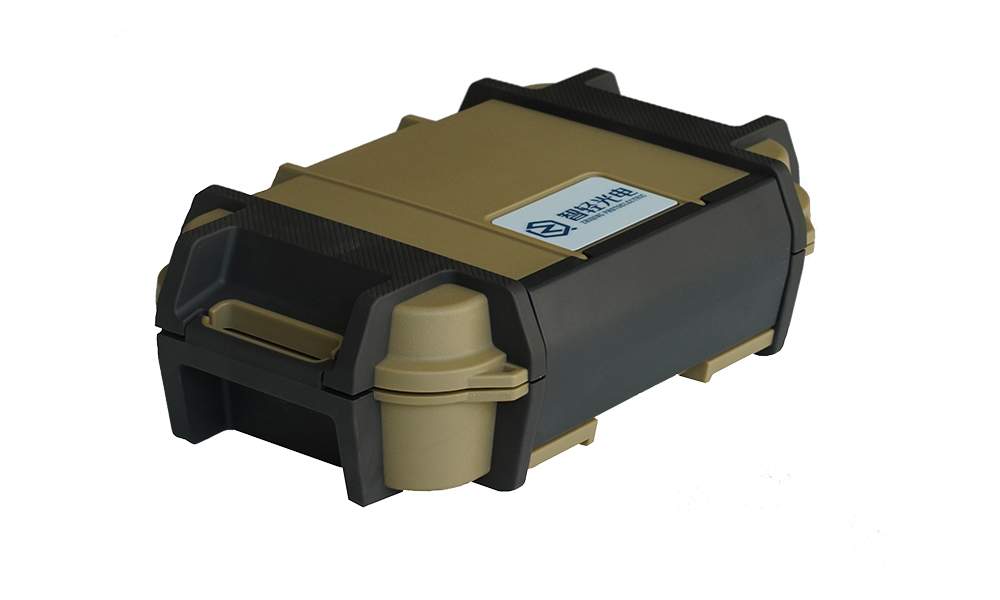

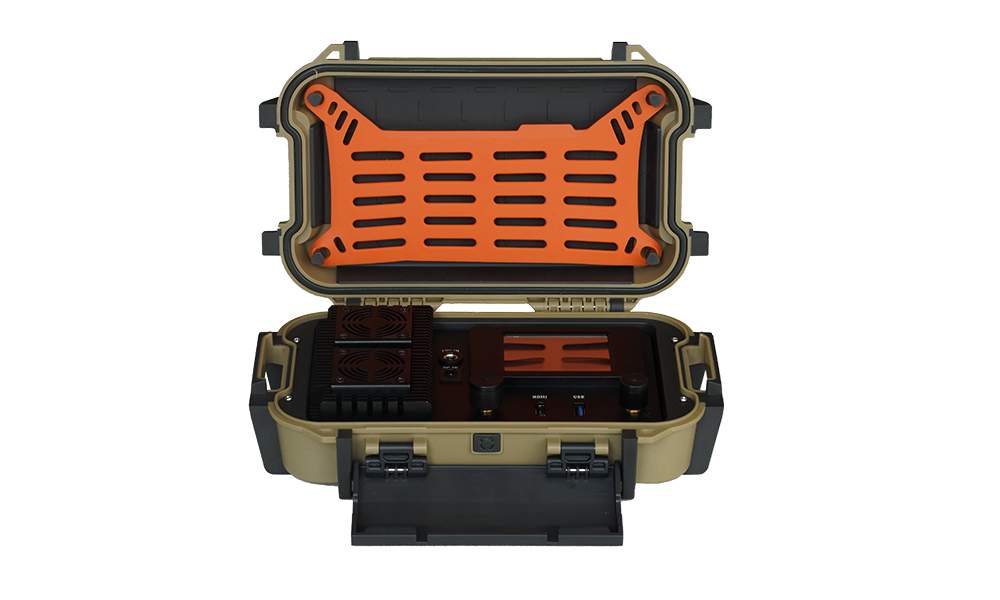

ROC T1

AI Inspection assistant box for transmission lines
Category Tag

Introduction

This edge computing device has an AI smart chip, a network communication and power supply modules. This device has a built-in AI algorithm model that can work offline and control the drone’s gimbal, camera, or other equipment according to the real-time recognition results.

Hardware

It has an AI smart chip (Cambrian MLU220), a 4G communication module, Access Point, an independent power supply, among other components.

Advantages

This autonomous inspection assistant has a protection rating of IP68, therefore suitable for outdoor applications. And can work for up to 8 hours per battery charge.

Show less
Category: Tag:
Overall Information
Battery Life 8 hours AI Microchip Cambrian MLU220
Communication module 4G and WiFi antenna Recognition speed 25 FPS
Accuracy 85% Recognizable Objects 48 Plus
GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Buy
Laser Falcon methane detector

Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.

The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.

Buy
EchoLogger ECT D052S echo sounder

EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.

HS Code: 90158040 (hydrographic instruments)

Buy
GPR system: Radar Systems Zond Aero 1000

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Includes a transportation box and mountings for the DJI M300 RTK or DJI M600 Pro drone.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument

Buy
