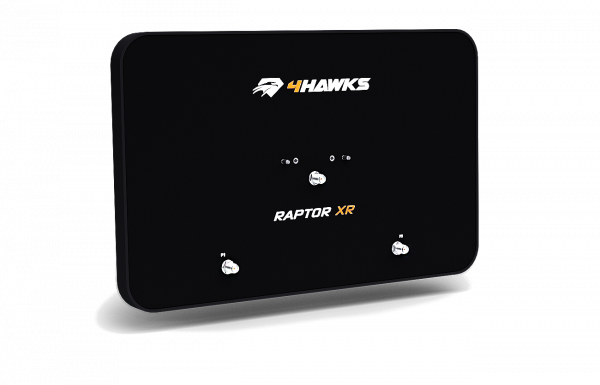

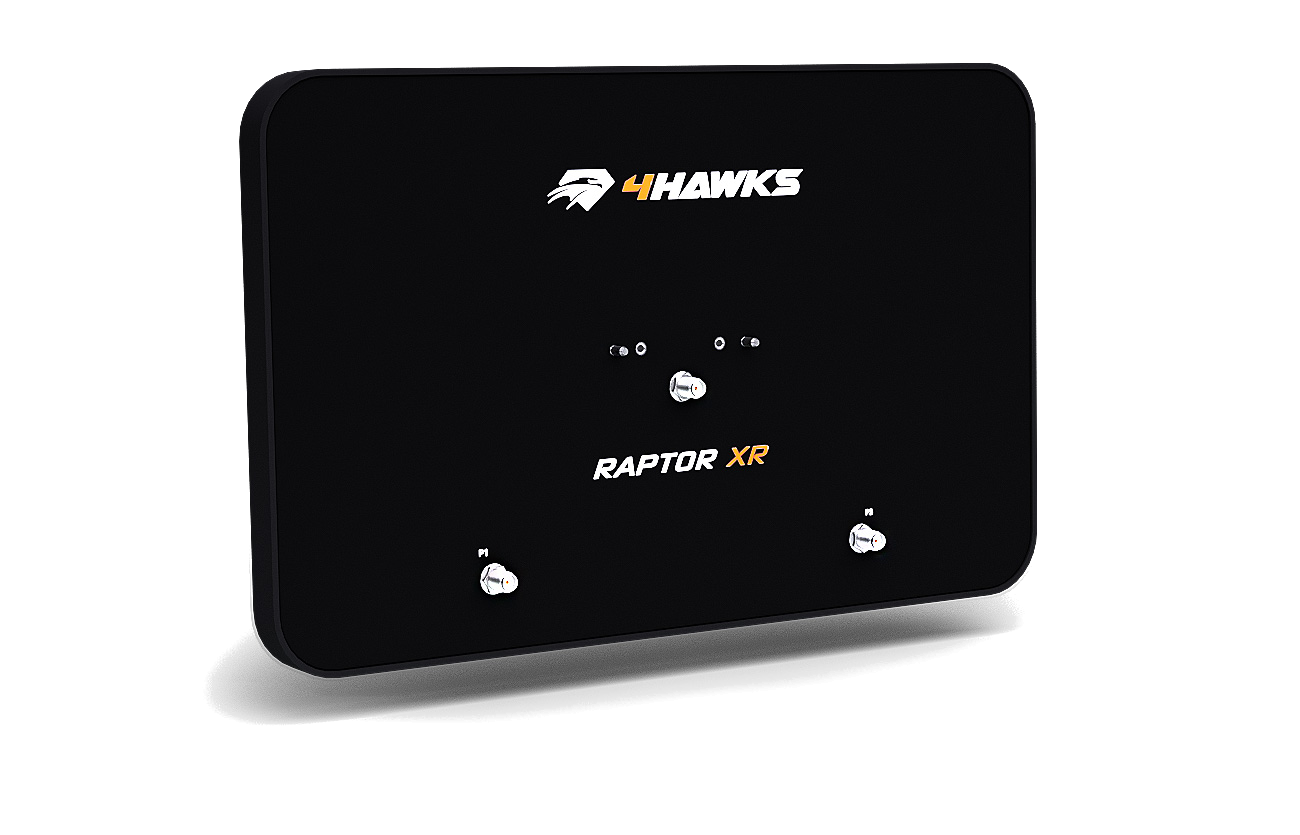

Raptor XR designed for Yuneec Typhoon H

Features:

  • Maximize performance
  • Plug & Play
  • Adjustable tilt of the range extender
  • No modification to the drone itself
  • Long range extension without external boosters

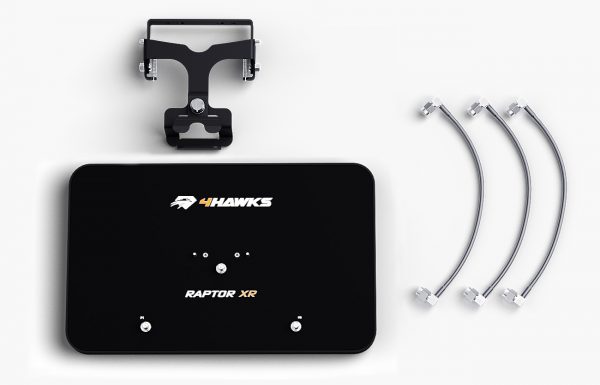

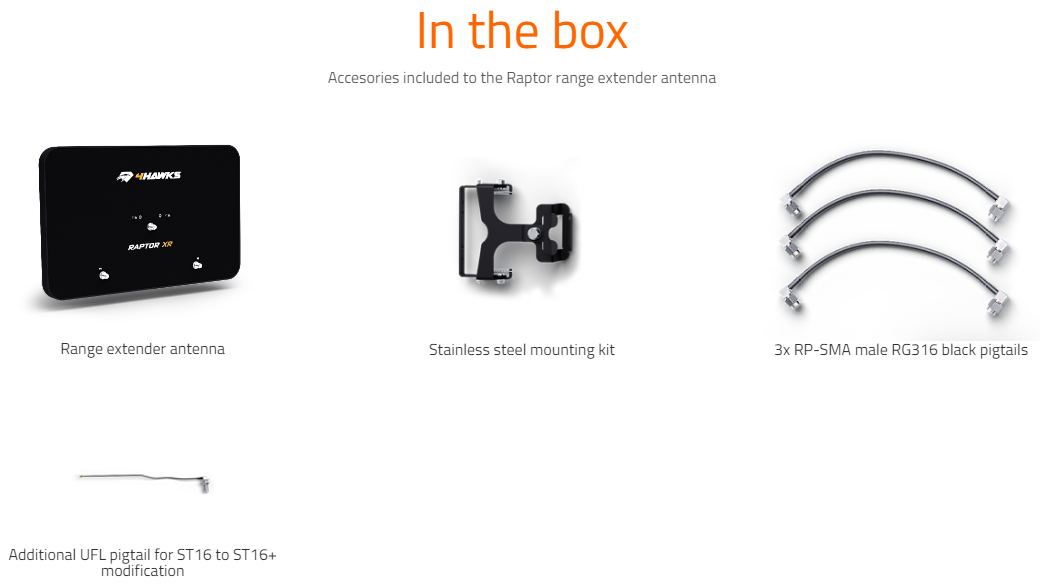

  • Complete solution

Yuneec Typhoon H is one of the flagship models of this producer. With six-rotor design, the drone maintains a very good stability throughout the flight. The basic kit allows for up to 25 minutes of uninterrupted flight, maximum speed of 60km/h as well as maximum distance of around 0,7 kilometers.

The greatest advantage of 4Hawks antenna is that it significantly increases the range of Yuneec Typhoon H, so the drone can reach much further than it initially can.

4Hawks antenna for Yuneec Typhoon H model is operating in 2.4GHz with 14dBi gain as well as 5GHz frequency with 16dBi gain. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.

With plug-and-play construction of 4Hawks antenna, mounting was never as easy as now. The entire set is lightweight and uniform. Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz
Port 2:   5.20 – 6.00 GHz
Port 3:   2.40 – 2.50 GHz
Gain

Port 1:   14 dBi  (+/- 1 dBi)
Port 2:   16 dBi  (+/- 1 dBi)
Port 3:   14 dBi  (+/- 1 dBi)

VSWR
Port 1:   < 1.20  (max. < 1.40)
Port 2:   < 1.80  (max. < 2.50)
Port 3:   < 1.20  (max. < 1.40)
Beamwidth
Port 1:   35°/45°
Port 2:   35°/20°
Port 3:   35°/45°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Port 3:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 560g (470g Antenna + 90g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Port 3:   RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
Attach to the controller by one screw (Removable)
