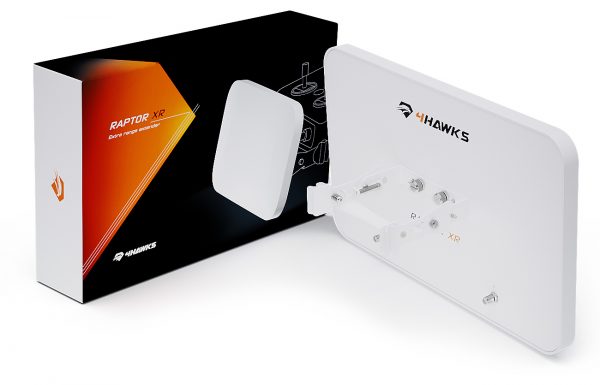

Raptor XR Designed for Phantom 3 Adv & Pro

Features:

  • Maximize performance
  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  • Dedicated pigtails
  • No drilling required
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

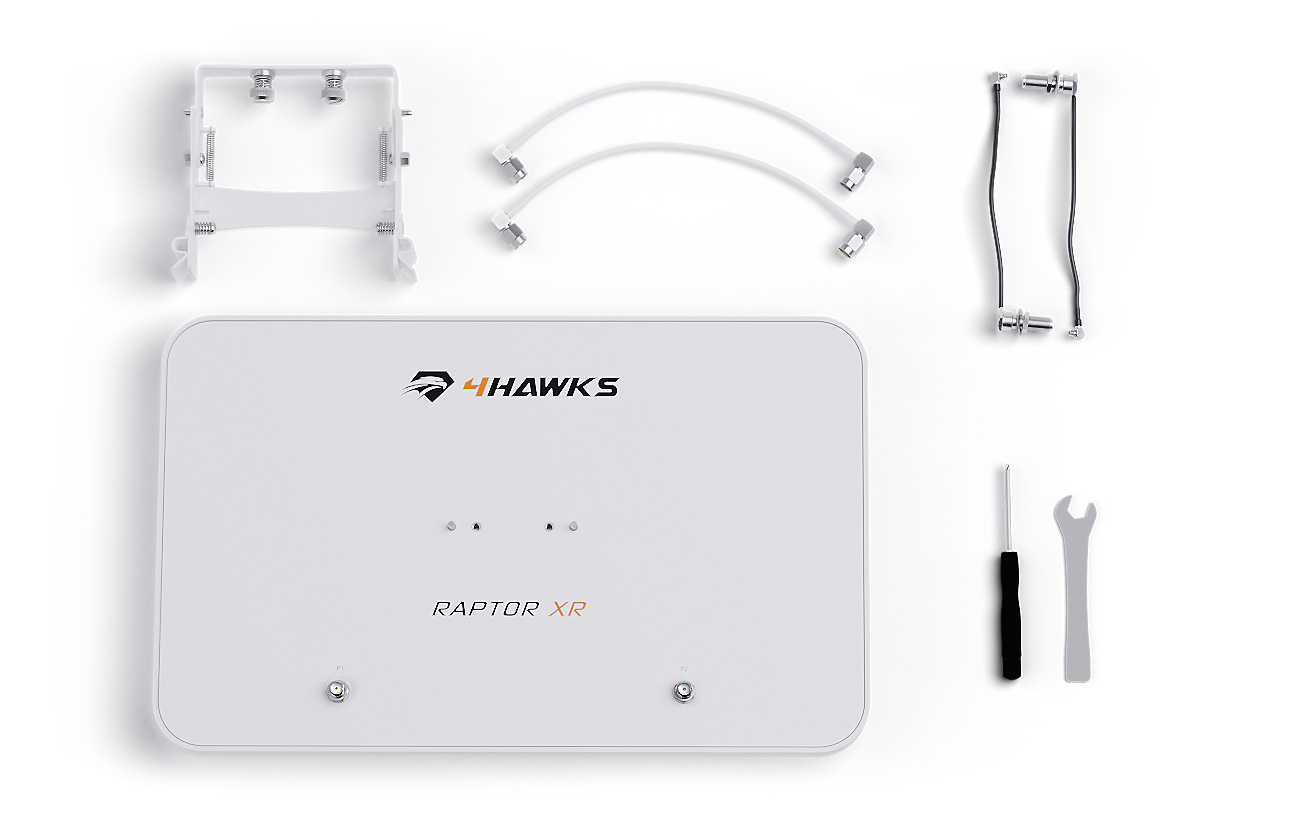

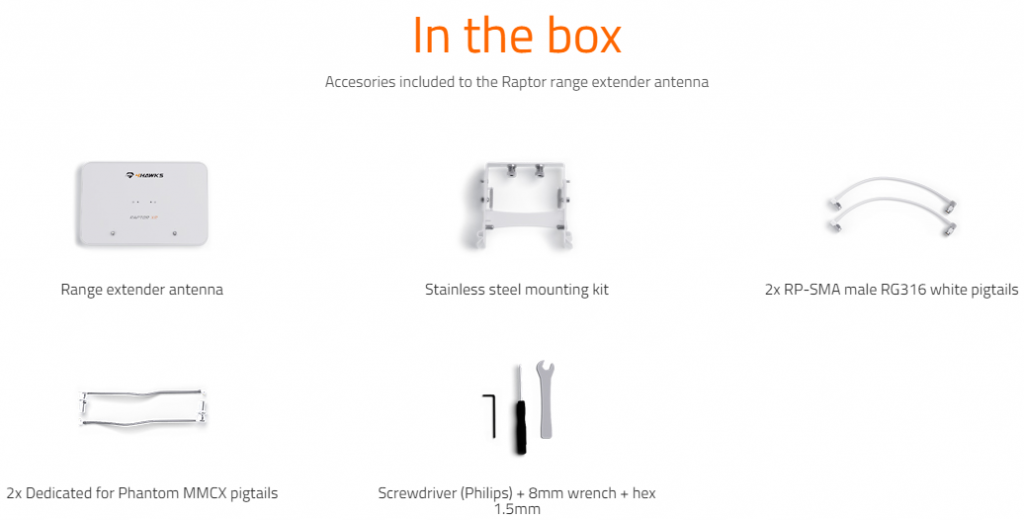

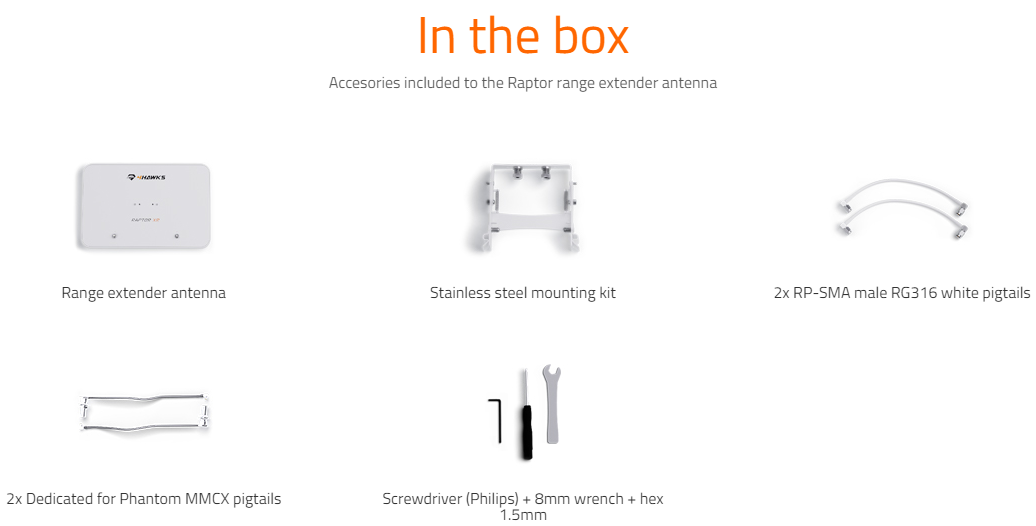

  • Complete solution

215$(VAT included)
Categories ,

DJI Phantom 3 Advanced drone is a predecessor to its newer model DJI Phantom 4. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 65km/h.

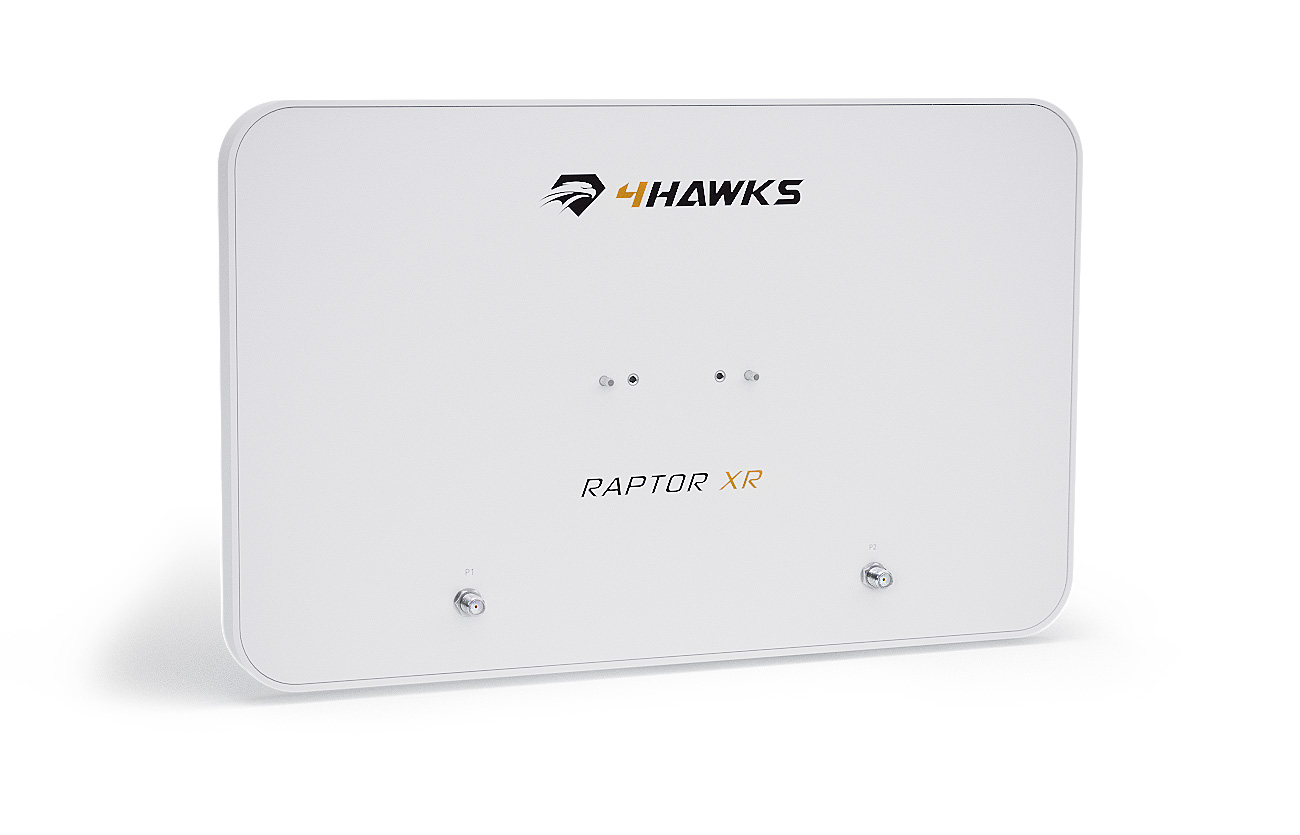

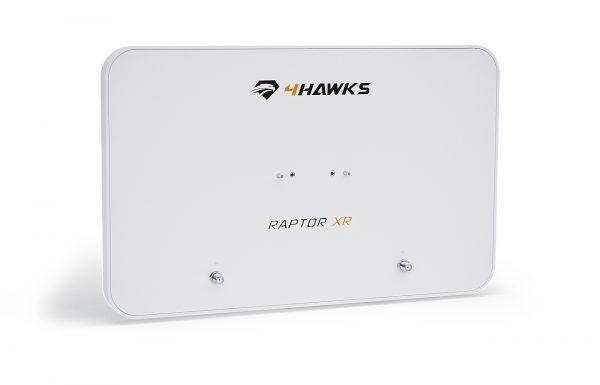

4Hawks antenna for DJI Phantom 3 Advanced & Pro models are operating in 2.4GHz with 14dBi gain and 5GHz also with 16dBi gain. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.

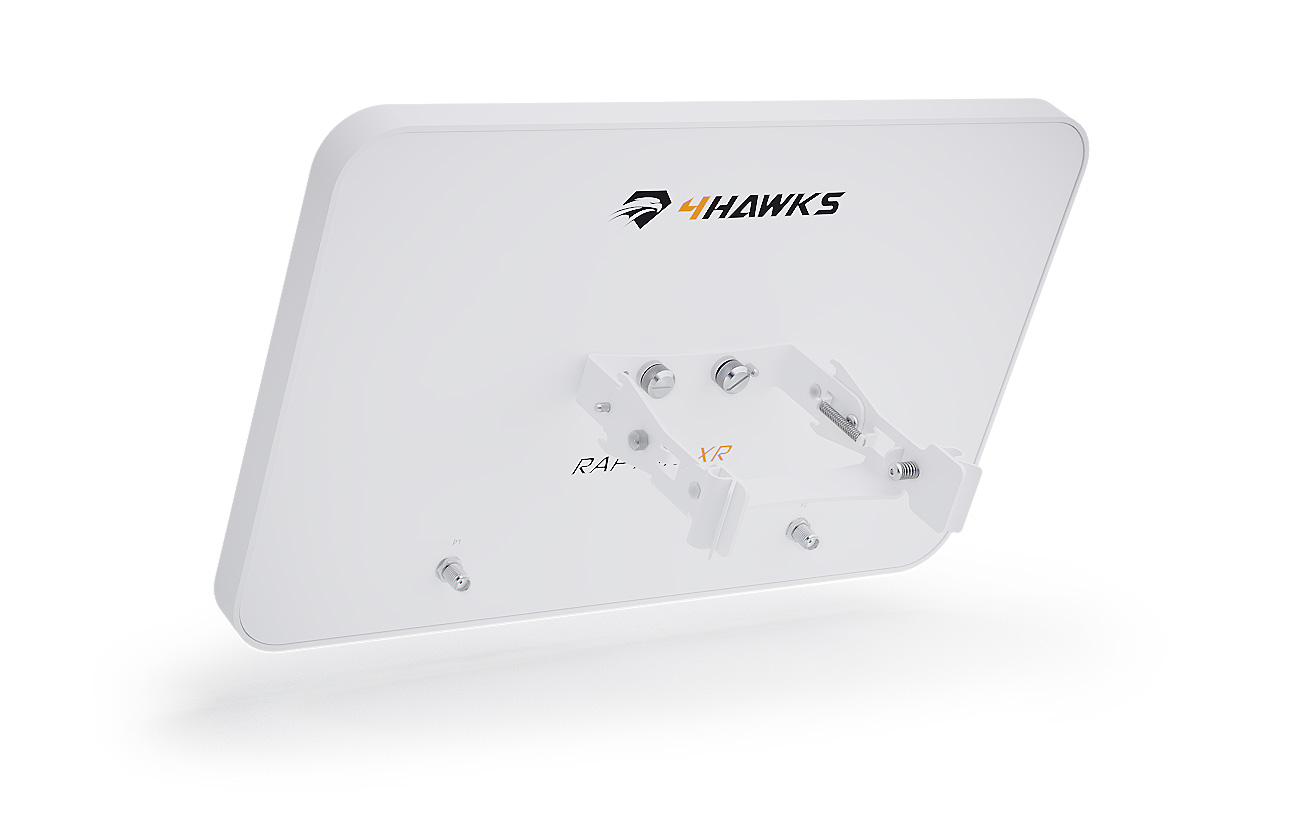

Mounting the range extender is easy and doesn’t require professional assistance. The entire set is lightweight and uniform (without any loose equipment pieces). Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz
Port 2:   2.40 – 2.50 GHz
Gain
Port 1:   14 dBi  (+/- 1 dBi)
Port 2:   14 dBi  (+/- 1 dBi)
VSWR
Port 1:   < 1.20  (max. < 1.40)
Port 2:   < 1.20  (max. < 1.40)
Beamwidth
Port 1:   35°/45°
Port 2:   35°/45°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 540g (450g Antenna + 90g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
Show less
