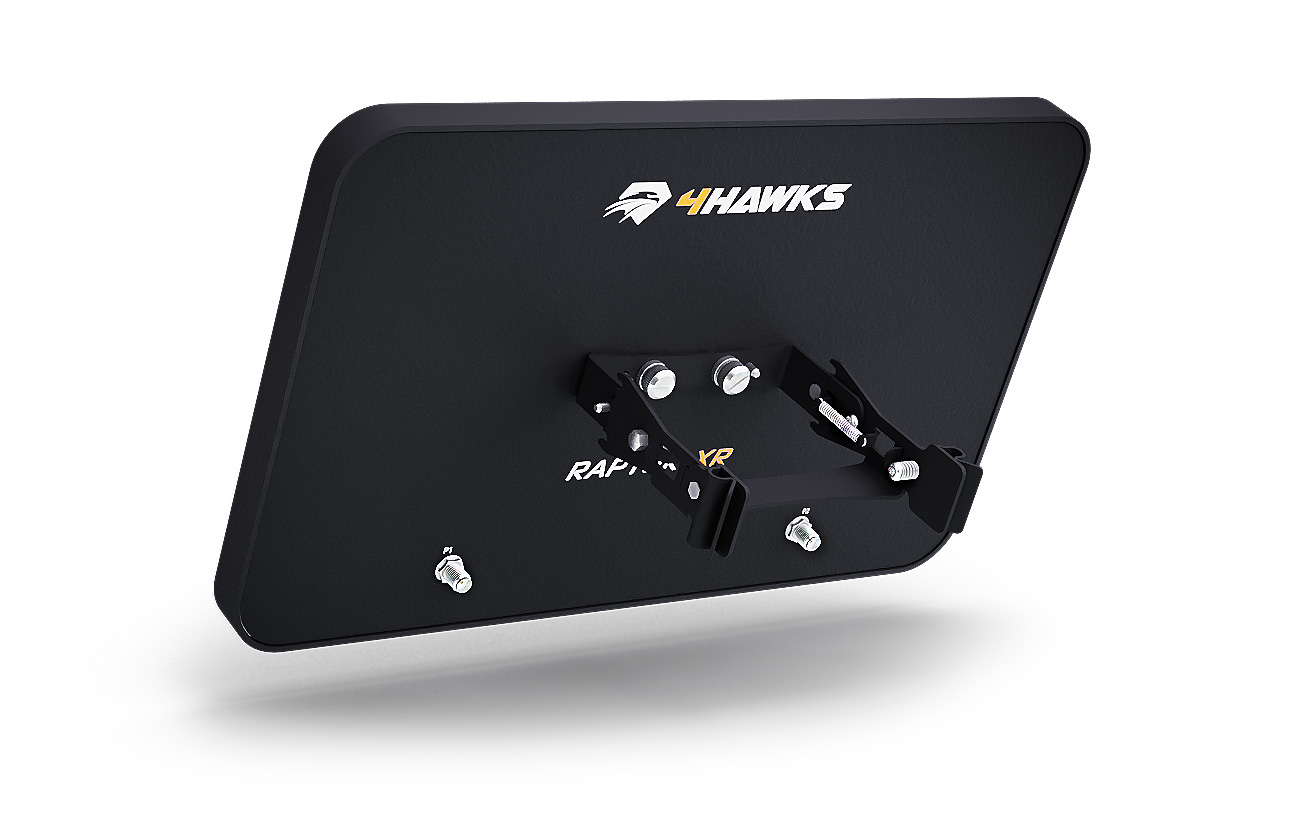

Raptor XR Designed for DJI Phantom 4 Pro
Features:
- Maximize performance
- Concurrent dual band 2.4 & 5GHz
- QuickAttach mounting system
- Adjustable tilt of the range extender
- Dedicated pigtails
- No drilling required
- No modification to the drone itself
- Long range extension without external boosters
- Design does not contain any removable parts

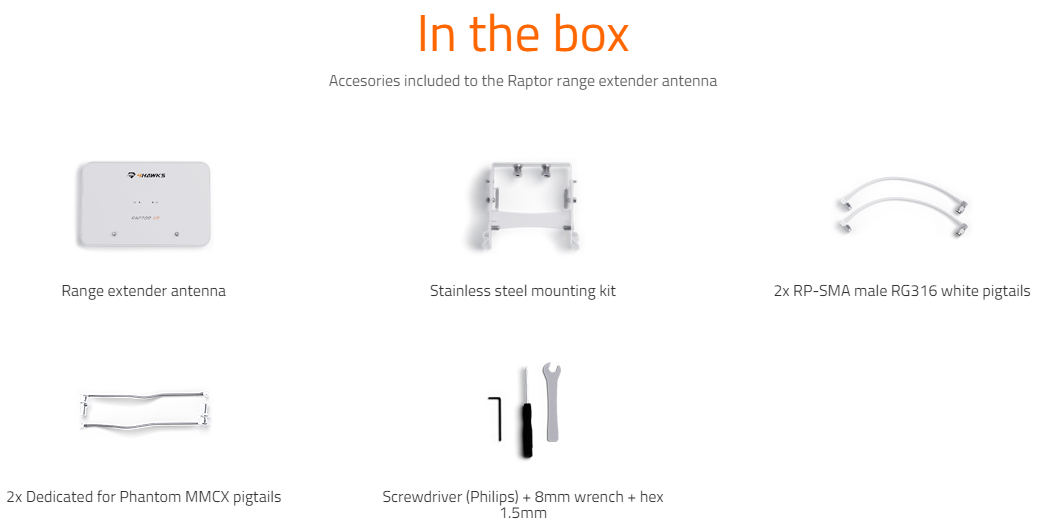

- Complete solution
DJI Phantom 4 Pro is a model designed for professionals. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 72km/h.
With 4Hawks range extender antenna ability to work at 2 frequencies at the same time, DJI Phantom 4 Pro receives a great boost to its overall performance, by enhancing signal from oblique antenna signals that ignore noise exceptionally well – this in return allows Phantom 4 Pro to maximize its range in noisy areas. What’s more 4Hawks antenna also increases the range of DJI Phantom 4 Pro significantly, so the drone can reach even further than ever before.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal.
Specification
electrical & mechanical parameters of Raptor renge extender.
Electrical parameters
Frequencies
Port 1: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2: 2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
Port 2: 11 dBi (+/- 1 dBi) & 14 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max. < 2.00)
Port 2: < 1.50 (max. < 2.00)
Beamwidth
Port 1: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Port 2: 70°/40° & 40°/25°
Polarization
Port 1: Vertical
Port 2: Vertical
Port 2: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω
Port 2: 50 Ω
Mechanical parameters
Material
Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting: Stainless steel + paint
Mounting: Stainless steel + paint
Weight
~ 540g (450g Antenna + 90g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
11.50 x 7.16 x 0.83 inch
Connection
Port 1: RP-SMA female
Port 2: RP-SMA female
Port 2: RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
| Model | Black, White |
|---|
