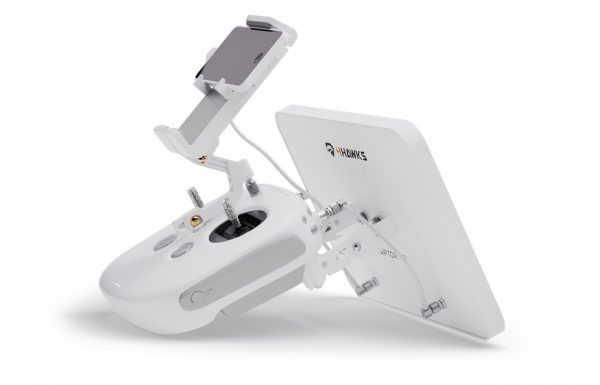

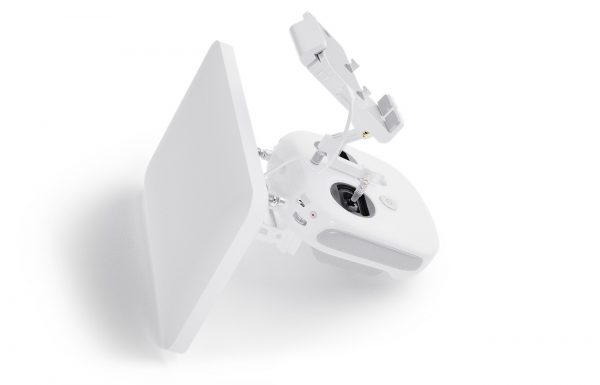

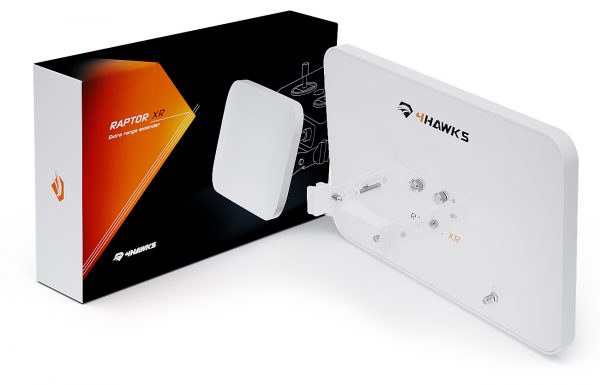

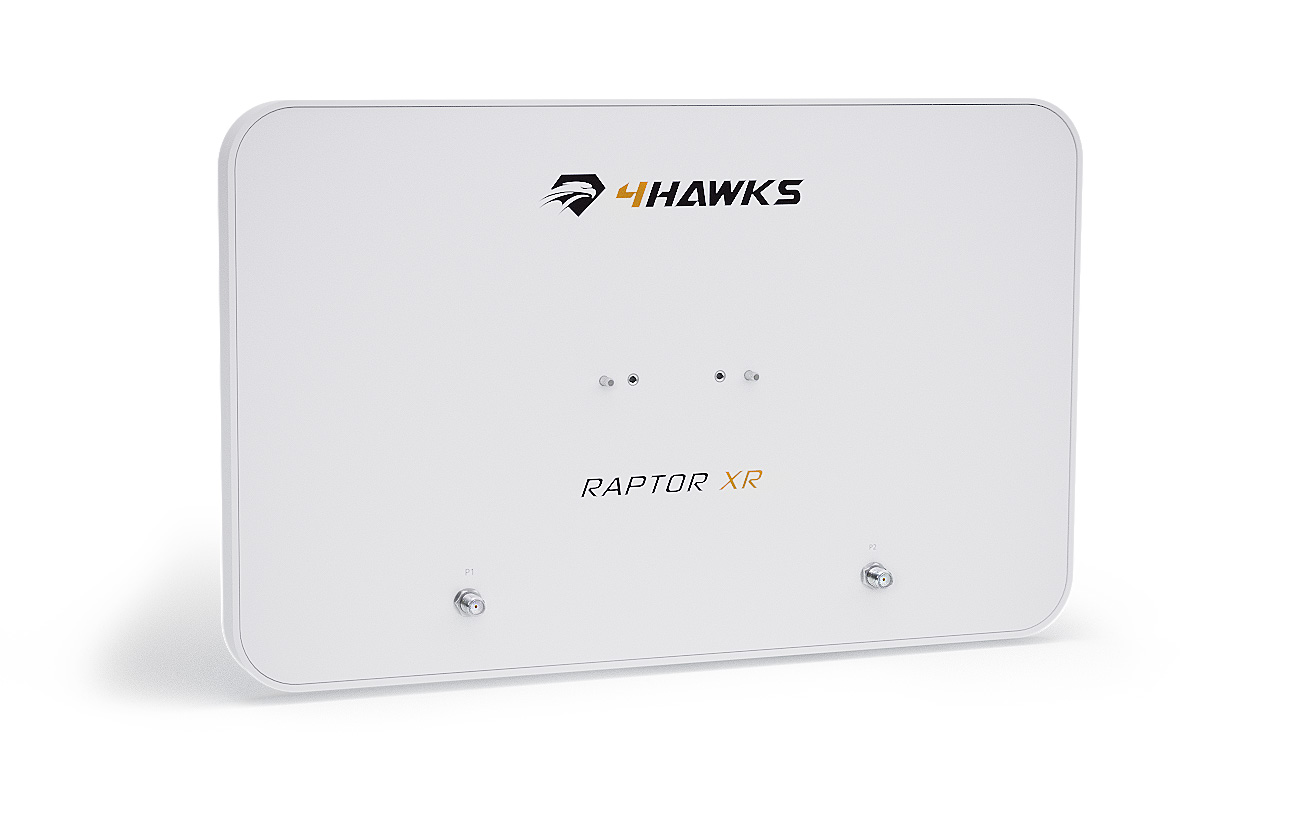

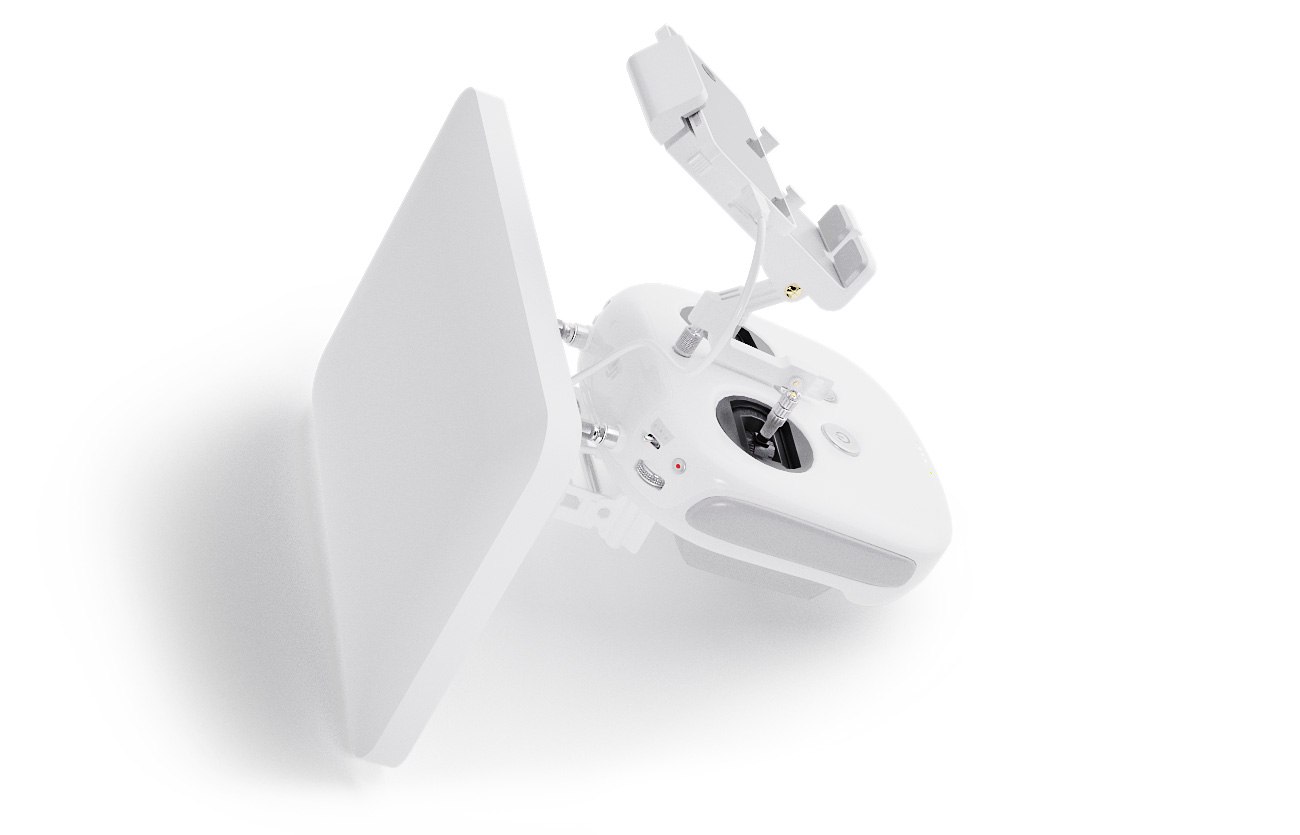

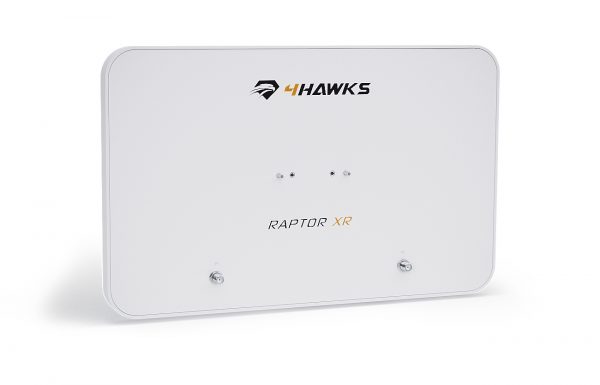

Raptor XR Designed for DJI Phantom 4 Pro V2.0

Features:

  • Maximize performance
  • Concurrent dual band 2.4 & 5GHz
  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  • Dedicated pigtails
  • No drilling required
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

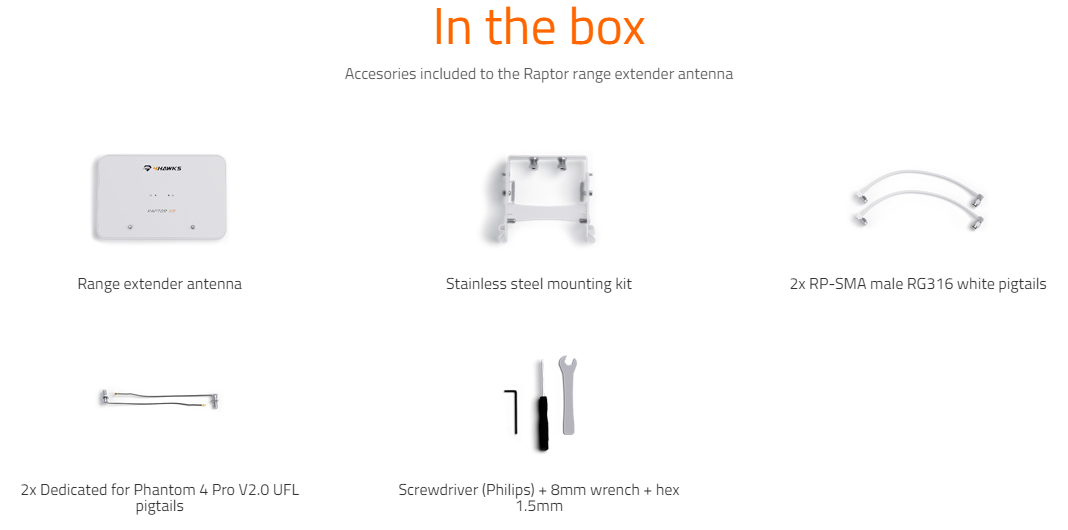

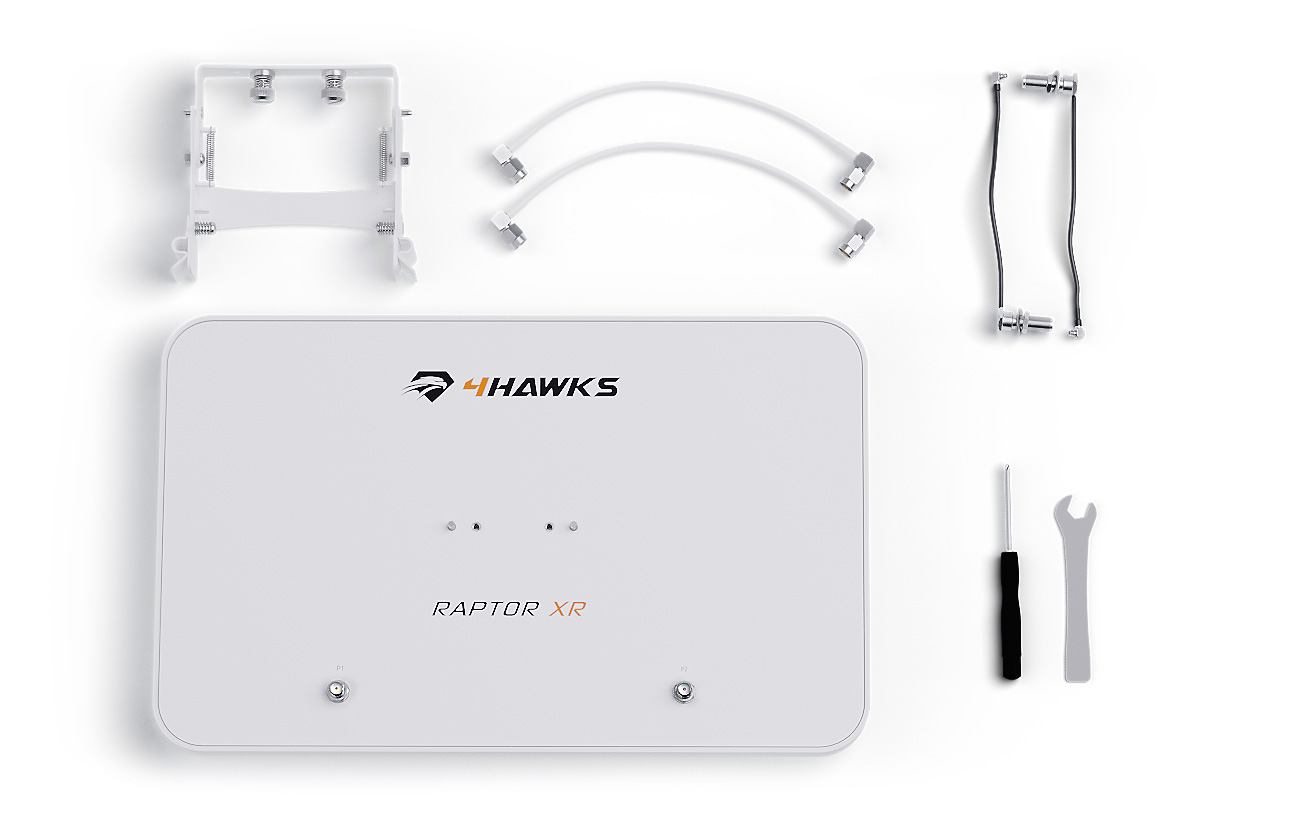

  • Complete solution

DJI Phantom 4 Pro V.20 is a model designed for professionals. The basic kit allows for 30 minutes of uninterrupted flight, maximum speed of 72km/h.
With 4Hawks range extender antenna ability to work at 2 frequencies at the same time, DJI Phantom 4 Pro V2.0 receives a great boost to its overall performance, by enhancing signal from oblique antenna signals that ignore noise exceptionally well – this in return allows Phantom 4 Pro V2.0 to maximize its range in noisy areas. What’s more 4Hawks antenna also increases the range of DJI Phantom 4 Pro V2.0 significantly, so the drone can reach even further than ever before.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2:   11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)

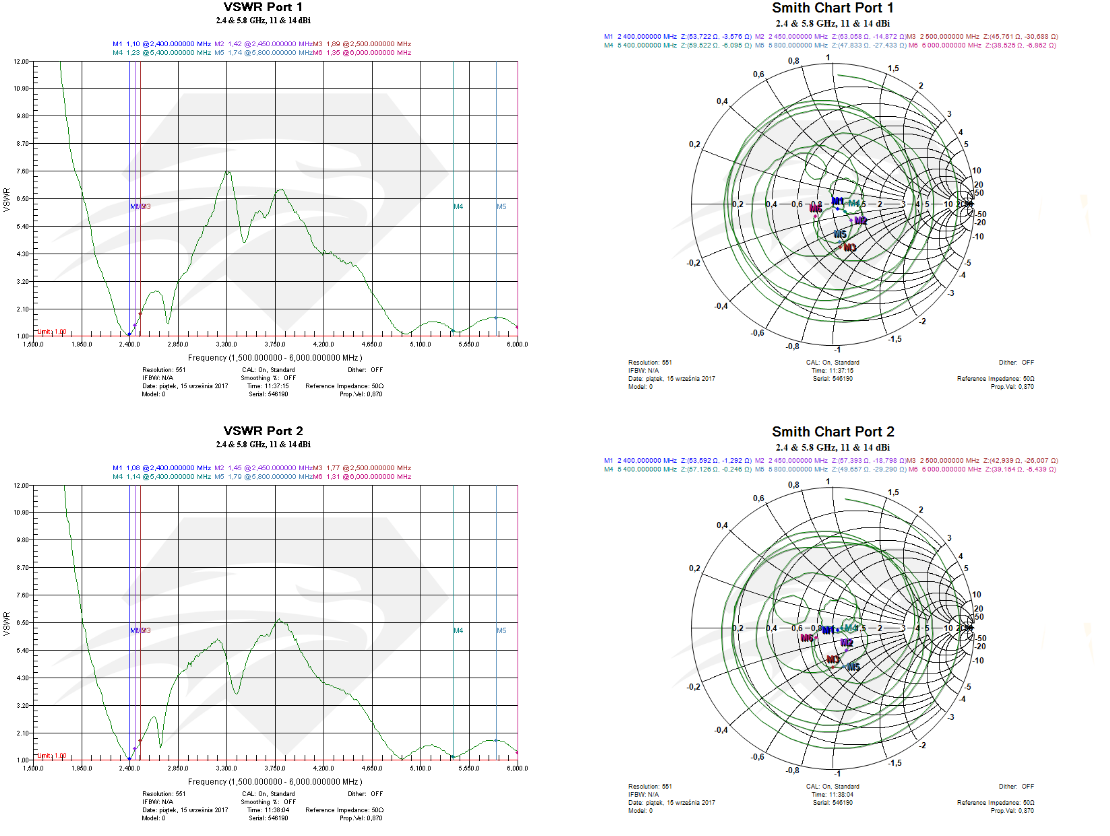

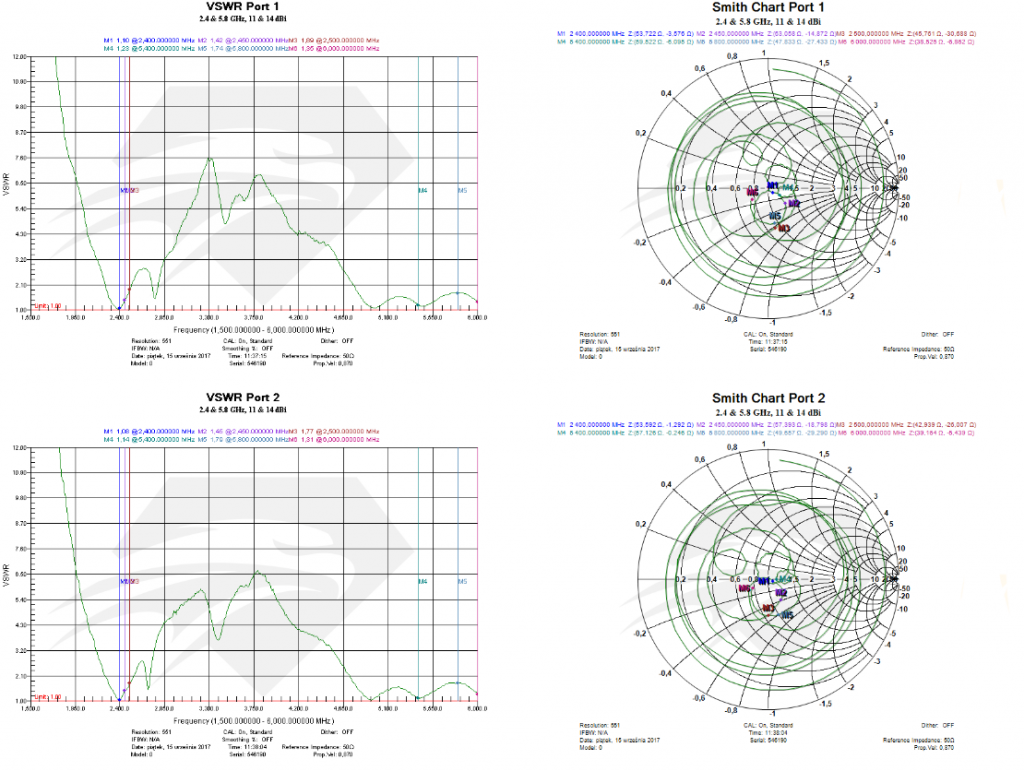

VSWR

Port 1:   < 1.50  (max. < 2.00)
Port 2:   < 1.50  (max. < 2.00)

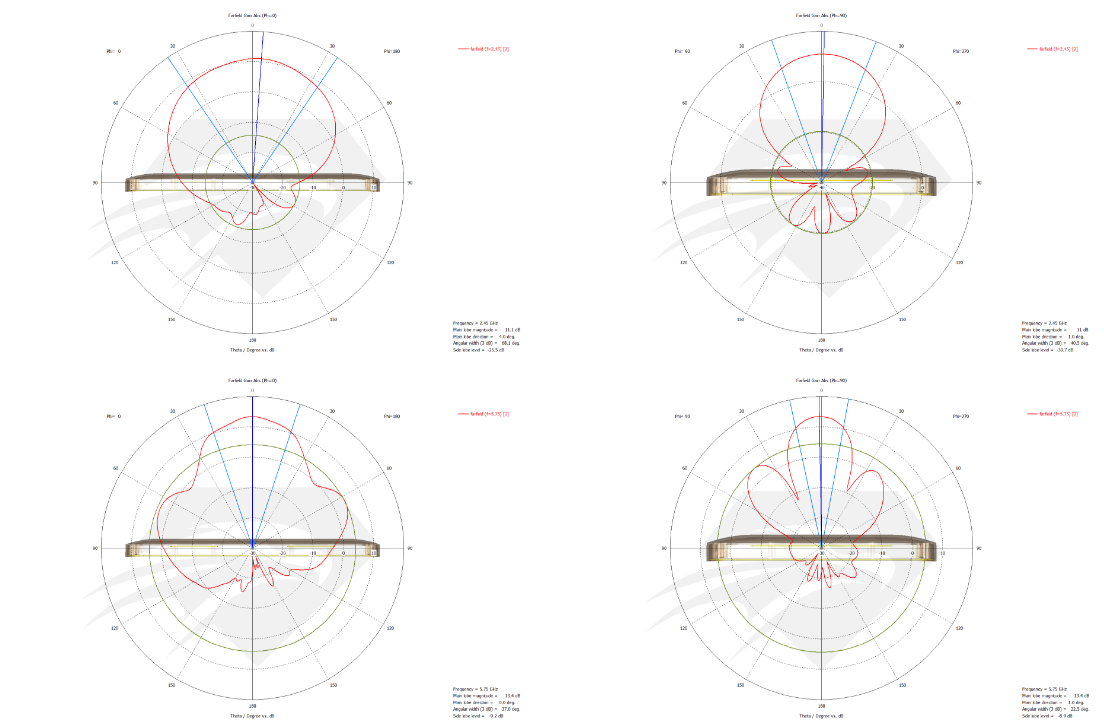

Beamwidth
Port 1:   70°/40° & 40°/25°
Port 2:   70°/40° & 40°/25°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 540g (450g Antenna + 90g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
