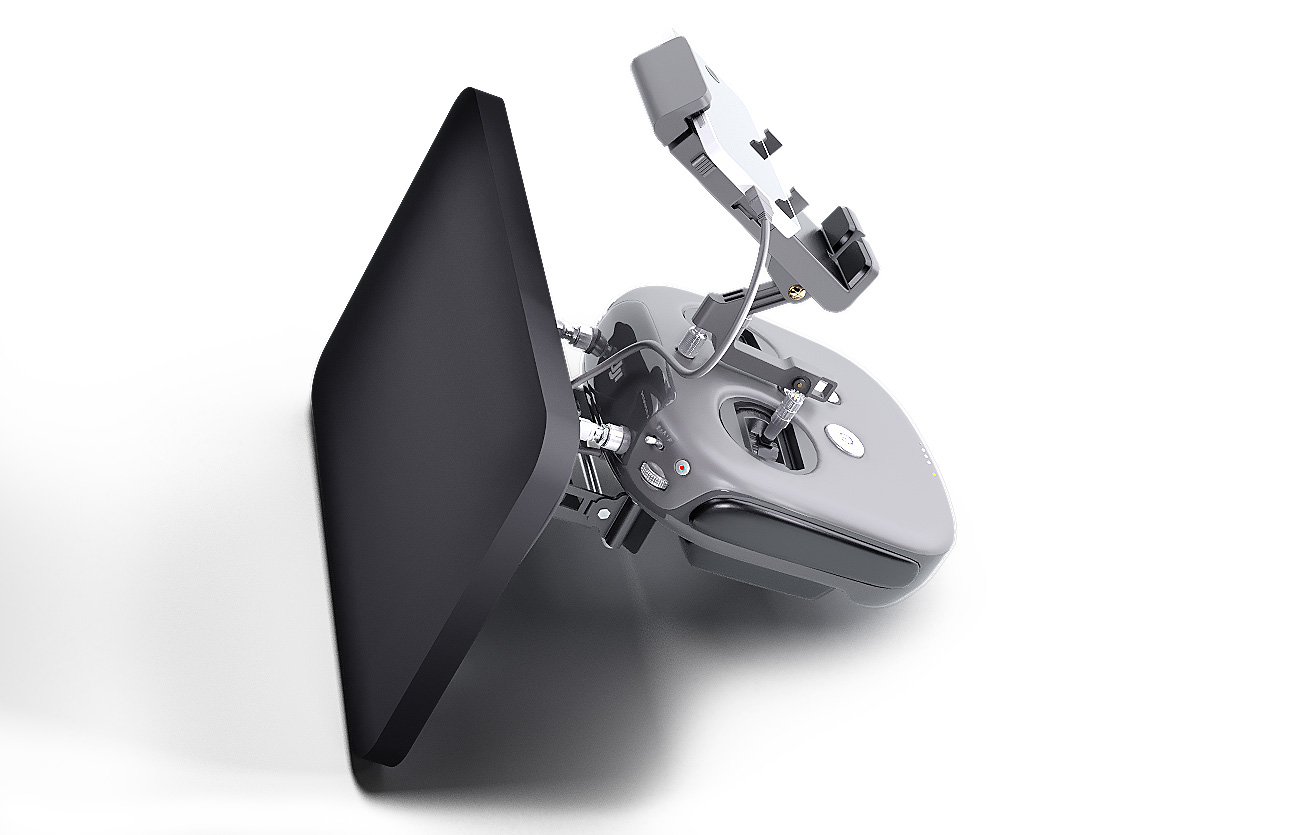

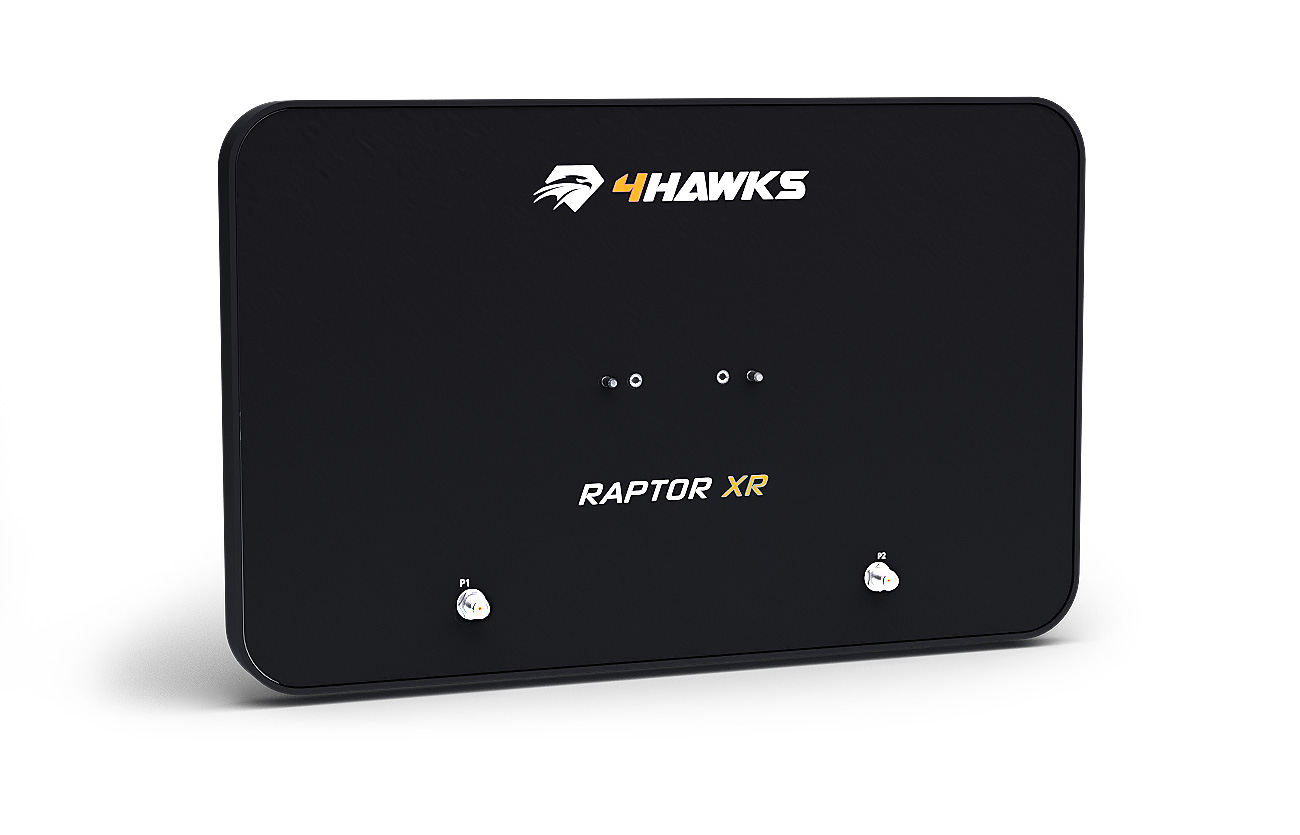

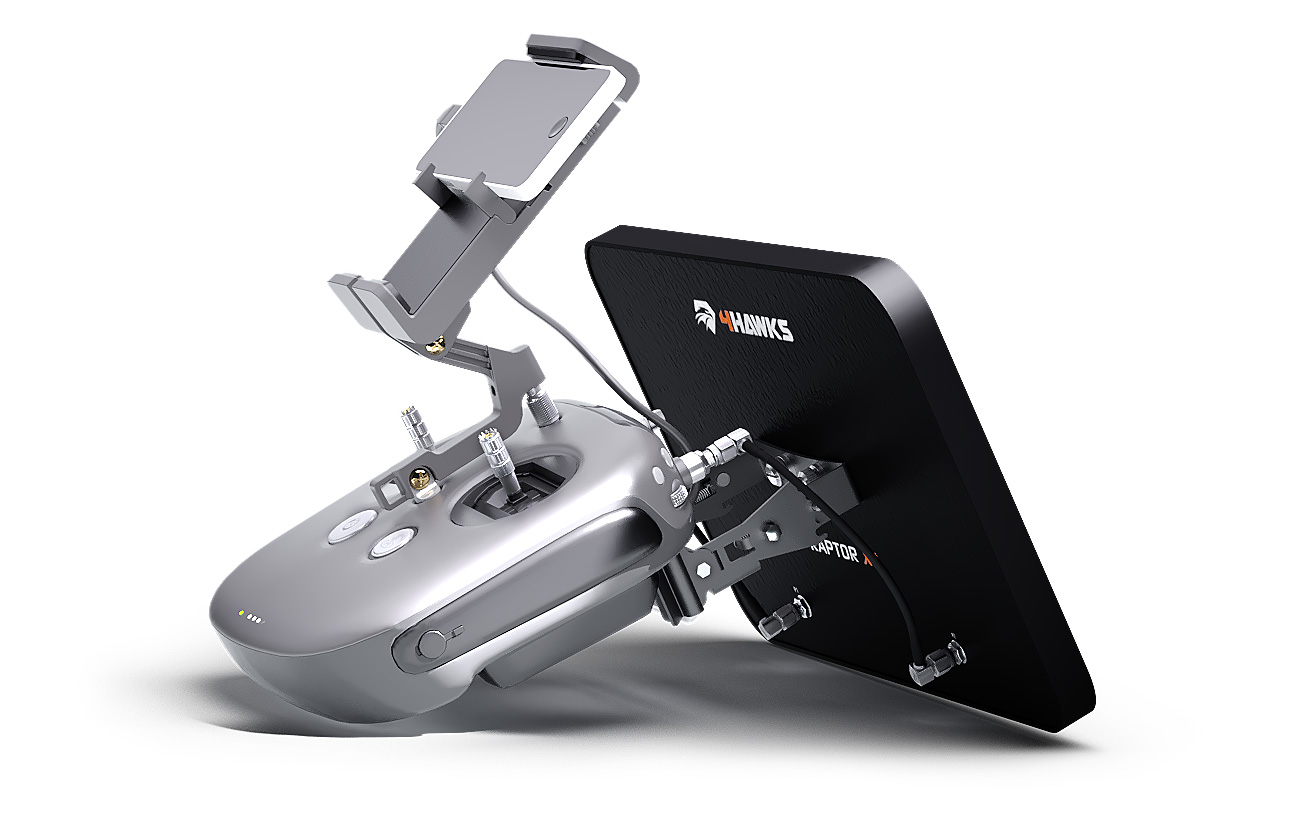

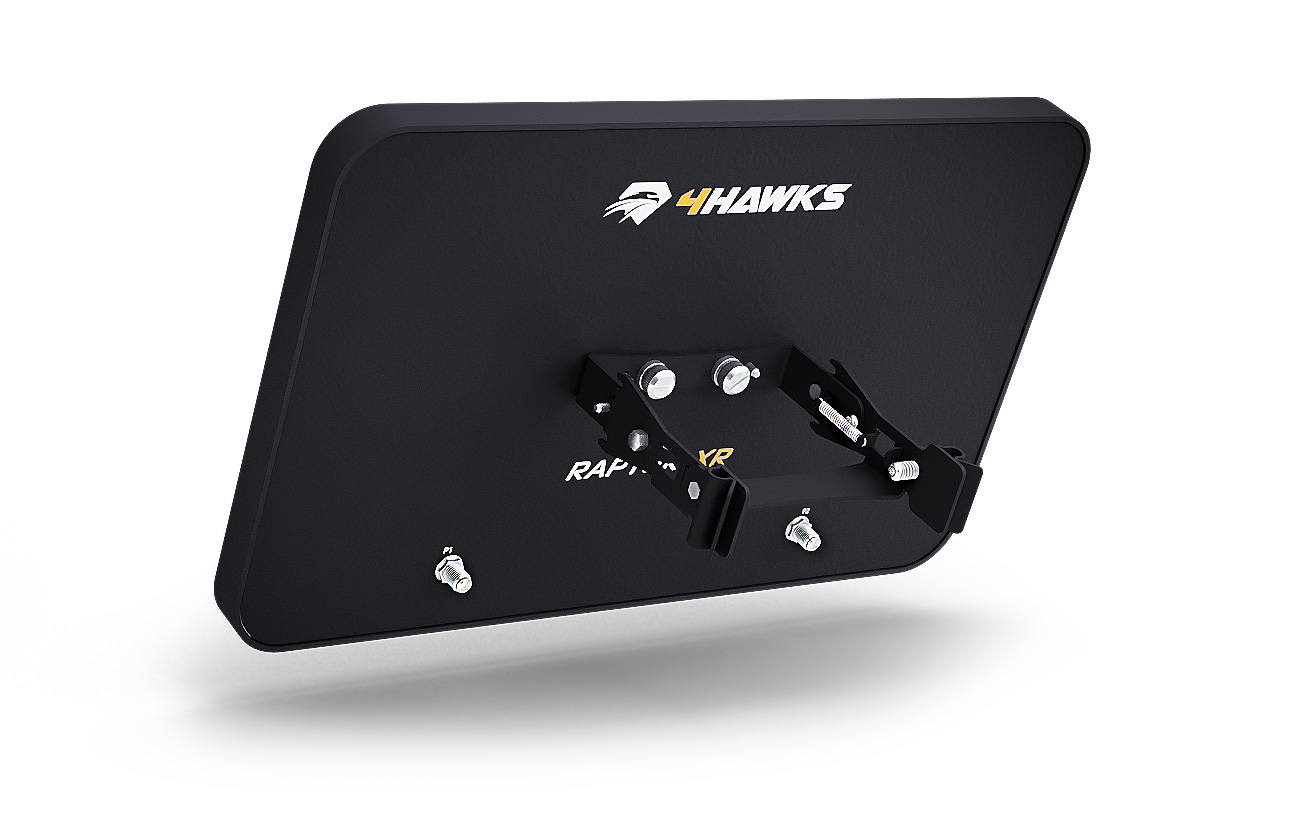

Raptor XR Designed for DJI Matrice series

Features:

  • Maximize performance
  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  • Dedicated pigtails
  • No drilling required
  • No modification to the drone itself
  • Long range extension without external boosters
  • Design does not contain any removable parts

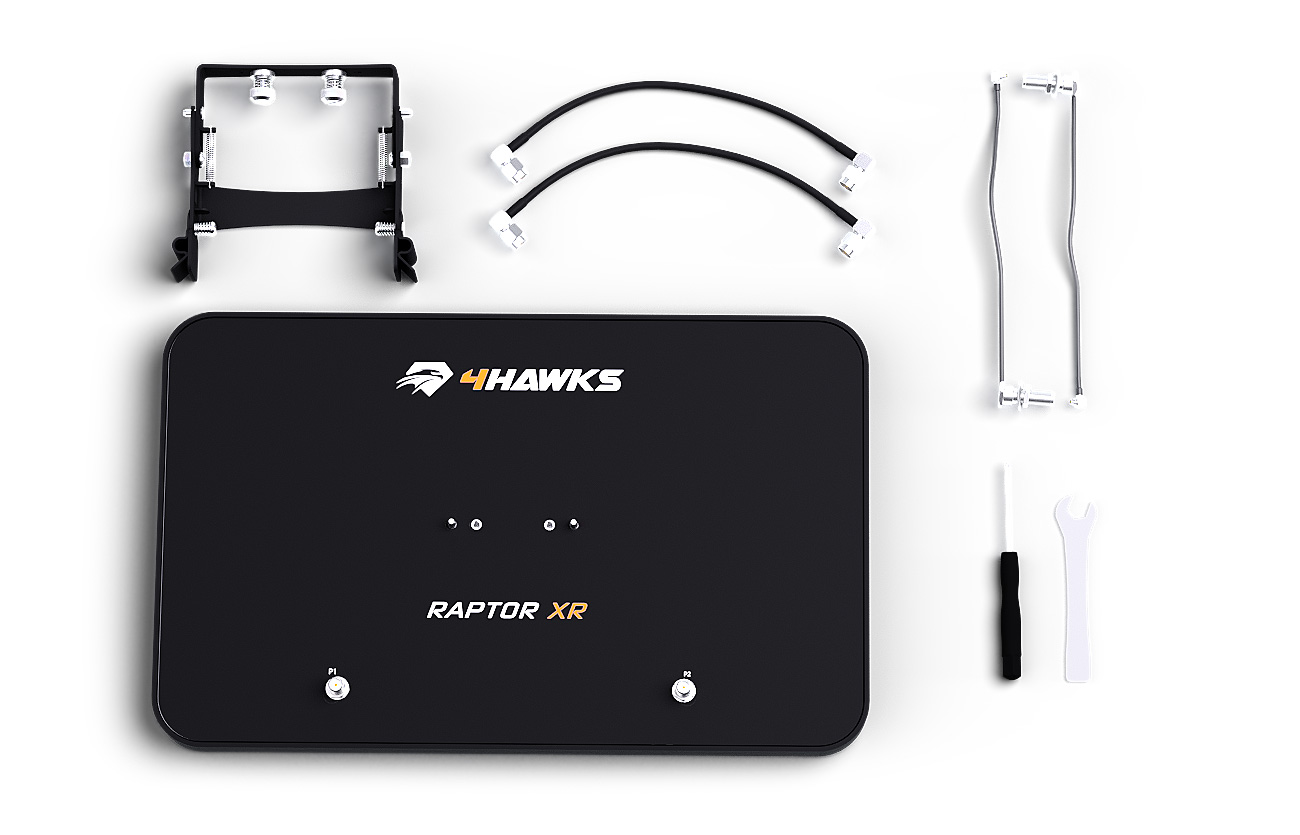

  • Complete solution

DJI Matrice is a model that is best known for its industrial usage with a big payload with long flight time. the drone is equipped with exceptional obstacle and aircraft detection systems. It is also possible to operate the drone with two controllers. The basic kit allows for up to 38 minutes of uninterrupted flight, maximum speed of 65km/h.
4Hawks antenna for DJI Matrice model is operating in 2.4GHz with 14dBi gain & 5.8 GHz with 14 dBi with additional antenna installed inside controller working in 5GHz frequency that allows operating the drone with 2 controllers. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.
Modifying the controller might require an assistance of a professional.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1:  11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)
Port 2:  11 dBi  (+/- 1 dBi) & 14 dBi  (+/- 1 dBi)

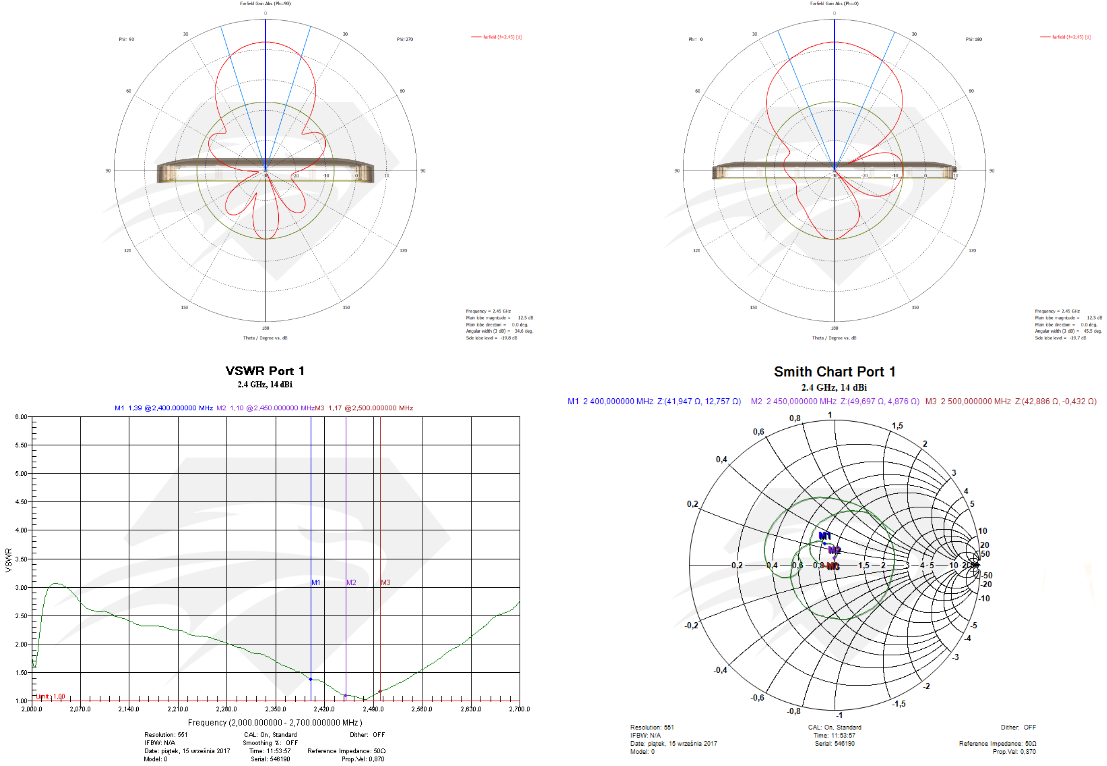

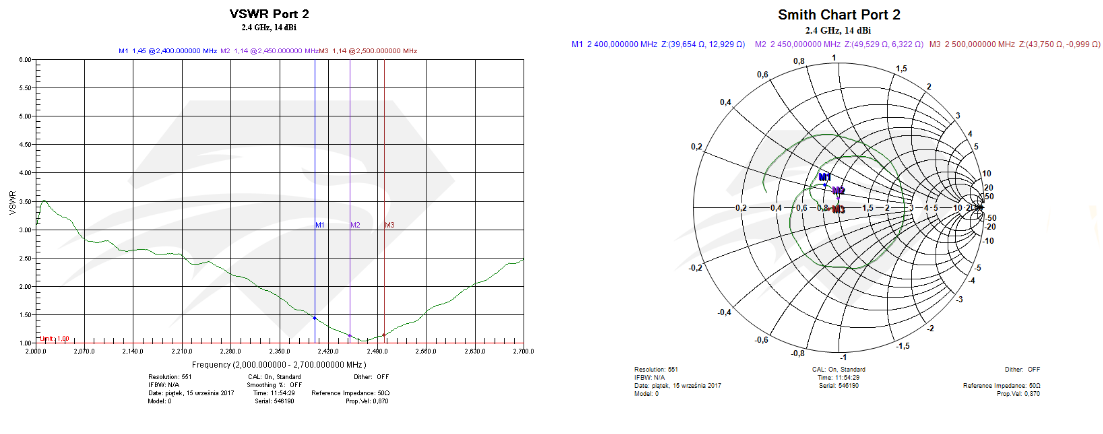

VSWR
Port 1:   < 1.20  (max. < 1.40)
Port 2:   < 1.20  (max. < 1.40)

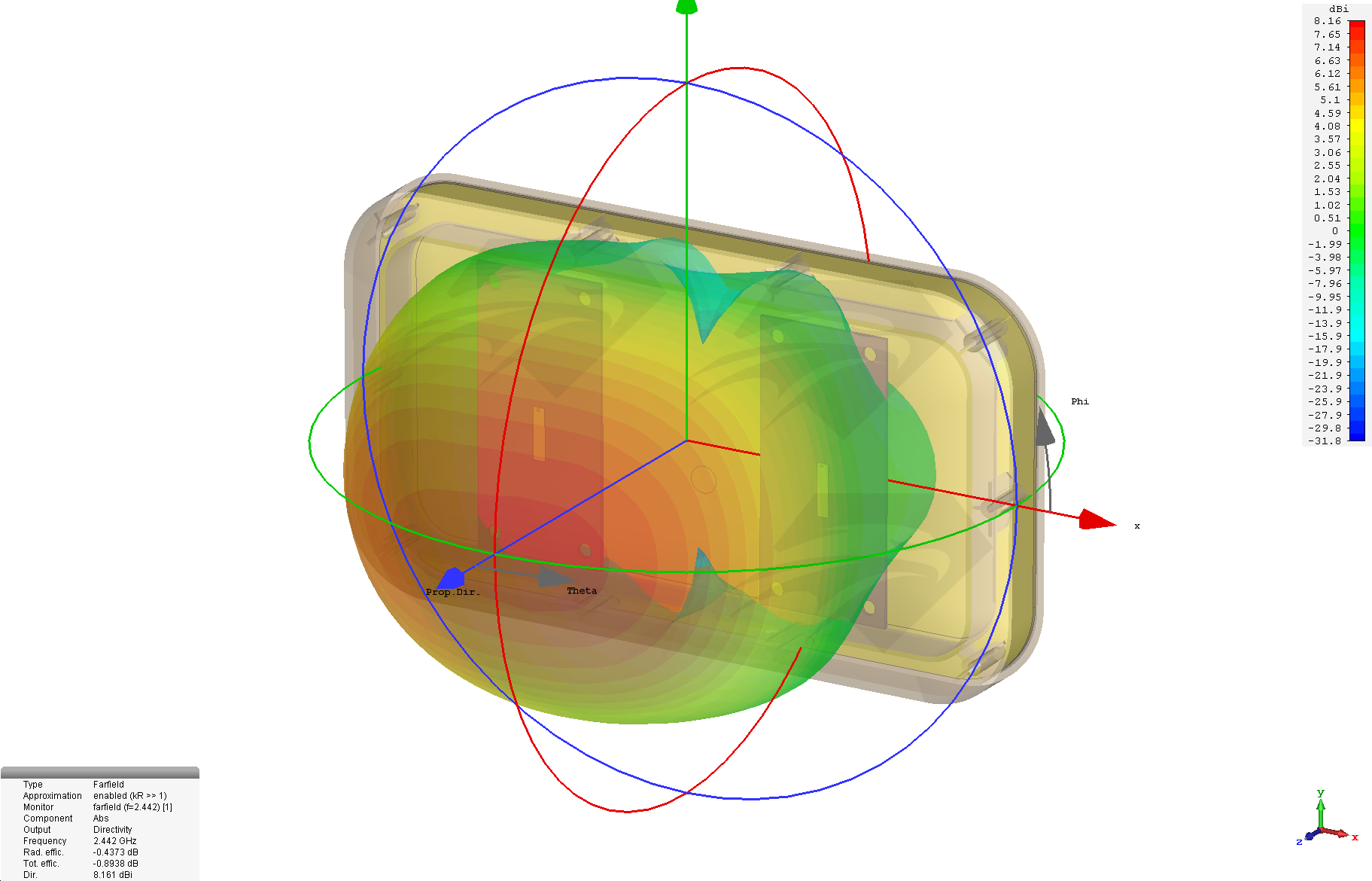

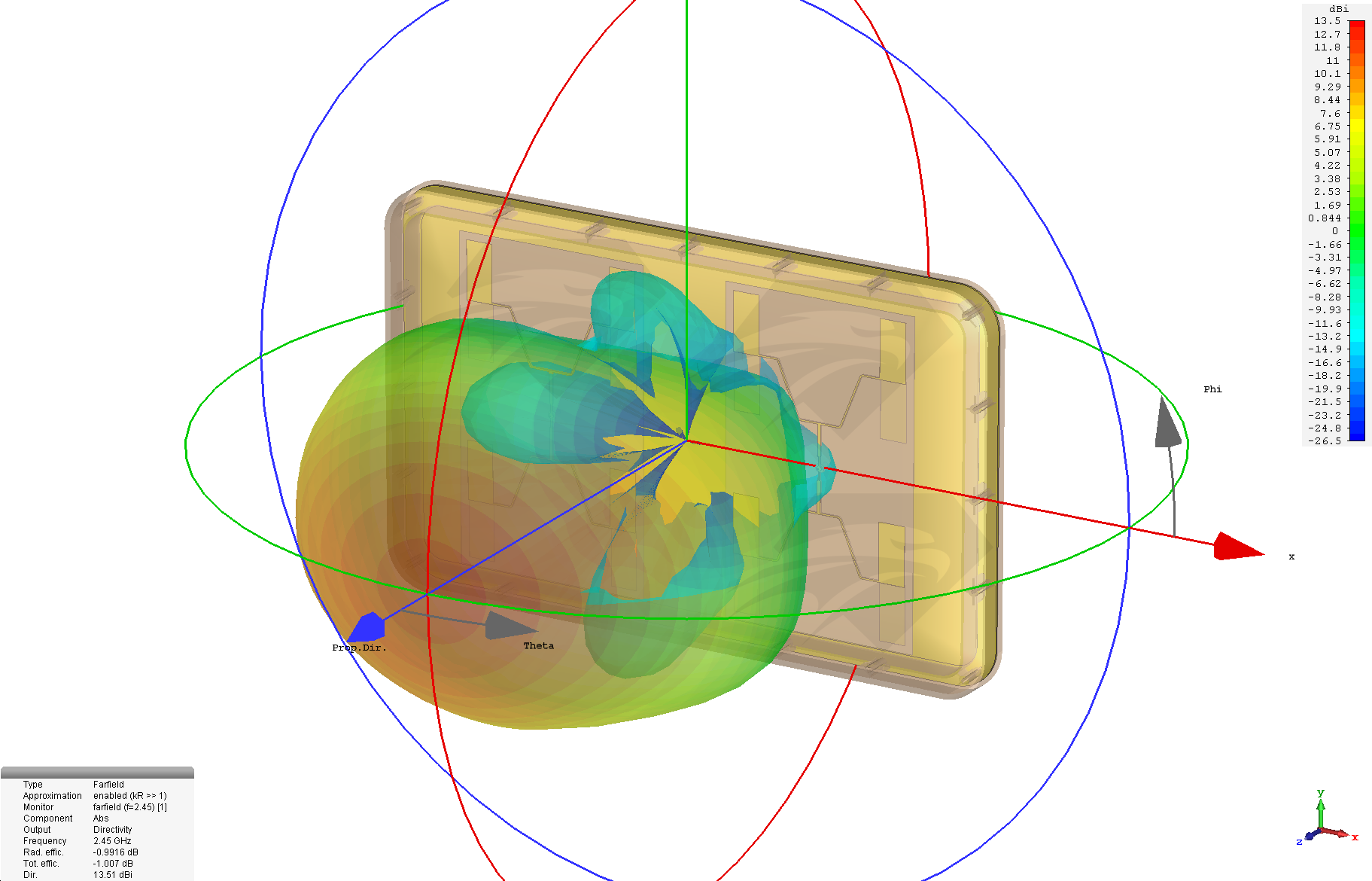

Beamwidth
Port 1:  70°/40° & 40°/25°
Port 2:  70°/40° & 40°/25°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 540g (450g Antenna + 90g Mounting)
Dimensions
29.2 x 18.2 x 2.1 cm
11.50 x 7.16 x 0.83 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
QuickAttach
