Raptor SR Designed for Yuneec Typhoon H


  • Plug & Play
  • Adjustable tilt of the range extender
  • No modification to the drone or to the controller
  • Long range extension without external boosters

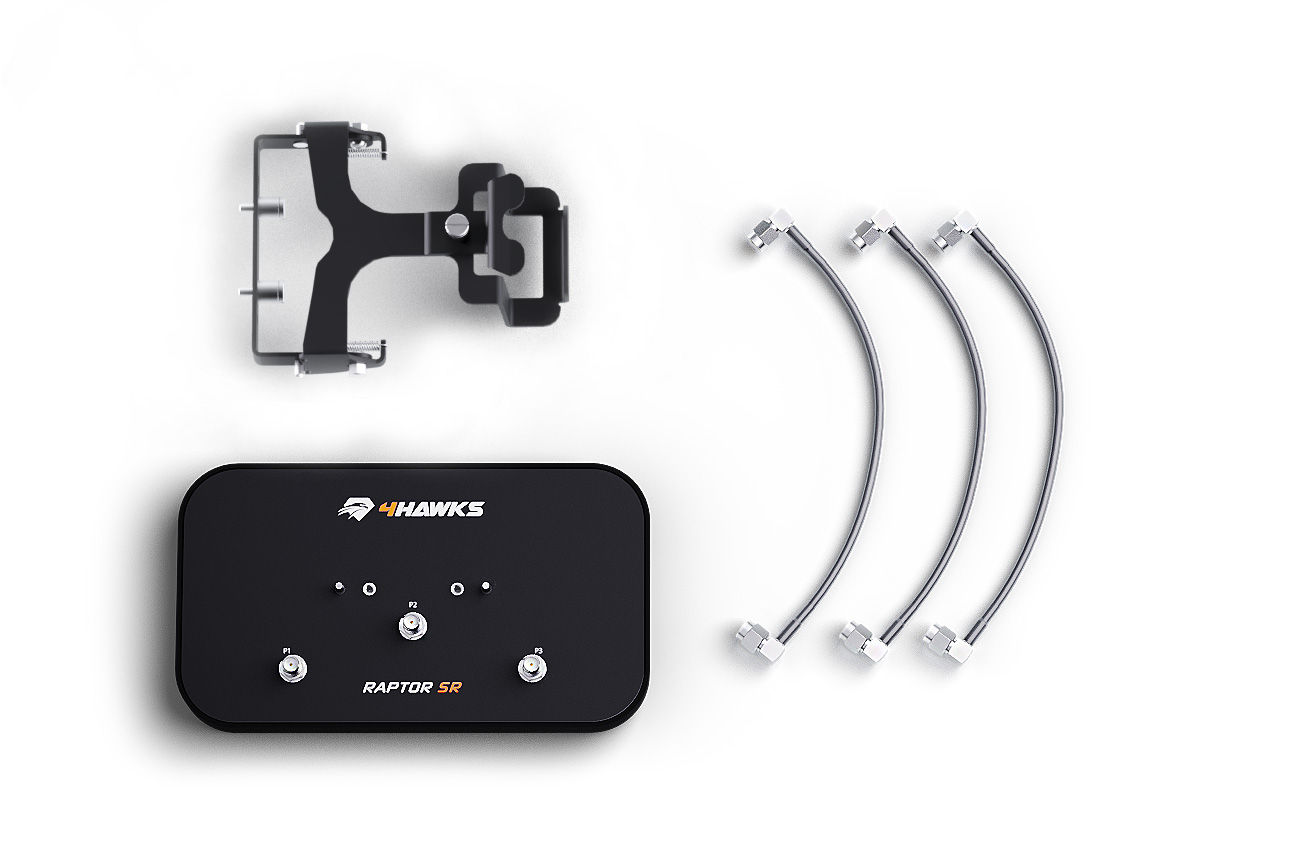

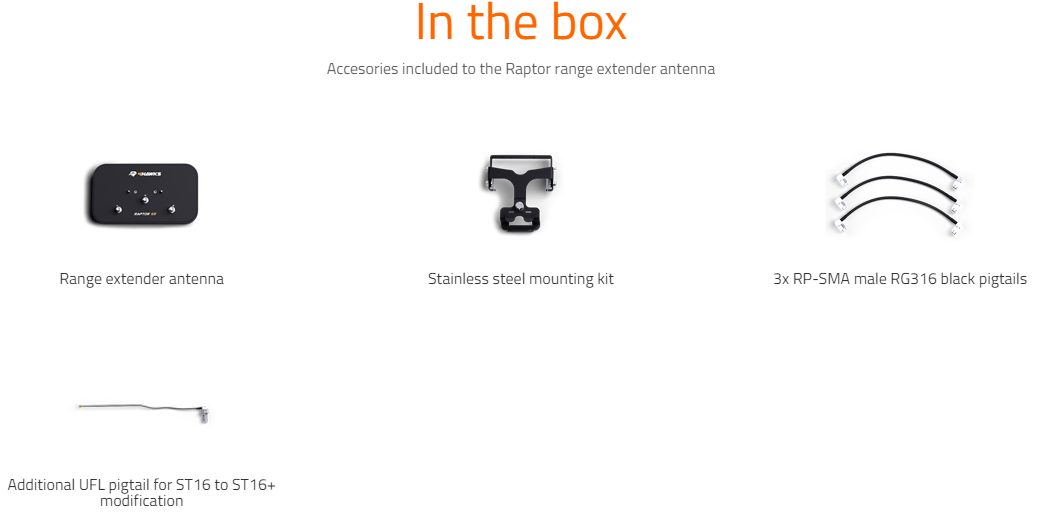

  • Complete solution

637 AED(VAT included)

Yuneec Typhoon H is one of the flagship models of this producer. With six-rotor design, the drone maintains a very good stability throughout the flight. The basic kit allows for up to 25 minutes of uninterrupted flight, maximum speed of 60km/h as well as maximum distance of around 0,7 kilometers.
The greatest advantage of 4Hawks antenna is that it significantly increases  the range of Yuneec Typhoon H, so the drone can reach much further than it initially can.
4Hawks antenna for Yuneec Typhoon H  model is operating in 2.4GHz with 9dBi gain as well as 5GHz frequency with 14dBi gain. Entire construction is 100% UV protected to assure longevity of the equipment. Additionally, part of the construction is made of aluminum to make the whole construction as light as possible. Mounting is made of stainless steel for rock solid stability.

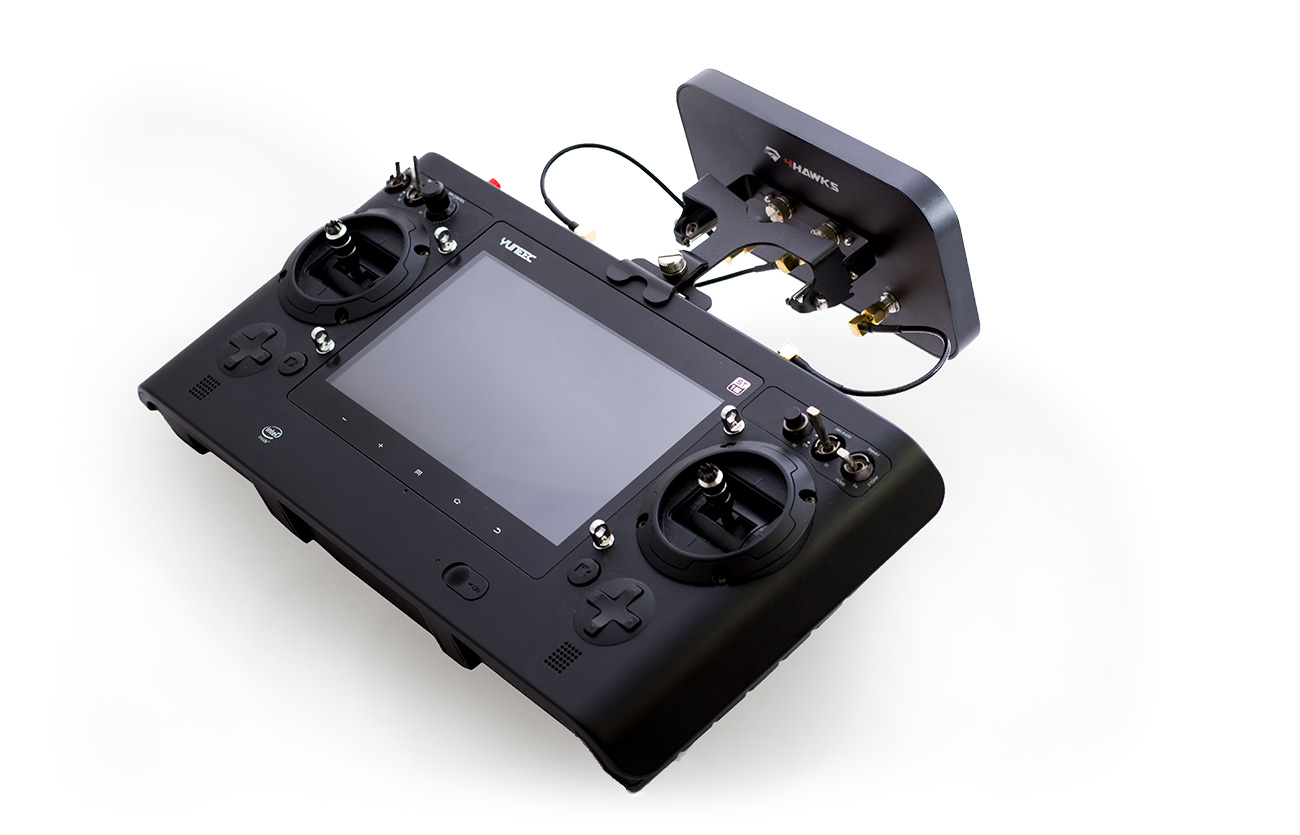

With plug-and-play construction of 4Hawks antenna, mounting was never as easy as now. The entire set is lightweight and uniform. Changing the direction of the antenna shouldn’t cause any difficulties, as the system was designed in a way that allows quick position change with just a single “click” to 5 different positions. This way you can be sure that you do not lose the connection with your drone.


electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Port 1:   2.40 – 2.50 GHz
Port 2:   4.90 – 5.90 GHz
Port 3:   2.40 – 2.50 GHz
Port 1:   9 dBi  (+/- 1 dBi)
Port 2:   14 dBi  (+/- 1 dBi)
Port 3:   9 dBi  (+/- 1 dBi)
Port 1:   < 1.50  (max. < 2.30)
Port 2:   < 1.50  (max. < 1.70)
Port 3:   < 1.50  (max. < 2.30)

Port 1:   70°/65°
Port 2:   35°/40°
Port 3:   70°/65°

Port 1:   Vertical
Port 2:   Vertical
Port 3:   Vertical
Port 1:   50 Ω
Port 2:   50 Ω
Port 3:   50 Ω

Mechanical parameters

Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting:   Stainless steel + paint
~ 200g (120g Antenna + 80g Mounting)
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch

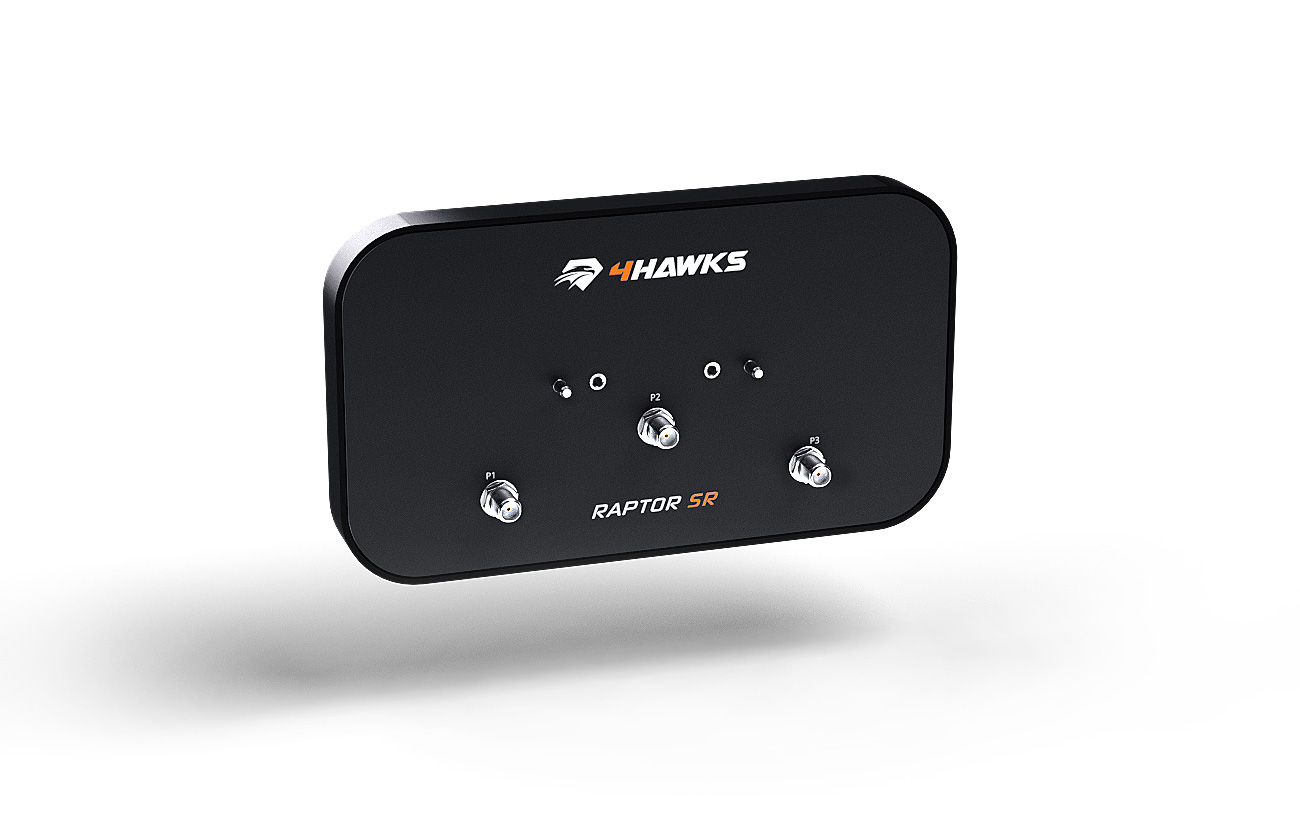

Port 1:   RP-SMA female
Port 2:   RP-SMA female
Port 3:   RP-SMA female

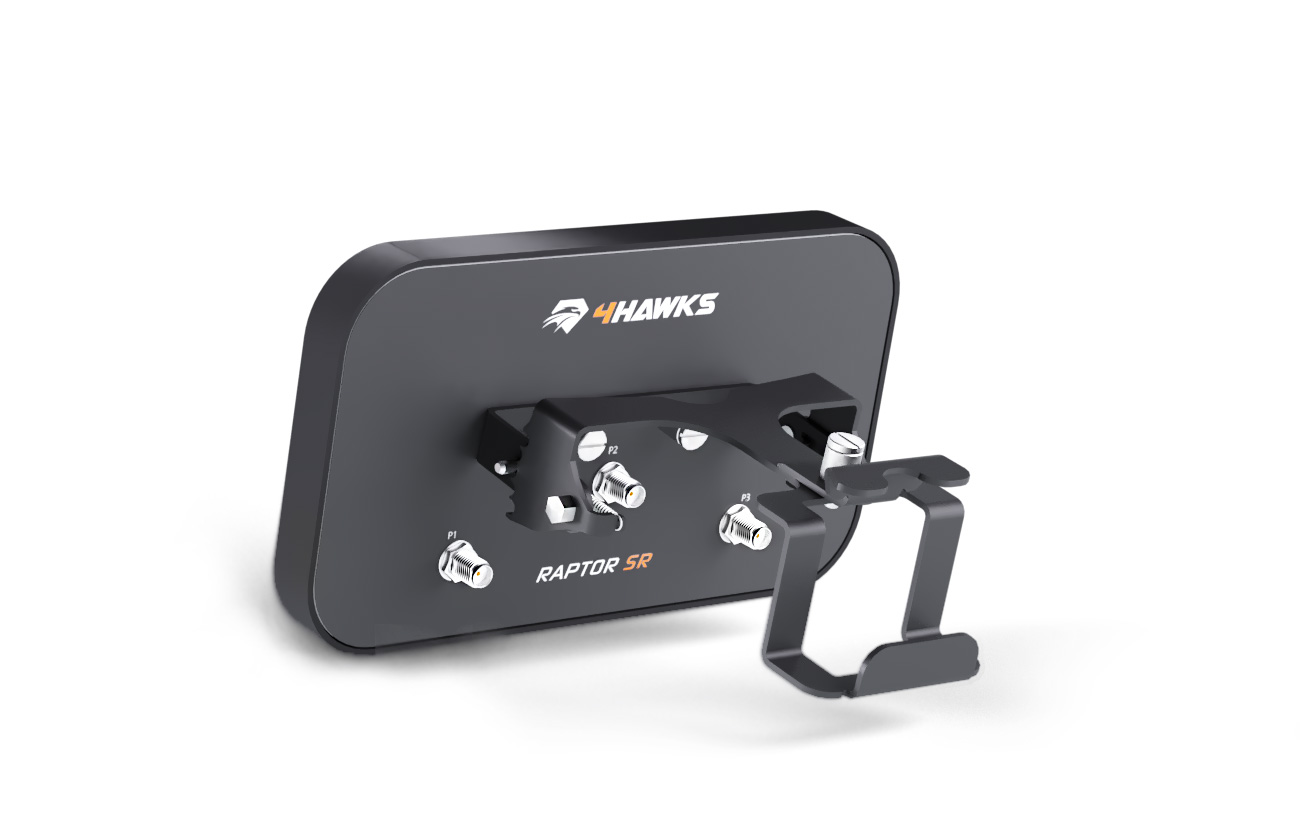

Tilt adjustment
5 tilt positions, OnClick system
Mounting type

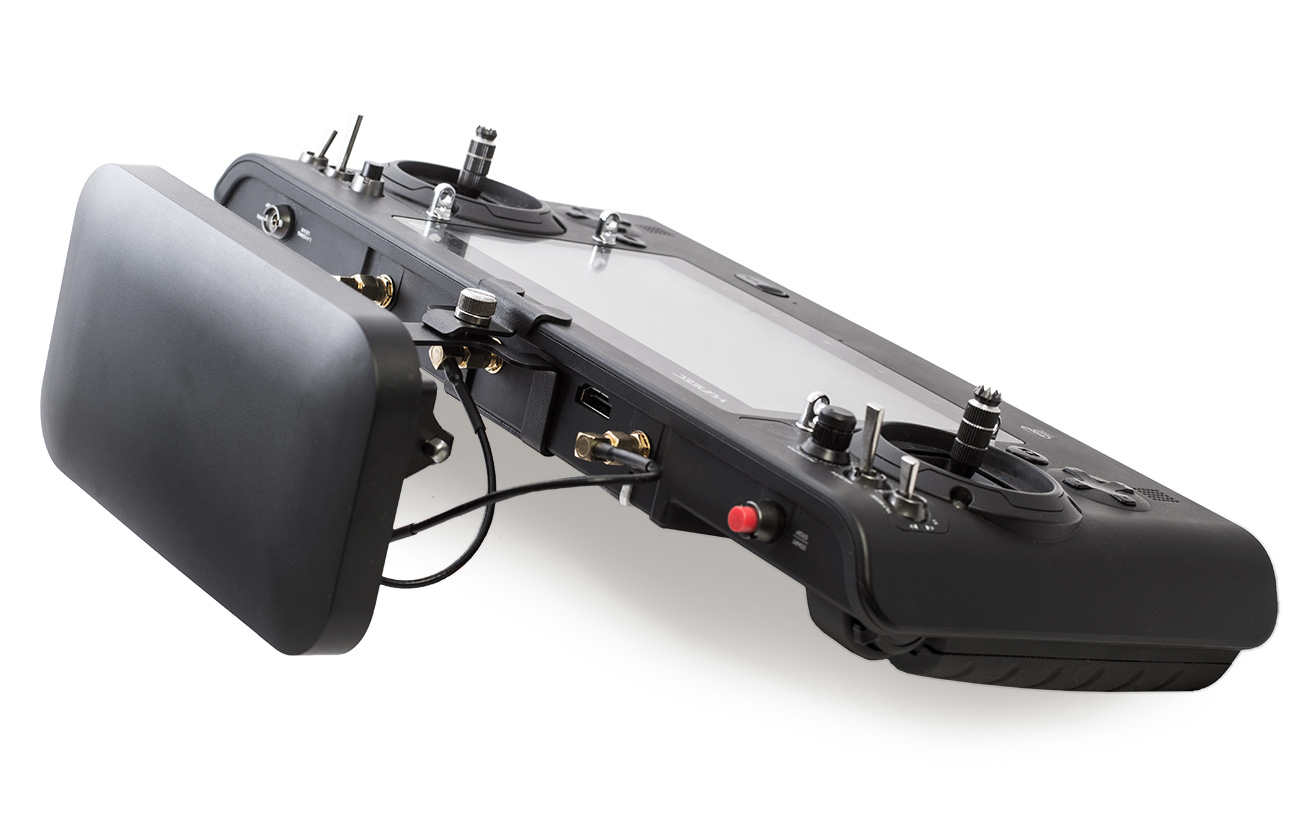

Attach to the controller by one screw (Removable)
