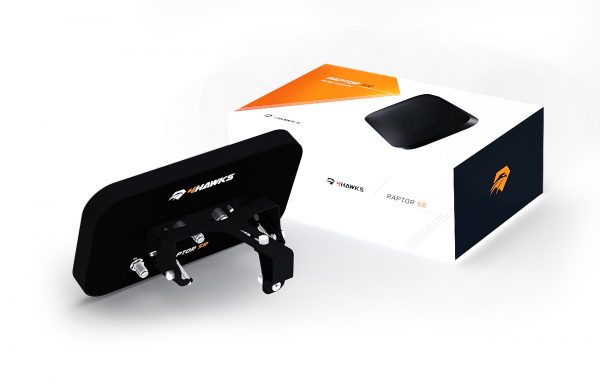

Raptor SR Designed for Yuneec Typhoon 4K
Features:
- Plug & Play
- Adjustable tilt of the range extender
- No modification to the drone or to the controller
- Long range extension without external boosters

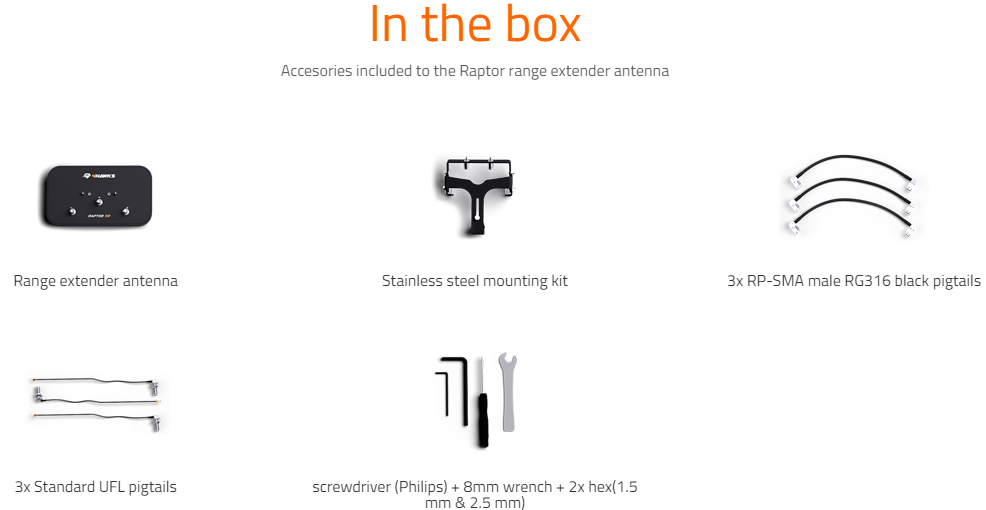

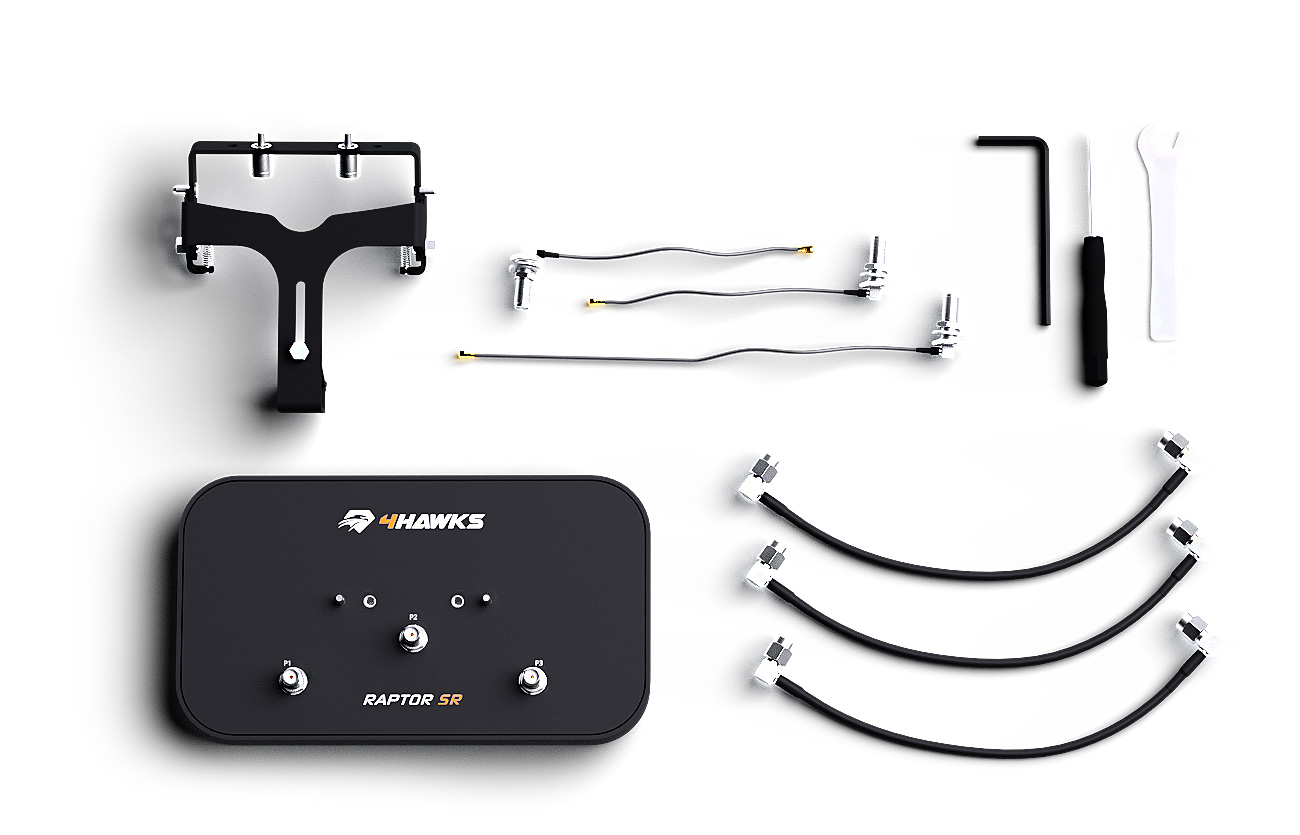

- Complete solution

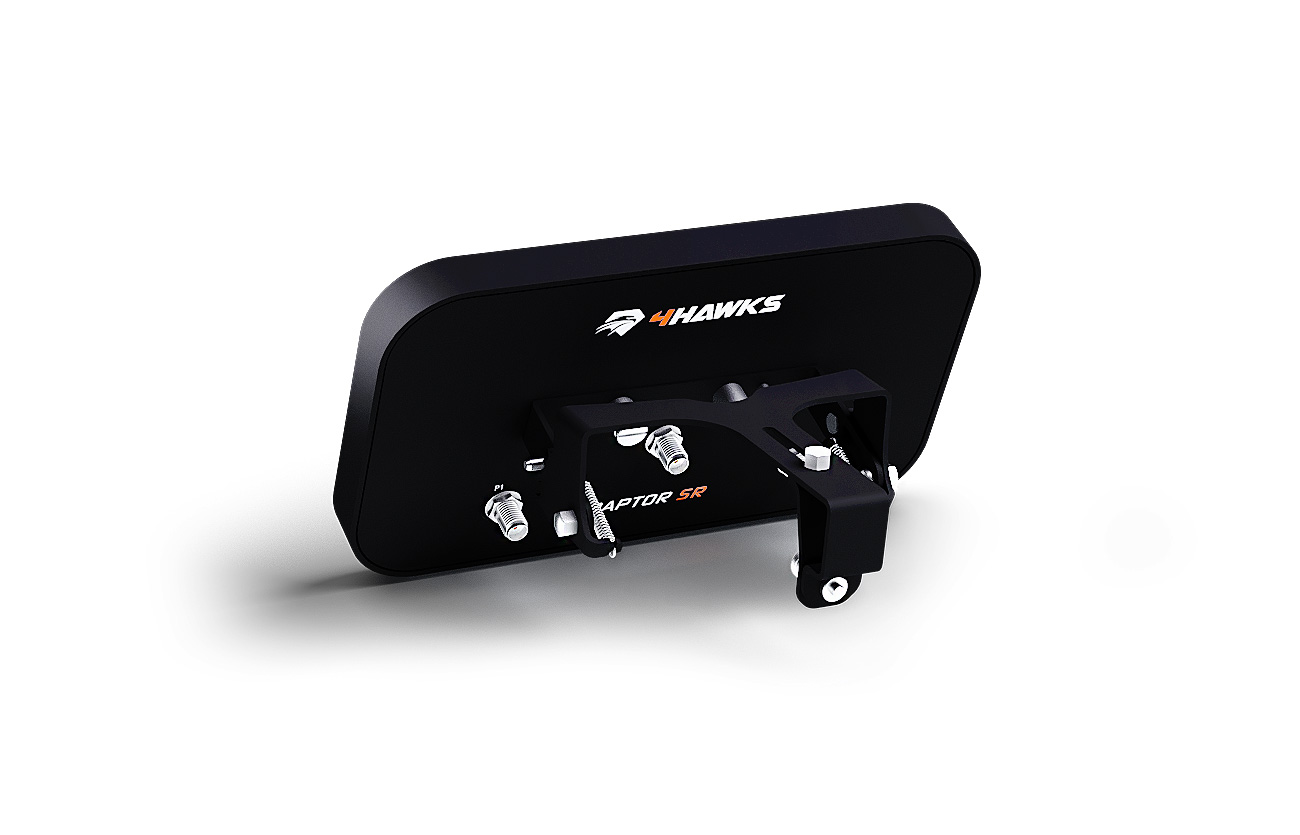

Raptor range extender increases your drone’s flight range. From now on you can reach up to three times further than with standard antennas. All materials were precisely selected and all elements were designed diligently. The radio transparent radome is made by advanced injection moulding process. Mounting system is made of stainless steel and doesn’t contain any removable parts that can be easy to lose. Thanks to dedicated mechanism, the operator can easily and smoothly adjust tilt of the antenna.
Specification
electrical & mechanical parameters of Raptor renge extender.
Electrical parameters
Frequencies
Port 1: 2.40 – 2.50 GHz
Port 2: 4.90 – 5.90 GHz
Port 3: 2.40 – 2.50 GHz
Port 2: 4.90 – 5.90 GHz
Port 3: 2.40 – 2.50 GHz
Gain
Port 1: 9 dBi (+/- 1 dBi)
Port 2: 14 dBi (+/- 1 dBi)
Port 3: 9 dBi (+/- 1 dBi)
Port 2: 14 dBi (+/- 1 dBi)
Port 3: 9 dBi (+/- 1 dBi)
VSWR
Port 1: < 1.50 (max. < 2.30)
Port 2: < 1.50 (max. < 1.70)
Port 3: < 1.50 (max. < 2.30)
Port 2: < 1.50 (max. < 1.70)
Port 3: < 1.50 (max. < 2.30)
Beamwidth
Port 1: 70°/65°
Port 2: 35°/40°
Port 3: 70°/65°
Polarization
Port 1: Vertical
Port 2: Vertical
Port 3: Vertical
Port 2: Vertical
Port 3: Vertical
Impedance
Port 1: 50 Ω
Port 2: 50 Ω
Port 3: 50 Ω
Port 2: 50 Ω
Port 3: 50 Ω
Mechanical parameters
Material
Antenna: Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, FR4 PCB
Mounting: Stainless steel + paint
Mounting: Stainless steel + paint
Weight
~ 200g (120g Antenna + 80g Mounting)
Dimensions
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch
6.34 x 3.60 x 0.67 inch
Connection
Port 1: RP-SMA female
Port 2: RP-SMA female
Port 3: RP-SMA female
Port 2: RP-SMA female
Port 3: RP-SMA female
Tilt adjustment
5 tilt positions, OnClick system
Mounting type
Attach to the controller by one screw (Removable)
