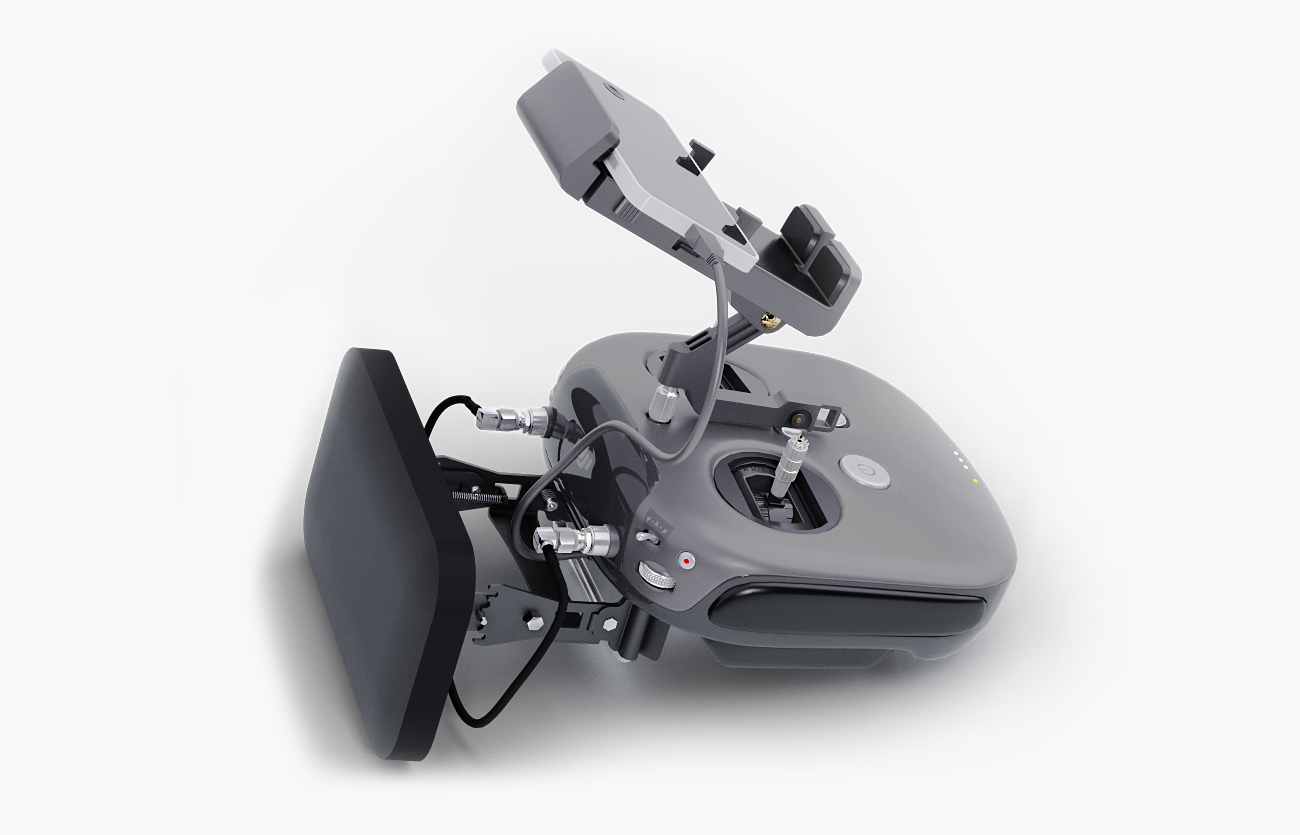

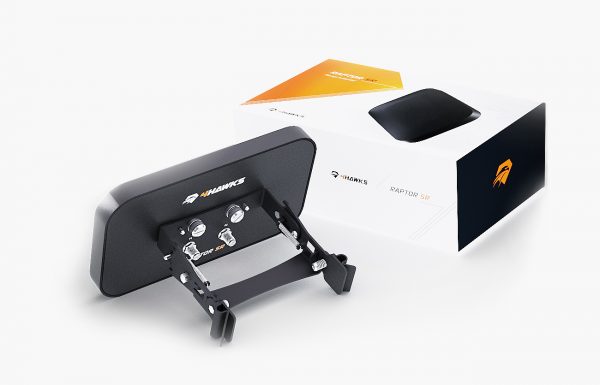

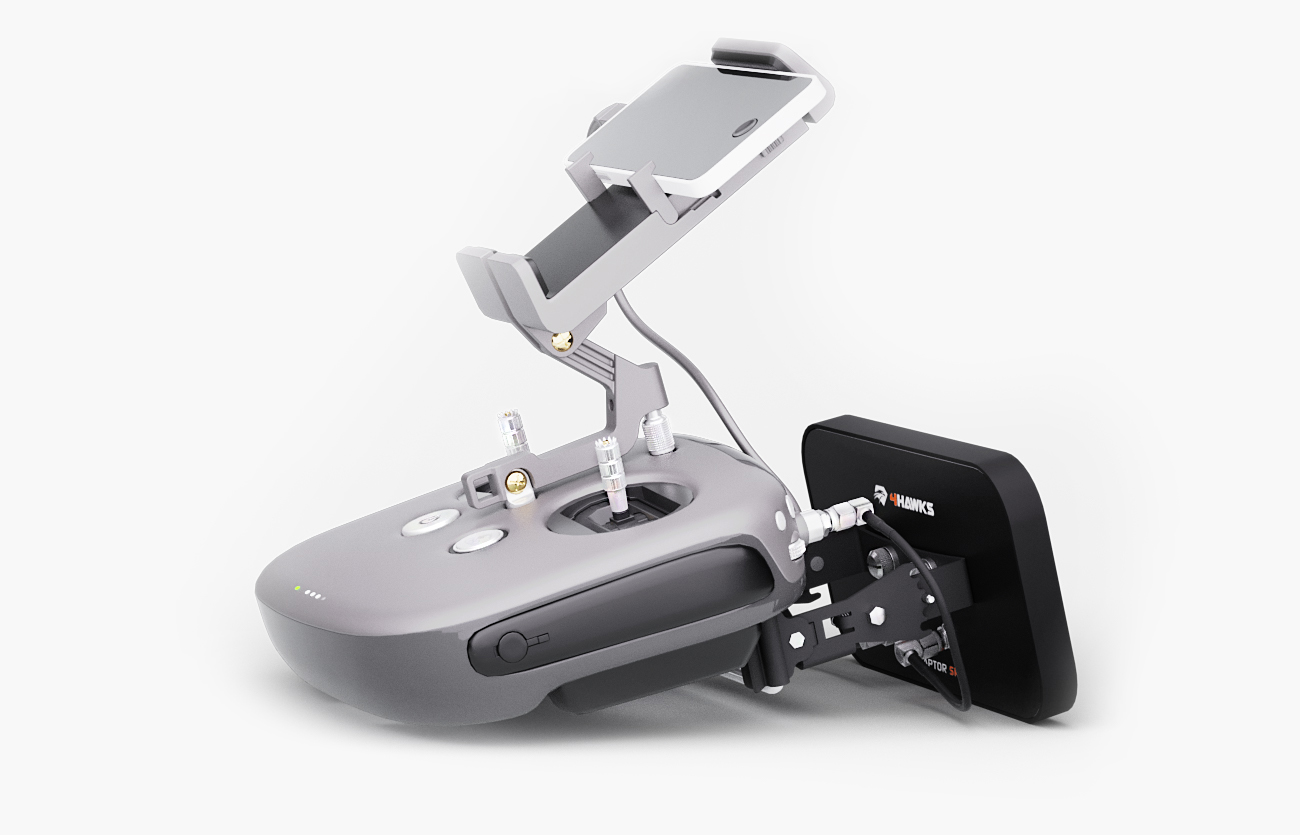

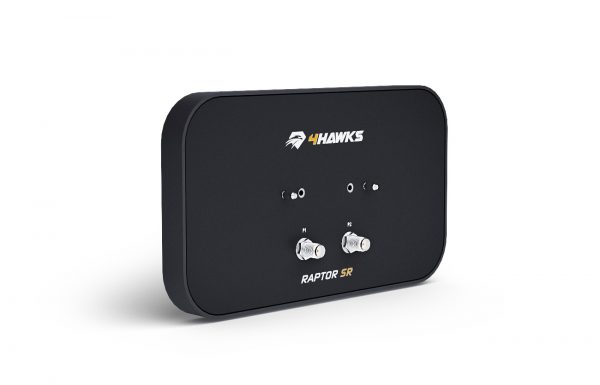

Raptor SR Designed for DJI Inspire 2

Features:

  • Concurrent dual band 2.4 & 5GHz

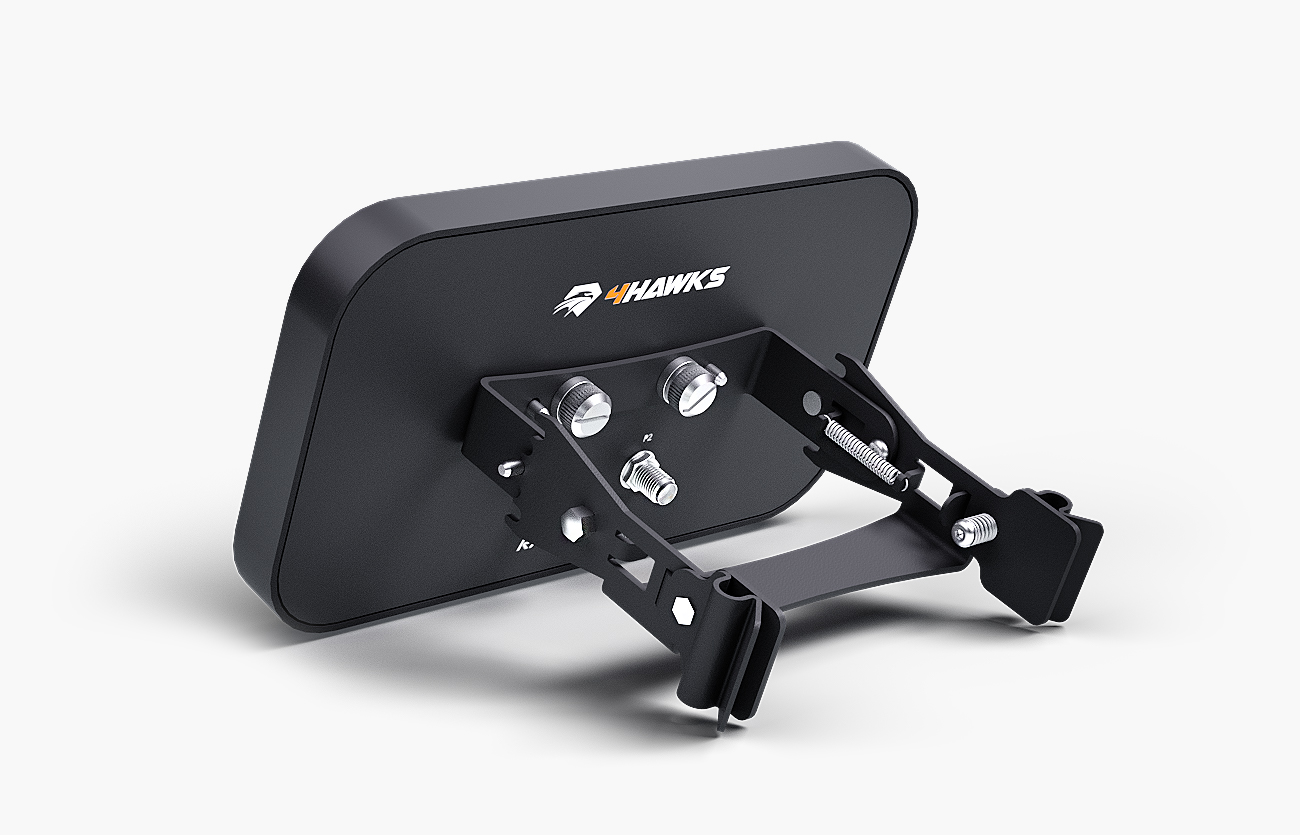

  • QuickAttach mounting system
  • Adjustable tilt of the range extender
  • Dedicated pigtails
  • No drilling required
  • No modification to the drone itself
  • Design does not contain any removable parts

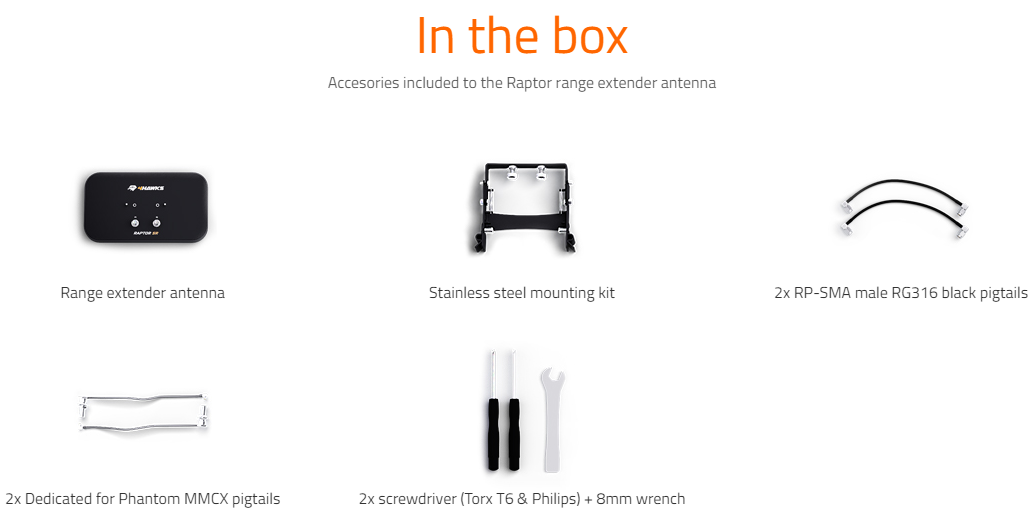

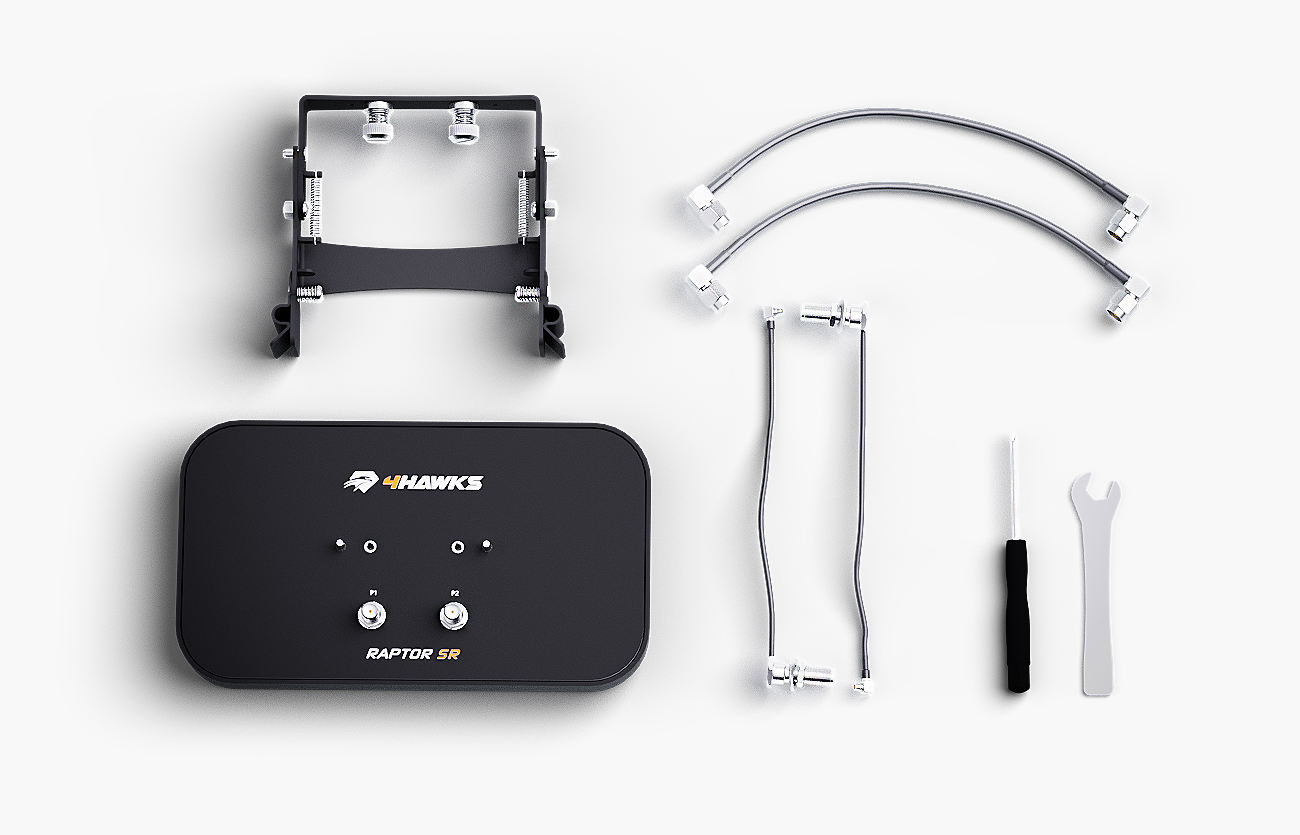

  • Complete solution

201$(VAT included)
Categories ,

DJI Inspire 2 is one of newer models made for professional users. It is definitely a flagship of professional models currently available on the market. The drone’s body is made from magnesium alloys. Cameras included are easily interchangeable with quality up to 5.2k. The basic kit allows for up to 30 minutes of uninterrupted flight, maximum speed of 90km/h.
4Hawks antenna significantly increases  the range of Dji Inspire 2, so the drone can reach even further than ever before. Additionally, the strength of the signal is improved, especially in noisy areas.
Last but not least, with 4Hawks range extender, the video quality is always glitch free, thanks to a strong, uninterrupted signal, that is supported by two frequencies operating at the same time.

Specification

electrical & mechanical parameters of Raptor renge extender.

Electrical parameters

Frequencies
Port 1:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Port 2:   2.40 – 2.50 GHz & 5.00 – 5.80 GHz
Gain
Port 1:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
Port 2:   8 dBi  (+/- 1 dBi) & 10 dBi  (+/- 1 dBi)
VSWR
Port 1:   < 1.50  (max. < 2.15)
Port 2:   < 1.50  (max. < 2.15)
Beamwidth
Port 1:   90°/65° & 55°/55°
Port 2:   90°/65° & 55°/55°
Polarization
Port 1:   Vertical
Port 2:   Vertical
Impedance
Port 1:   50 Ω
Port 2:   50 Ω

Mechanical parameters

Material
Antenna:   Samsung ABS, polyurethane, aluminum, Stainless steel, Nylon, PTFE PCB
Mounting:   Stainless steel + paint
Weight
~ 200g (110g Antenna + 90g Mounting)
Dimensions
16.1 x 9.1 x 1.7 cm
6.34 x 3.60 x 0.67 inch
Connection
Port 1:   RP-SMA female
Port 2:   RP-SMA female
Tilt adjustment
3 tilt positions, OnClick system
Mounting type
On SMA connectors (Permanent)
Show less
