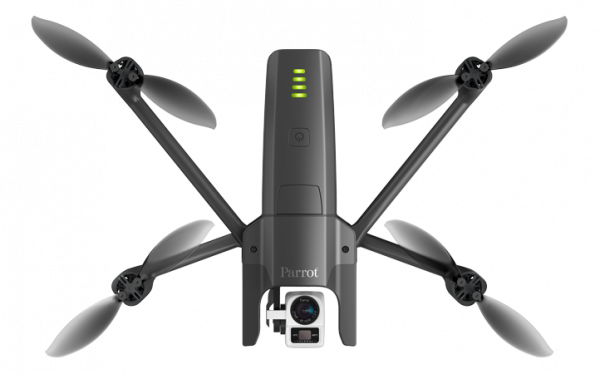

Parrot Anafi Thermal
The ultra-compact and lightweight thermal drone solution dedicated to all professionals.
ANAFI Thermal is a thermal imaging drone is easy to use, lightweight and powerful. The drone’s unique imaging capabilities enable you to take immediate action or analyze recorded photos and videos in unprecedented detail.
ANAFI Thermal is designed to profoundly revolutionise the way many industries and trades operate, offering professionals a complete solution that adapts perfectly to their requirements and needs.
ANAFI Thermal:
• Weighs only 315g and has a unique foldable design meaning you always have it to hand

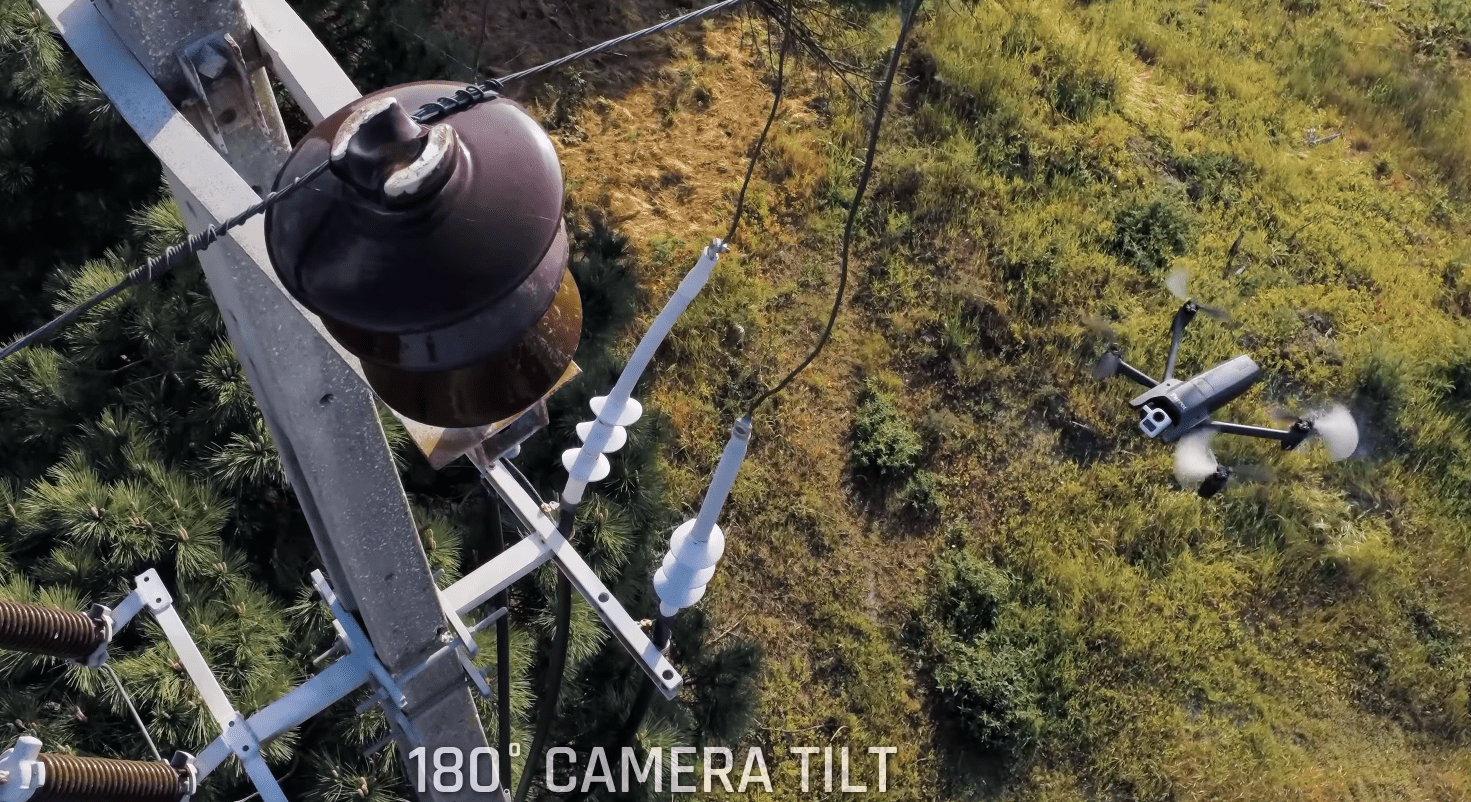

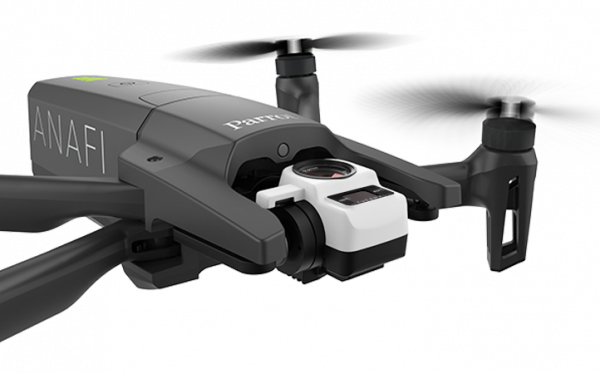

• 2 cameras: Thermal FLIR® and 4K HDR with 21MP Sony sensor. Stabilised on 3 axes, they tilt at +/-90° to observe right underneath structures
• A powerful and reliable drone that offers up to 78 min of cumulative flight (3 batteries)
• Easy to use thanks to the FreeFlight 6 app, giving you control of all the flight parameters
1,891$(VAT included)
Out of stock

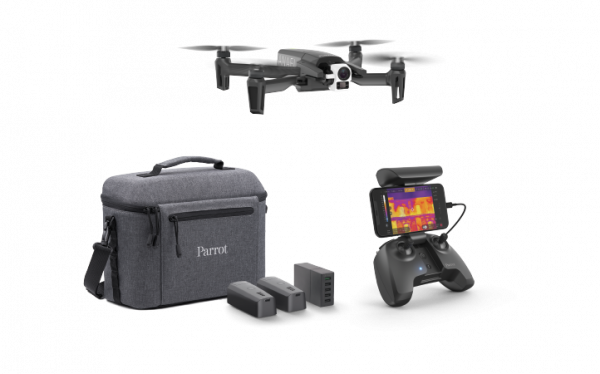

In this pack incluced:
- 1 ANAFI Thermal drone
- 1 Parrot Skycontroller 3
- 3 smart batteries
- 1 carry case
- 1 multi-port USB charger
- 1 tablet holder
- 8 spare propeller blades
- 1 16 GB microSD card
- 4 USB-A/USB-C cables
TECHNICAL SPECIFICATIONS
ANAFI THERMAL DRONE
- Weight: 315 g
- Maximum transmission distance: 4km with the Parrot Skycontroller 3
- Maximum flight time: 26min
- Maximum horizontal speed: 34mph
- Maximum vertical speed: 4m/s

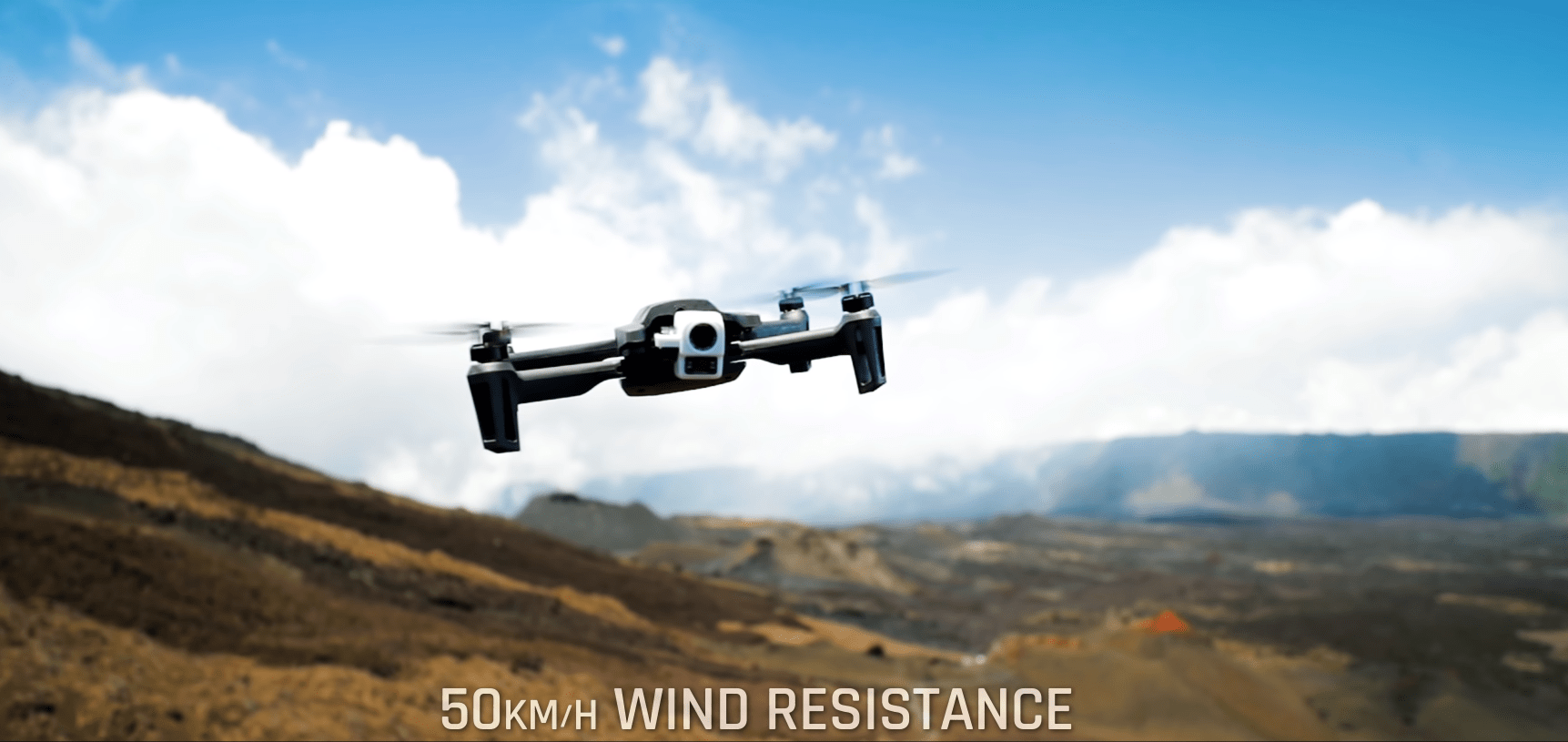

- Maximum wind resistance: 31mph
- Maximum working altitude: 4,500m above sea level
- Operating temperature: from -10°C to 40°C
DIMENSIONS :
- Folded: 218x69x64mm
- Unfolded: 241x315x64mm
SENSORS :
- GNSS: GPS + GLONASS
- Barometer and magnetometer
- Vertical camera and ultrasound sensor
- 2×6-axis IMU
- 2×3-axes accelerometer
- 2×3-axes gyroscope
IMAGING SYSTEM
- Sensor: CMOS 1/2.4″, 21MP
- Video format: MP4 (H264)
- HDR: 4K UHD, 2.7K et 1080p videos, JPEG photos
- Photo formats: JPEG, DNG(RAW)
- Photo modes: single, burst, bracketing, timer and panorama
- Shutter speed: from 1 to 1/10000s
- ISO: from 100 to 3200
- EV compensation: [-3, +3]
- Maximum video sampling rate: 100Mbps
LD-ASPH LENS :
- f/2.4 aperture
- Depth of focus: 26mm (35mm equivalent)
- Depth of field: 1.5m to infinity
DIGITAL ZOOM :
- Lossless: up to x2.8 (FHD), up to x1.9 (2.7K), up to x1.4 (4K UHD)
- Standard: up to x3 (all resolutions)
PHOTO RESOLUTION :
- Wide angle: 21MP (5344×4016) / 4:3 / 84° HFOV
- Rectilinear: 12MP (4000×3000) / 4:3 / 75.5° HFOV
VIDEO RESOLUTION :
- 4K Cinema (4096×2160 24fps)
- 4K UHD (3840×2160 24/25/30fps)
- FHD (1920×1080 24/25/30/48/50/60fps)
- HD (1280×720 48/50/60fps)
- HFOV video: 69°
THERMAL-IMAGING CAMERA :
- Sensor: FLIR LEPTON 3.5 microbolometer (radiometric)
- Sensor resolution: 160×120
- HFOV: 57°
- Pixel pitch: 12µm
- Spectral band: 8-14µm
- Thermal sensitivity: <50mK (0.050°C)
- Photo format: JPEG
- Photo resolution: 3264×2448 (4/3)
- Photo modes: Single / Time-lapse / GPS Lapse
- Video format: MP4 (H264)
- Video recording resolution: 1440×1080, 9fps
- Precision: ±5% max.(High-gain) or ±10% max.(Low-gain)
- Scene Dynamic Range: -10° to +140°C (High-gain) or -10° to +400°C (Low-gain)
- Video: MP4
PARROT SKYCONTROLLER 3
- Folded size: 94x152x72mm
- Unfolded size: 153x152x116mm
- Weight: 386g
- Transmission system: Wi-Fi 802.11a/b/g/n
- Operating frequency: 2.4 – 5.8 GHz
- Max. transmission distance. : 4km
- Resolution of the video return: HD 720p
- Battery capacity: 2500 mAh 3.6V
- Battery life: 2h30 (Android) / 5h30 (iOS)
- Compatible mobile devices: Screen size up to 10″
- USB ports: USB-C (Charge), USB-A (Connection)
