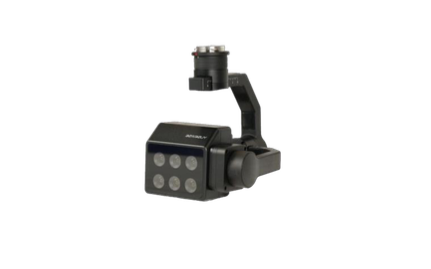

MS600 PRO Multispectral Camera


6band
Calibration correction
Real-time image transmission: data processing: support Yusense Map, Pix4D offline processing and “end-cloud integration”
Synchronous data upload
Storage/working temperature range: -30°C~+70°C/-10°C~+50°C
Environmental adaptability: sapphire window, scratch-resistant, abrasion-resistant and durable



6band
Calibration correction
Real-time image transmission: data processing: support Yusense Map, Pix4D offline processing and “end-cloud integration”
Synchronous data upload
Storage/working temperature range: -30°C~+70°C/-10°C~+50°C
Environmental adaptability: sapphire window, scratch-resistant, abrasion-resistant and durable

APPLICATION

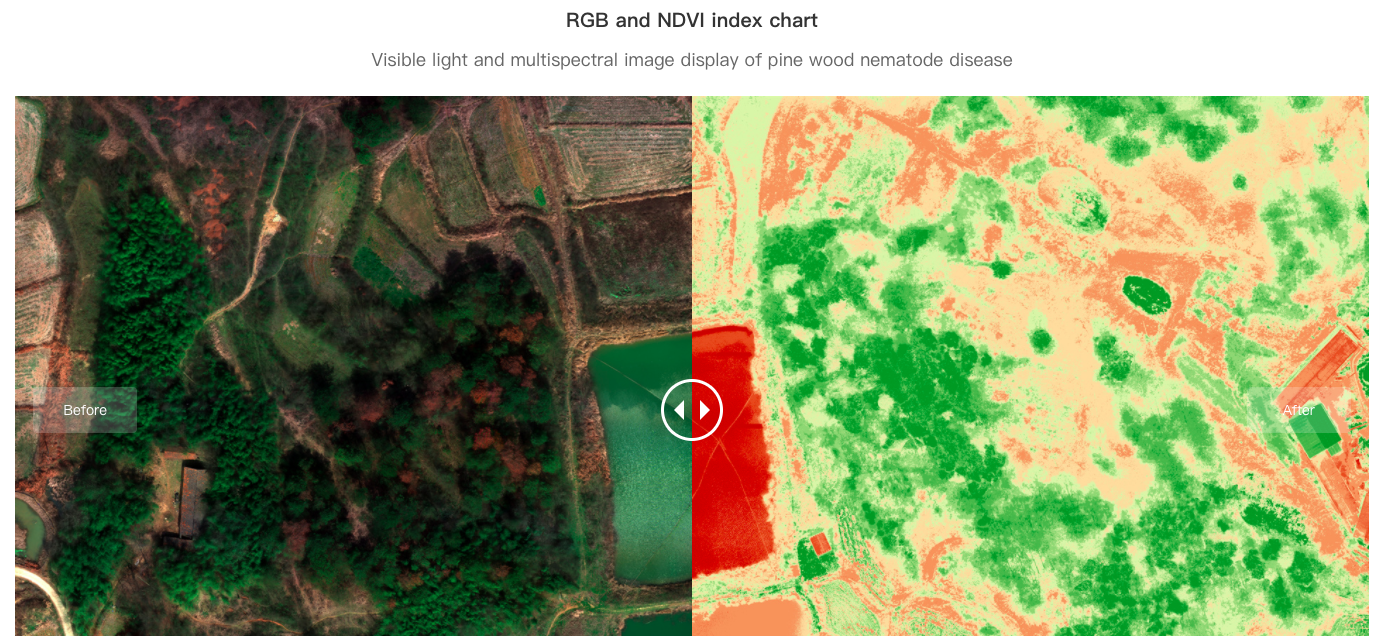

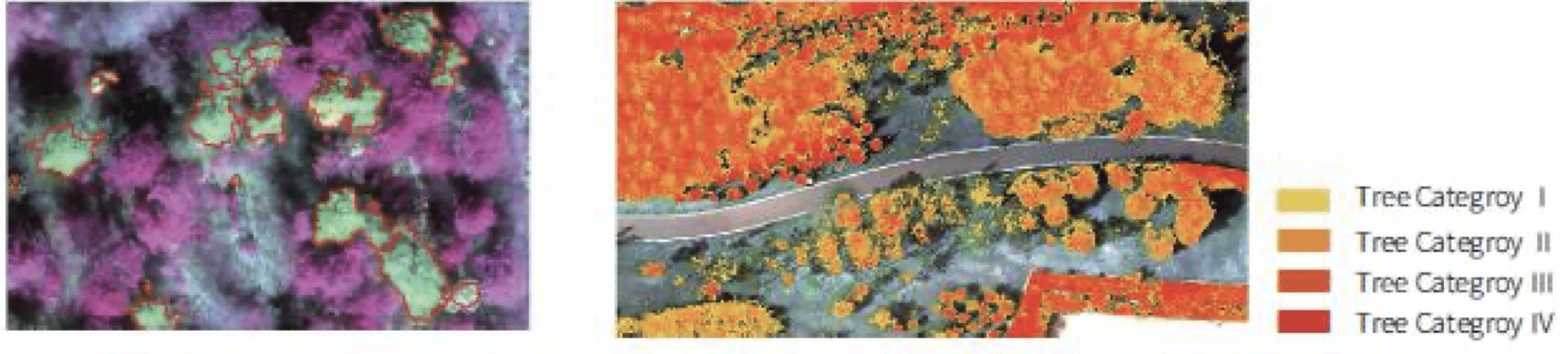

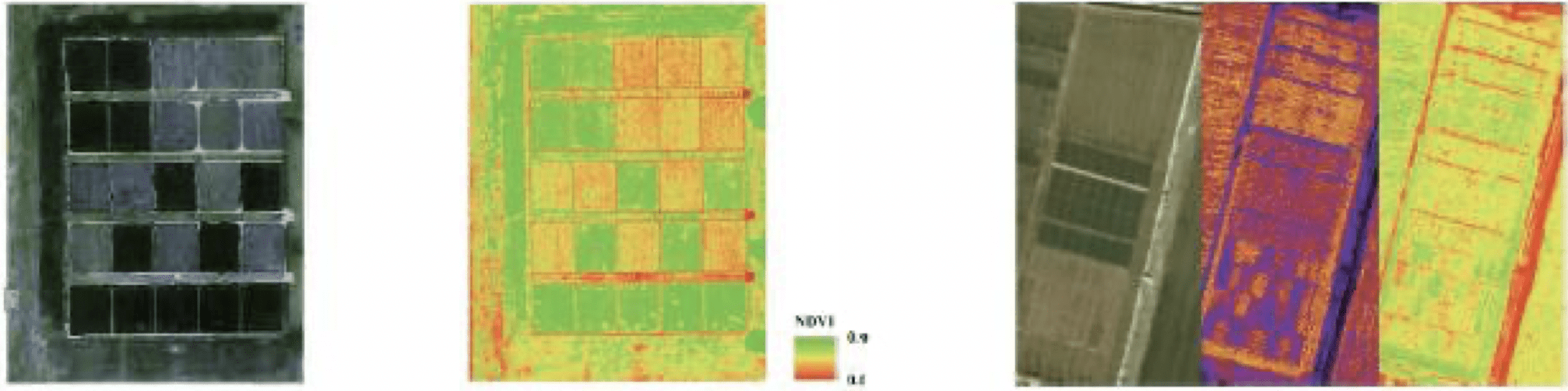

Remote sensing for agriculture analytics Bursaphelenchus xylophilus surveillance River ecological environment monitoring Poppy plant screening

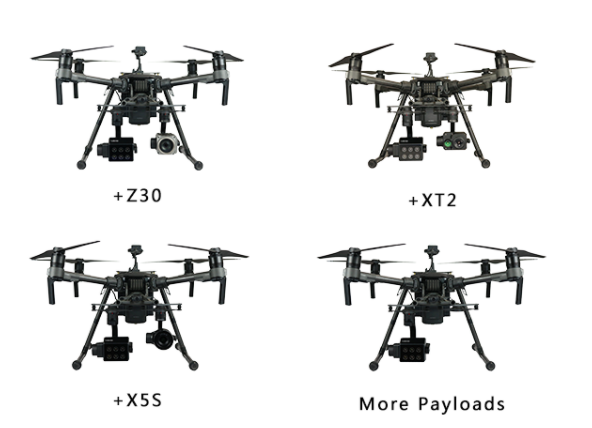

Compatible drone Platform

M300RTK M200 series

Specs

  • Field of view: 43.6°HFOV; 33.4°VFOV
  • Typical width: 96m*72m@h=120
  • The shortest photo interval: 1s
  • Spatial resolution GSD7.5cm@h=120m”
  • Trigger mode: timing, overlap rate
  • Storage space: default 64G,
  • Maximum 128G” power consumption: average 7W, peak 10W
  • Interface: DJI-SKYPORT
  • Weight: 290g
  • Image format: TIFF, JPEG

Domestic first

6-channel multi-spectral camera, produced by the Chinese Academy of Sciences team

Spectral channel

Choose 6 from 17 wavelengths, free to choose

Ingenious design

The photoelectric system is fully upgraded to obtain spectral data faster and more comprehensively

Accurate acquisition

High-precision radiation calibration with real-time correction of ambient light radiation, more accurate spectral data

Smart dimming

High dynamic range sensor, real-time dimming of multi-objective global optimization, increase the amount of original image information

High compatibility

Deeply compatible with DJI M200 series and M300 RTK drone flight platforms, plug and play

ms600pro

Data processing

Professional customized data processing software Yusense Map, results are issued faster and more efficiently

  • Small size and light weight

    Compact design, small size, product weight is only 655g (including DJI X-PORT gimbal)

  • Dedicated interface, integrated in one second

    Adopt DJI standardized interface, plug and play, simple but not simple

  • Portable operation, easy to use

    Customized ground station control software Yusense Fly can be used for real-time image transmission, compatible with DJI Pilot, and more convenient for operation

  • Strong environmental adaptability

    Metal shell and sapphire window meet the harsh field environment and are born for industrial applications

    Scientific-grade photoelectric system for more accurate information acquisitionLarge aperture, low distortion, achromatic imaging lens, accurate acquisition of ground object information in a wide range of wavelengths

    Scientific research grade dielectric film narrowband filter, average out-of-band response ≤1%, spectral information is more pure

    3.75μm large pixel size, more effective light input when taking pictures, higher signal-to-noise ratio

    12bit digital quantization bit depth, more precise recording of the target’s light intensity information, adapt to larger contrast scenes

    Data writing speed ≥30 MB/s, continuous shooting interval ≤1s, higher field efficiency

    Full metal shell, sapphire window, born for industry applications

    Aluminum alloy shell, efficient heat dissipation, strong and durable;

    Optical grade sapphire window, scratch-resistant, abrasion-resistant, worry-free in the field.

         Based on the DJI PSDK customized version of the multi-spectral camera-MS600 PRO, seamlessly docked with the M200 series UAV       platform

DJI-SkyProt standardized interface, second-level integration, plug and play

Integrated ground station APP software Yusense Fly, full visualization
