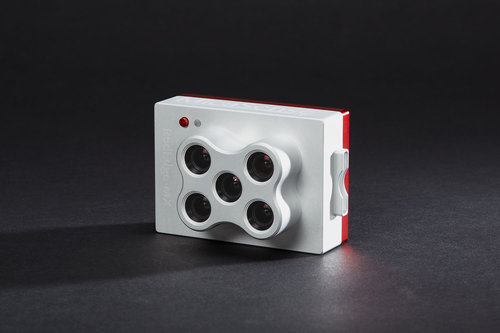

MICASENSE RedEdge MX

Professional Multispectral Sensor Kit

  • New metal case for extreme durability
  • New DLS 2 for enhanced light calibration
  • Captures five narrow spectral bands
  • Generates plant health indexes and RGB (color) images from one flight
  • Designed for easy and flexible integration
  • Calibrated for precise, repeatable measurements
  • Operates in temperatures up to 60℃ or 140℉

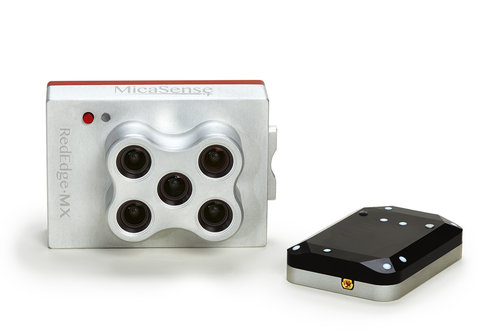

Kit includes: RedEdge-MX, DLS 2 with embedded GPS, Calibrated Reflectance Panel, lens cover and hard carrying case.

Through the DJI SkyPort adapter, mounting and powering both the Altum and RedEdge-MX is simple and quick. Need to switch out a sensor? Simply twist the quick connect mount and remove the sensor. Ready to fly again? Twist the mount back in place and you are ready to go.

Our rugged, built-to-last, professional multispectral sensor for agricultural drone mapping. Same technology as RedEdge-M, now ready to integrate with DJI SkyPort enabled drones.

  • Five narrow band multispectral sensors.
  • Capture plant health images and RGB (color) images in one flight.
  • High image resolution; 8 cm/pixel at 400 ft (120 m).
  • Single SD card stores all images with geotags.
  • DLS 2 with embedded GPS for easier integration, enhanced light calibration.

  1. Chlorophyll Map: The red edge spectral band is the star here, working in conjunction with the other bands to provide a more accurate measure of not just plant vigor but plant health.
  2. NDVI Layer: This commonly known index compares the reflectance of the red band with that of the near-infrared band. However, this index alone provides limited information.
  3. Digital Surface Model: A DSM is an astonishingly advantageous tool in any agronomist’s arsenal, primarily because of its use in evaluating surface properties and water flow.
  4. RGB Image: RedEdge-MX features global shutters for distortion-free images, including narrowband red, green, and blue bands for RGB color images that when processed are aligned to all visible and non-visible bands and vegetation indices.

RedEdge-MX is action-ready, integrating seamlessly no matter the platform.

It has a compact design and is lightweight to work with as many drone models as possible. See integration kits available.

Weight: 231.9 g (8.18 oz.)
(includes DLS 2 and cables)
Dimensions: 8.7cm x 5.9cm x 4.54cm
(3.4in x 2.3in x 1.8in)
External Power: 4.2 V DC – 15.8 V DC
4 W nominal, 8 W peak
Spectral Bands: Blue, green, red, red edge, near-IR
(global shutter, narrowband)
Wavelength (nm): Blue (475 nm center, 20 nm bandwidth), green (560 nm center, 20 nm bandwidth), red (668 nm center, 10 nm bandwidth), red edge (717 nm center, 10 nm bandwidth), near-IR (840 nm center, 40 nm bandwidth)
RGB Color Output: Global shutter, aligned with all bands
Ground Sample Distance (GSD): 8 cm per pixel (per band) at 120 m (~400 ft) AGL
Capture Rate: 1 capture per second (all bands), 12-bit RAW
Interfaces: Serial, 10/100/1000 ethernet, removable Wi-Fi, external trigger, GPS, SDHC
Field of View: 47.2° HFOV
Triggering Options: Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, and Ethernet options), manual capture mode
