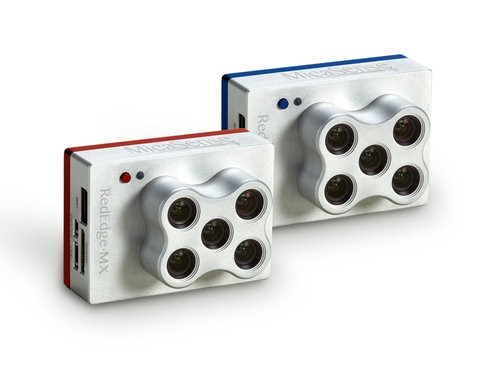

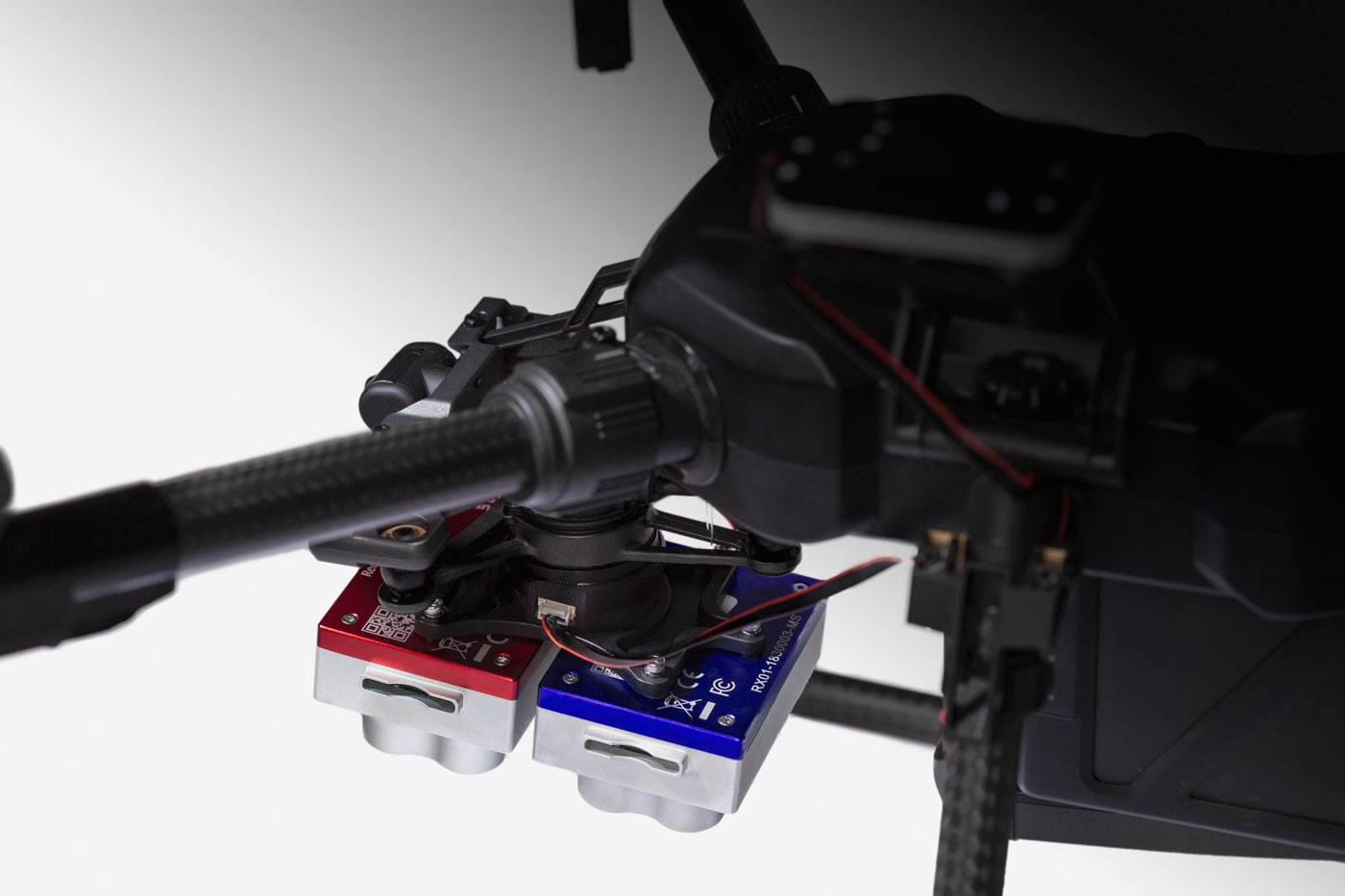

MicaSense RedEdge MX Dual Camera Full Kit

  • Captures 10 narrow wavebands enabling advanced research applications
  • Synchronized capture of all 10 bands for pixel aligned imagery
  • Features RedEdge-MX Blue, a new version of RedEdge-MX that includes an additional group of filters
  • Radiometrically calibrated spectral images for precise, repeatable measurements.

FEATURES

  • Synchronized capture of all 10 bands for pixel aligned imagery
  • Standard 12 bit TIFF file outputs with embedded metadata for full access to raw data
  • Combined Downwelling Light Sensor and GPS for streamlined integration, accurate ambient light calibration. Only one DLS required.
  • Radiometrically calibrated spectral imagers for precise, repeatable measurements
  • Global shutters on all 10 lenses for distortion-free results on every platform

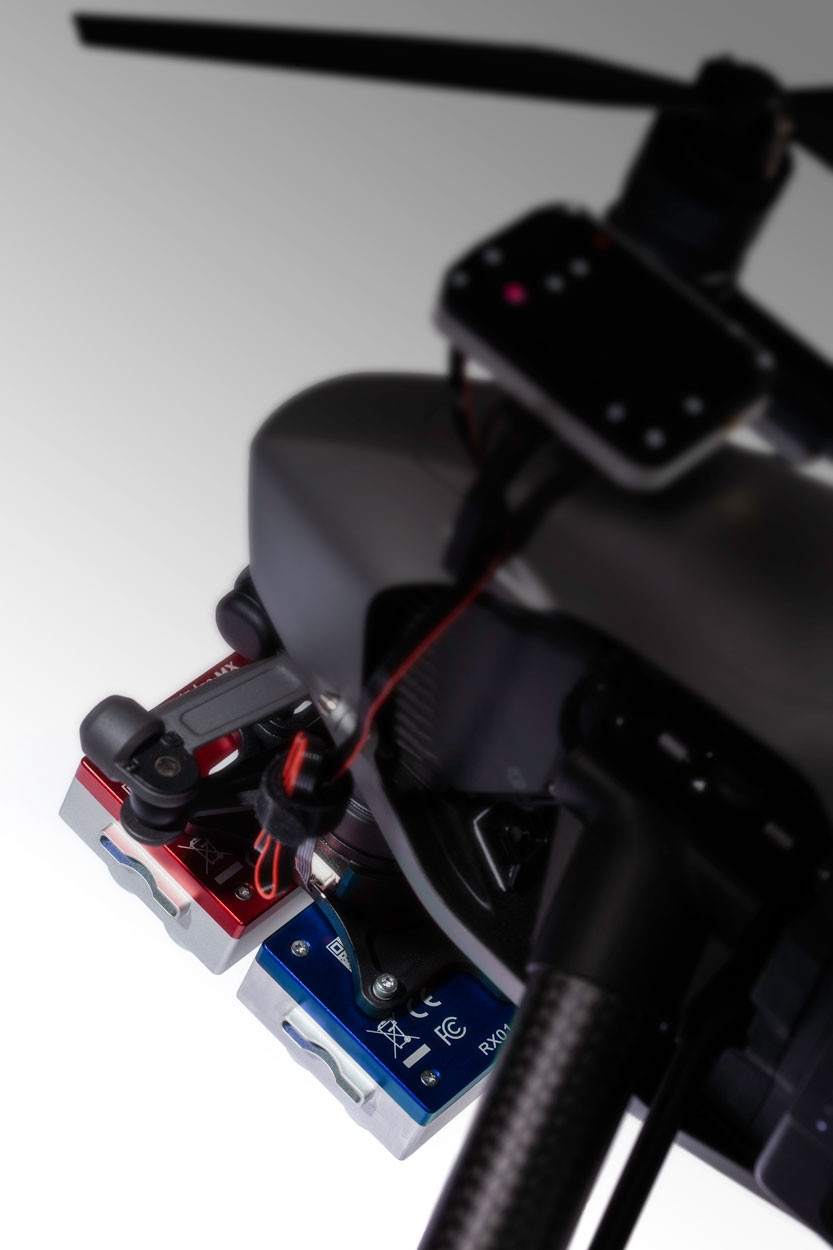

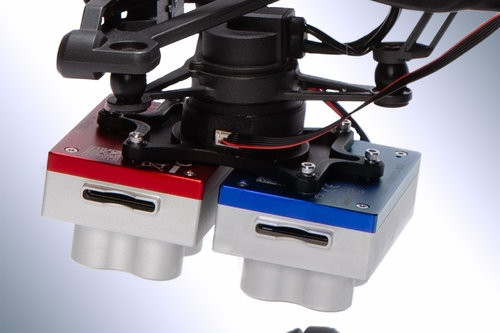

  • Comes standard with fixed bracket and quick-mount connector for easy integration

BENEFITS

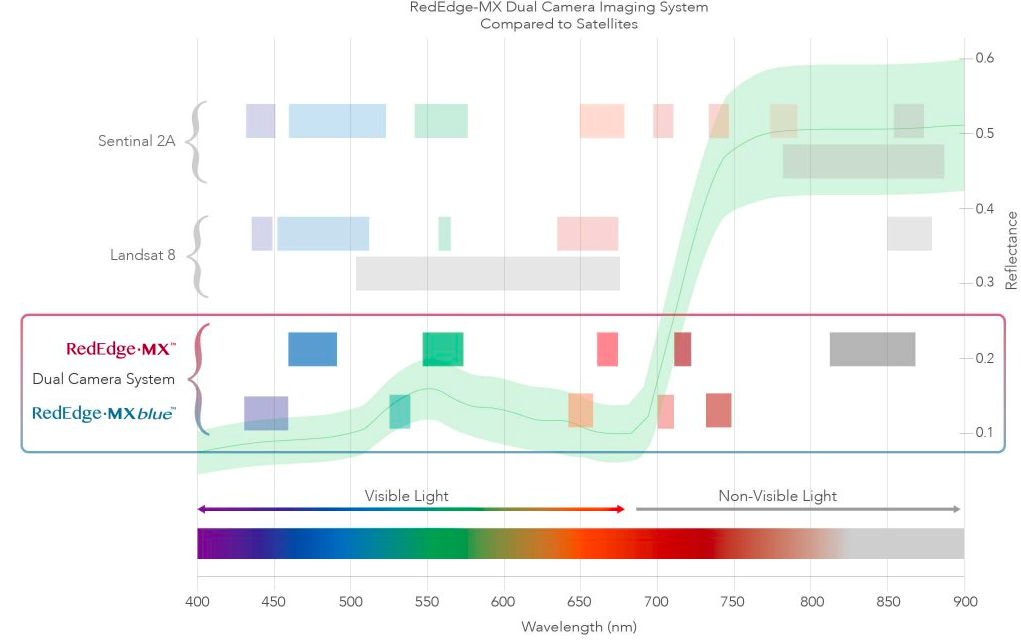

  • Compare imagery directly with Landsat and Sentinel satellite data
  • Data is easily processed using Pix4D, Agisoft, and other MicaSense data partners
  • Double the bands for double the analytical capabilities
  • Monitor shallow water environments with the new coastal blue aerosol band
  • Perform detailed analysis on chlorophyll efficiency with new red, green, and two new red edge bands strategically located on the red edge slope

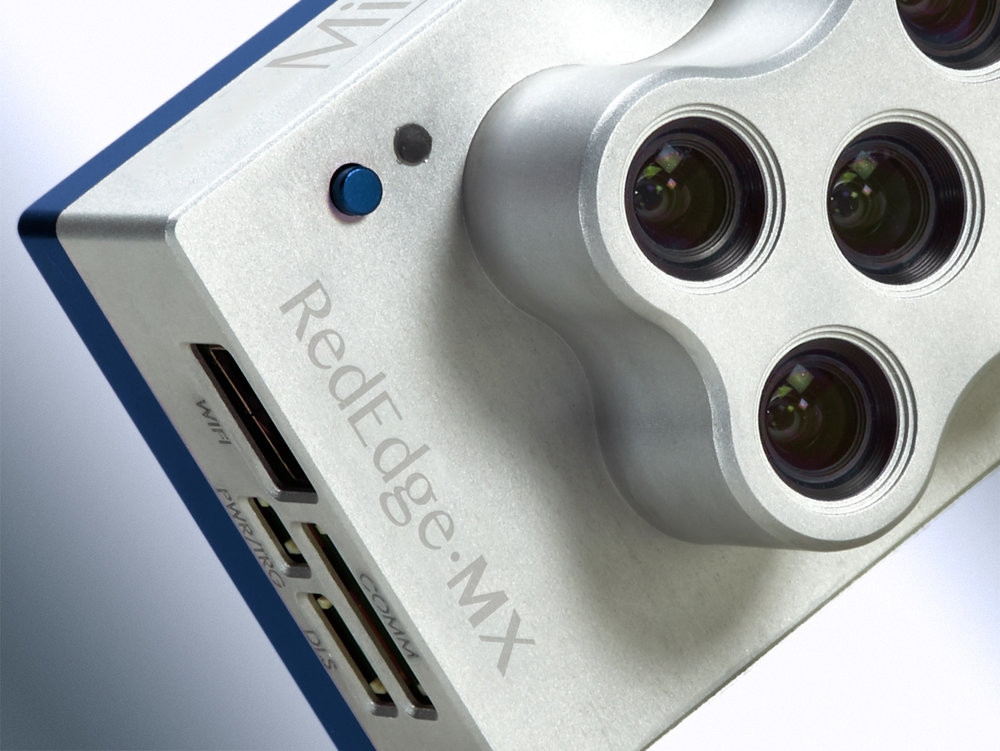

The MicaSense RedEdge-MX Blue Sensor

The performance you rely on from MicaSense, with a new coastal blue band, a new green band, and three new bands in the red to red-edge region of the spectrum. Five new bands that enable direct comparison between satellite and drone data.

  • Synchronized capture of all 10 bands for pixel aligned imagery
  • Standard 12 bit TIFF file outputs with embedded metadata for full access to raw data
  • Combined Downwelling Light Sensor and GPS for streamlined integration, accurate ambient light calibration. Only one DLS required (already integrated in the main body of the Trinity F90+)
  • Radiometrically calibrated spectral images for precise, repeatable measurements.
  • Global shutters on all 10 lenses for distortion-free results
Drone

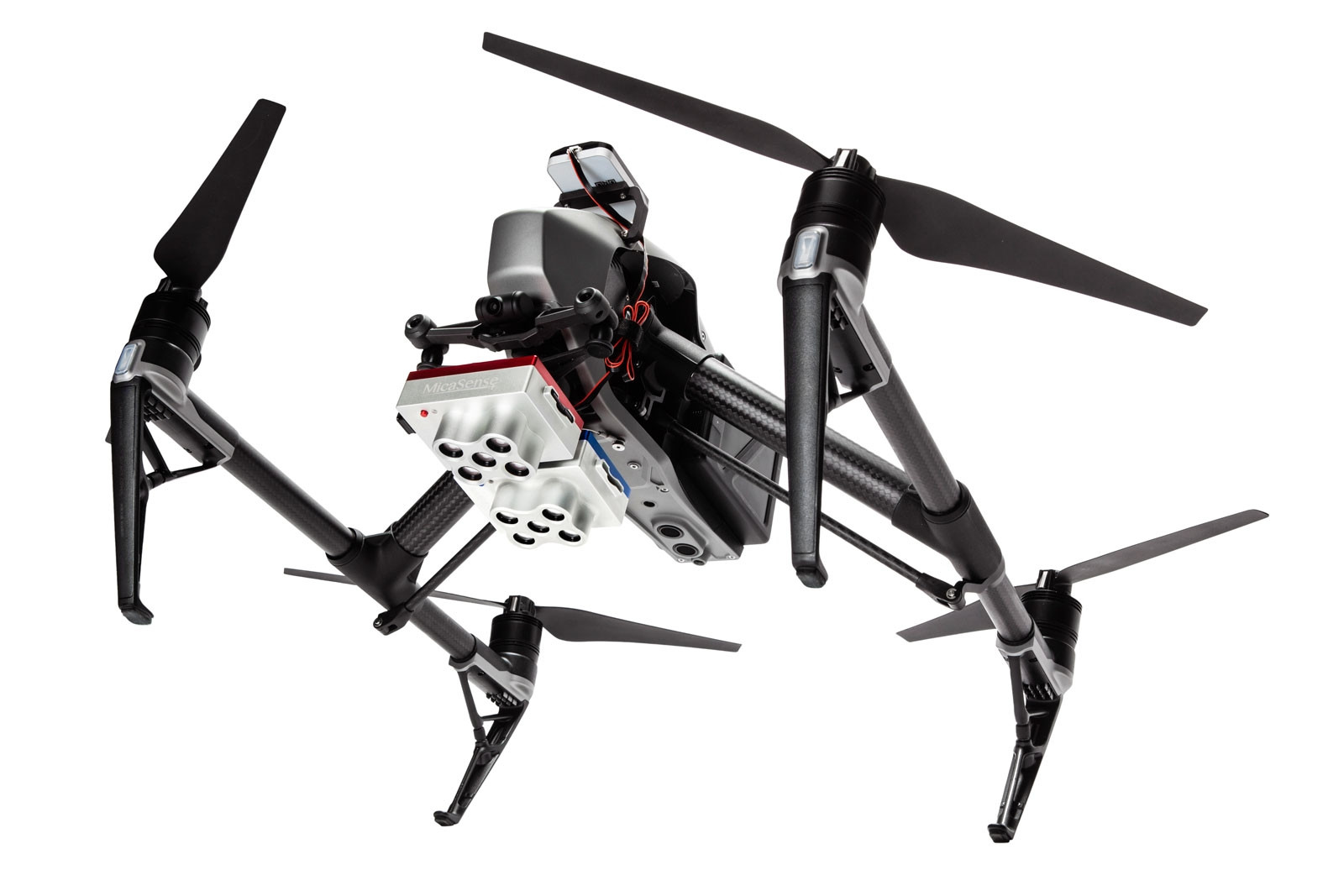

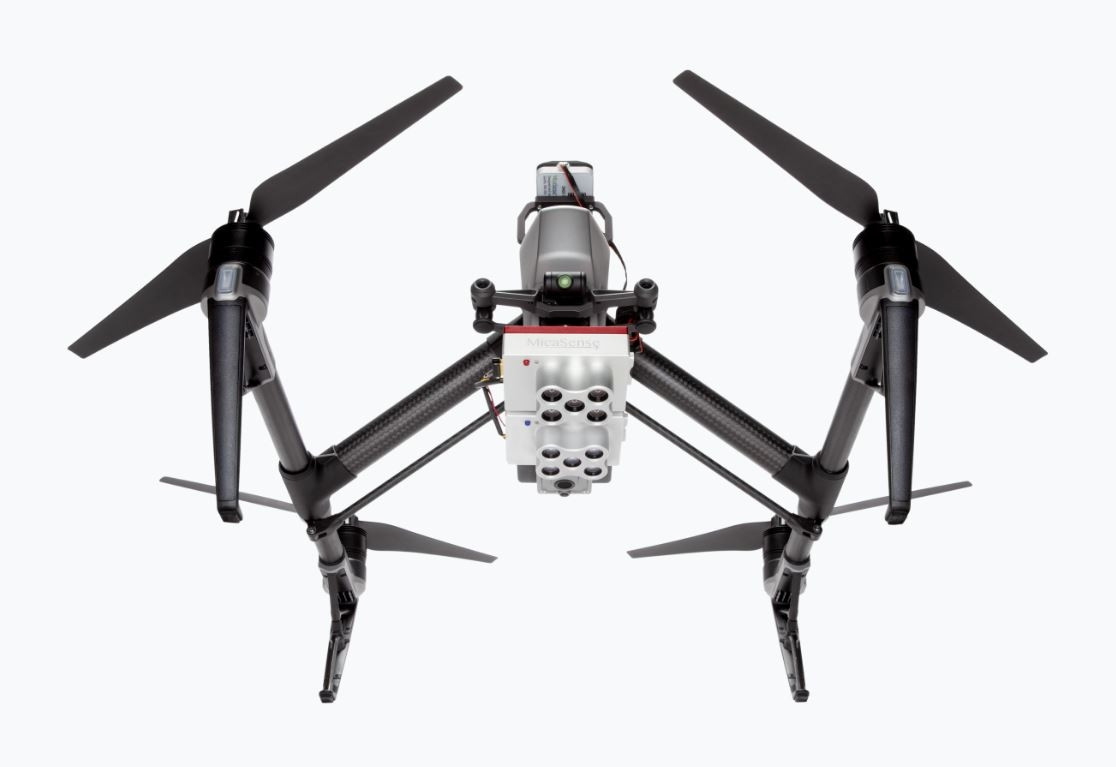

DJI Inspire 2, DJI Matrice 100/600 series, DJI Matrice 200 series, DJI Matrice 300

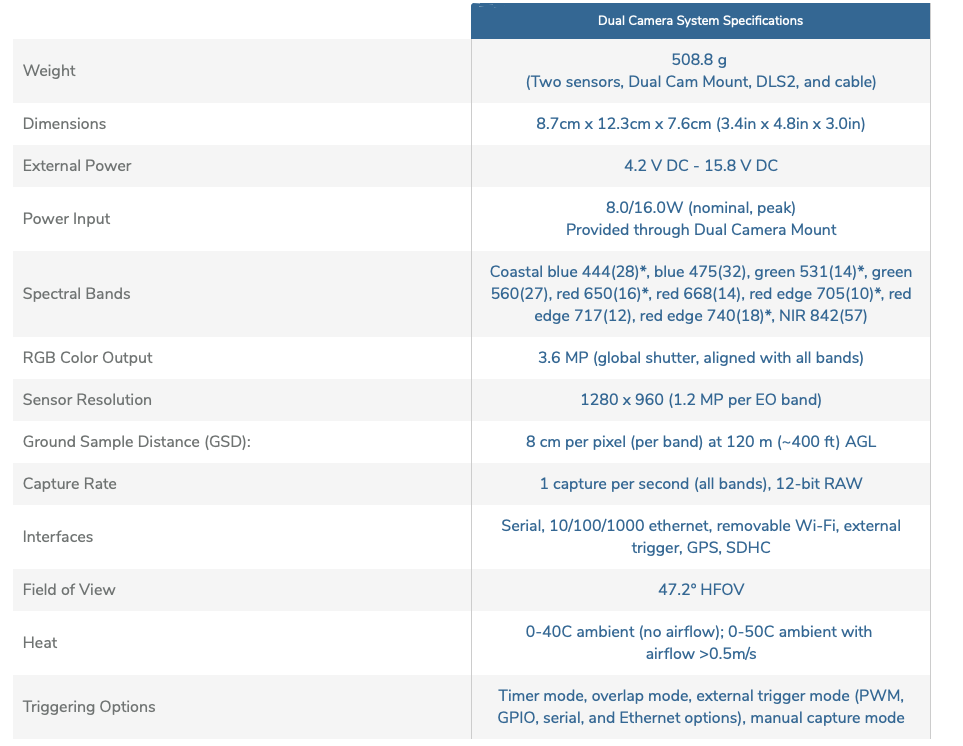

Dual Camera System Specifications
Weight 508.8 g
(Two sensors, Dual Cam Mount, DLS2, and cable)
Dimensions 8.7cm x 12.3cm x 7.6cm (3.4in x 4.8in x 3.0in)
External Power 4.2 V DC – 15.8 V DC
Power Input 8.0/16.0W (nominal, peak)
Provided through Dual Camera Mount
Spectral Bands Coastal blue 444(28)*, blue 475(32), green 531(14)*, green 560(27), red 650(16)*, red 668(14), red edge 705(10)*, red edge 717(12), red edge 740(18)*, NIR 842(57)
RGB Color Output 3.6 MP (global shutter, aligned with all bands)
Sensor Resolution 1280 x 960 (1.2 MP per EO band)
Ground Sample Distance (GSD): 8 cm per pixel (per band) at 120 m (~400 ft) AGL
Capture Rate 1 capture per second (all bands), 12-bit RAW
Interfaces Serial, 10/100/1000 ethernet, removable Wi-Fi, external trigger, GPS, SDHC
Field of View 47.2° HFOV
Heat 0-40C ambient (no airflow); 0-50C ambient with
airflow >0.5m/s
Triggering Options Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, and Ethernet options), manual capture mode
