Mavic 2 Enterprise Advanced

  • 640 × 512 px Thermal Camera
  • 48 MP Visual Camera
  • 32× Digital Zoom
  • Centimeter-level Positioning with RTK
  • 10 km Full HD Transmission
  • Omnidirectional Obstacle Sensing

Dual Imaging, Reimagined

Capture accurate details in any mission with the Mavic 2 Enterprise Advanced – a highly versatile yet compact tool that packs a whole lot of performance upgrades. With high-resolution thermal and visual cameras, the M2EA supports up to 32× digital zoom and is capable of centimeter-level positioning accuracy with the RTK module.

  • 640 × 512 px Thermal Camera
  • 48MP Visual Camera
  • 32× Digital Zoom
  • Centimeter-level Positioning with RTK
  • 10 km Full HD Transmission
  • Omnidirectional Obstacle Sensing1

Expand Your Vision with Advanced Dual-cameras

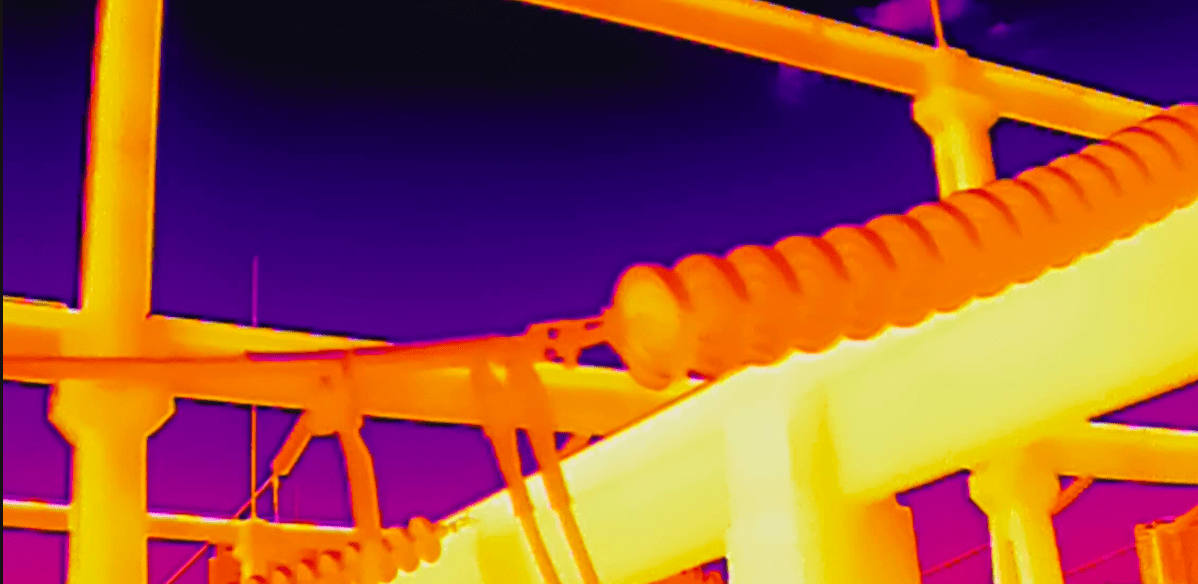

High-resolution Thermal

Make informed decisions by quickly identifying objects onsite using the M2EA’s integrated high-resolution thermal sensor, which supports Spot Meter and Area Measurement.

  • 640 × 512 Thermal Resolution
  • 30Hz Frame Rate
  • 16×Zoom
  • ±2°C Temperature Measurement Accuracy

drone-temperature-Measurement-Accuracy

Zoom in to Stay Safe

Capture clear images and videos from a safe distance. The M2EA’s high-resolution visual camera supports ultra zoom, so no detail is missed.

  • 48MP Visual Camera
  • 1/2” CMOS Sensor
  • 4× Lossless Zoom2
  • 32× Digital Zoom

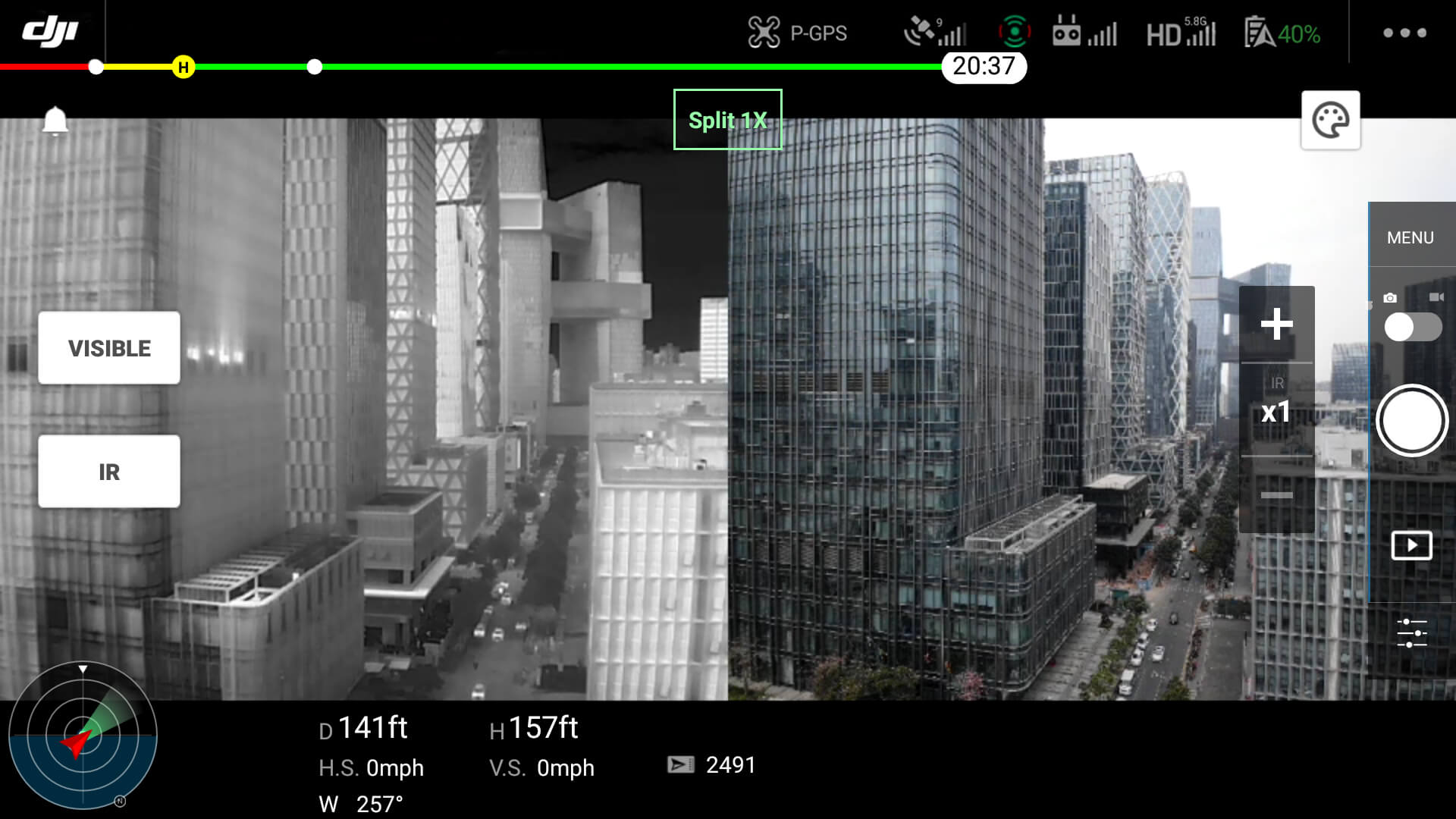

Dual-vision at Your Service

Tap to switch between visual, thermal, or split-view feeds for different project needs.

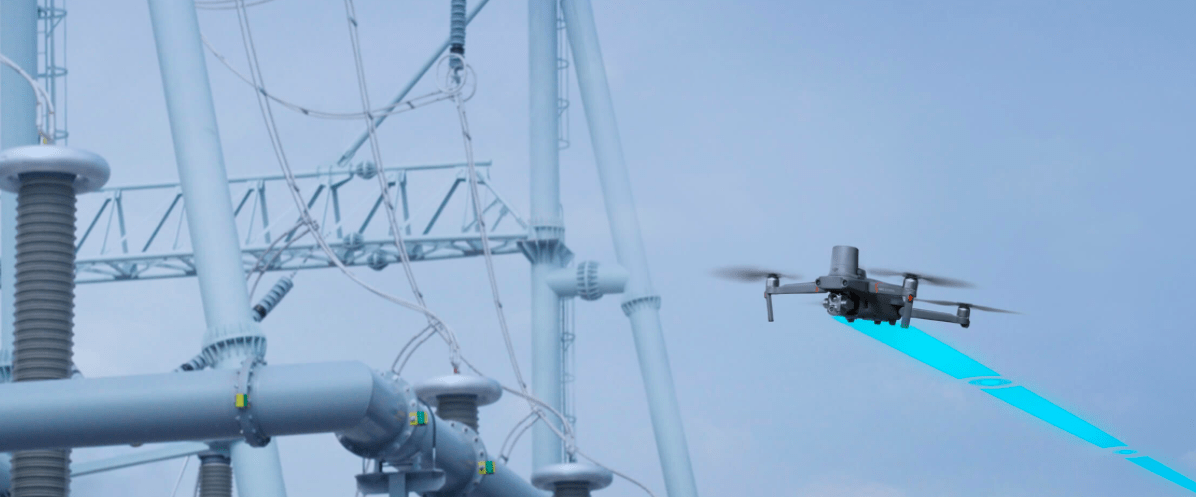

Accurate Positioning

Achieve centimeter-level accuracy using the M2EA with the RTK Module3. Create up to 240 waypoints to conduct automated, detailed inspection missions in complex environments.

Maximum Flexibility

The lightweight and portable M2EA can take off in less than a minute. Zip through complex operating environments thanks to the faster ascent and descent speed.

Mavic 2 Enterprise Advanced Specs

Aircraft

Takeoff Weight (Without Accessories)

909g

Max Takeoff Weight

1100g

Dimensions (L×W×H)

Folded: 214×91×84mm
Unfolded: 322×242×84mm
Unfolded+Spotlight: 322×242×114mm
Unfolded+Beacon: 322×242×101mm
Unfolded+Speaker: 322×242×140mm
Unfolded+RTK Module: 322x242x125mm

Diagonal Distance

354 mm

Max Ascent Speed

6 m/s (S-mode)
5 m/s (P-mode)
4 m/s (S-mode with accessories)
4 m/s (P-mode with accessories)

Max Descent Speed

Descend Vertically
5 m/s (S-mode)
4 m/s (P-mode)
Tilt
7 m/s (S-mode)
4 m/s (P-mode)

Max Speed

72 kph (S-mode, without wind)
50 kph (P-mode, without wind)

Max Service Ceiling Above Sea Level

6000 m

Max Flight Time

31 min (measured while flying at 25 kph in windless conditions)
28 min (RTK module attached)
29 min (with beacon turned on)
30 min (with beacon turned off)
24 min (with spotlight turned on)
28 min (with spotlight turned off)
27 min (with speaker turned on)
28 min (with speaker turned off)

Max Wind Speed Resistance

10 m/s (scale 5)

Max Tilt Angle

35°(S-mode, with remote controller)
25°(P-mode)

Max Angular Velocity

200°/s (S-mode)
100°/s (P-mode)

Operating Temperature

-10° to 40° C

GNSS

GPS+GLONASS

Hovering Accuracy Range

Vertical:
± 0.1 m (with RTK)
± 0.1 m (with Vision Positioning)
± 0.5 m (with GPS Positioning)
Horizontal:
± 0.1 m (with RTK)
± 0.3 m (with Vision Positioning)
± 1.5 m (with GPS Positioning)

Operating Frequency

2.400-2.4835 GHz;
5.725-5.850 GHz

Transmitter Power (EIRP)

2.400 – 2.4835 GHz
FCC: ≤26 dBm;
CE: ≤20 dBm;
SRRC: ≤20 dBm;
MIC: ≤20 dBm
5.725 – 5.850 GHz
FCC: ≤26 dBm;
CE: ≤14 dBm;
SRRC: ≤26 dBm

Internal Storage

24 GB

M2EA Thermal Camera

Sensor

Uncooled VOx Microbolometer

Focal Length

Approx. 9mm
35 mm format equivalent: Approx. 38mm

Sensor Resolution

640×512 @30Hz

Digital Zoom

16 ×

Pixel Pitch

12 μm

Spectral Band

8-14 μm

Photo Format

R-JPEG

Video Format

MP4

Metering Method

Spot Meter, Area Measurement

FFC

Auto/Manual

M2EA Visual Camera

Sensor

1/2” CMOS, Effective Pixels: 48 M

Lens

FOV: 84°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞

ISO Range

Video: 100-12800 (auto)
Photos: 100-1600 (auto)

Digital Zoom

32×

Max Image Size

8000×6000

Still Photography Modes

Single shotInterval: 2/3/5/7/10/15/20/30/60 s
Panorama: Sphere

Video Resolution

3840×2160@30fps
1920×1080@30fps

Photo Format

JPEG

Video Format

MP4

Gimbal

Mechanical Range

Tilt: -135°- +45°
Pan: -100°- +100°

Controllable Range

Tilt: -90°- +30°
Pan: -75°- +75°

Stabilization

3-axis (tilt, roll, pan)

Max control speed

120°/s

Angular Vibration Range

±0.005°

Sensing System

Sensing System

Omnidirectional Obstacle Sensing[1]

Forward

Precision Measurement Range: 0.5 – 20 m
Detectable Range: 20 – 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°

Backward

Precision Measurement Range: 0.5 – 16 m
Detectable Range: 16 – 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°

Upward

Precision Measurement Range: 0.1-8 m

Downward

Precision Measurement Range: 0.5 -11m
Detectable Range: 11-22 m

Sides

Precision Measurement Range: 0.5 – 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°

Operating Environment

Forward, Backward and Sides:
Surface with clear pattern and adequate lighting
(lux > 15)
Upward: Detects diffuse reflective surfaces(>20%)
(walls, trees, people, etc.)
Downward: Surface with clear pattern and adequate lighting
(lux > 15)Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

Remote Controller

Operating Frequency

2.400 – 2.483 GHz;
5.725 – 5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

2.400 – 2.483 GHz; 5.725 – 5.850 GHz
FCC: 10000m
CE: 6000m
SRRC: 6000m
MIC: 6000m

Transmission Power (EIRP)

2.400-2.4835 GHz:
25.5 dBm(FCC);18.5 dBm(CE)19 dBm(SRRC);18.5 dBm(MIC)
5.725-5.850 GHz:
25.5 dBm(FCC);12.5 dBm(CE)18.5 dBm(SRRC)

Storage

ROM 16GB + microSD Extensible Storage

Video Output Port

HDMI Port

Built-in Battery

Type: 18650 Li-Po (5000 mAh @ 7.2 V)
Charging Mode: Charged with USB charger at 12V/2A
Rated Power 15 W
Charging time: 2 hr (with a USB charger at 12V/2A)

Operating Current/Voltage

1800mA ⎓ 3.83V

Battery Life

Built-in Battery Approx. 2.5 hr

Operating Temperature

-20° C – 40° C

RC Size

Folded without Joystick: 177.5 x 121.3 x 40 mm
Unfolded with Joystick: 177.5 x 181 x 60 mm

Weight

Approx. 630 g

Intelligent Flight Battery

Main Link: 17.6V ⎓ 3.41A or 17.0V⎓3.53A
USB: 5.0 V ⎓ 2.0 A

RTK Module

Dimensions

69 mm x 69 mm x 59mm

Connections

Micro USB Port

RTK Positioning Precision

In RTK FIX
1cm+1ppm (Horizontal)
1.5cm+1 ppm (Vertical)

M2EA Spotlight

Dimensions

68×60×41mm

Connections

Micro USB Port

Operating Range

30 m

Power

Max 26W

Illuminance

FOV17°, Max: 11lux @ 30m Straight

Intelligent Flight Battery

Capacity

3850 mAh

Voltage

15.4V

Max Charging Voltage

17.6V

Battery Type

LiPo

Energy

59.29 Wh

Net Weight

297g

Charging Temperature

5℃ – 40℃

Operating Temperature Range:

-10℃ – 40℃

Heating Methods:

Manual Heating, Auto Heating

Heating Temperature

-20℃ – 6℃

Heating duration

500s (Max)

Heating Power

55W (Max)

Charging Time

90 mins

Max Charging Power

80W

M2EA Beacon

Dimensions

68mm×40mm×27.8mm

Connections

Micro USB Port

Power

Avg. 1.6W

Controllable Range

5000 m

Light intensity

Min Angle: 55 cd;
Light intensity: 157cd

APP / Live View

Video Transmission System

OcuSync 2.0

Mobile App

DJI PILOT(Android Version)

Live View Quality

Remote Controller:
720p@30fps / 1080p@30fps

Max Live View Bitrate

40Mbps

Latency

120 – 130 ms

Required Operating System

ios 10.0 or later Android 5.0 or later

M2EA Speaker

Dimensions

68×55×65 mm

Connections

Micro USB Port

Power

Max 10W

Decibel

100 db @ 1 meter distance

Max Bitrate

16kbps

SD Cards

Supported SD Cards

Micro SD™
Supports a microSD with capacity of up to 128 GB.
A UHS-I Speed Grade 3 rating microSD card is required.

Others

Footnotes

[1]Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
