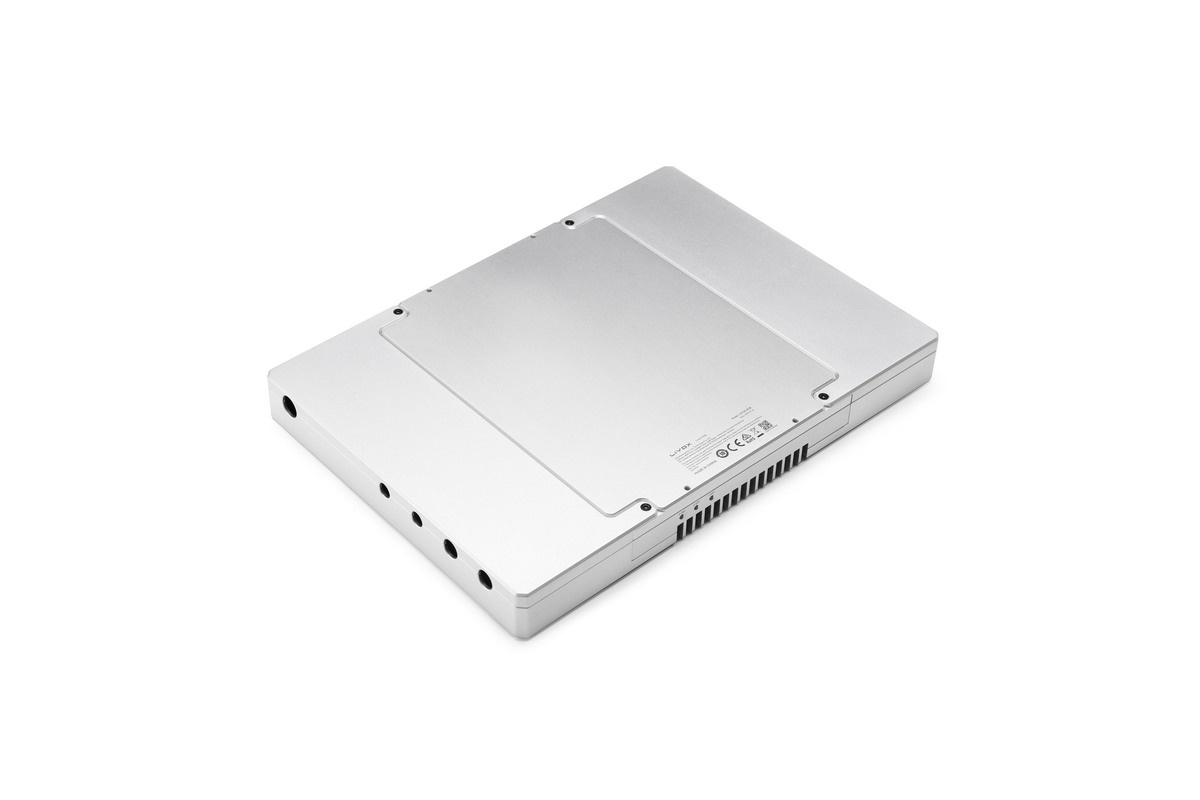

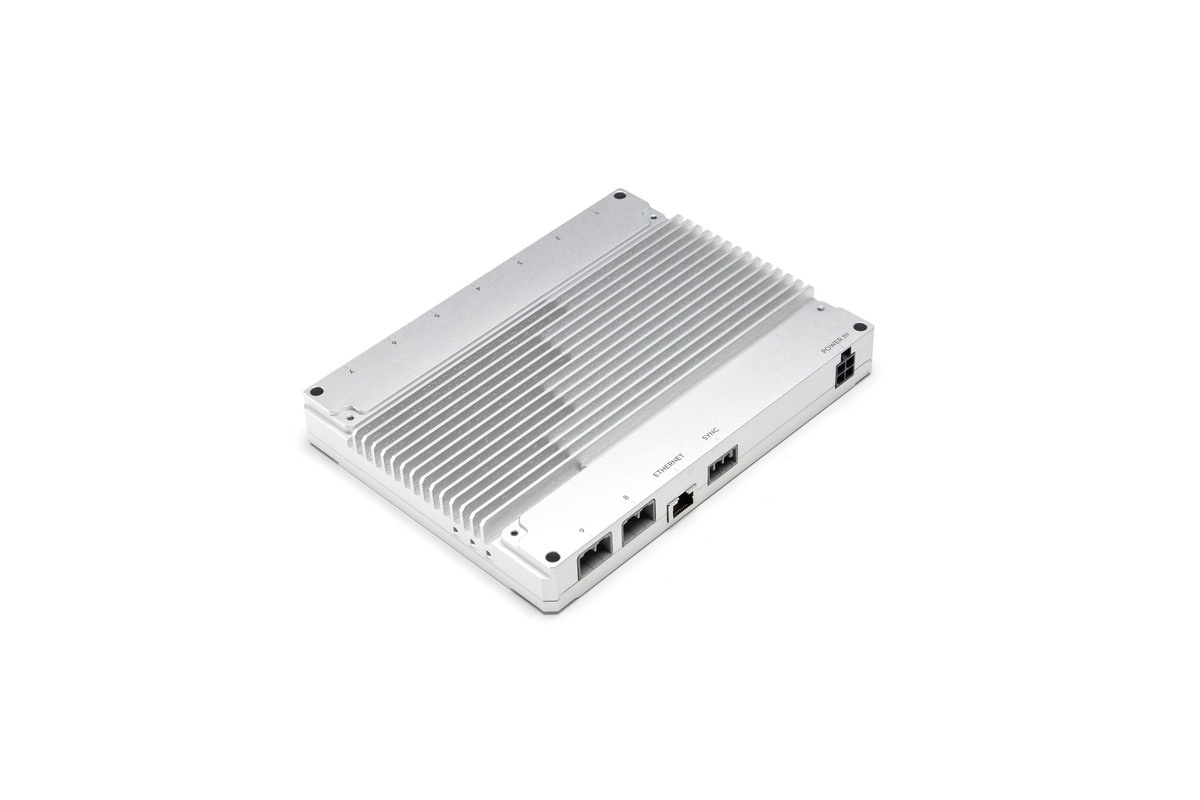

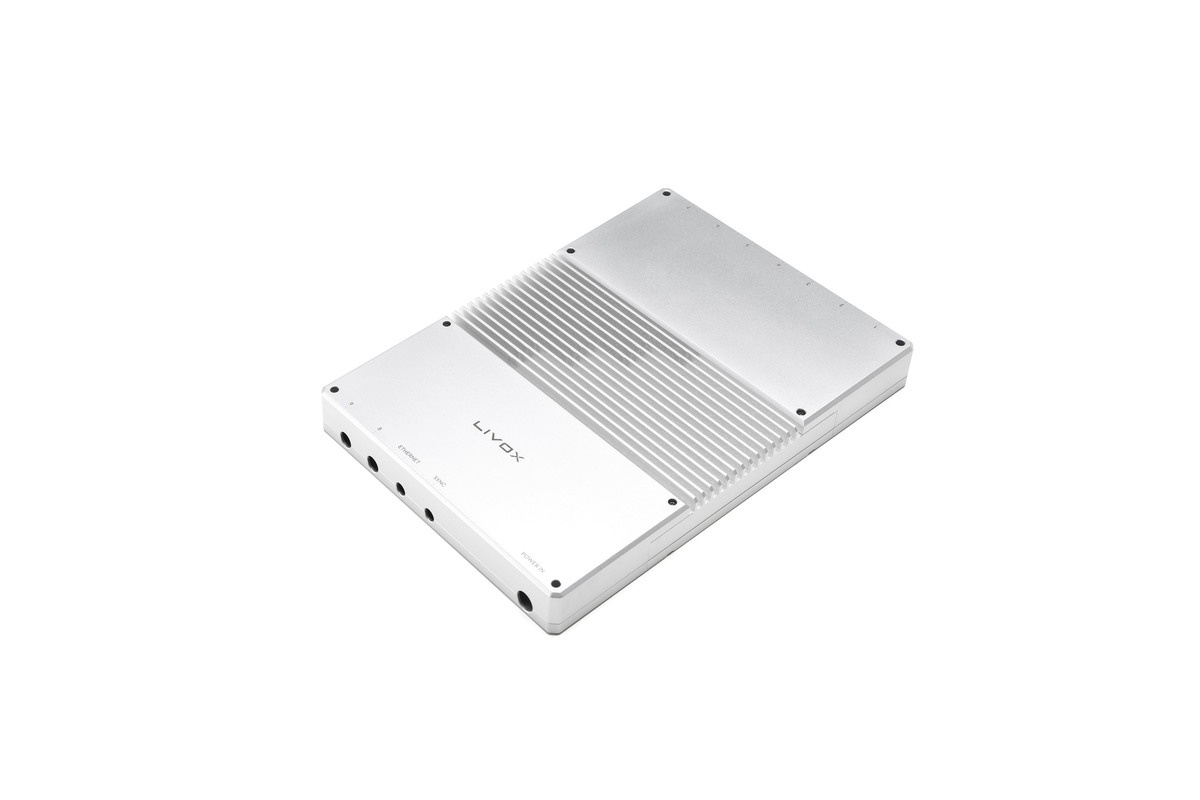

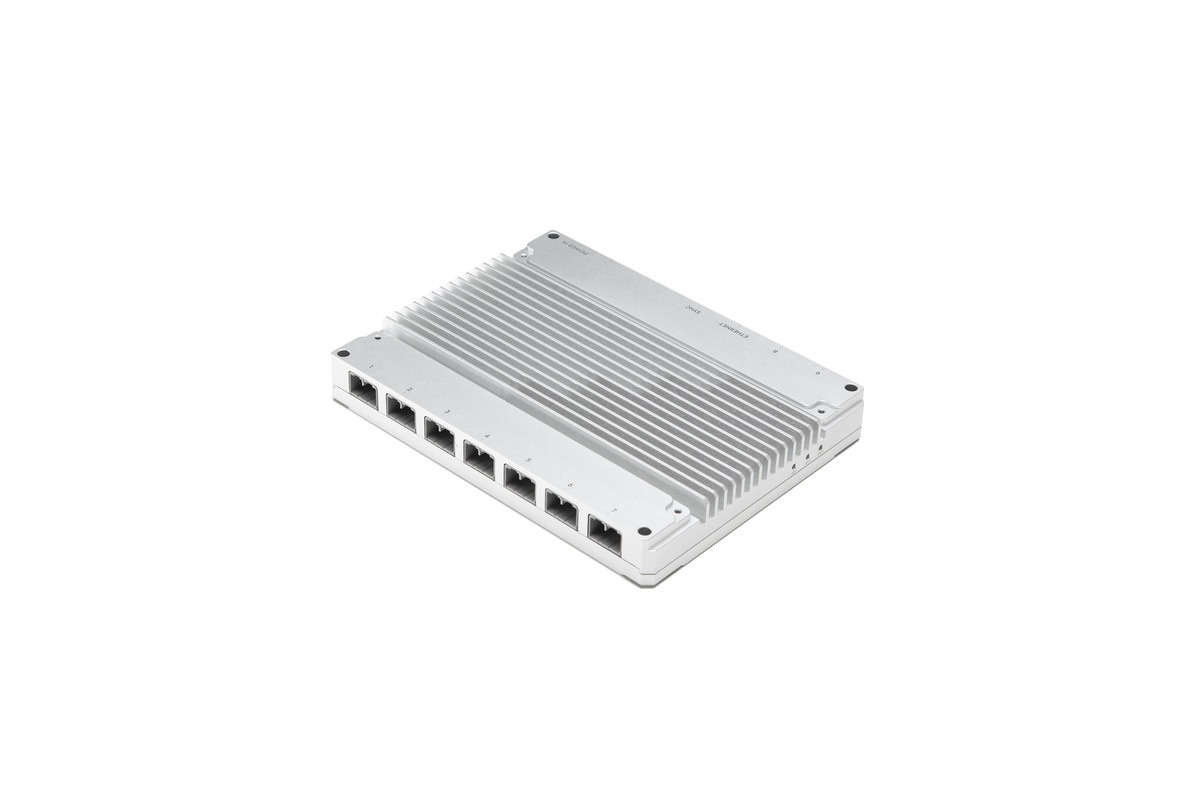

Livox Hub

Livox Hub communicates with each LiDAR sensor connected, reading each sensor’s connection status, firmware version, and working state. Livox Hub is capable of unifying the point cloud data into the user’s coordinate system and integrating all LiDAR point cloud data into a single output. Time synchronization is supported by IEEE 1588-2008 (PTPv2) and GPS. Livox Hub also supports SDK user development.

922$(VAT included)
Category
Overview

Livox Hub is a streamlined way to integrate and manage Livox LiDAR sensors and their data outputs.One Livox Hub can connect to up to nine Livox LiDAR units.

Highlights

Livox Hub communicates with each LiDAR sensor connected, reading each sensor’s connection status, firmware version, and working state. Livox Hub is capable of unifying the point cloud data into the user’s coordinate system and integrating all LiDAR point cloud data into a single output. Time synchronization is supported by IEEE 1588-2008 (PTPv2) and GPS. Livox Hub also supports SDK user development.

Tips

The Livox Hub is compatible with Livox LiDAR units and provides them with an external power supply. When using an extension cable, a maximum connection distance of 12 meters can be achieved on the Mid-40, Horizon, and Tele-15, while a maximum connection distance of 8 meters can be achieved on the Mid-100. If you need a longer connection contact us.

In the Box

Livox Hub × 1
Livox Hub Quick Start Guide × 1

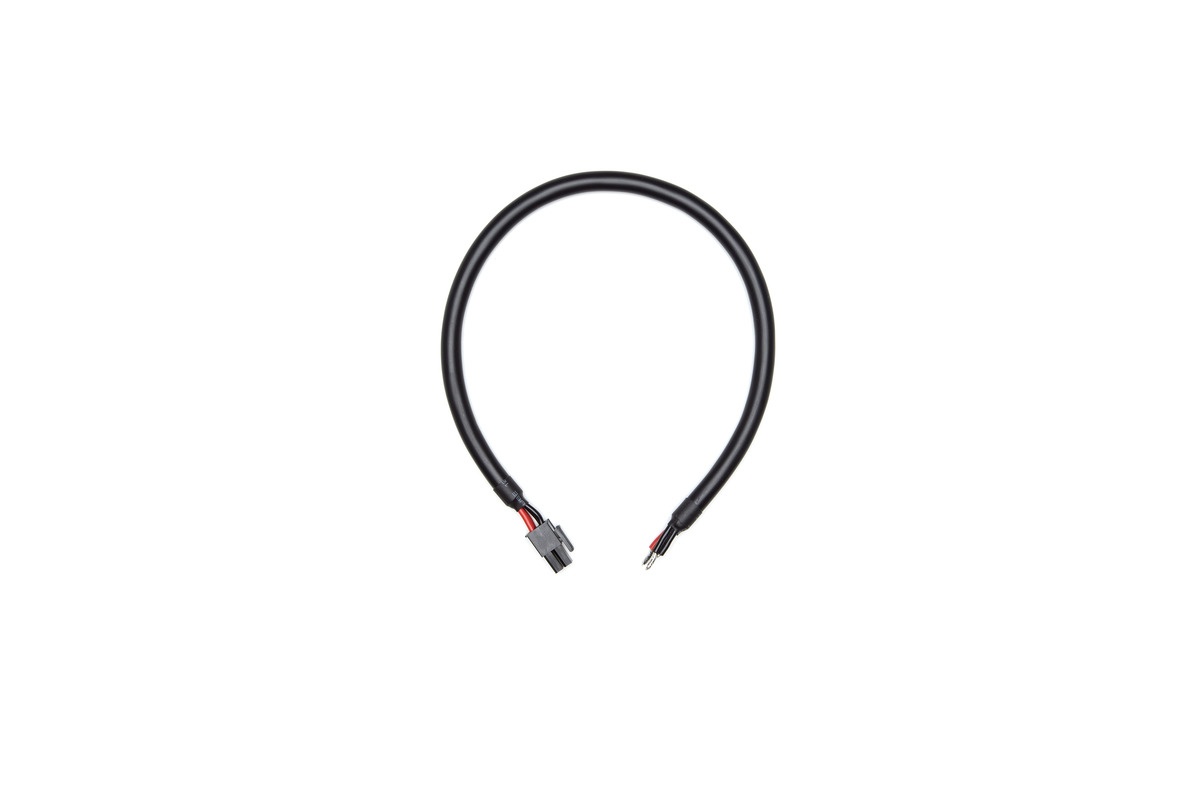

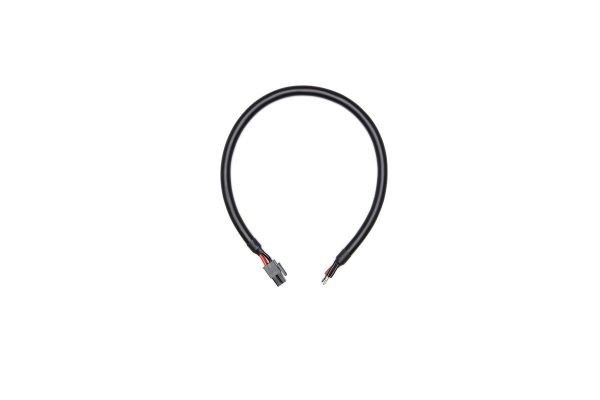

Power Connector × 1

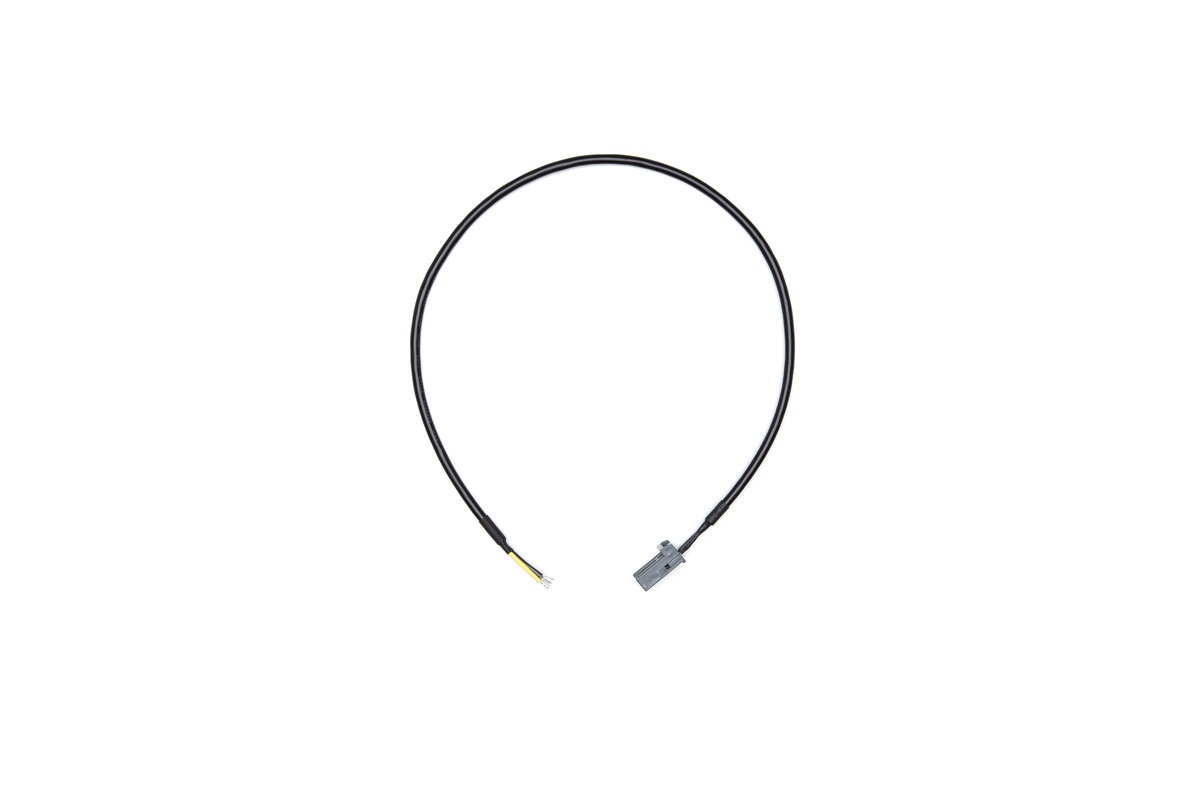

Sync Connector × 1

Specifications

Input voltage: DC 10-23 V (if you intend to use an external power source exceeding 23 V, please contact Livox.)
Output voltage: 12 V
Rated Power: 130 W (measured with nine Livox Horizon units connected with an external power supply of 12 V in a 25° C environment).
Operating temperature: -40° to 85° C (-40° to 185° F)
Weight: 865 g (without port covers), 1352 g (with port covers)
Dimensions: 153.3×201×29 mm (without port covers), 208×201×29 mm (with port covers)

Compatibility

Mid-40
Mid-100
Horizon
Tele-15

Show less
