JZ T90 MATRIX LAMP

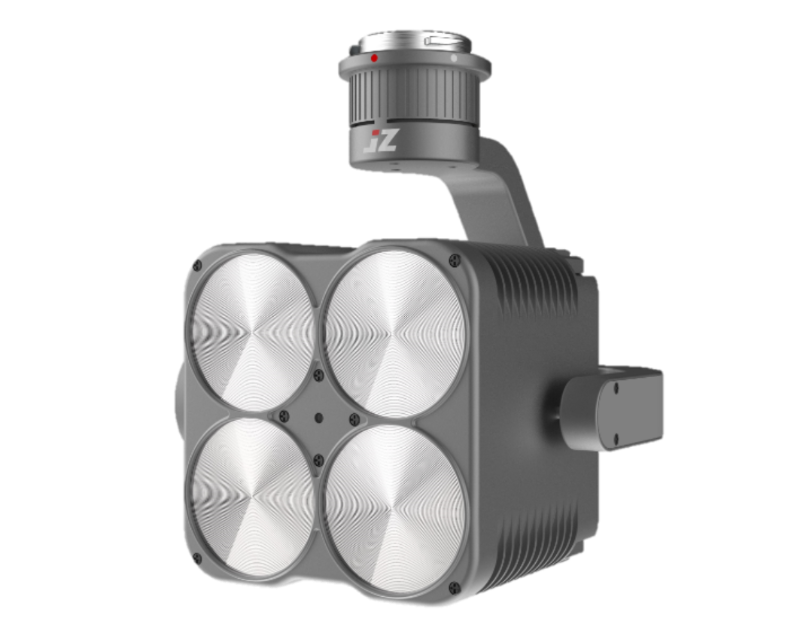

The JZ T90 MATRIX LAMP is a powerful lighting device with excellent lighting effects and full control. The searchlight uses four LED lighting combinations with a luminous flux of up to 13,000 lumens to provide powerful lighting capabilities.

Category

The JZ T90 MATRIX LAMP is a powerful lighting device with excellent lighting effects and full control. The searchlight uses four LED lighting combinations with a luminous flux of up to 13,000 lumens to provide powerful lighting capabilities. The effective lighting distance is more than 150 meters, and the maximum lighting area is more than 1400 square meters, ensuring broad and uniform lighting coverage. The T90 integrates a three-axis gimbal for 360° lighting control. It supports dual gimbal linkage of light camera to achieve more flexible lighting and shooting effects. At the same time, the user can also adjust the brightness according to the needs, select a variety of modes such as strong light explosion and flash to meet the needs of different scenes. The searchlight is equipped with a self-regulating cooling fan, which can efficiently dissipate heat and maintain the stability and reliability of the equipment. At the same time, it has IP44 waterproof and dustproof grade, and can work normally in harsh environments such as rainy days, providing users with reliable lighting protection. The T90 MATRIX LAMP has been carefully designed and optimized to ensure its performance and reliability. Whether in aerial photography, photography or other fields of application, the T90 provides high-quality lighting effects to meet a variety of needs. In short, the T90 MATRIX LAMP has powerful lighting capabilities, comprehensive control capabilities and reliable performance. Whether in outdoor adventure, emergency rescue or other scenarios, the T90 provides users with an excellent lighting experience and protects the light.

Lighting

One-click switch, supports brightness adjustment, provides remote illumination and search.

Strong Light Flash

Support for burst brightness and flash frequency adjustment.

Control

Control via DJI Pilot 2.

Controllable Gimbal

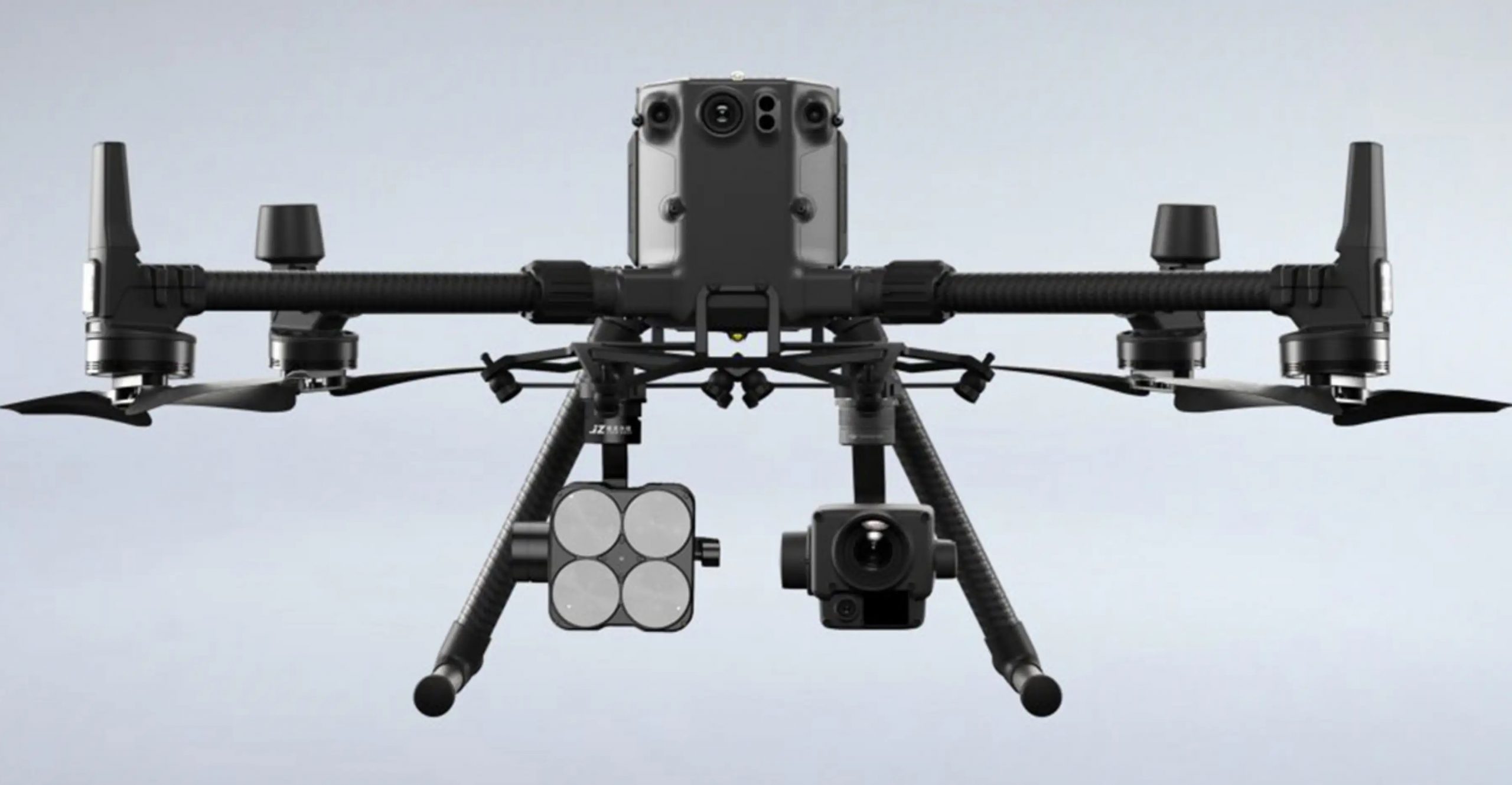

Three-axis enhanced stability gimbal 360° control light direction, provide free Angle lighting, and can also achieve dual gimbal linkage with Zenmuse series gimbal camera, control the camera light automatically follow.

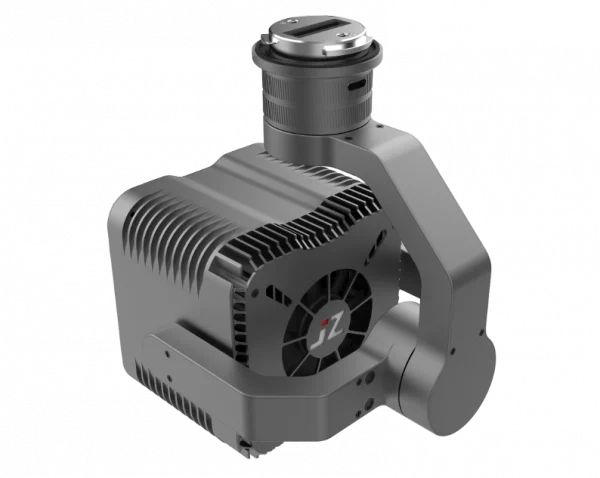

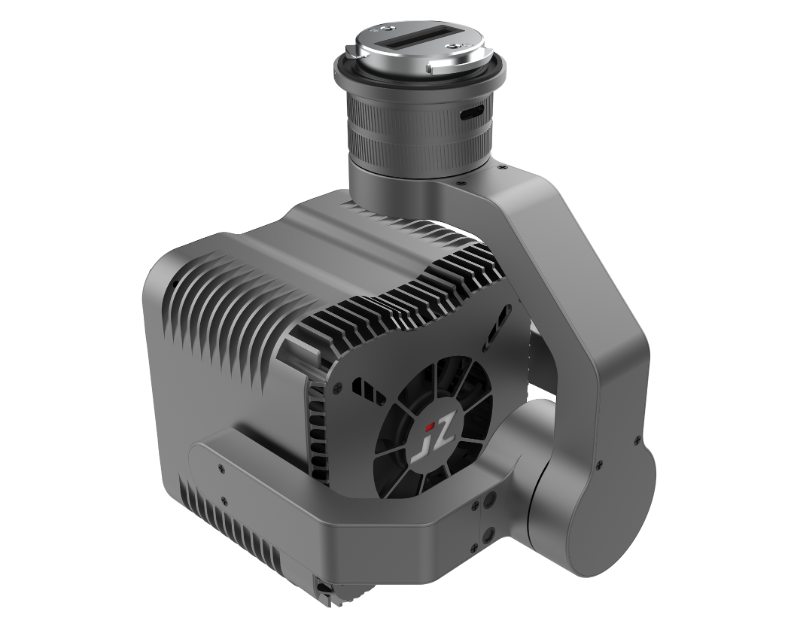

Self-regulating Heat Dissipation

High-speed cooling fan, speed adjustment according to real-time load temperature, to achieve efficient heat dissipation.

  • Luminous Flux – 13000 Lumens
  • Lighting Area – 1400m²
  • Increase Stability Gimbal – Three Axes
  • Lighting Distance – 150m
Category:
  • electrical interface

  • DJI SkyPort V2

  • size

  • 126 x 143 x 124 mm

  • weight

  • 475g

  • Compatible Models

  • M350 RTK
    M300 RTK
    M200 V2 Series

  • Protection level

  • IP44

  • Maximum power consumption

  • 128W

  • Maximum Luminous Flux

  • 13400 lm

  • photosynthetic efficiency

  • W

  • stabilization system

  • 3 axes (pitch, roll, pan)

  • Amount of angular jitter

  • ±0.1°

  • spruce

  • 3-axis gimbal

  • Lighting Method

  • Combined lighting

  • Installation

  • Gimbal Interface Quick Release

  • Lighting Angle

  • 15°

  • operating temperature

  • -10 °C to 50 °C

  • Storage temperature

  • -20 ℃ to 60 ℃

  • Lighting distance

  • 50m
    100m
    150m

  • Lighting area

  • 150m²
    620m²
    1400m²

  • Center Illumination

  • 86Lux
    25Lu
    12Lux
