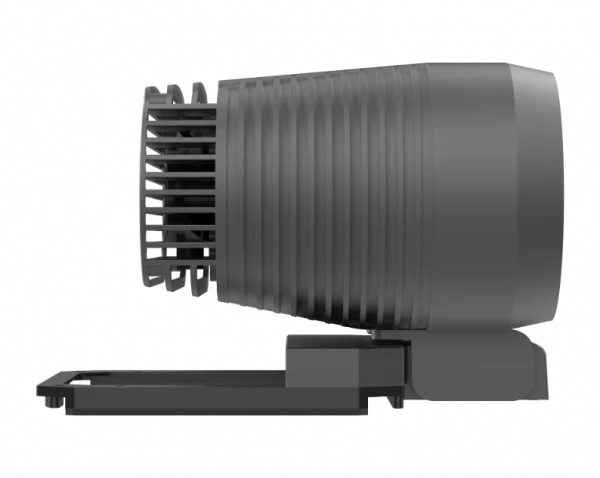

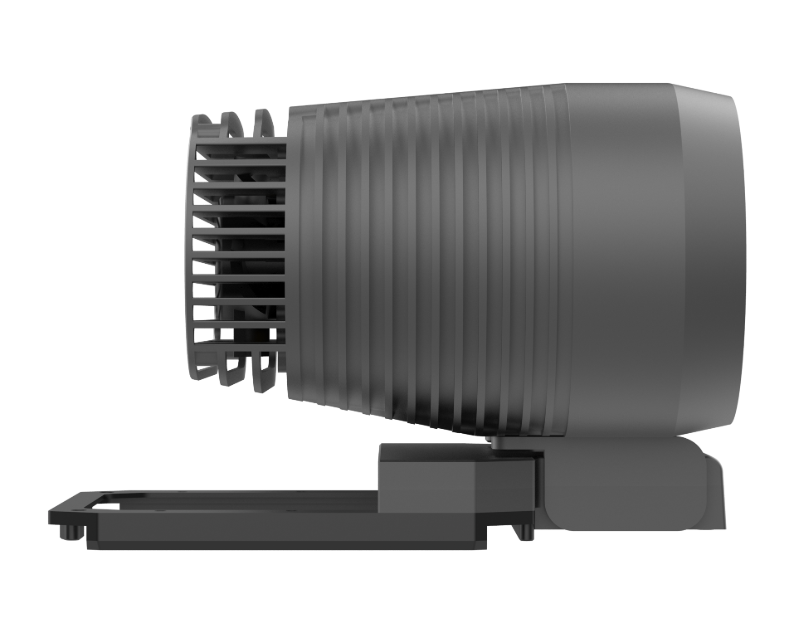

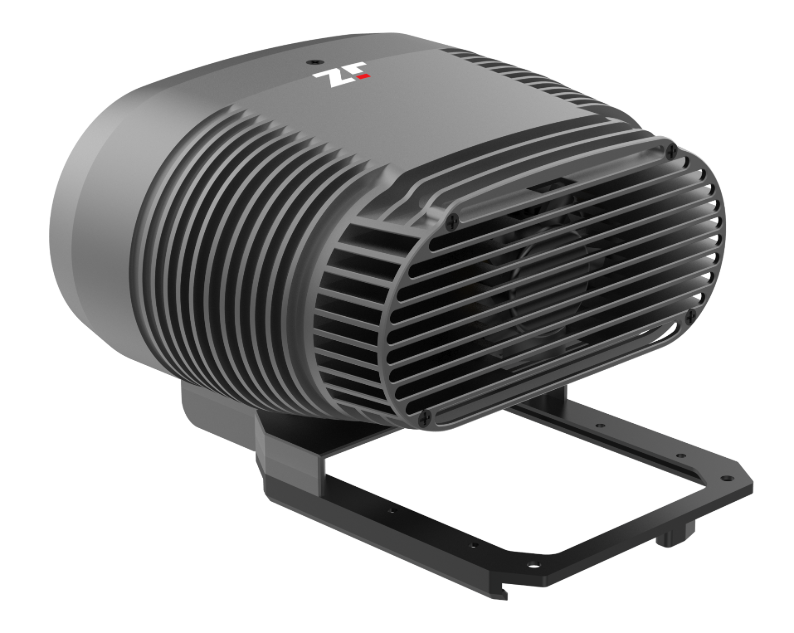

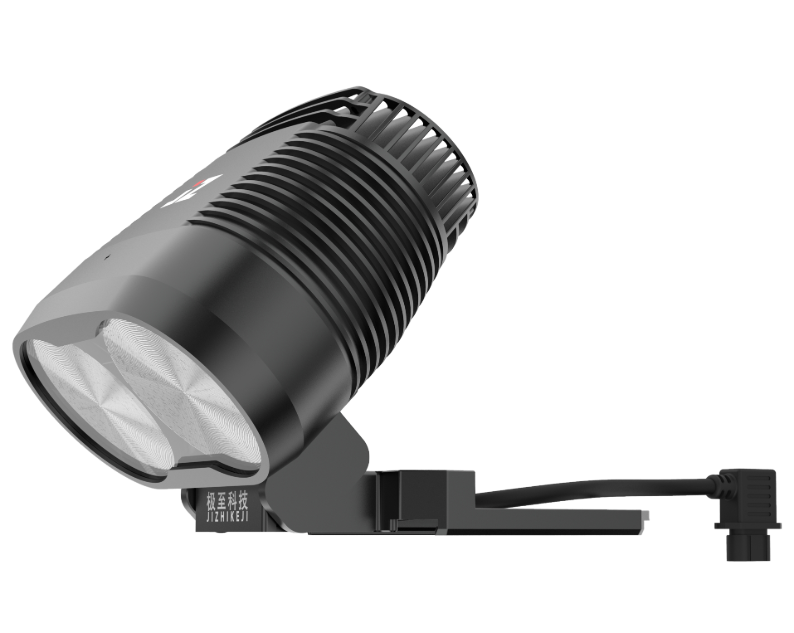

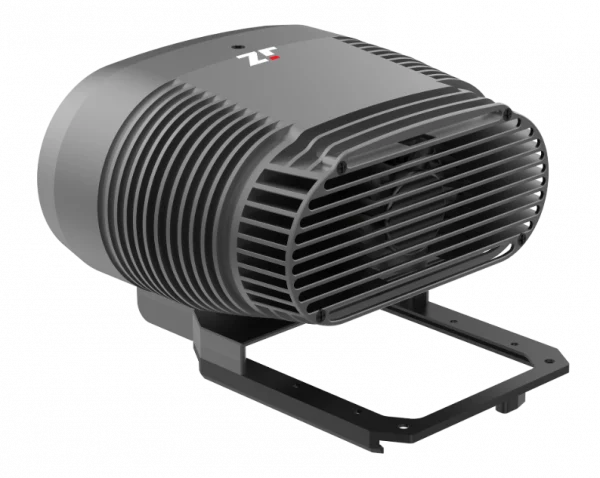

JZ T60 MATRIX LAMP

The JZ T60 MATRIX LAMP uses two sets of optical lenses designed to illuminate a uniform beam of 16° over a distance of more than 150 meters and a 50-meter searchlight area of more than 150 square meters.

Category

The JZ T60 MATRIX LAMP uses two sets of optical lenses designed to illuminate a uniform beam of 16° over a distance of more than 150 meters and a 50-meter searchlight area of more than 150 square meters. At the same time, it is also equipped with a controllable gimbal, which can be linked to the camera for stable lighting effects, and with the M30 PSDK quick removal bracket, which can be easily installed on the DJI Matrice 30 series. In addition, the T60 MATRIX LAMP is compatible with and supports the DJI Matrice 350 RTK and DJI Matrice 350 RTK via the M350 PSDK quick-release bracket and E-Port interface.

Lighting

One-click switch, supports brightness adjustment, provides remote illumination and search.

Strong Light Flash

Support for burst brightness and flash frequency adjustment.

Control

Control via DJI Pilot 2.

Controllable Gimbal

Support gimbal 0 to -85° control, support gimbal and camera linkage.

Self-regulating Heat Dissipation

High-speed cooling fan, speed adjustment according to real-time load temperature, to achieve efficient heat dissipation.

  • Optical Flow – 8000 Lumens
  • Lighting Area – 1400m
  • Uniform Light Column – 16°
  • Lighting Distance – 150m
Category:
  • electrical interface
  • DJI SDK
  • size
  • 90 x 72 x 62 mm
  • weight
  • About 190g
  • Compatible Models
  • M30
  • Protection level
  • IP4X
  • Maximum power consumption
  • 60W
  • Installation
  • Fits standard quick release bracket
  • Lighting Method
  • Combined lighting
  • Lighting Angle
  • 16°
  • spruce
  • 0-85° controllable head
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • Lighting distance
  • 50m
    100m
    150m
  • Lighting area
  • 150m²
    620m²
    1400m²
  • Center Illumination
  • 46Lux
    13Lux
    7Lux
