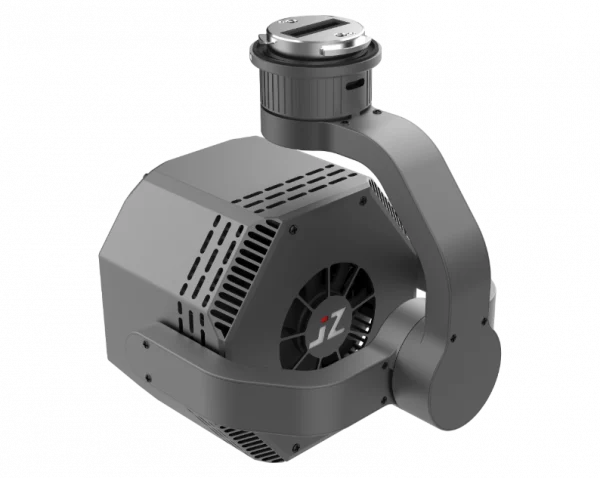

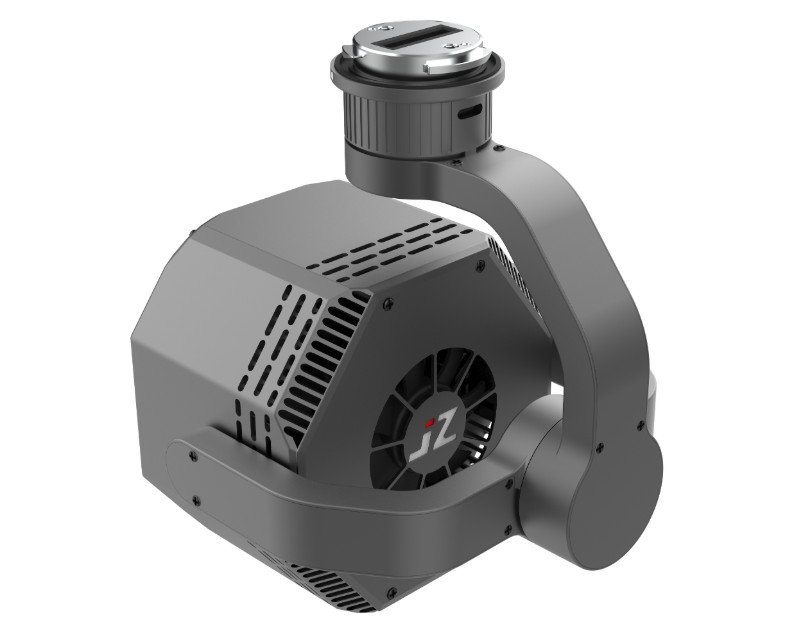

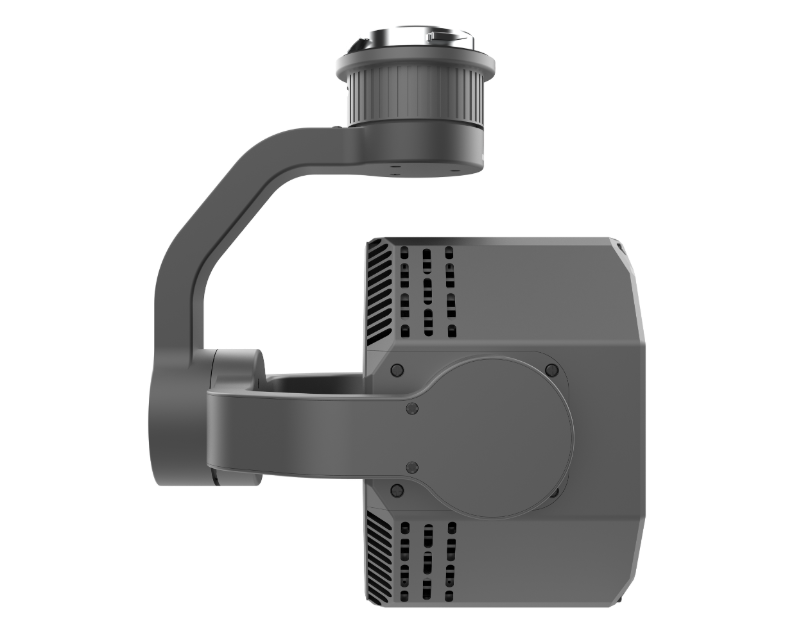

JZ T160 MATRIX LAMP

The JZ T160 MATRIX LAMP is a powerful lighting device with excellent lighting effects and full control. The searchlight uses seven LED lighting combinations with a luminous flux of up to 25,000 lumens to provide powerful lighting capabilities.

Category

The JZ T160 MATRIX LAMP is a powerful lighting device with excellent lighting effects and full control. The searchlight uses seven LED lighting combinations with a luminous flux of up to 25,000 lumens to provide powerful lighting capabilities. The effective lighting distance is more than 150 meters, and the maximum lighting area is more than 3,400 square meters, ensuring broad and uniform lighting coverage. The T160 integrates a three-axis gimbal for 360° lighting control. It supports dual gimbal linkage of light camera to achieve more flexible lighting and shooting effects. At the same time, the user can also adjust the brightness according to the needs, select a variety of modes such as strong light explosion and flash to meet the needs of different scenes. The searchlight is equipped with a self-regulating cooling fan, which can efficiently dissipate heat and maintain the stability and reliability of the equipment. At the same time, it supports the use of tethered power supply lighting and has IP44 waterproof and dustproof grade, which can work normally in harsh environments such as rainy days, providing users with reliable lighting protection. The T160 MATRIX LAMP has been carefully designed and optimized to ensure its performance and reliability. Whether in aerial photography, photography or other fields of application, the T160 provides high-quality lighting effects to meet a variety of needs. In short, the T160 MATRIX LAMP has powerful lighting capabilities, comprehensive control capabilities and reliable performance. Whether in outdoor adventure, emergency rescue or other scenarios, the T160 provides users with an excellent lighting experience and protects the light.

Lighting

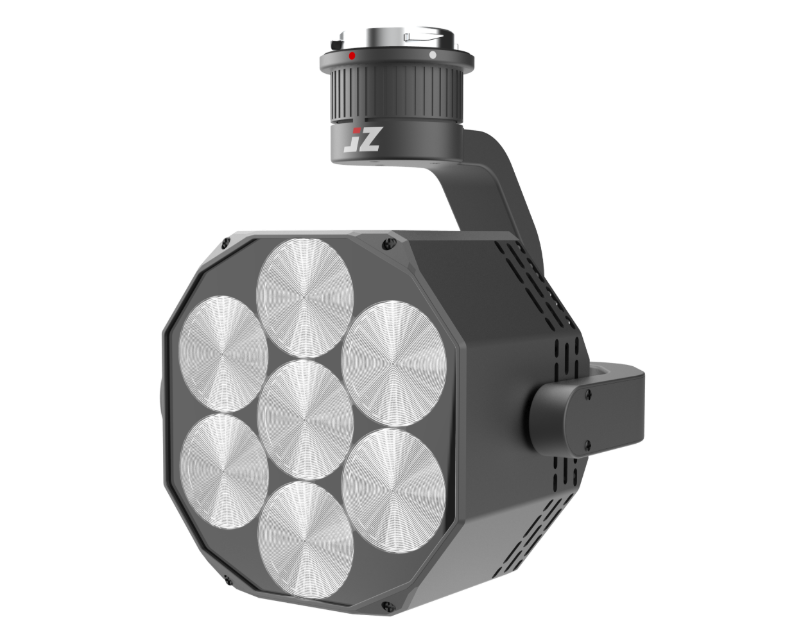

Seven sets of leds, one-button switch, support brightness adjustment, with tethered power supply, provide a wide range of lighting.

Strong Light Flash

Support for burst brightness and flash frequency adjustment.

Control

Control via DJI Pilot 2.

Three-axis Gimbal

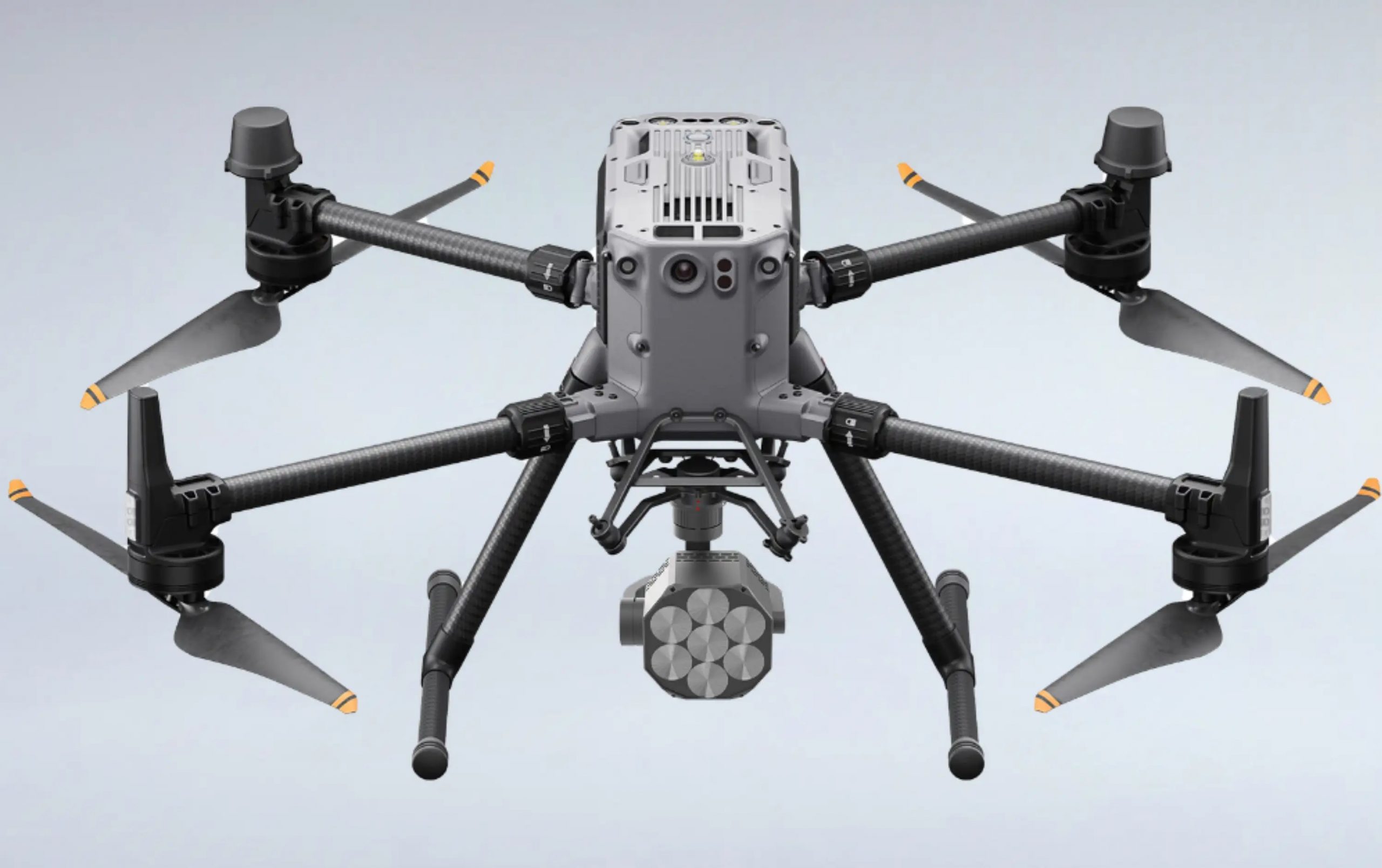

Three-axis enhanced stability gimbal 360° control light direction, provide free Angle lighting, and can also achieve dual gimbal linkage with Zenmuse series gimbal camera, control the camera light automatically follow.

Self-regulating Heat Dissipation

High-speed cooling fan, speed adjustment according to real-time load temperature, to achieve efficient heat dissipation.

  • Luminous Flux – 25000 Lumens
  • Lighting Area – 3400m²
  • Increase Stability Gimbal – Three Axes
  • Lighting Distance – 150m
Category:
  • electrical interface
  • DJI SkyPort V2
  • size
  • 123 x 146 x 1240 mm
  • weight
  • 580g
  • Compatible Models
  • M350 RTK
    M300 RTK
  • Protection level
  • IP44
  • Maximum power consumption
  • 240W
  • stabilization system
  • 3 axes (pitch, roll, pan)
  • Amount of angular jitter
  • ±0.1°
  • Lighting Method
  • Combined lighting
  • Lighting Angle
  • 25°
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • Lighting area
  • 380m²
    1500m²
    3400m²
  • Lighting distance
  • 50m
    100m
    150m
  • Center Illumination
  • 46Lux
    13Lux
    7Lux
