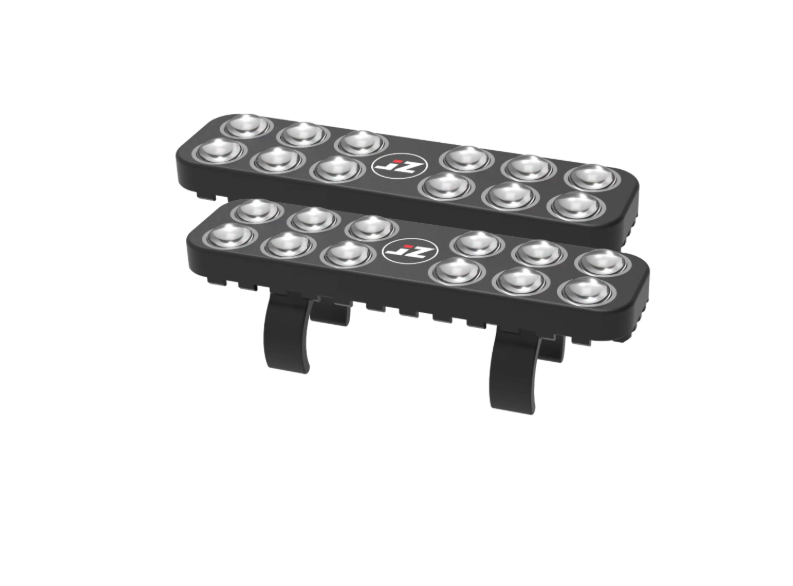

JZ S2 MATRIX FLASH

  • The JZ S2 MATRIX FLASH is a powerful device, it has red, blue, yellow three colors, users can use according to the needs of any combination. The lamp adopts snap type quick installation design, easy to install and disassemble quickly.
  • The S2 MATRIX FLASH supports a wide voltage input range from 5V to 30V to adapt to different power supply environments.

Category

The JZ S2 MATRIX FLASH is a powerful device, it has red, blue, yellow three colors, users can use according to the needs of any combination. The lamp adopts snap type quick installation design, easy to install and disassemble quickly. The S2 MATRIX FLASH supports a wide voltage input range from 5V to 30V to adapt to different power supply environments. It also supports physical button switching, and the user can adjust the color, brightness and flicker frequency through the button. The device is compatible with the DJI OSDK and other interfaces, and can be connected and controlled with DJI’s Open Software Development Kit (OSDK) and other interfaces. Users can control and manage the DJI Pilot 2. The S2 MATRIX FLASH supports brightness adjustment and flicker frequency adjustment, and users can adjust the light according to their needs. In addition, it also offers a variety of flash modes, and users can choose the right mode by one-click switching. The lamp is suitable for emergency fire, public security, maritime and other fields. Whether it is a warning and rescue in emergency situations, or a signal indication in daily work, the S2 MATRIX FLASH can provide reliable functions and lighting effects. In short, the S2 MATRIX FLASH has the characteristics of multiple colors, wide voltage input, physical key switching and strong compatibility. Its brightness adjustment, flicker frequency adjustment and multiple flash mode switching make it useful in a variety of fields.

Flash Adjustment

Supports lighting in preset mode.

Lights Flash

Brightness and flicker frequency can be adjusted.

Custom Mode

Custom schemas can be saved.

Firmware Upgrade

Support for firmware upgrades via software connection to aircraft.

  • Light Exit Angle – 60°
  • Single Power – 48w
  • Three Colors Optional (Two Matches) – Red Yellow Blue
  • Flicker Frequency – 2-4 Times Per Second
Category:
  • electrical interface
  • DJI SDK
  • size
  • 108 x 29 x 14 mm
  • weight
  • 50g
  • flicker rate
  • 2-4 times per second
  • Power
  • Single 48W
  • operational control
  • APP
    Physical Buttons
  • Mounting method
  • Clip-on quick release
  • color
  • Red, Yellow and Blue (two matching)
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
