JZ PT4 FOUR DROP KIT

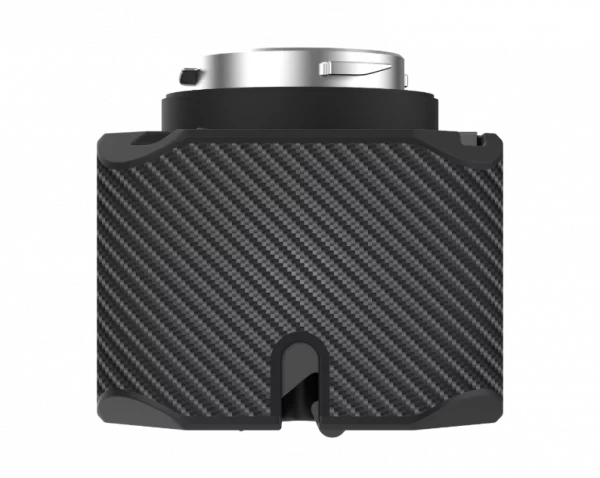

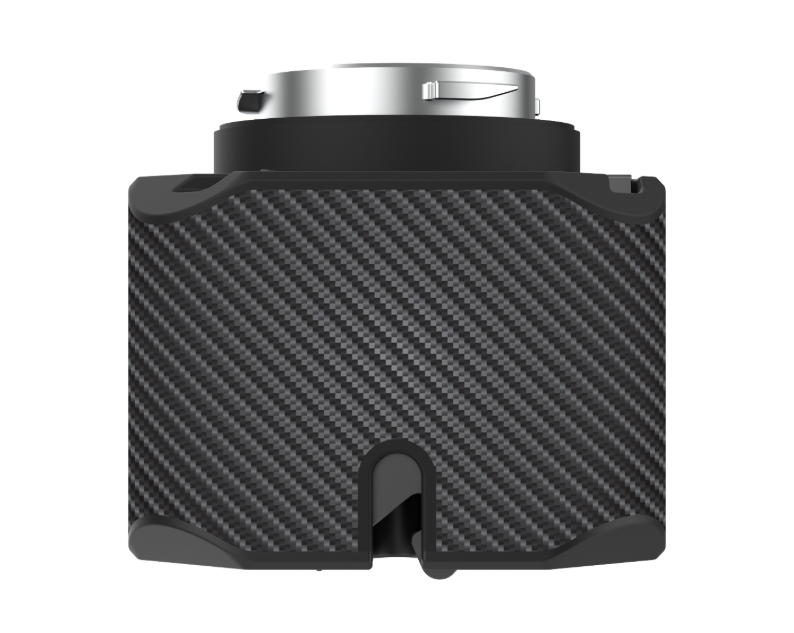

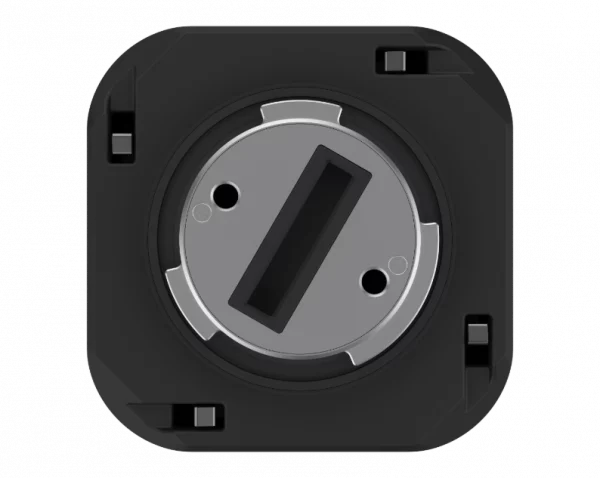

The JZ PT4 FOUR DROP KIT is a multifunctional airdrop device based on DJI PSDK, which weighs only 120g and is very lightweight. It features four sets of unlimited sequence airdrop hooks, allowing users to easily hang and place items without needing to power on.

Category

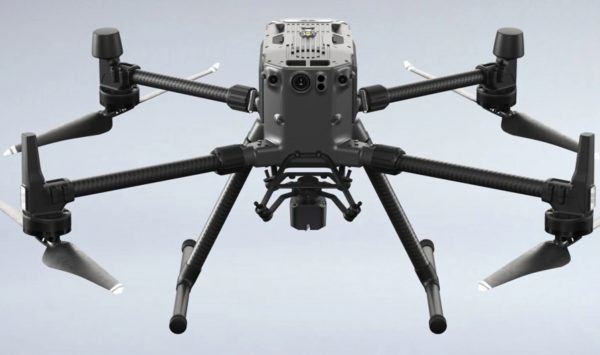

The JZ PT4 FOUR DROP KIT is a multifunctional airdrop device based on DJI PSDK, which weighs only 120g and is very lightweight. It features four sets of unlimited sequence airdrop hooks, allowing users to easily hang and place items without needing to power on. With DJI Pilot 2, users can display the mount status in real time, and support a single point of arbitrary delivery and one-click fast full vote function. Whether you need a single item or a batch, the PT4 can meet your needs. The minimum air-drop weight of the single hook of the device is 0.1g, and the maximum air-drop weight of the single hook is 3kg. This means that it can be adapted to the needs of items in different weight ranges, providing greater flexibility and variety. The PT4 is compatible with the DJI Matrice 350 RTK and DJI Matrice 300 RTK, which makes it perfectly compatible with DJI’s drone products. Users can pair the PT4 with these drones to achieve a wider range of application scenarios. In short, the PT4 FOUR DROP KIT is a versatile and lightweight airdrop device. Its flexibility, reliability and compatibility make it an ideal choice for applications in the drone industry. Whether in rescue missions, material delivery or other application scenarios, the PT4 provides efficient and accurate aerial delivery capabilities.

Mount Detection

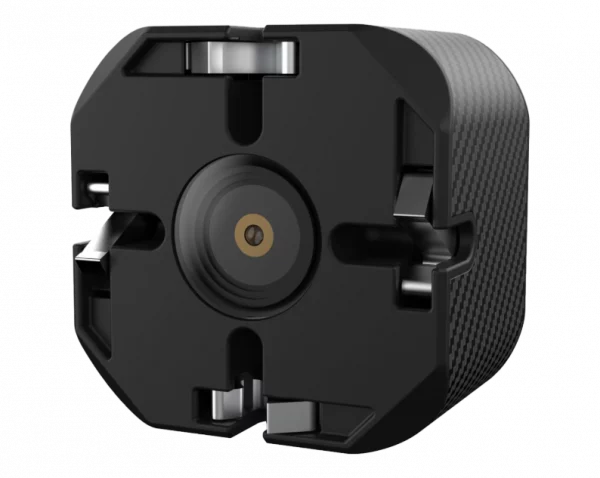

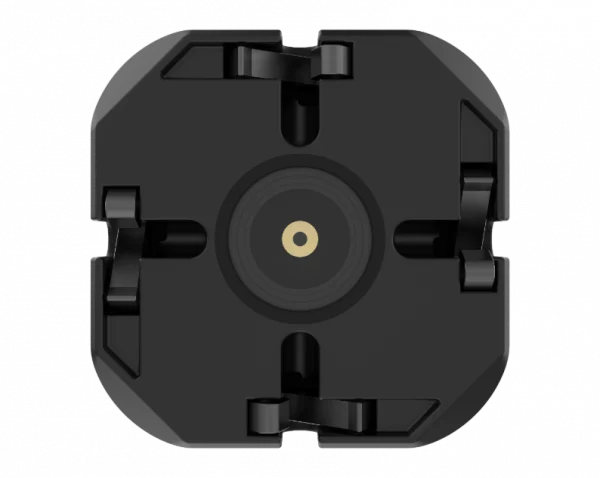

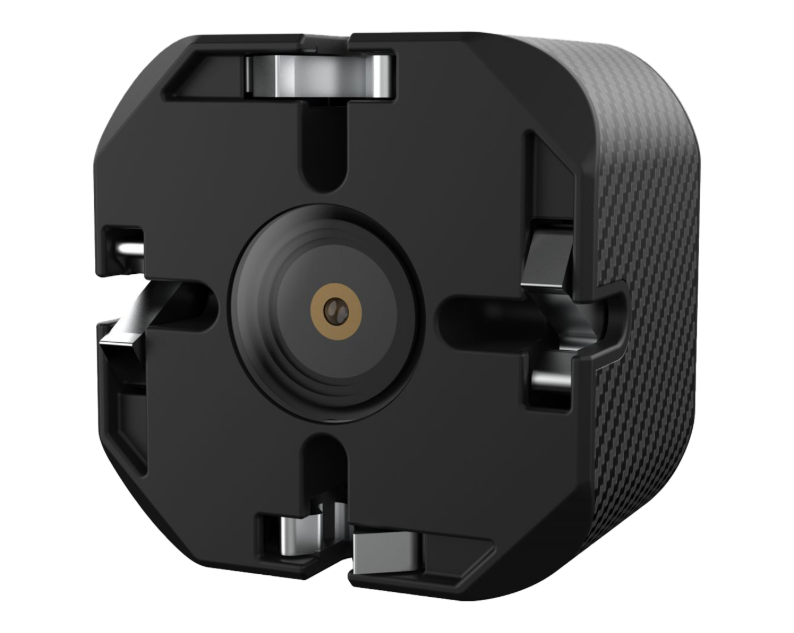

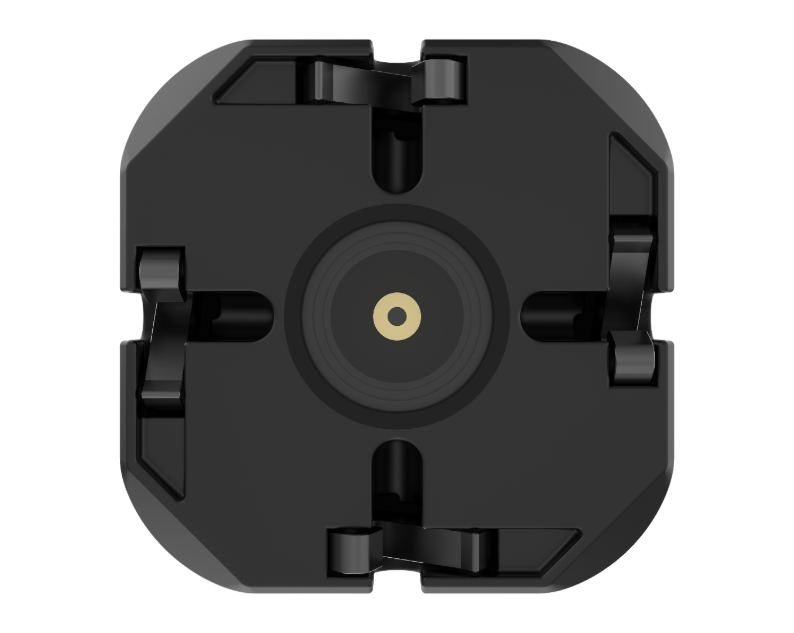

Four mounting positions, no order, automatic identification of mounting positions, DJI Pilot 2 real-time display of each position mounting status.

Manual Mount

You can mount supplies and manually release them without powering on.

Drop at Will

Control independent delivery with DJI Pilot 2, unlimited sequence, i.e. point-to-point delivery. It can also be used with one click, efficient and fast.

  • Mount Quantity – 4 Paragraphs
  • Hanging Weight – 3kg

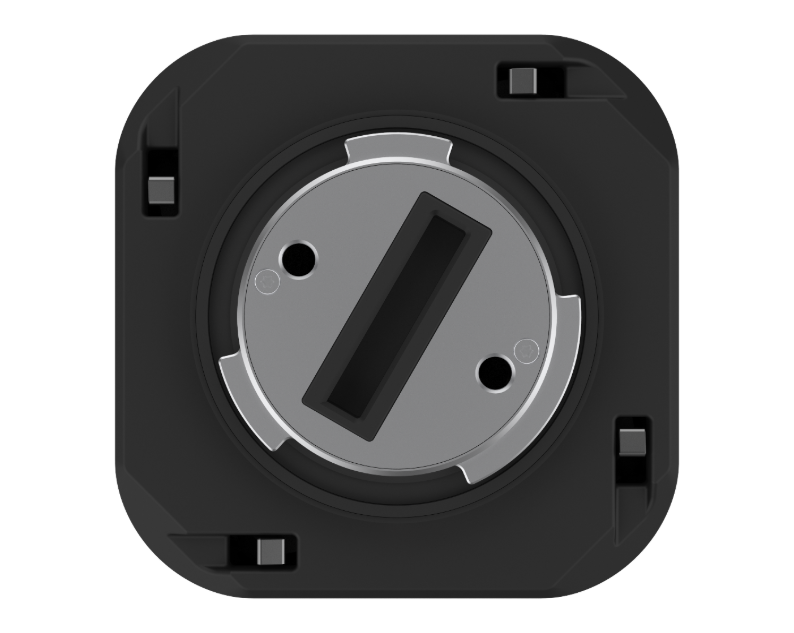

  • Bracket Interface – SkyPort
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • DJI SkyPort V2
  • size
  • 58 x 58 x 54 mm
  • weight
  • 120g
  • Compatible Models
  • M350 RTK
    M300 RTK (note: can be downgraded to support D
  • Number of mounts
  • 4 paragraphs
  • Protection level
  • IP4X
  • rating
  • 10W
  • Individual mounting weight
  • Maximum 3kg, actual weight is subject to aircraft load
  • gross vehicle weight
  • Maximum 12kg, the actual aircraft load shall prevail
  • delivery sequence
  • not limited to
  • drop-in function
  • Single-point drop, one-button full drop
  • operational control
  • DJI Pilot 2
  • Installation
  • Gimbal Interface Quick Release
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
