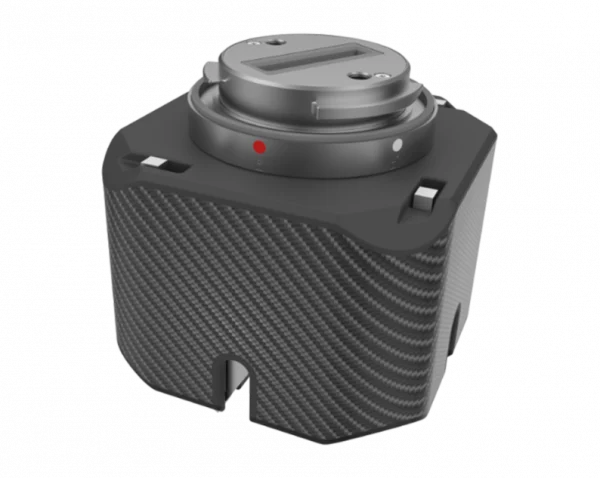

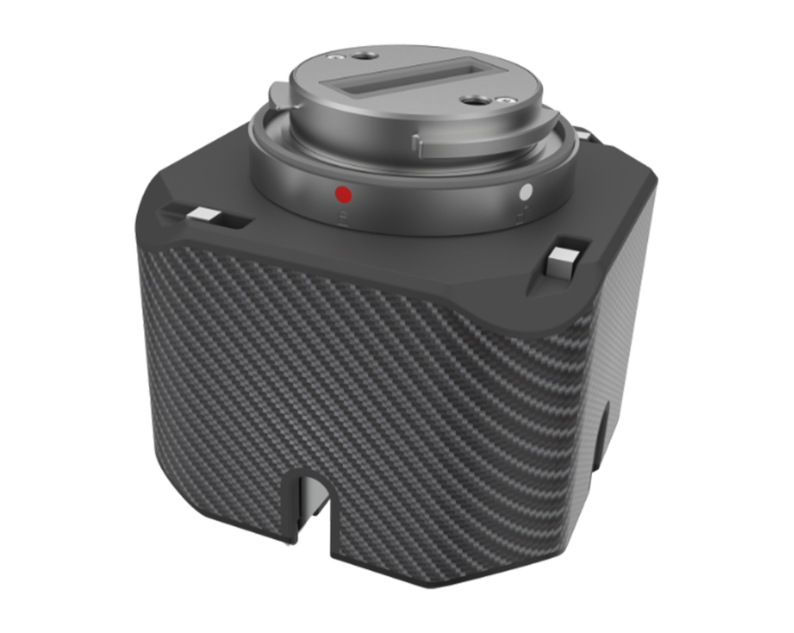

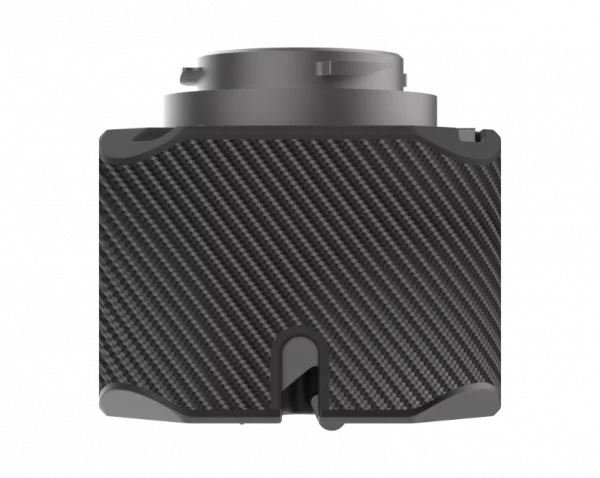

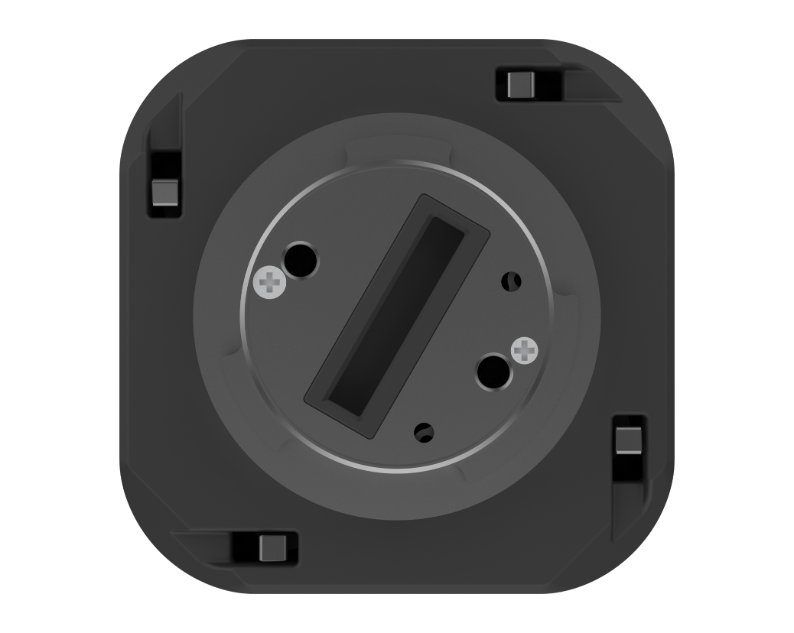

JZ OT4 FOUR DROP KIT

The JZ OT4 FOUR DROP KIT is a multi-functional airdrop device based on DJI OSDK, which weighs only 110g and is very lightweight. It features four sets of unlimited sequence airdrop hooks, allowing users to easily hang and place items without needing to power on.

Category

The JZ OT4 FOUR DROP KIT is a multi-functional airdrop device based on DJI OSDK, which weighs only 110g and is very lightweight. It features four sets of unlimited sequence airdrop hooks, allowing users to easily hang and place items without needing to power on. With DJI Pilot 2, users can display the mount status in real time, and support a single point of arbitrary delivery and one-click fast full vote function. Whether you need a single item delivery or a batch delivery, the OT4 can meet your needs. The minimum air-drop weight of the single hook of the device is 0.1g, and the maximum air-drop weight of the single hook is 3kg. This means that it can be adapted to the needs of items in different weight ranges, providing greater flexibility and variety. The OT4 ADAPTS to the DJI Matrice 350 RTK and DJI Matrice 300 RTK via the M300 series midrange single load component (SDK PAYLOAD BRACKET), which makes it perfectly compatible with DJI’s drone products. Users can pair the OT4 with these drones for a wider range of application scenarios. In short, the OT4 FOUR DROP KIT is a versatile and lightweight airdrop device. Its flexibility, reliability and compatibility make it an ideal choice for applications in the drone industry. Whether in rescue missions, supplies delivery or other application scenarios, the OT4 provides efficient and accurate aerial delivery capabilities.

Belly Mount

With the M300 series midrange single load component (SDK PAYLOAD BRACKET), the mounting center of gravity is placed in the belly for more stable mounting.

Drop Anything

Control independent delivery with DJI Pilot 2, unlimited sequence, i.e. point-to-point delivery. It can also be used with one click, efficient and fast.

Mount Detection

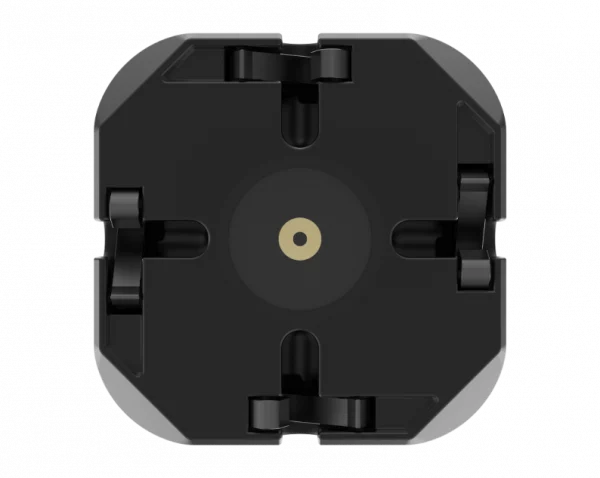

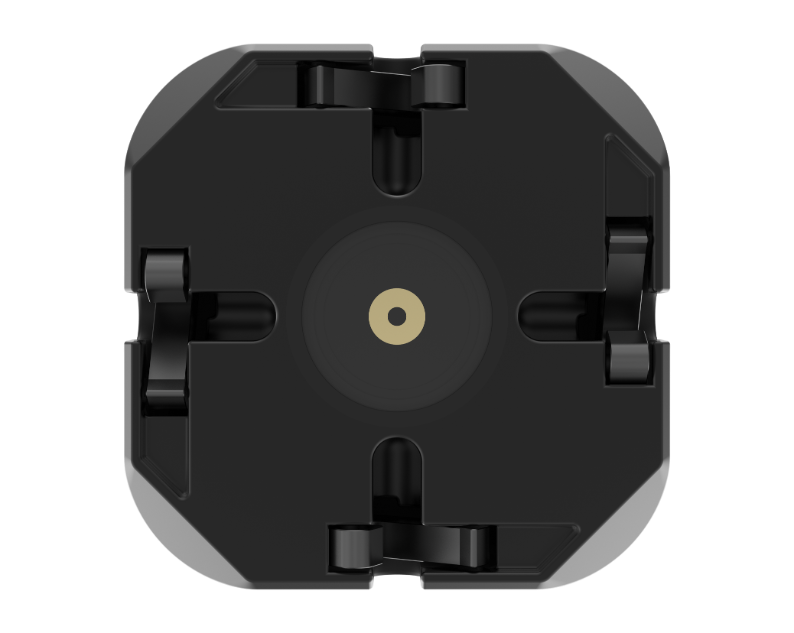

Four mounting positions, no order, automatic identification of mounting positions, DJI Pilot 2 real-time display of each position mounting status.

Manual Mount

You can mount supplies and manually release them without powering on.

  • Mount Quantity – 4 Paragraphs
  • Hanging Weight – 2.5kg
  • SDK Interface – T-Port
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • JZ T_Port
  • size
  • 58 x 58 x 54 mm
  • weight
  • 110g
  • Compatible Models
  • M350 RTK
    M300 RTK
  • Protection level
  • IP4X
  • Number of mounts
  • 4 paragraphs
  • rating
  • 10W
  • Individual mounting weight
  • Maximum 3kg, actual weight is subject to aircraft load
  • gross vehicle weight
  • Maximum 12kg, the actual aircraft load shall prevail
  • delivery sequence
  • not limited to
  • drop-in function
  • Single-point drop, one-button full drop
  • operational control
  • DJI Pilot 2
  • Installation
  • JZ Load Port Quick Release
