JZ OT2 MUITI-USE DROP

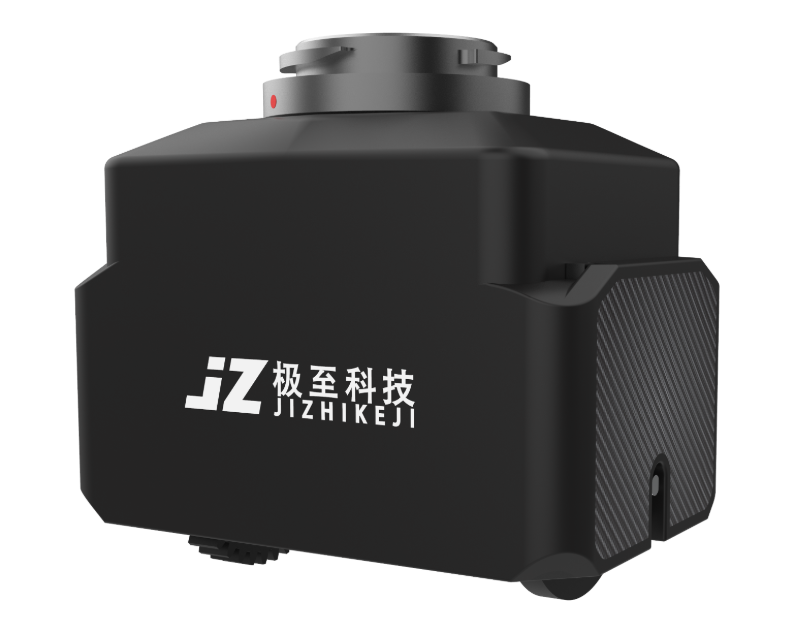

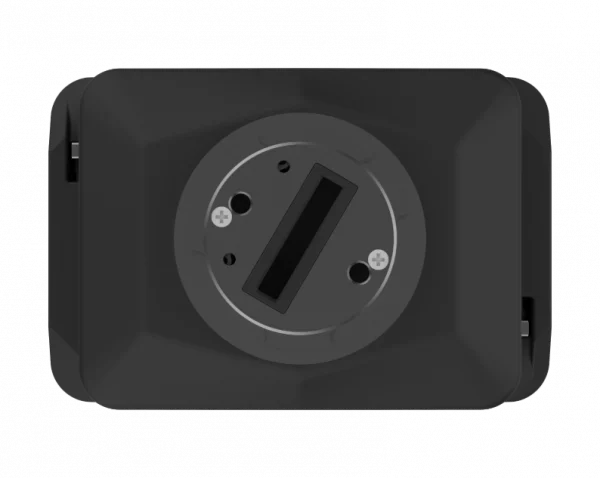

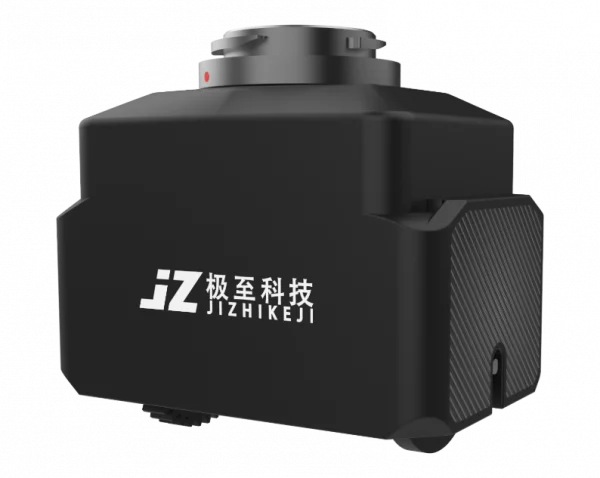

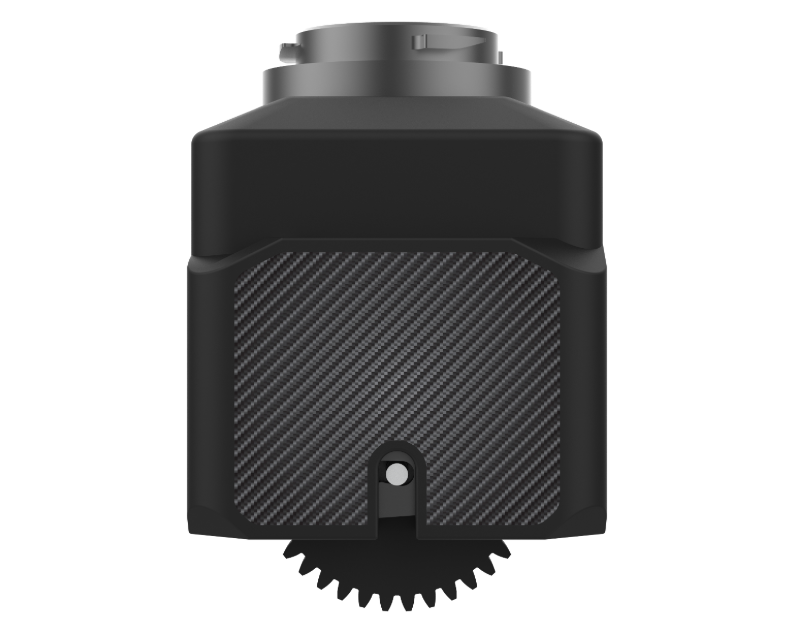

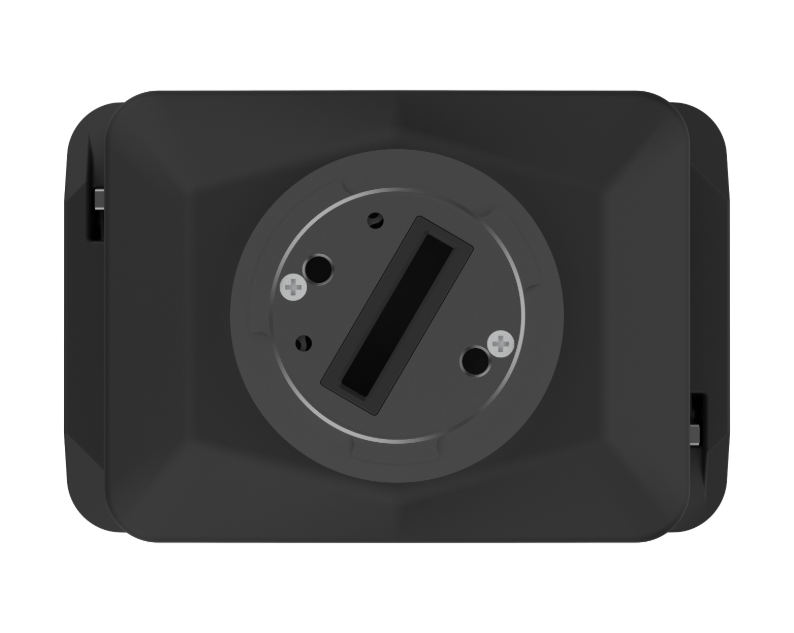

The JZ OT2 MUITI-USE DROP KIT is a multi-function drop device based on DJI OSDK. Weighing only 250 grams, it is very lightweight. The device can be controlled using the DJI Pilot 2, which can be used as a two-stage airdrop or in conjunction with the take-up reel for rope retracting.

Category

The JZ OT2 MUITI-USE DROP KIT is a multi-function drop device based on DJI OSDK. Weighing only 250 grams, it is very lightweight. The device can be controlled using the DJI Pilot 2, which can be used as a two-stage airdrop or in conjunction with the take-up reel for rope retracting. In case of emergency, the user can drop the wire reel by one-click operation, achieving fast and safe operation. The OT2 ADAPTS to the DJI Matrice 350 RTK and DJI Matrice 300 RTK via the M300 series midrange single-load component (SDK PAYLOAD BRACKET), which makes it perfectly compatible with DJI’s drone products. Users can pair the OT2 with these drones for a wider range of application scenarios. In summary, the OT2 MUITI-USE DROP KIT is a functional and lightweight drop device. Its suitability, reliability and safety make it an ideal choice for applications in the drone industry. Whether in rescue missions, supplies delivery or other application scenarios, the OT2 provides efficient and accurate aerial delivery capabilities.

Belly Mount

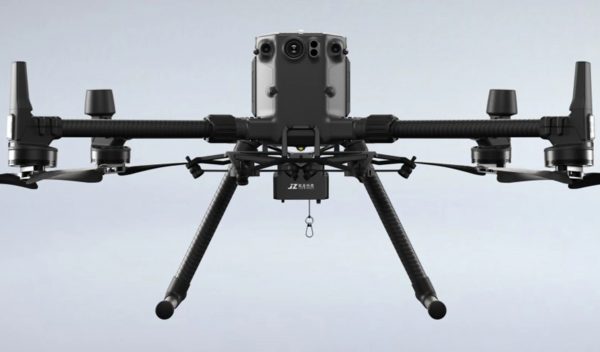

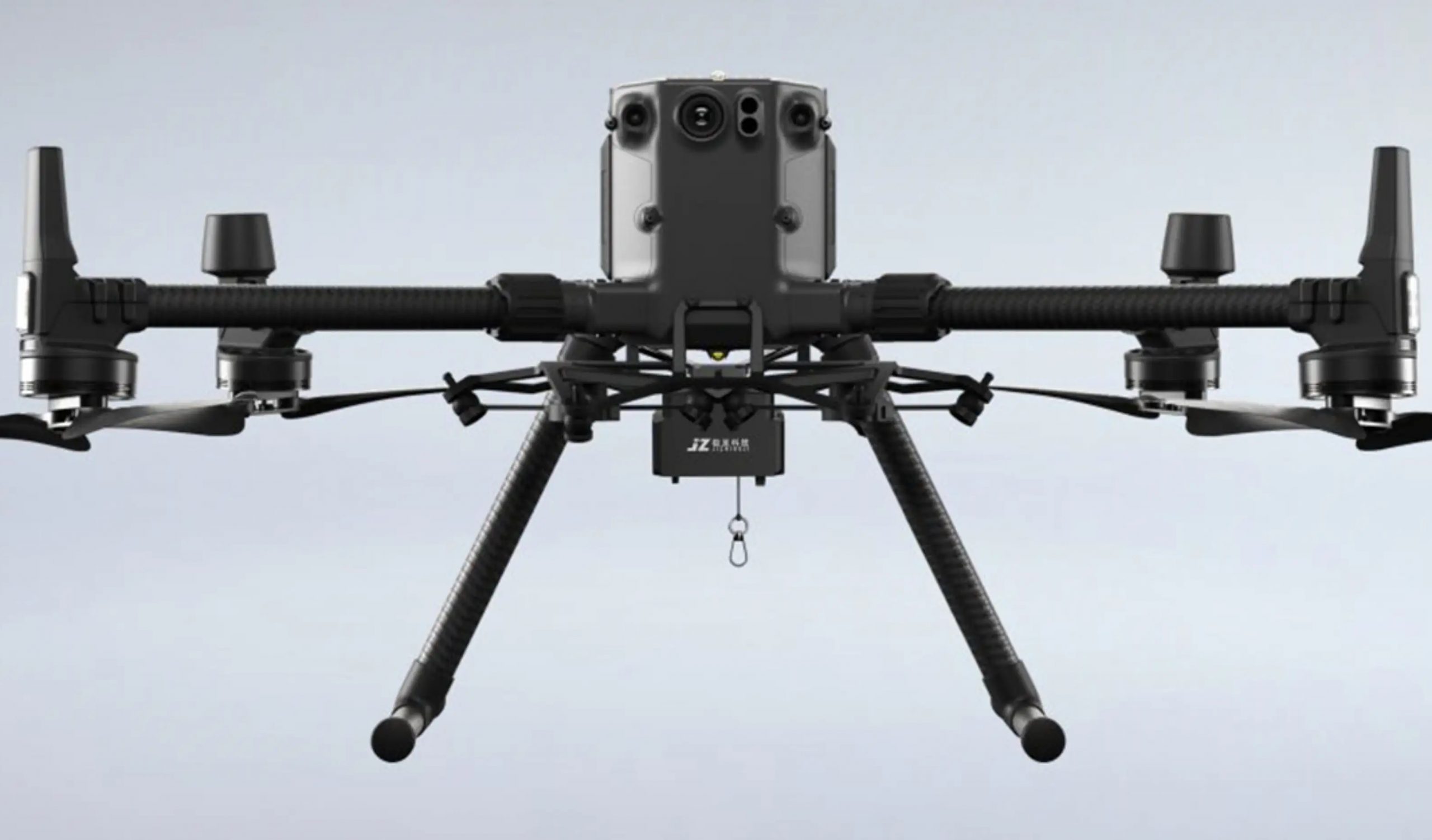

With the M300 series midrange single load component (SDK PAYLOAD BRACKET), the mounting center of gravity is placed in the belly for more stable mounting.

Mount Detection

Two mounts, no order, automatic identification of mount location, DJI Pilot 2 real-time display of each mount status.

Drop Anything

Through the Pilot APP control, you can control independent delivery, no order, that is, point-to-point delivery. It can also be used with one click, efficient and fast.

One Click Retracting and Releasing Rope

Through the Pilot APP control, one-key control of the motor positive and negative rotation, to achieve one-key rope retracting and releasing, in case of emergency can be one-key wire reel, to avoid damage to the UAV.

  • Mount Quantity – 2 Paragraphs
  • Hanging Weight – 2.5kg
  • SDK Interface – T-Port
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • JZ T_Port
  • size
  • 88.8 x 88 x 70 mm
  • weight
  • 230g
  • Compatible Models
  • M350 RTK
    M300 RTK
  • Protection level
  • IP4X
  • Installation
  • JZ Load Port Quick Release
  • Number of mounts
  • 2 paragraphs
  • rating
  • 10W
  • Individual mounting weight
  • Maximum 2.5kg, actual weight is subject to aircraft loading
  • gross vehicle weight
  • Maximum 5kg, actual weight is subject to aircraft load
  • delivery sequence
  • not limited to
  • drop-in function
  • Single-point drop, one-button full drop
  • operational control
  • DJI Pilot 2
  • the ability to rope down
  • Push button control, one button lift
  • gross vehicle weight for rappelling
  • 2.5 kg
  • emergency drop
  • One click off the hook, throw down the take-up reel
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
