JZ M3D QUICK SEARCH KIT

The JZ M3D QUICK SEARCH KIT , the newly upgraded “three-in-one” combo set, integrates shout-out and colorful flashing in limited space, lighter, smaller, and more powerful. Shout-out and lighting can be used together or independently.

Category

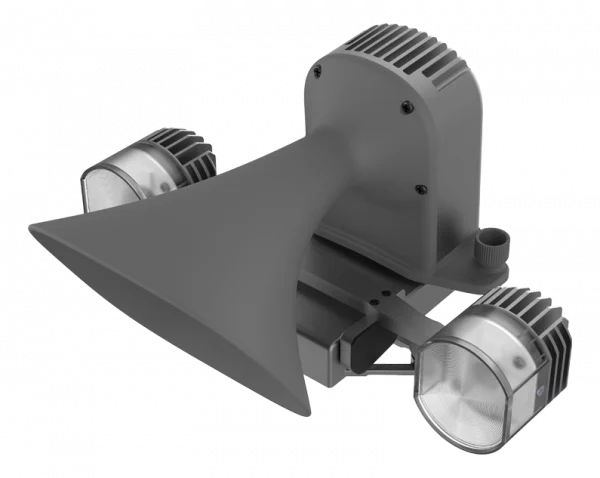

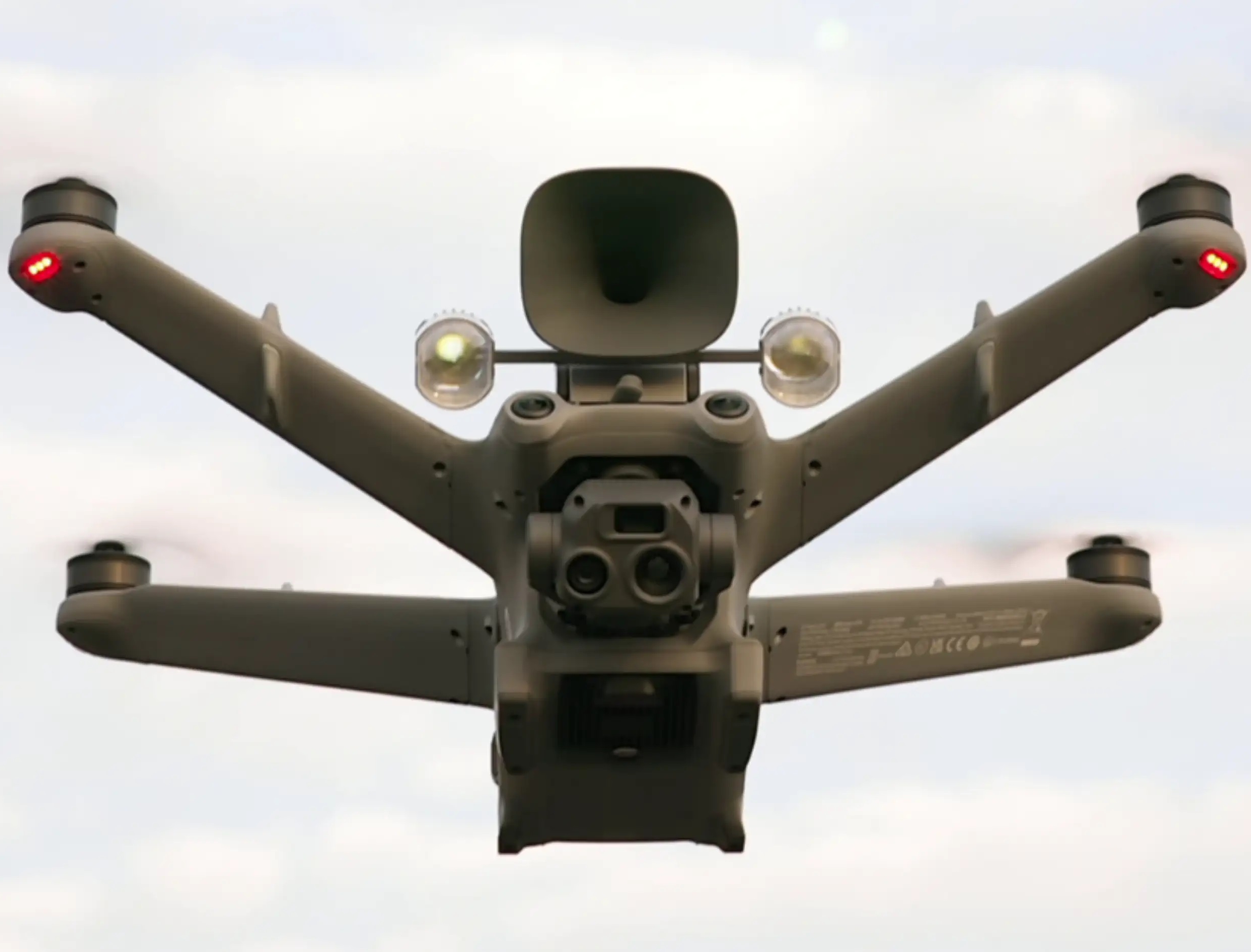

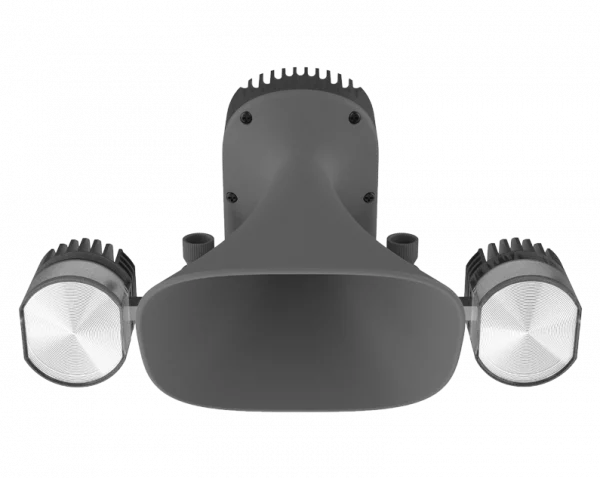

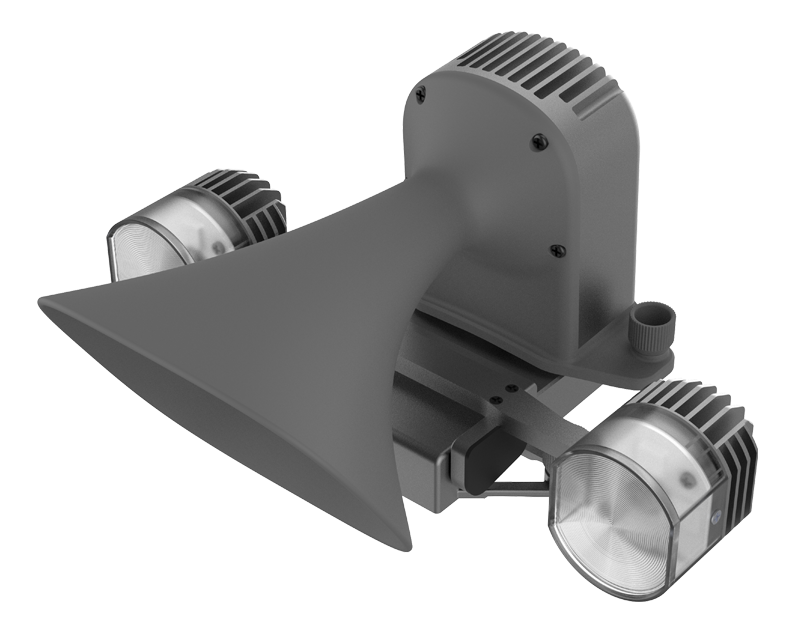

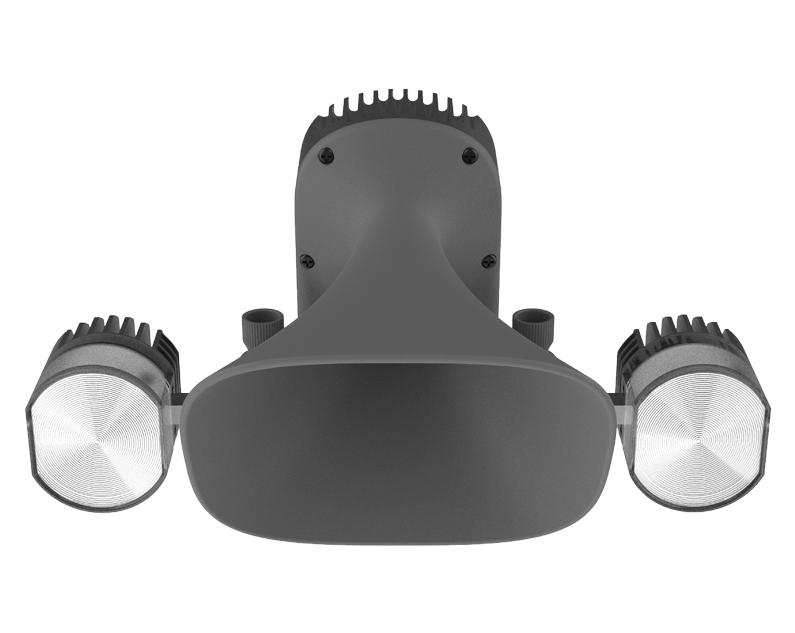

The JZ M3D QUICK SEARCH KIT , the newly upgraded “three-in-one” combo set, integrates shout-out and colorful flashing in limited space, lighter, smaller, and more powerful. Shout-out and lighting can be used together or independently. The speaker model is JZ_H1E, which is compatible with DJI Mavic 3 Enterprise, DJI Matrice 30 Series, DJI Matrice 350 RTK and DJI Dock. Despite its compact size, it delivers astonishing volume with a maximum sound pressure level of 120dB and a clear range of up to 300 meters. The T30S MATRIX LAMP features a spotlight with a fully transparent front cover, upgrading the 4-piece lens group to 2 pieces, increasing light transmittance by 10%. Equipped with newly customized laser lamp beads, the central brightness is boosted by 30%, with a 14° long-focus spotlight that effectively illuminates beyond 200 meters. The light also integrates 8 RGB beads, allowing customizable flashing colors, with a maximum power of 15W, 90° wide-angle flashing, visible alert distance of 1 kilometer.

Lighting, strong light flash

One-key switch, support brightness adjustment, explosiveness and explosiveness frequency adjustment, can customize the explosiveness color.

Remote Control

Support for DJI Pilot 2 and Commonplace 2.

TTS Text Play

Support text to voice playback function, with multiple voice support, including Chinese, English and local dialects. Support for DJI Pilot 2 audio shouts.

Gimbal

Controllable gimbal, support gimbal 0° to -90° control, support gimbal and camera linkage.

  • Sound Pressure Level at 1 Meter for Text Playback – 114dB
  • Long Lens Searchlight – 114dB
  • Wide Angle Flash – 90°
  • Lighting Distance – 200m
Category:
  • electrical interface
  • DJI SDK
  • size
  • 138 x 116 x 78 mm
  • weight
  • 190g
  • TTS sound pressure at one meter
  • 114dB
  • Protection level
  • IP54
  • broadcast distance
  • 300m
  • Compatible Models
  • DJI M3D
    DJI M3TD
  • Maximum power consumption
  • >=30W
  • spruce
  • 0 ° to -90 ° controllable pan tilt
  • Shouting Methods
  • DJI Pilot 2
  • Flash color
  • Red, green, blue, yellow, white
  • Installation
  • screw quick release
  • Lighting Method
  • Combined lighting
  • Lighting Angle
  • 14°
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • Lighting distance
  • 50m
    100m
    150m
  • Lighting area
  • 113m²
    471m²
    1063m²
  • Center Illumination
  • 30Lux
    7Lux
    3Lux
