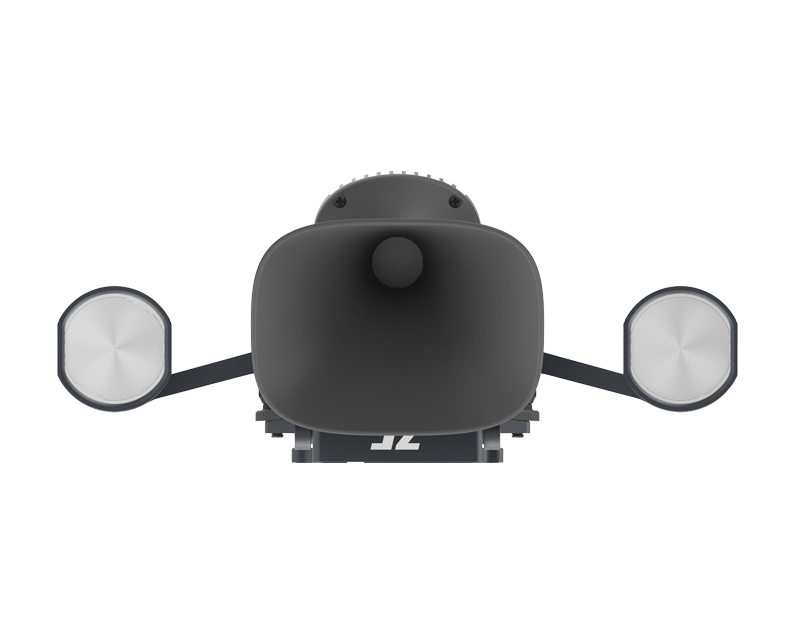

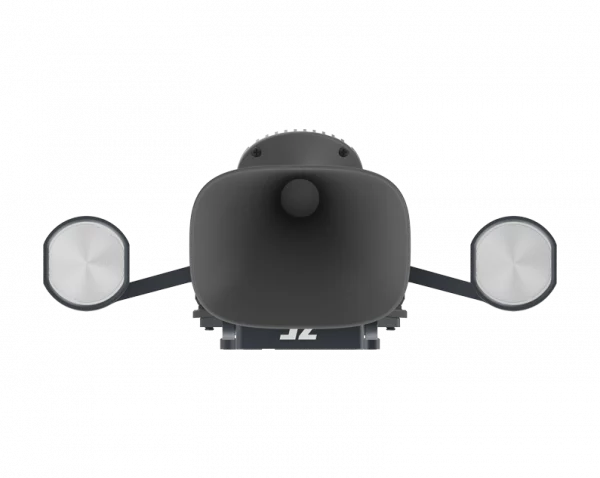

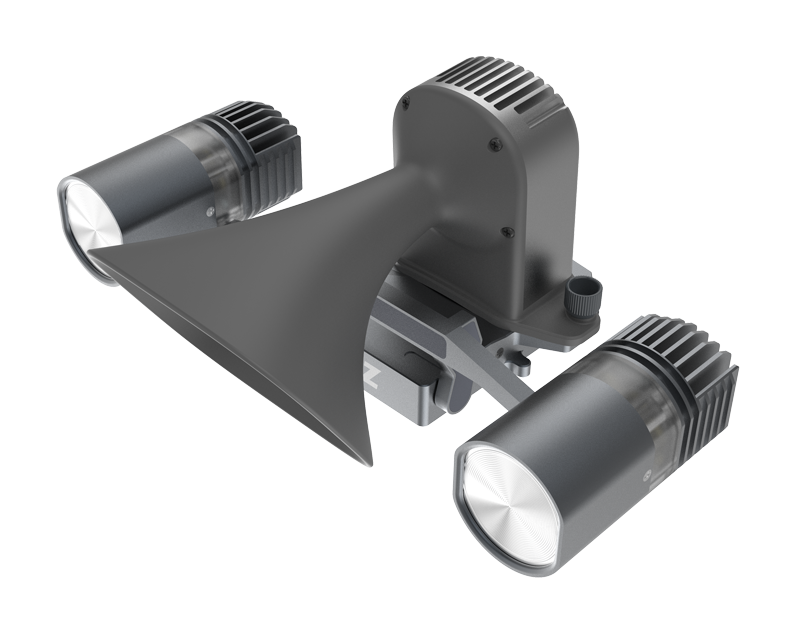

JZ M30 QUICK SEARCH KIT

The JZ M30 QUICK SEARCH KIT integrates shout and lighting functions. The device has a lighting power of 60W while weighing only 230g, which is very lightweight. The M30 QUICK SEARCH KIT set features a 14° concentrated lighting design that can provide more than 36Lux illumination over a distance of 50 meters.

Category

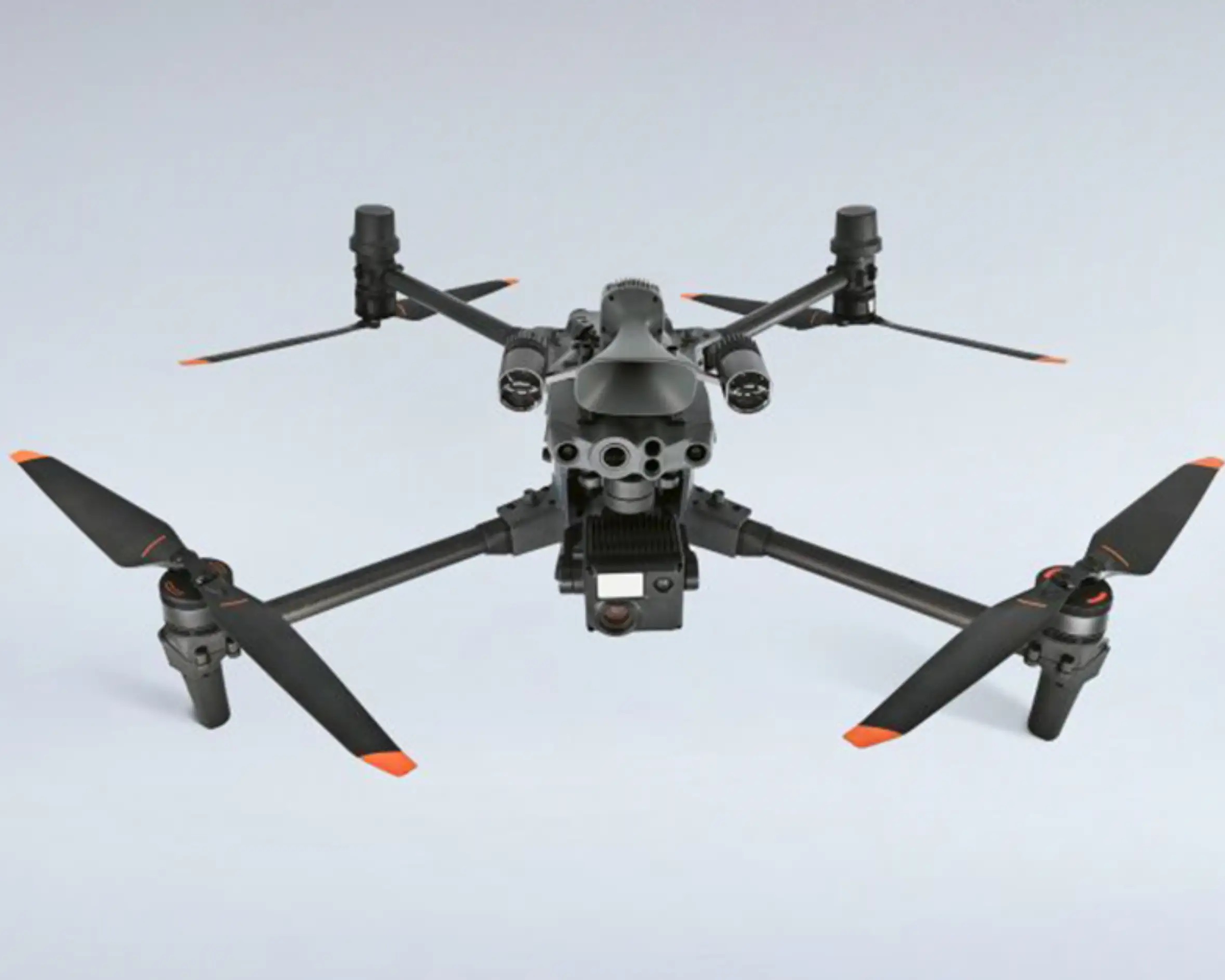

The JZ M30 QUICK SEARCH KIT integrates shout and lighting functions. The device has a lighting power of 60W while weighing only 230g, which is very lightweight. The M30 QUICK SEARCH KIT set features a 14° concentrated lighting design that can provide more than 36Lux illumination over a distance of 50 meters. It is equipped with a single axis increased stability gimbal, support camera gimbal linkage, can achieve stable shooting and lighting effects. At the same time, it also adds color light sets with five color switches that can be used in emergency warnings. The set of TTS text shout can reach the sound pressure level of 114dB at one meter, and the effective broadcast distance is more than 300 meters, which can achieve long-distance voice broadcast. At the same time, the M30 QUICK SEARCH KIT set is equipped with PSDK standard quick-release bracket, which can be easily and quickly installed on the DJI Matrice 30 series, and fully supports the DJI Pilot 2 for control and management. In summary, the M30 QUICK SEARCH KIT set has powerful lighting power and loudspeaker function. Its portability, stability and long broadcast distance make it play an important role in a variety of application scenarios. Whether it’s nighttime search and rescue, emergency broadcasting or other lighting and voice needs, the M30 QUICK SEARCH KIT provides a high-quality solution.

Lighting Strong Light Flash

Support one-button switch, brightness adjustment, burst brightness and burst frequency adjustment.

Color Indicator Light

Supports multiple modes and color toggles.

Controllable Gimbal

Support gimbal +30° to -90°, support gimbal and camera linkage

TTS Text Play

Support text to voice playback function, with multi-language support, including Chinese, English and local dialects. Support for DJI Pilot 2 audio shouts.

Control and Shout

Controls and shouts are available via DJI Pilot 2.

  • Sound Pressure Level at 1 Meter for Text Playback – 114dB
  • Maximum Power Consumption – 70W
  • Spotlight Lighting – 14°
  • Lighting Distance – 200m
Category:
  • electrical interface
  • DJI SDK
  • size
  • 122 x 163 x 68 mm
  • weight
  • 128g(T60S)+102g(H1E)
  • TTS sound pressure at one meter
  • 114dB
  • Compatible Models
  • M30(M350 RTK)
  • broadcast distance
  • 300m
  • Protection level
  • IP4X
  • Searchlight power
  • 60W
  • Shouting power
  • 10W
  • Shouting Methods
  • DJI Pilot 2
  • Installation
  • screw quick release
  • Lighting Method
  • Combined lighting
  • Lighting Angle
  • 14°
  • spruce
  • Single Axis Stabilized Head
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • Lighting distance
  • 50m
    100m
    150m
  • Lighting area
  • 113m²
    471m²
    1063m²
  • Center Illumination
  • 36Lux
    8.7Lux
    3.7Lux
