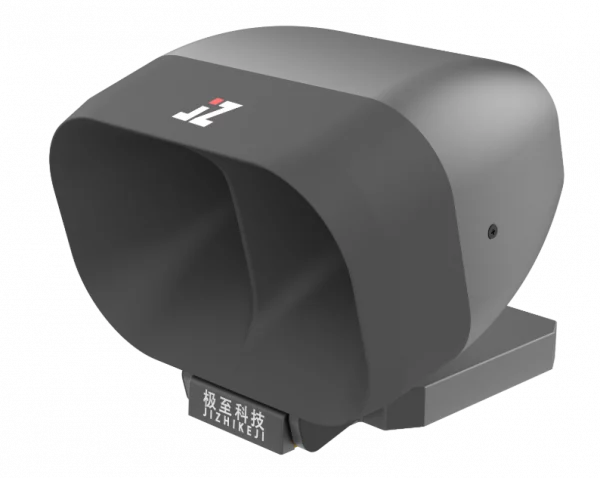

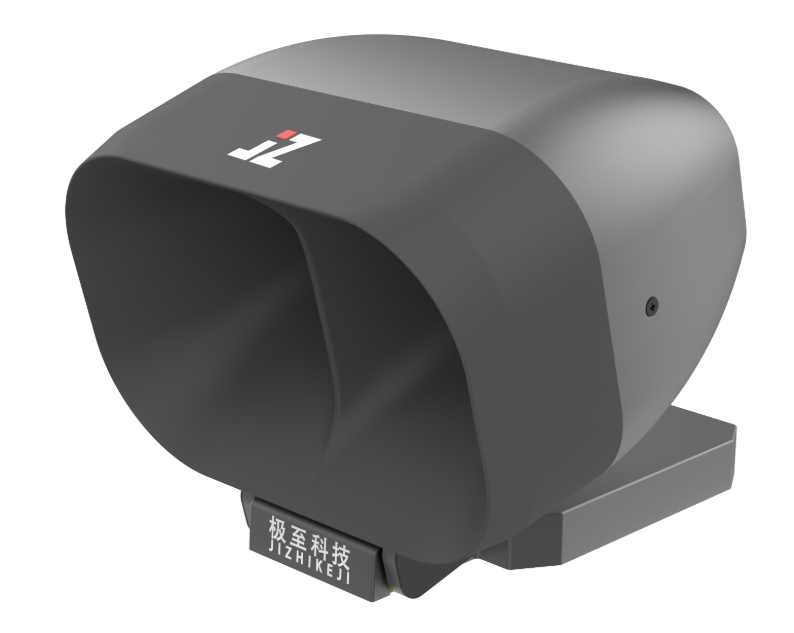

JZ H10 GIMBAL SPEAKER

The JZ H10 GIMBAL SPEAKER is designed to be compatible with the DJI Matrice 30 series. Despite its compact size, it contains astonishing power. It features two sets of high-compression drivers to achieve power amplification.

Category

The JZ H10 GIMBAL SPEAKER is designed to be compatible with the DJI Matrice 30 series. Despite its compact size, it contains astonishing power. It features two sets of high-compression drivers to achieve power amplification. The TTS (Text-to-Speech) text playback can reach a sound pressure level of 120dB at a distance of one meter, providing clear and audible sound. The coverage range can reach up to 1 kilometer.The device has a built-in 32GB storage space and can be connected to a computer via USB for music copying and firmware upgrades. The housing is made of aerospace aluminum alloy, ensuring durability.Furthermore, the H10 comes with a controllable gimbal that supports camera gimbal linkage. Additionally, the H10 is compatible with and supports the DJI Matrice 350 RTK and DJI Matrice 350 RTK through the M350 PSDK quick-release bracket and E-Port interface.

TTS Text Playback

Support text to voice playback function, with multi-language support, including Chinese, English and local dialects.

Control and Shout

Controls and shouts are available via DJI Pilot 2.

Audio Playback

Built-in 32GB storage, support MP3, WAV, FLAC and other formats of audio files, users can directly connect to the computer via USB audio copy. It also supports the DJI Pilot 2 audio upload function for convenient audio management.

Gimbal

0-85° control, support gimbal and camera linkage.

  • Sound Pressure Level at 1 Meter for Text Playback – 120dB
  • Propagation Distance – 500m
  • Double Horn – High Pitch
  • Controllable Gimbal – 0-85°
Category:
  • electrical interface
  • DJI SDK
  • size
  • 98 x 83 x 91 mm
  • weight
  • About 265g
  • TTS sound pressure at one meter
  • 120dB
  • broadcast distance
  • 500m
  • Protection level
  • IP4X
  • Compatible Models
  • M350 RTK
    M300 RTK
    M30
    M3 Industry Edition
  • Maximum power consumption
  • 25W
  • Installation
  • Fits standard quick release bracket
  • Shouting Methods
  • DJI Pilot 2
    Handheld Mics
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
  • spruce
  • 0 to -85° control, support head and camera motorized connection
