JZ ET4 FOUR DROP KIT

The JZ ET4 FOUR DROP KIT is specifically developed for the DJI FlyCart 30 carrier aircraft. It is compatible with both the DJI Matrice 350 RTK and DJI Matrice 300 RTK models, connecting directly through the E-Port interface and utilizing PSDK link control, eliminating the need for an additional remote control link.

Category

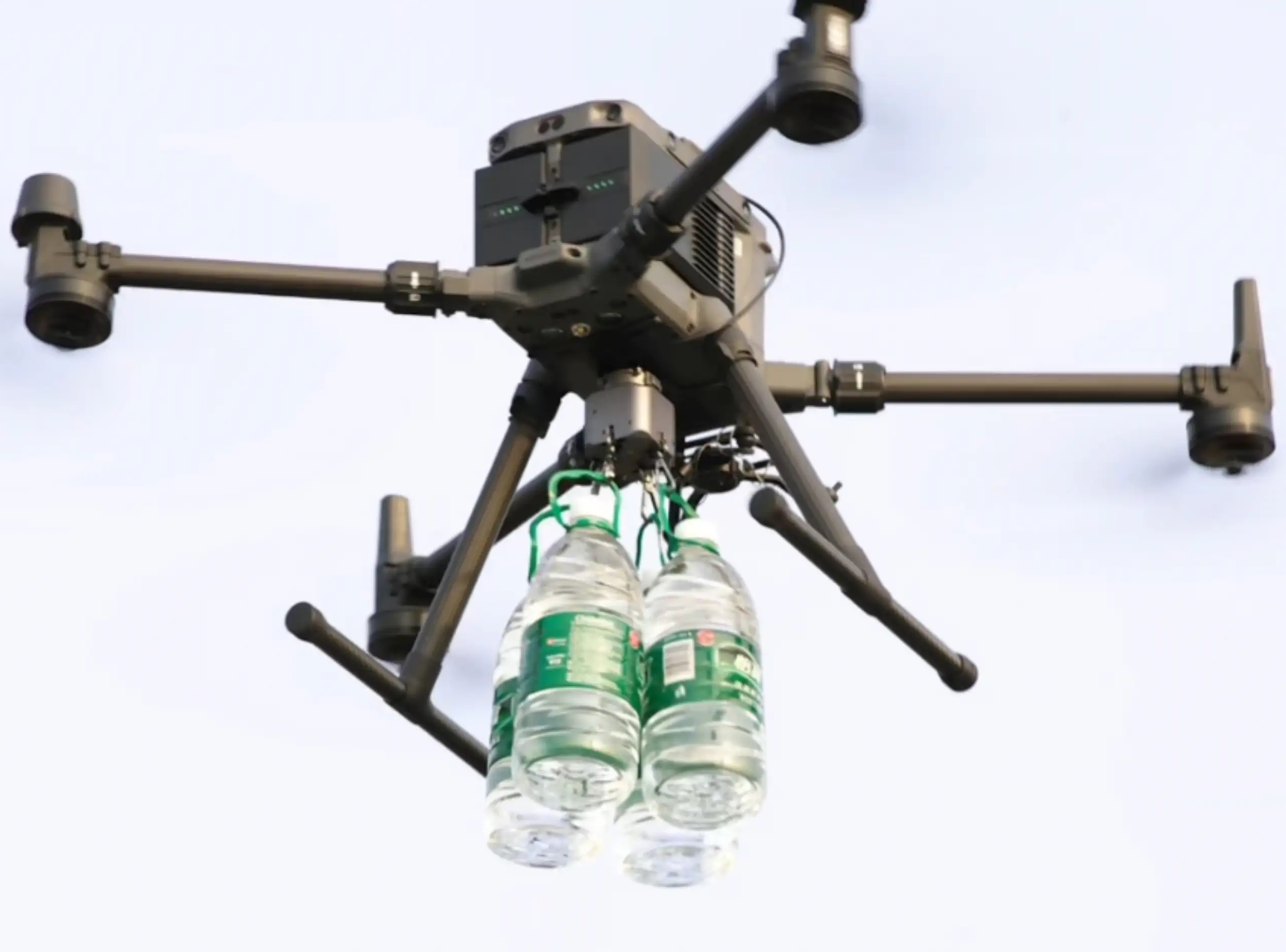

The JZ ET4 FOUR DROP KIT is specifically developed for the DJI FlyCart 30 carrier aircraft. It is compatible with both the DJI Matrice 350 RTK and DJI Matrice 300 RTK models, connecting directly through the E-Port interface and utilizing PSDK link control, eliminating the need for an additional remote control link. The remote control distance of the ET4 is consistent with the aircraft’s video transmission range.The ET4 has a maximum payload capacity of 10kg on a single hook (actual payload depends on the aircraft’s load capacity). It is compatible with the DJI Pilot 2 and supports mounting position detection, allowing for easy attachment and fast deployment. Control can be achieved through both the touchscreen controls and physical buttons, enabling one-touch operation for seamless airdrop.Additionally, the ET4 is equipped with laser-assisted targeting for enhanced precision during airdrops. These features make the ET4 a reliable and efficient airdrop system for various applications.

Mount Detection

Four mounting positions, no order, automatic identification of mounting positions, DJI Pilot 2 real-time display of each position mounting status.

Drop at Will

Control independent delivery with DJI Pilot 2, unlimited sequence, i.e. point-to-point delivery. It can also be used with one click, efficient and fast.

Belly Mount

With the M300 series midrange single load component (SDK PAYLOAD BRACKET), the mounting center of gravity is placed in the belly for more stable mounting.

Laser Assisted Aiming

Built-in auxiliary laser to help determine the drop zone. More accurate delivery.

  • Mount Quantity – 4 Paragraphs
  • Hanging Weight – 10kg
  • SDK Interface – E-Port
  • Control Mode – DJI Pilot 2
Category:
  • electrical interface
  • JZ T-Port
  • size
  • 58 x 58 x 58 mm
  • weight
  • 200g
  • Protection level
  • IP4X
  • Installation
  • JZ Load Port Quick Release
  • Number of mounts
  • 4 paragraphs
  • Individual mounting weight
  • Maximum 10kg, the actual aircraft load shall prevail
  • gross vehicle weight
  • Maximum 40kg, actual weight is subject to aircraft load
  • delivery sequence
  • not limited to
  • Compatible Models
  • DJI FlyCart 30
    M350 RTK
    M300 RTK
  • drop-in function
  • Single-point drop, one-key full drop
  • Maximum power consumption
  • <=10W
  • operational control
  • DJI Pilot 2
  • product features
  • Arbitrary drop
    Mount position detection
    Powerless mounting
    One-touch full drop
    Laser-assisted aiming
  • operating temperature
  • -10 °C to 50 °C
  • Storage temperature
  • -20 ℃ to 60 ℃
