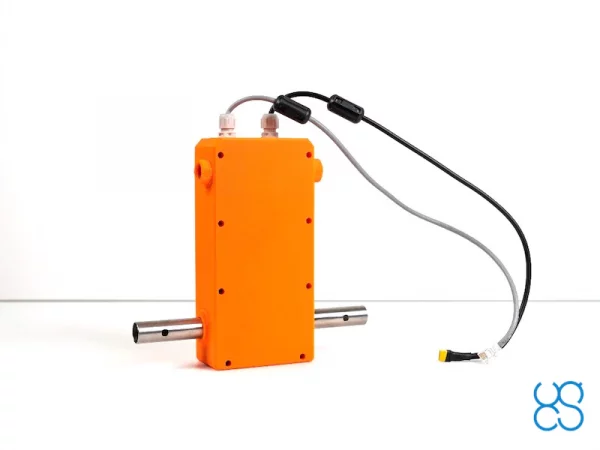

GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument)

Please note that additional components and software must be ordered to use this GPR with drones. It is recommended to order a complete set.

WHAT’S IN THE KIT

  • Zond Aero LF GPR system with 75, 150, 300 MHz center frequency antennas
  • Prism 2 Data Acquisition/Processing software
  • NANUK transport case for GPR controller

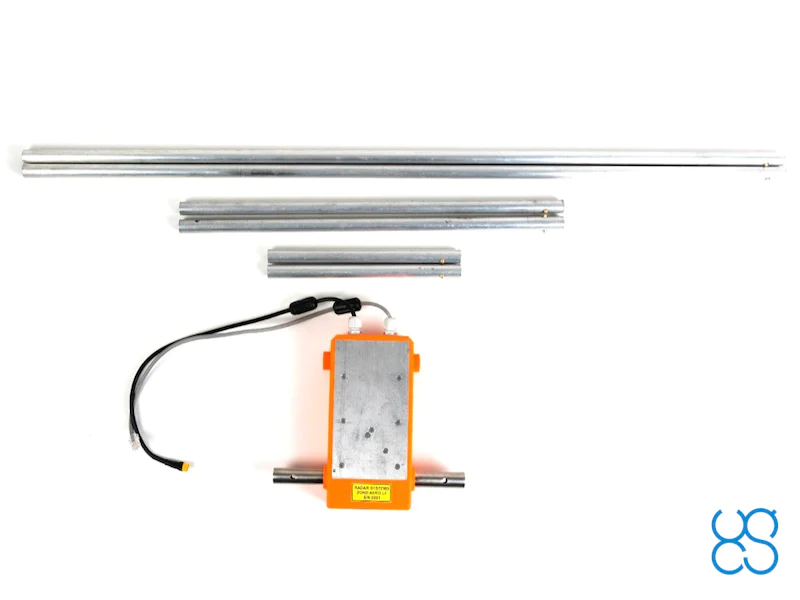

  • Tube for antennas

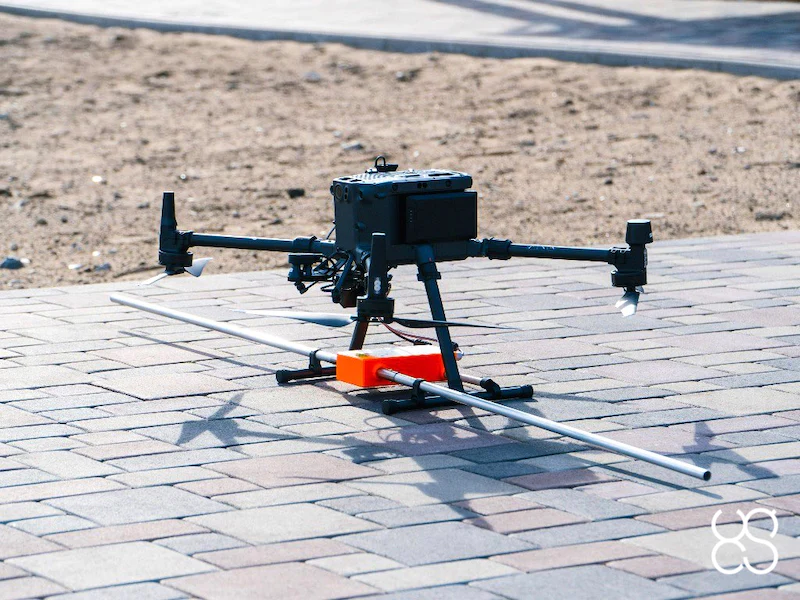

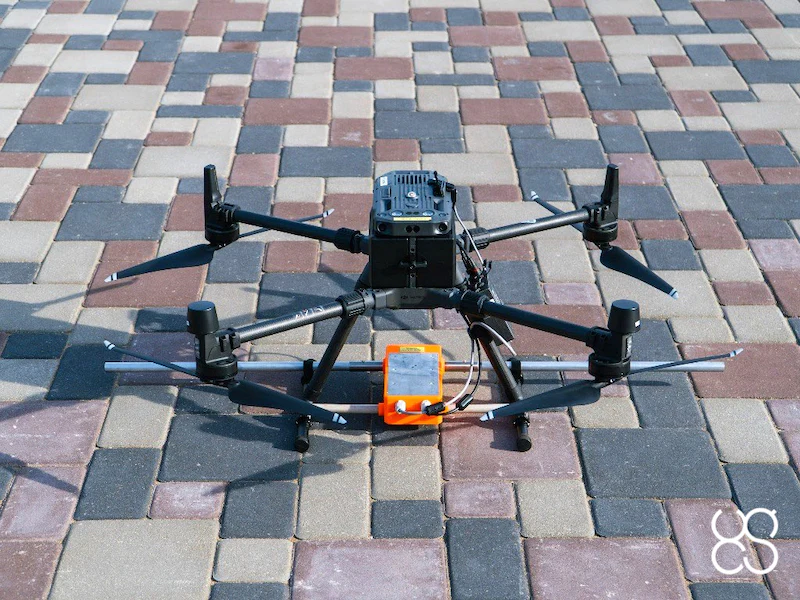

  • Mounting kit to fix GPR system on the DJI M300 RTK or M600/M600 Pro drone
Type Single channel Ground Penetrating Radar system with unshielded dipole antenna
Center frequency 100, 150, 300 MHz depending on used antenna
Operating bandwidth 38 – 150, 75 – 300, 150 – 600  MHz (-12 dB)
Samples 256 / 512 / 1024 / 2048 / 4096 / 8192
Sample rate up to 1,280,000 samples/second (depends on hardware stacking)
Scan rate up to 2,500 scans/s (depends on hardware stacking)
Sample output 32 bit digital raw data
Time range per sample 18 ps / 36 ps / 71 ps / 89 ps / 125 ps / 143 ps / 179 ps / 250 ps / 357 ps / 500 ps / 625 ps / 714 ps / 1 ns / 1.25 ns / 2.5 ns
Depth up to 12 meters in soil with relative dielectric permittivity equal to 5 and specific attenuation up to 5 dB/m.
Data format Standard Geophysical SEGY Data Format (.sgy) with traces geotagging
ENVIRONMENTAL
Temperature -20°C to 60°C internal temperature
Humidity 96% non-condensing
Ingress protection IP68 in a protective box (used for transportation and for ground surveys) IP52 in airborne variant
MECHANICAL
Weight
  • 0.8 kg – GPR controller with mountings for the drone
  • 0.1 kg – 300MHz antenna
  • 0.2 kg – 150MHz antenna
  • 0.4 kg – 100MHz antenna
BATTERY
Airborne variant Drone main battery is used to provide power to the GPR
