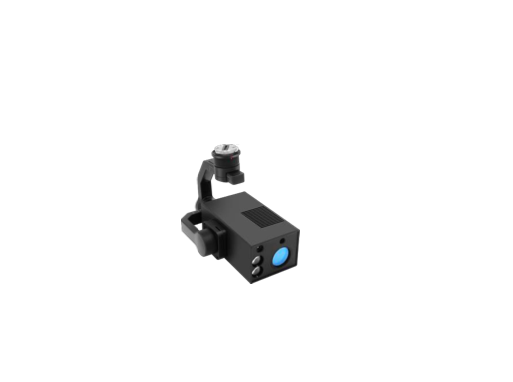

Four In One Corona Camera


It is a combination of UV, infrared, visible light, and laser range finder. It works on DJI enterprise platforms to help discover the potential safety hazards of insulator in time. With the 1: 1 UV and IR synchronous display, the detection of corona and heating can be done simultaneously. Defect identification function can be developed on the powerful built-in processor.

It is a combination of UV, infrared, visible light, and laser range finder. It works on DJI enterprise platforms to help discover the potential safety hazards of insulator in time. With the 1: 1 UV and IR synchronous display, the detection of corona and heating can be done simultaneously. Defect identification function can be developed on the powerful built-in processor.

Specs

Ultraviolet resolution: 720×576 Infrared resolution: 256×192 Visible light resolution: 1080P
UV sensitivity: 3×10-18W/cm2 Ultraviolet viewing angle: 9.6°x7.2° Processor: Hisilicon 3559C

Laser ranging range: 40 meters PTZ: Three-axis FOC
Weight: 800 grams

APPLICATIONS

  • Ultraviolet fine power inspection in the 240-280nm band (main)
  • Inspection of high-voltage insulation components and equipment in other industries
