FLIR Muvetm C360 Chemical Hazards Detect

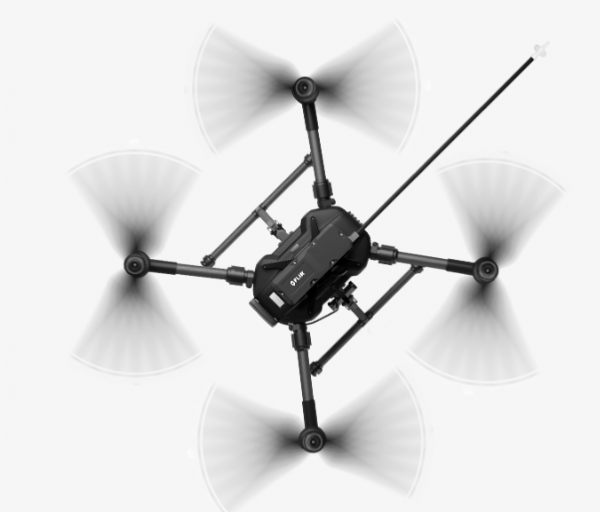

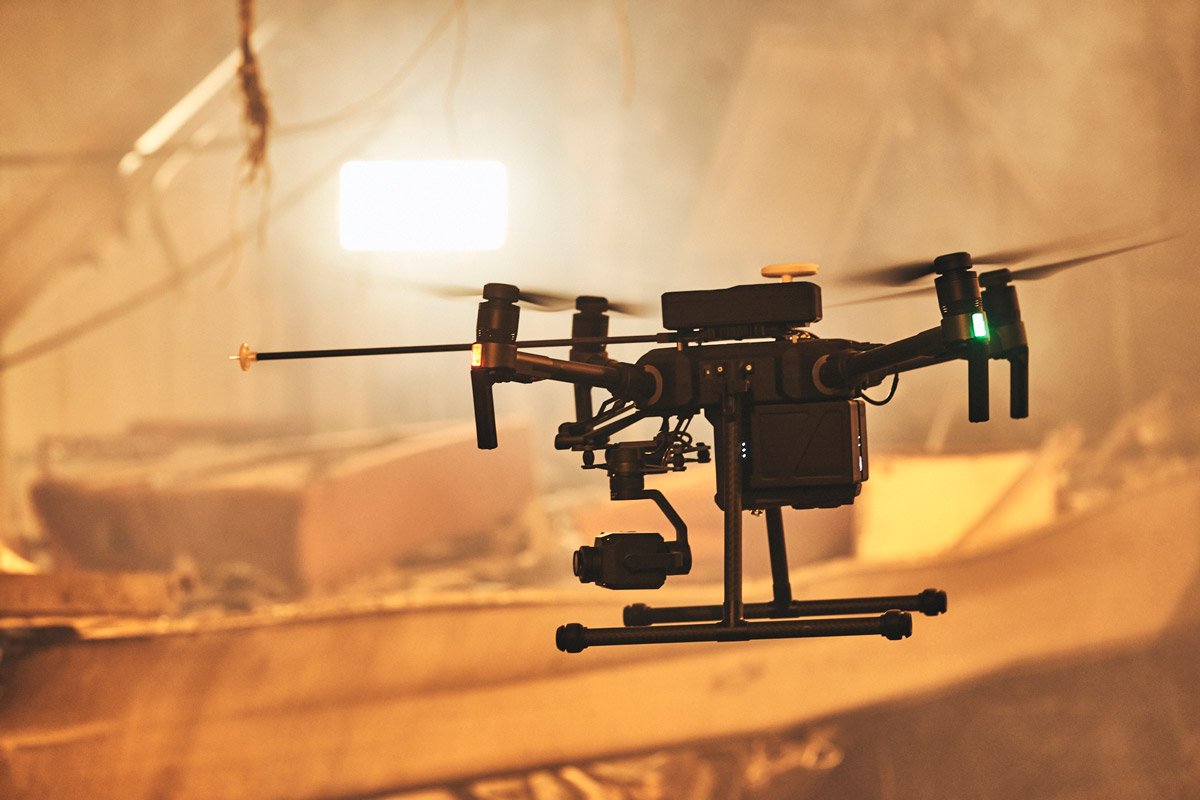

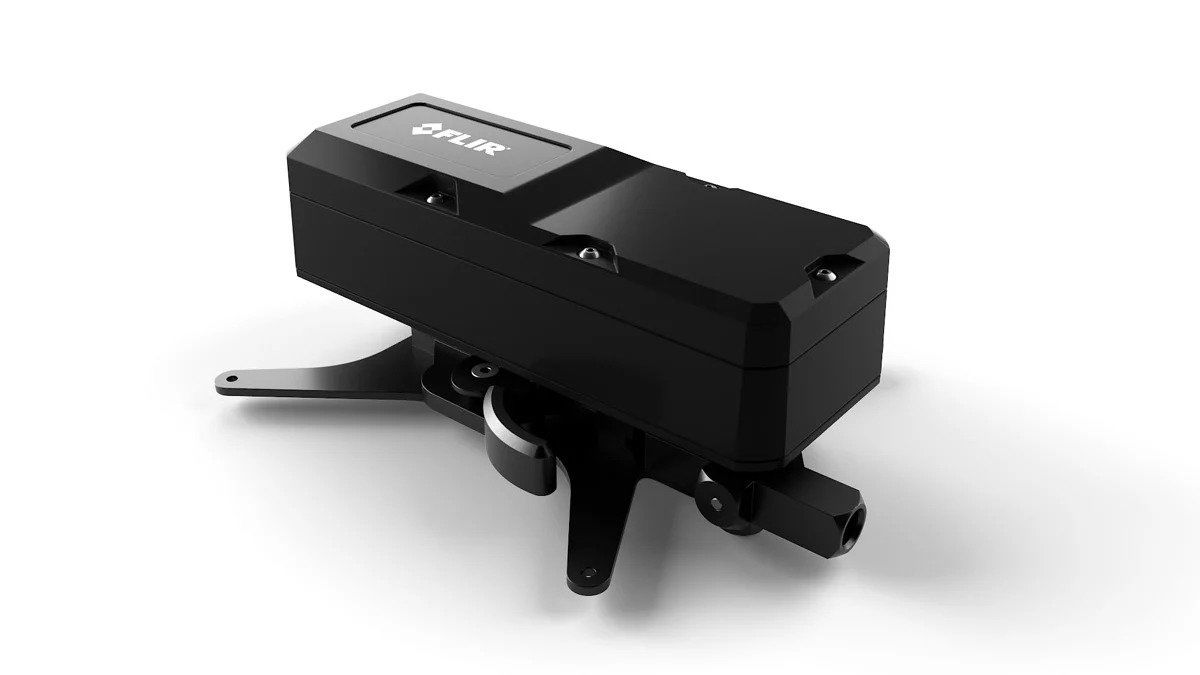

The FLIR MUVETMC360 is a multi-gas detector completely integrated with an unmanned aerial system (UAS) to provide real-time continuous monitoring of chemical hazards while on the move.

The FLIR MUVETMC360 is a multi-gas detector completely integrated with an unmanned aerial system (UAS) to provide real-time continuous monitoring of chemical hazards while on the move.

ASSESS THE SCENE FROM A SAFE DISTANCE
Before putting the health and safety of your team at risk, fly the C360 into the scene to gather initial assessment of hazards.

SIGNIFICANTLY REDUCE THE TIME TO ACTION
Locate and identify chemical hazards before you go in. Access hard to reach locations. Define a safety perimeter.

FULLY INTEGRATED SITUATIONAL AWARENESS
Get a comprehensive overview of an active scene including visuals and chemical identification.

Sensors:   CO, Cl₂, O₂, NO₂, H₂S, SO₂, LEL
PID:   VOC 10.6 eV (ppm)
Total Weight Payloa:   1.5 lb (680.39 g) – C360 with dock and snorkel

DEPLOYMENT OPTIONS
Sensor Block Technology
Proprietary automatic calibration design, includes tubing and power adaptor

ENVIRONMENTAL
Operating Temp & Humidity
-4 to 122 °F (-20 to 50 °C) 10 to 93%, non-condensing

Storage Temperature
-22 to 158 °F (-30 to 70 °C)
Environmental Protection
IP43-rated

PHYSICAL FEATURES
Dimensions (L x W x H)
6.5 x 2.3 x 2.0″ (16.51 x 5.84 x 5.08 cm) – C360 only

Integration Dock
Proprietary quick-connect mount for UAS and FLIR Calibration Station

POWER
Cold Start Time
90 seconds from cold start

Input Voltage
24V DJI Matrice 210; 12V FLIR Calibration Station

SAMPLING & ANALYSIS

Sample Introduction
Actively pumped via integrated snorkel
Sampling & Analysis
Real-time detection
Sampling Rate
300 ml/min minimum
SYSTEM INTERFACE
Communication
Remote controller via USB-A accessory (tablet); UAS power port and serial (C360)
Data Storage
Sensor data and flight information logged on tablet
Training Requirements
<30 mins for operator; 4 hours for advanced user
Wireless Range
Determined by the UAS range
Display & Alerts
FLIR VueLink™ application integrated via tablet connected to the UAS remote controller

Сompatible with DJI Matrice 210, V1 and V2, M300RTK M200 series

Real-time detection
<30 mins for operator; 4 hours for advanced user
CO, Cl2, O2, NO2, H2S, SO2, LEL
VOC 10.6 eV (ppm)
1.5 lb (680.39 g) – C360 with dock and snorkel
