A safe, efficient, and accurate way to obtain 3D nuclear radiation dose rate distribution. Assess the scene from a safer distance.

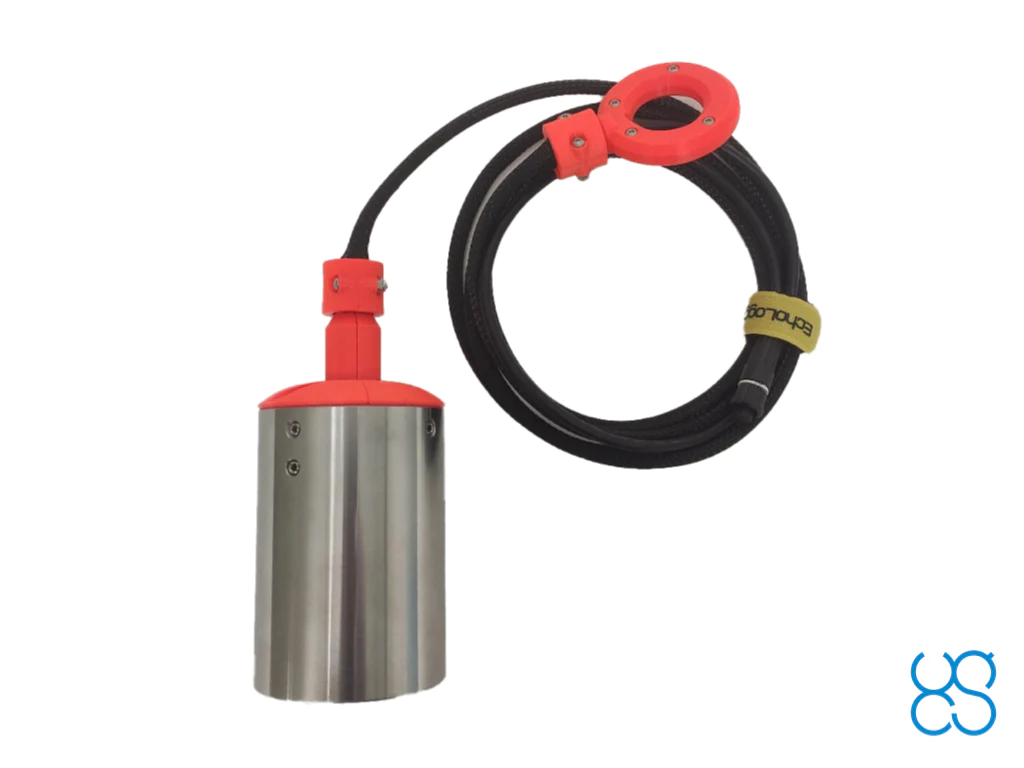

EchoLogger ECT D052S echo sounder
EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
| Sensor | ECT D052S |
| Type | Dual-frequency |
| Acoustic frequency, kHz | 50/200 |
| Measurement range | 1.0 … 200m (50 kHz)0.5 … 200m (200 kHz) |
| Beam widthConical (-3dB) | 27° / 7° (50 kHz/200 kHz) |
| Weight of the echo sounder(in the air), g | 460 |
| Weight of all components in the air
(echo sounder, SkyHub, altimeter, housing, cables, mountings). kg |
2.7 |
| Suitable DJI drones(or Pixhawk drones of comparable size) | M300 RTKM600 Pro |
Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.
Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.
Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.
Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.
The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.

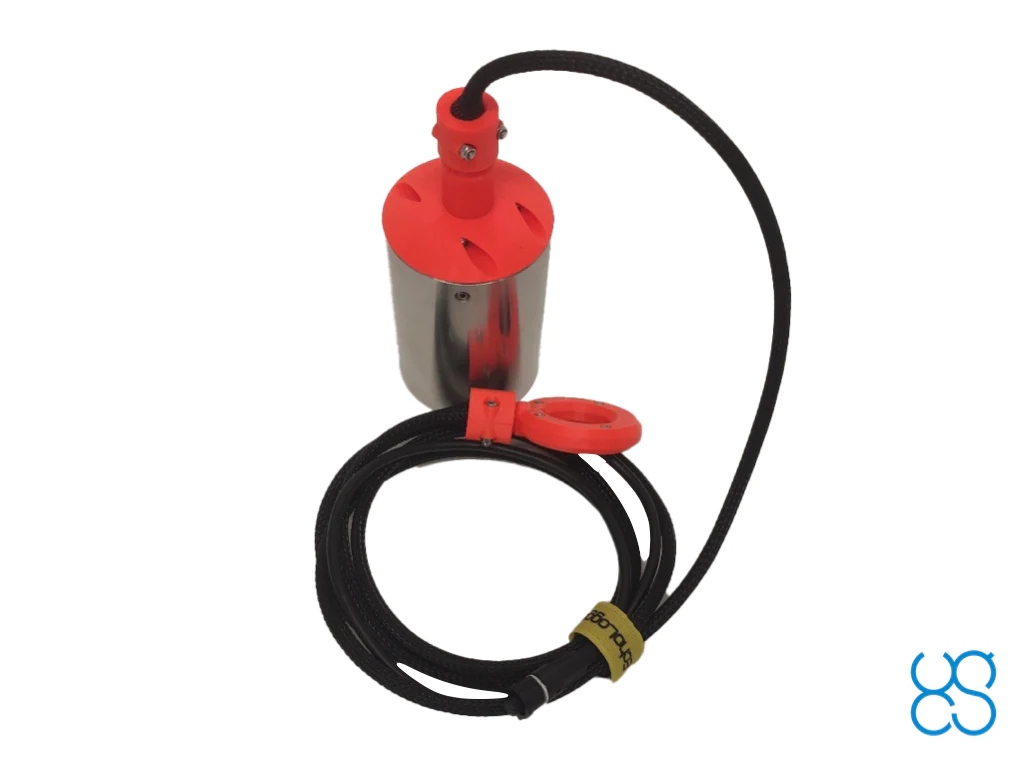

EchoLogger ECT 400S echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
