- High Precision
- Exceptional Efficiency
- Superior Penetration
- 250m/450m Detection Range
- 5 Returns
- Turnkey Solution
- Point Cloud LiveView
- One-Click Processing on DJI Terra

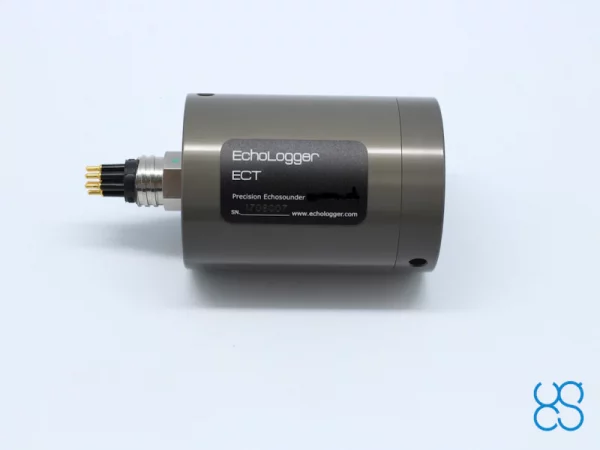

EchoLogger ECT 400S echo sounder

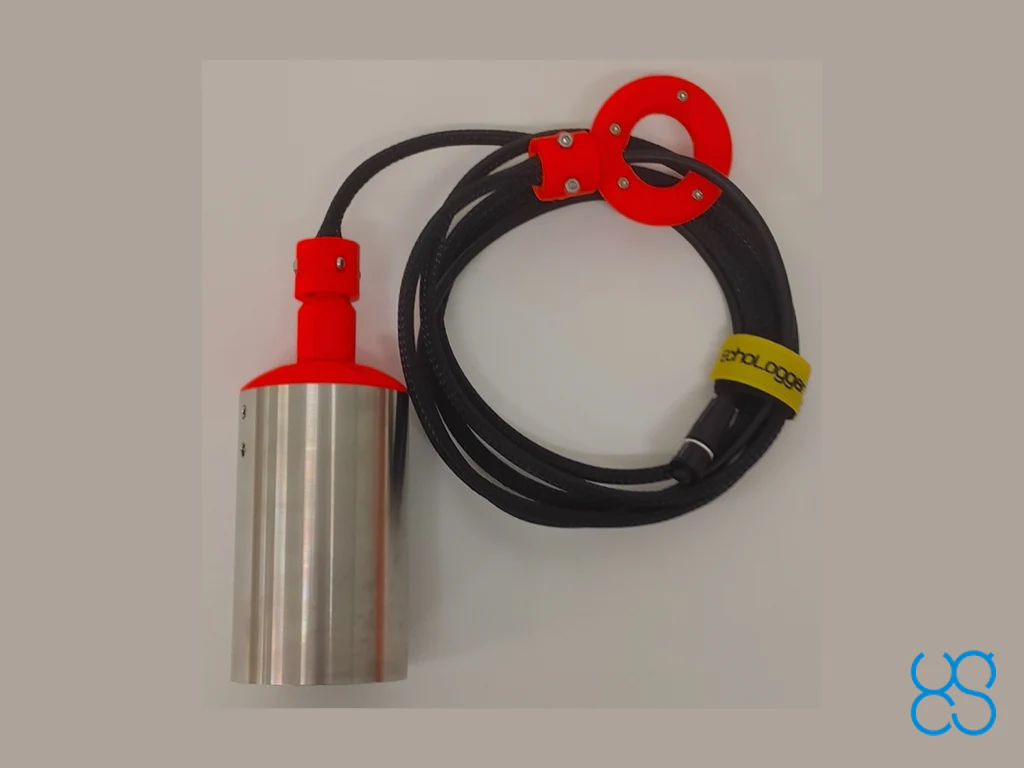

EchoLogger ECT 400S echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.
HS Code: 90158040 (hydrographic instruments)
| Sensor | ECT 400S |
| Type | Single-frequency |
| Acoustic frequency, kHz | 450 |
| Measurement range, m | 0.15 … 100 |
| Beam width Conical (-3dB) | 5° |
| Weight of the echo sounder(in the air), g | 275 |
| Weight of all components in the air(echo sounder, SkyHub, altimeter, housing, cables, mountings) | 1.6 kg (standard housing)2.6 kg (heavy housing) |
| Suitable DJI drones(or Pixhawk drones of comparable size) | M210 (light housing)
M300 RTK M600 Pro |
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.
The PSDK load can be fixed to the warp and weft M350 RTK flight platform, and different types of PSDK loads can be quickly removed and replaced.
The FC30 EQUIPPED WITH A THREE-LOAD SUPPORT is designed for the DJI FlyCart 30 carrier and can support up to three ET4 FOUR DROP KIT at the same time, achieving 12-stage drops with a maximum payload of 120kg.
