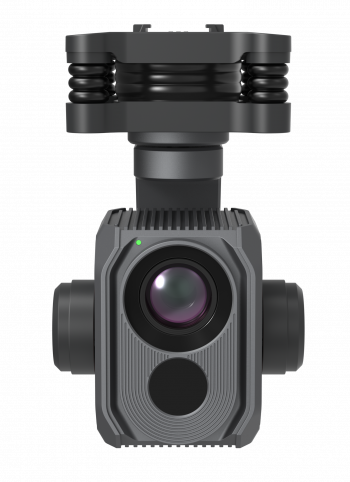

Yuneec E10T FLIR® Thermal Imaging Camera For H520 Hexacopter 320 x 256 Thermal Resolution

320 x 256 Thermal Resolution
Thermal imaging and low-light camera. High-resolution dual camera
The E10T with FLIR® thermal sensor for the H520 Hexacopter is a stabilised 3-axis gimbal, thermal imaging and residual light camera all-in-one. The E10T is available with a 320*256-pixel or as E10Tv with a 640*512 thermal imaging resolution. The E10T takes high-quality pictures and detects more details in the dark than the naked eye with the help of its large RGB sensor. Thanks to its dual video stream, you can stream the thermal and residual light image simultaneously to the remote control and then look at the image as an overlay or picture-in-picture. Furthermore, the E10T supports commercial applications such as mission planning.

Clear

E10T FLIR® with H520 Hexacopter
The H520 Hexacopter was specially developed for inspection, safety, and search & rescue applications. With its multi-sensor compatibility, the H520 Hexacopter offers emergency services, firefighters, police and inspectors reliable and efficient air support in combination with the E10T thermal imaging and residual light camera.

Thermal imaging applications

When searching for people, the drone enables you to look for people very quickly from the air with the E10T thermal imaging camera. In case of fires, fire hot spots can be detected and allows fast and efficient countermeasure against the fire, which can save lives.

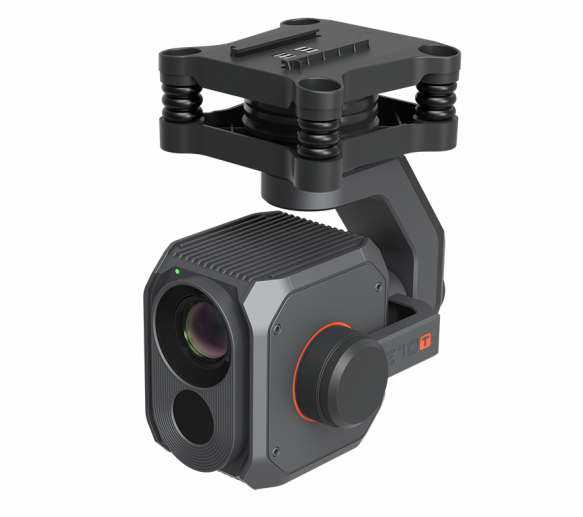

3-Axis gimbal with 360° rotation

The E10T FLIR® camera/gimbal combination is stabilised via 3 axes and thereby provides a still image for inspection and stable pictures. Furthermore, the gimbal can be rotated 360° and provides a full panoramic view with the retractable landing skid.

Interchangeable camera systems

The E10T can be ‘hot-swapped’ and can be exchanged with any other camera/gimbal combination compatible with the H520 such as the E90 1” sensor camera or the E50 inspection camera. The copter does not have to be restarted when changing the camera systems and prevents any forced breaks, which means that you can always work productively and effectively.

Everything at a glance

  • E10T FLIR® thermal imaging and residual light camera
  • 320×256 (E10T) or 640×512 (E10Tv) thermal resolution
  • Dual video stream
  • Compatible with the H520 Hexacopter
  • Up to 28 minutes flight time with the H520
  • Hot-swap gimbal
  • Continuous 360° gimbal rotation
  • Full camera control via the ST16S
  • Supports DataPilot and mission planning

E10T FLIR® Thermal Imaging And Low-Light Camera for H520,
320 x 256 Thermal Resolution
YUNE10TEU – 50° FOV, 4,3 mm
YUNE10T34EU – 34° FOV, 6,3 mm
YUNE10T24EU – 24° FOV, 9,1 mm (Preorder only)
YUNE10T16EU – 16° FOV, 13,8 mm (Preorder only)
E10T FLIR® Thermal Imaging And Low-Light Camera for H520,
640 x 512 Thermal Resolution
YUNE10Tv50EU – 50° FOV, 8,7 mm (expected in May 2019)
YUNE10Tv34EU – 34° FOV, 14 mm (expected in May 2019)
YUNE10Tv24EU – 24° FOV, 18 mm (Preorder only)
YUNE10Tv16EU – 18° FOV, 24 mm (Preorder only)

Camera
WEIGHT 350 g
DIMENSIONS 115 x 80 x 130 mm
SENSOR CMOS 1/2,8″ 2MP 23mm F2,8
COMPATIBLE COPTER H520
FLIGHT TIME ca. 28 min (with H520)
CONTROL RANGE Tilt:+15° to -90°; Pan:360° Limitless
ANGULAR VIBRATION RANGE ±0.03°
MAXIMUM CONTROL SPEED PITCH & ROLL: 30°/s // YAW: 120°/s
ISO RANGE 100 – 12800
SHUTTER SPEED 1/30 – 1/8000 s
THERMAL RESOLUTION 320 x 256 or 640 x 512
VIDEO RESOLUTION FHD (1920×1080) / H264 (NTSC) 24/25/30/48/60
PHOTO RESOLUTION 16:9, 1920 x 1080
PIXEL SIZE 12 μm
PHOTO FORMAT JPG, TIFF
VIDEO FORMAT MP4
VIEW FIELD 89,6°
THERMAL IMAGING CAMERA uncooled VOx microbolometer
LWIR WAVE LENGTH 8 – 14 μm
OPERATING TEMPERATURE -10° – 40°C
TRANSFER BELT 5,8 GHz, 2 km range
IMAGE RATE <9Hz
SENSITIVITY < 50 mK, @f/1.0
TF SUPPORT FAT32 (≤ 32 GB) / exFAT (>32 GB)
IMAGE OPTIMIZATION Yes
DIGITAL DETAIL ENHANCEMENT Yes
POLARITY CONTROL (BLACK HOT/WHITE HOT) Yes
COLOR & MONOCHROME PALETTES (LUTS) Yes
SPOT METER >98.5%, no clusters > 3×3
