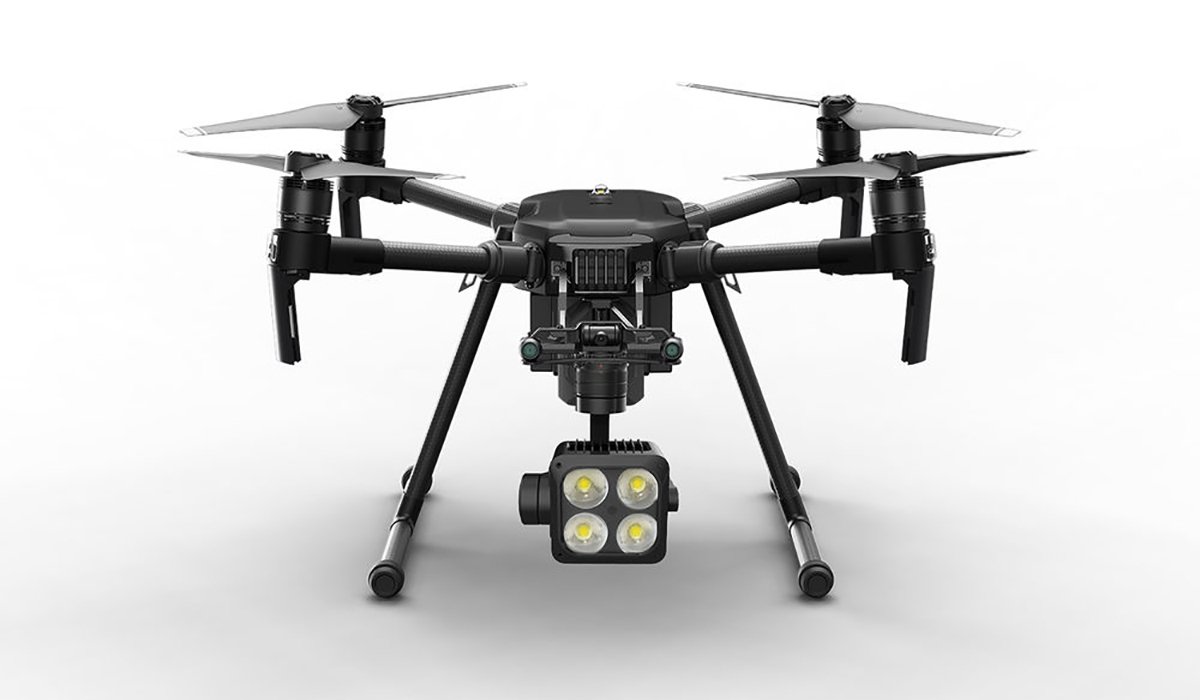

DJI Wingsland Z15 Gimbal Spotlight for Matrice 200 and 200 v2 Series

The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement and beyond.

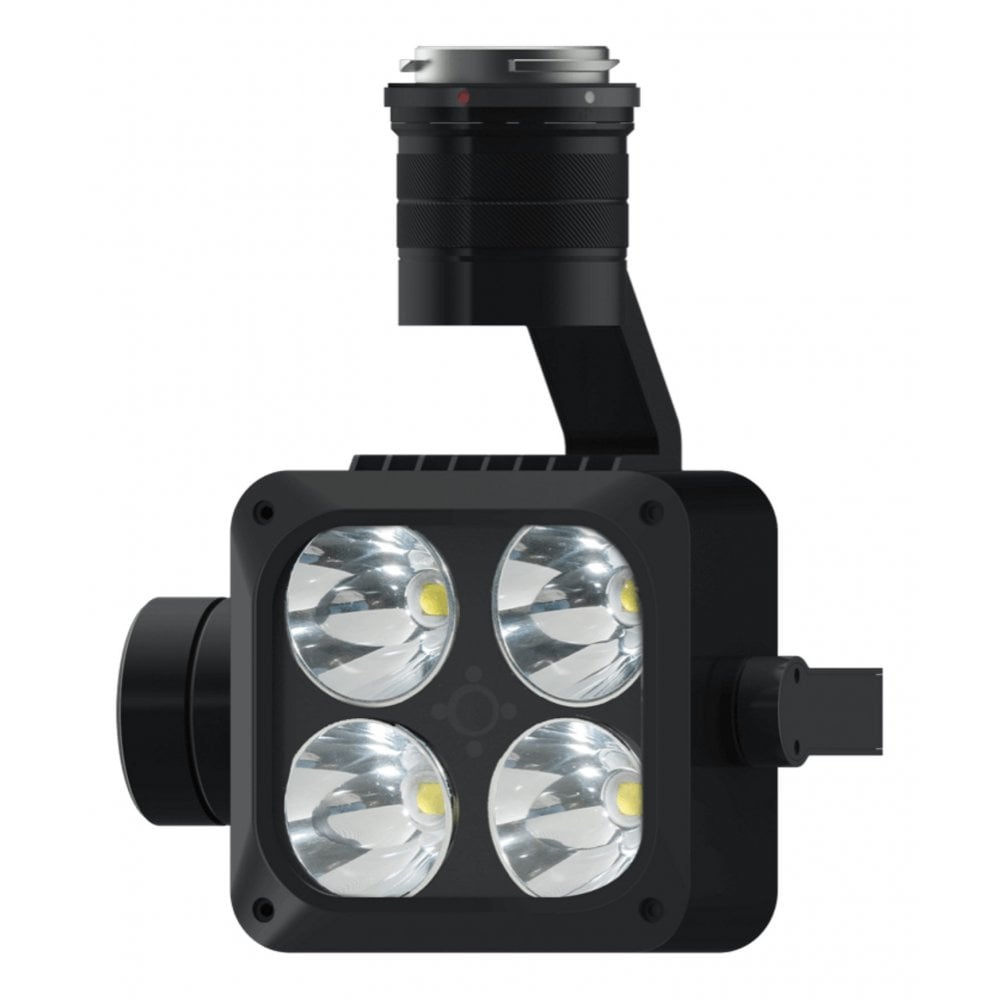

WINGSLAND Z15 GIMBAL SPOTLIGHT

The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads. Powered by DJI SkyPort, it has an operating range of up to 150 m and can be easily integrated onto DJI Matrice 200 Series V1 and V2 drones, lighting the space at night or in lowlight conditions for users in firefighting, emergency response, law enforcement and beyond.

Key Features
  • Aerial LED Spotlight with 3-Axis Gimbal
  • For M200 and M200 v2 Series Drones
  • 6112′ Illumination Area at 394′ Altitude
  • 4 x LEDs Produce 10,200 Lumens
  • 150 m Max Range
  • 48W power
  • 15° field of view
  • Dual downward gimbal support alongside Zenmuse payloads
  • Air-cooling system with intelligent temperature protection over 194°F
  • 48V maximum power
  • 6112′ maximum illumination area at 394′ altitude
  • 492′ maximum range
  • Multiple modes: Always On, Flashing, SOS

Modes

Switch between Always on, Flashing, and SOS modes for different environments and applications.

Air Cooling System

The built-in air-cooling system prevents the spotlight from overheating by constantly dissipating heat.

Intelligent Protection

The Wingsland Z15 is protected against overheating. The system will automatically adjust when the internal temperature exceeds 90°C.

Supports Dual Downward Gimbals

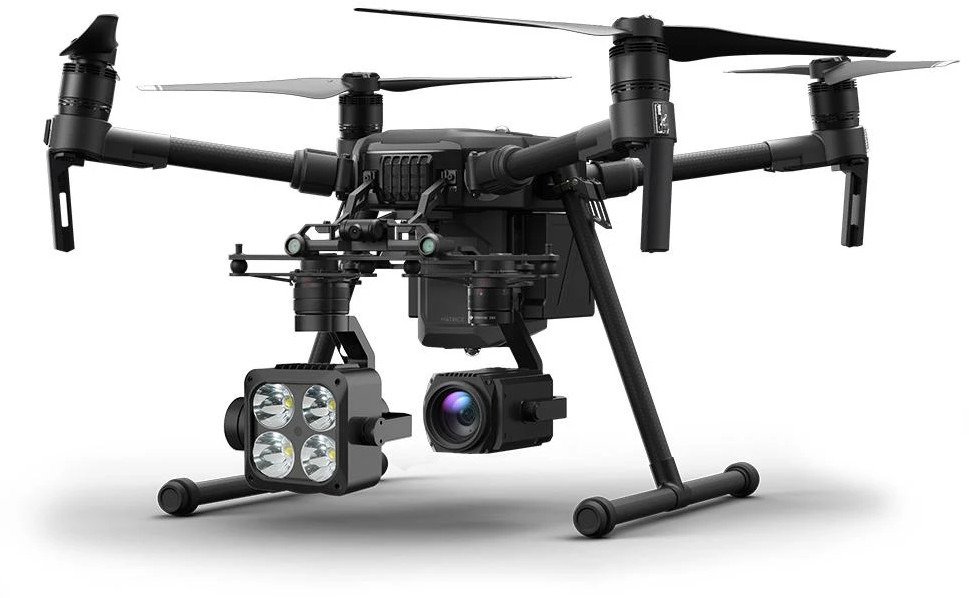

The Wingsland Z15 can be used with DJI Zenmuse payloads on DJI aircraft that include a dual-downward gimbal, helping to illuminate operations.

APPLICATIONS

Public Safety

Thanks to its high luminance and long operating range, the Wingsland Z15 provides public safety officials crucial visibility in lowlight conditions across many different types of missions, helping teams gain an aerial overview over a large area.
Some applications include:

Firefighting:

light up a path to guide the public to a safe place after a fire or a natural disaster.
Emergency Response/Search and Rescue: locate missing persons in hard-to-reach areas when visibility is low.

Law Enforcement:

act as a flexible light source for crowd management, forensic investigations, or routine patrols.

Infrastructure/Facility Repair and Maintenance

When power suddenly cuts off or when structures collapse at night, the Wingsland Z15 can be used to light up a large area from the air so that emergency repairs can beconducted in an efficient, timely manner. This will help keep both the public and the personnel safe as well as save costs.

SPECIFICATIONS

General Specifications
Product Name WINGSLAND Z15 Gimbal Spotlight
Port Type DJI SkyPort
Dimensions 100 x 110 x 150 mm
Weight 500 g
Rated Power 48 W
LED Light Beads
Voltage 6 V
Power 40 W
Luminous Flux 10200 lm
FOV 15°
Operating Range 150 m
Area Coverage 1863 m² @ 120 m;
323 m² @ 50 m
4 lux @120m;
Illuminance 11 lux @ 60 m;
47 lux@30 m
Gimbal
Angular Vibration Range ±0.02°
Mount Detachable
Controllable Range Pitch: -90° to +90°, Yaw: ±170°
Max Control Speed Pitch: 60°/s, Yaw: 60°/s
Temperature Parameters
Operating Temperature -10 to 50
Storage Temperature -20 to 60

COMPATIBLE PRODUCTS

DJI Matrice 200 Series, Matrice 200 Series V2

DJI PILOT

The Wingsland Z15 can be controlled using the DJI PILOT app. It supports the use of both Wingsland and DJI Zenmuse payloads on the models that include a dual-downward gimbal, including the M210, M210 V2, M210 RTK, and M210 RTK V2.
