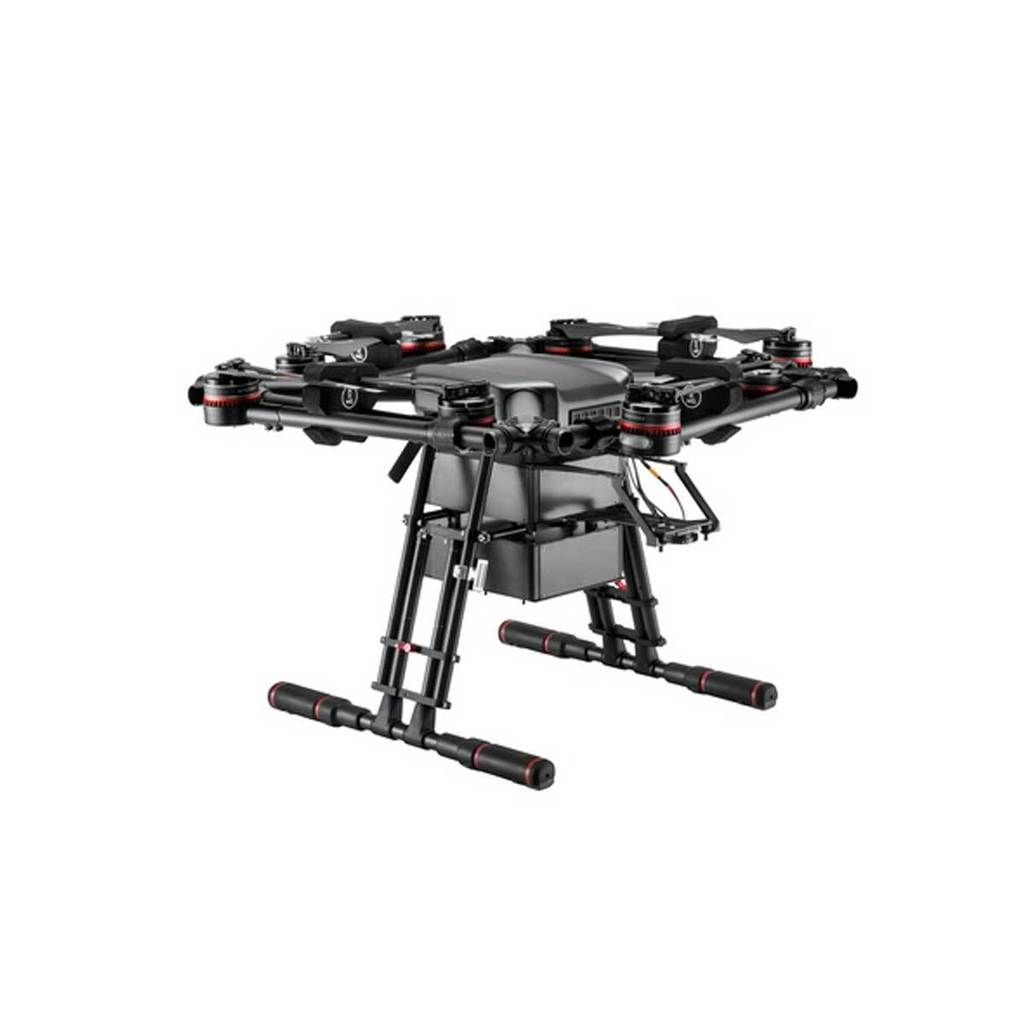

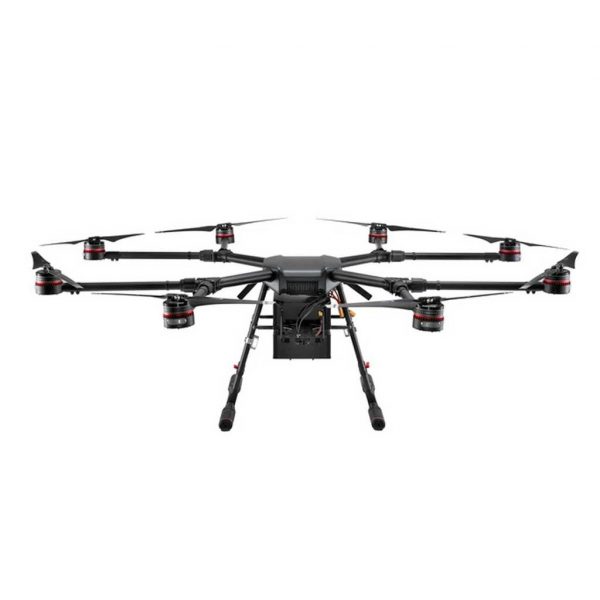

DJI WIND 8 Industrial Octocopter

  • Water and Dust Proof,Operational in All Weather Condition
  • Redundant IMU+GPS+Power
  • Convenient Folding Design
  • Eligible for Various Professional Expansion Module
  • Fully Support SDK Development and Customization

Categories ,

Leveraging cutting edge technologies, it features both aesthetics and practial functions. It is compatible with a variety of industrial equipment, expanding the industrial applications of drones.

Flexible and professional expansion platform
The fast release expansion platform allows you to build your own flight platform. By assembling the camera, sensors, computer unit, communication device and other equipment you can easily complete any complicated task.

Worry-Free Integration
Industrial drones easily remind us of heavy equipment, tedious installation and maintenance with a complex configuration. Now, the DJI Wind 8 resolves these issues and makes it possible to start the operation within seconds.

Versatility
DJI have designed the Wind 8 to be a versatile unit suitable for a range of industrial applications. Similar to the MG-1S, it features an onboard and mobile SDK, enabling custom payload integrations. Extendable landing gear allows even the largest payloads to be attached to the underside of the unit without interference with the ground.

The DJI Wind 8 is currently compatible with the following cameras:
  • Zenmuse X3
  • Zenmuse Z3
  • Zenmuse XT
  • Zenmuse X5
  • Zenmuse X5R
  • Zenmuse Z30

Key Features
• Water and dust resistance
• 10KG Payload
• Foldable arms, extension tripod, easy to carry
• SDK development and customization
• Meet the needs of supply delivery and stringing

Diagonal Distance: 1520mm

Weight: 8.5kg (with no battery)

Max Takeoff Weight: 26kg

Max Payload Weight: 10kg (with 2 DZ-22000mAh batteries)

Propulsion System: E2000 Customised Version

Structure: Foldable Arms

Hovering Time: 39 minutes (with 2 DZ-22000mAh batteries)

Hovering Accuracy Vertical: +0.5m, Horizontal: +1.5m

Max Angular Velocity: 150°/s

Max Pitch Angle: 25°

Max Ascent Speed: 5m/s

Max Descent Speed: 3m/s

Max Wind Resistance: 10m/s

Max Speed: 15m/s

Dimension of Drone (Folded): 780mm*780mm*482mm

Dimension of Drone (Unfolded): 1471mm*1471mm*482m



In the box

  • Wind 8 Platform
  • Dual Battery Slots
  • X3/XT/Z3/X5 Mount
  • Z30 Mount
  • Remote Controller
  • Accessory Kit
  • Case
  • 10kg Payload
