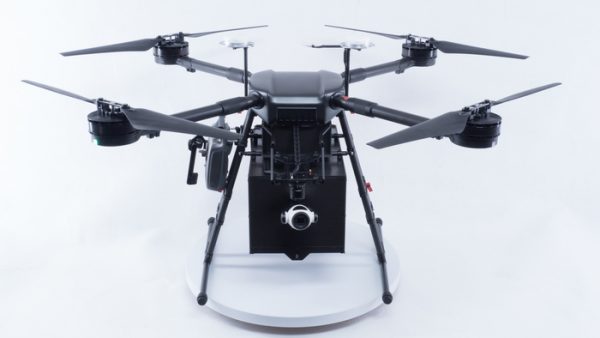

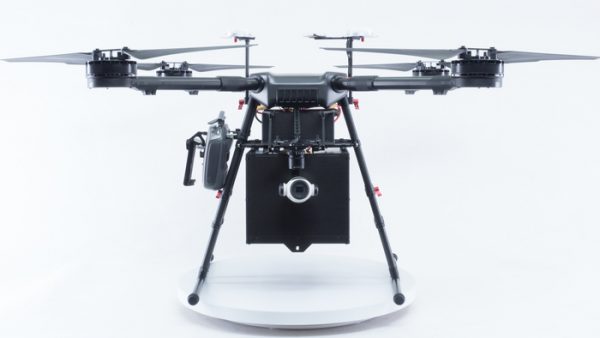

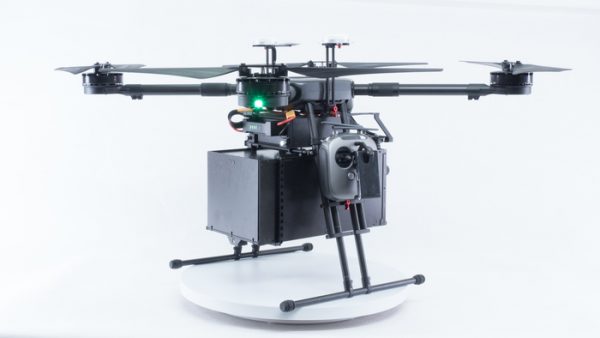

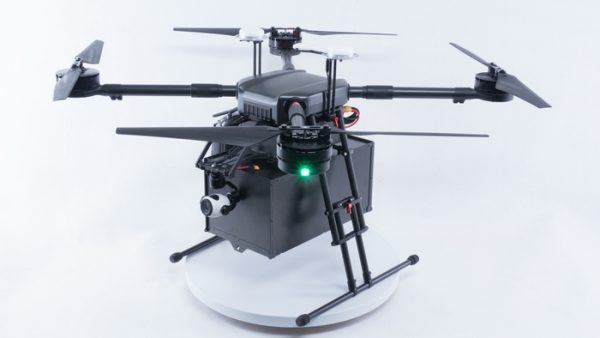

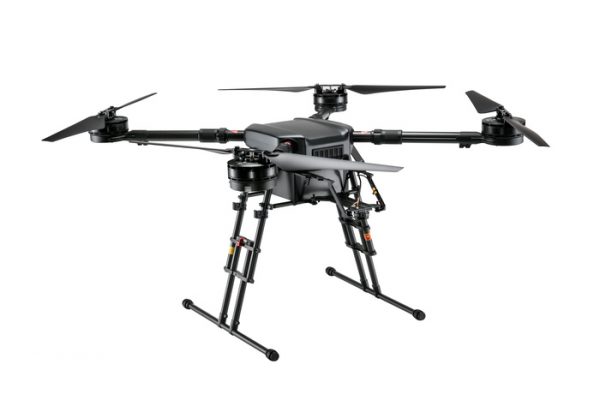

DJI WIND 4 Industrial Quadcopter

  • Water and dust resistance
  • 10KG Payload

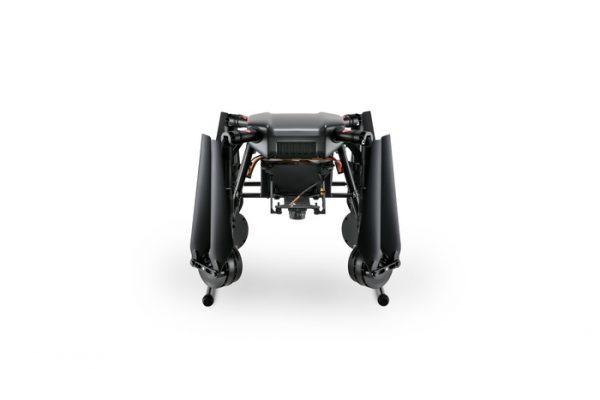

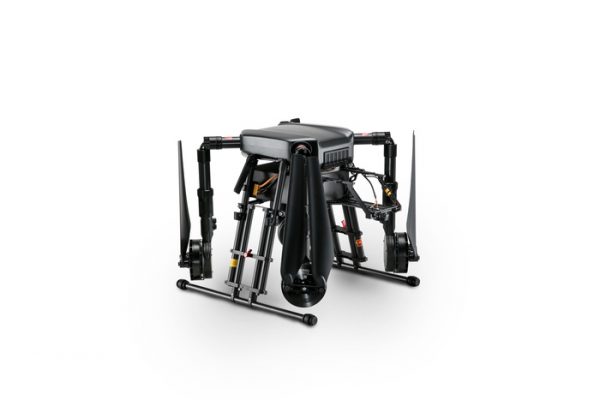

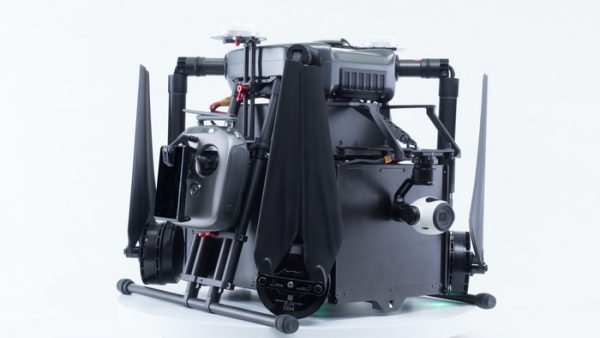

  • Foldable arms, extension tripod, easy to carry
  • SDK development and customization
  • Meet the needs of supply delivery and stringing

Categories ,

DJI Wind 4: Allows developers to customize them for complex tasks, such as those requiring unique sensor payloads or increased stability in challenging weather conditions. DJI Wind 4 can carry payloads up to nearly 30 pounds (10.0 kg) and is built on a rugged platform for superior control and redundancy.

Leveraging cutting edge technologies, it features both aesthetics and practial functions. It is compatible with a variety of industrial equipment, expanding the industrial applications of drones.

Flexible and professional expansion platform
The fast release expansion platform allows you to build your own flight platform. By assembling the camera, sensors, computer unit, communication device and other equipment you can easily complete any complicated task.

Worry-Free Integration
Industrial drones easily remind us of heavy equipment, tedious installation and maintenance with a complex configuration. Now, the DJI Wind 4 resolves these issues and makes it possible to start the operation within seconds.

Versatility
DJI have designed the Wind 4 to be a versatile unit suitable for a range of industrial applications. Similar to the M600, it features an onboard and mobile SDK, enabling custom payload integrations. Extendable landing gear allows even the largest payloads to be attached to the underside of the unit without interference with the ground.

Key Features
• Water and dust resistance
• 10KG Payload
• Foldable arms, extension tripod, easy to carry
• SDK development and customization
• Meet the needs of supply delivery and stringing

The DJI Wind 8 is currently compatible with the following cameras:
  • Zenmuse X3
  • Zenmuse Z3
  • Zenmuse XT
  • Zenmuse X5
  • Zenmuse X5R
  • Zenmuse Z30

Diagonal Wheelbase: 1060mm

Weight (with DZ-12000mAh battery): 11kg

Max Takeoff Weight: 21kg

Max Payload Weight: 10kg

Propulsion System: E5000

Fuselage Protection Level: IP56

Hovering Time: 35 mins (1 battery), 50 mins (2 batteries)

Hovering Time (7kg load): 17 mins (with 1 MG-12000 battery)

Hovering Time (10kg load): 11 mins (with 1 MG-12000 battery)

Hovering Accuracy Vertical: +0.5m, Horizontal: +1.5m

Max Angular Velocity: 150°/s

Max Pitch Angular: 25°

Max Ascent Speed: 5 m/s

Max Descent Speed: 3 m/s

Max Wind Resistance: 10 m/s

Max Speed: 18 m/s

Dimension of Drone (folded): 530mm*480mm*430mm

Dimension of Drone (unfolded): 860mm*860mm*525mm

Dimension of Suitcase: 610mm*584mm*432mm



In the box

  • Wind 4 Platform
  • X3/XT/Z3/X5 Mount
  • Remote Controller
  • Accessory Kit
  • Case
  • 10kg Payload
