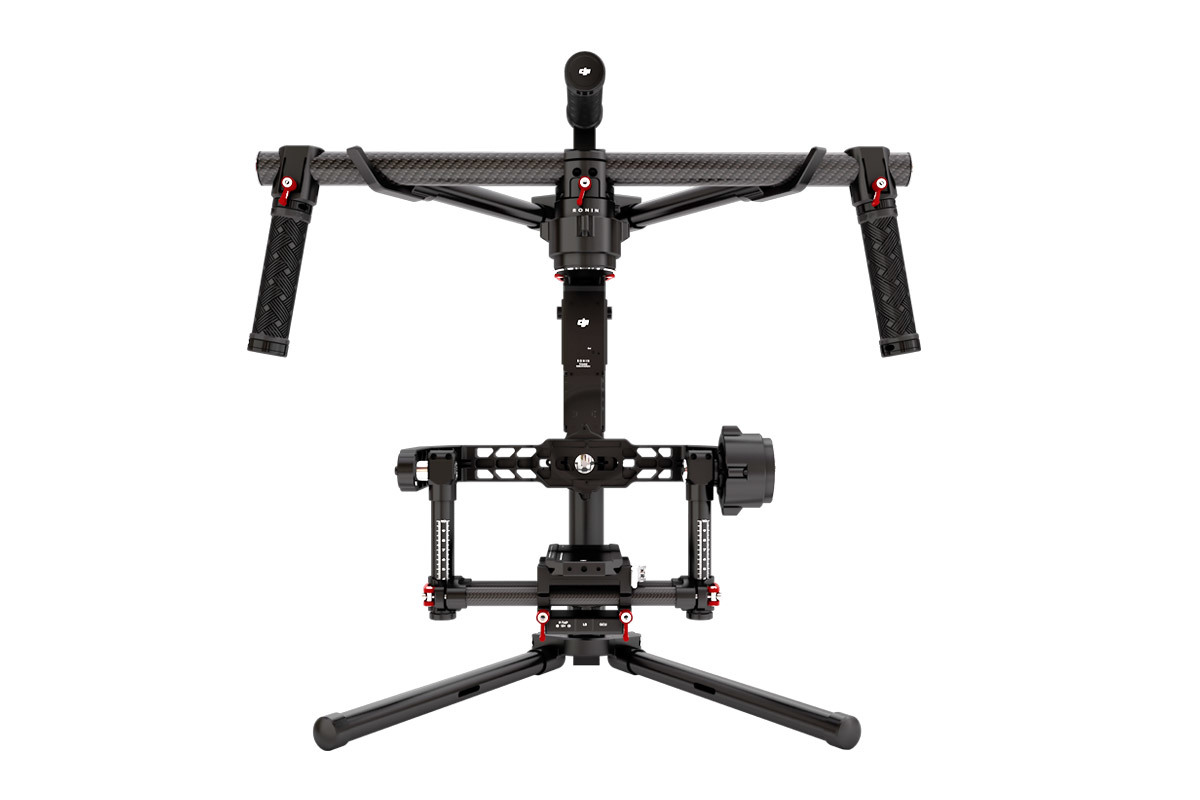

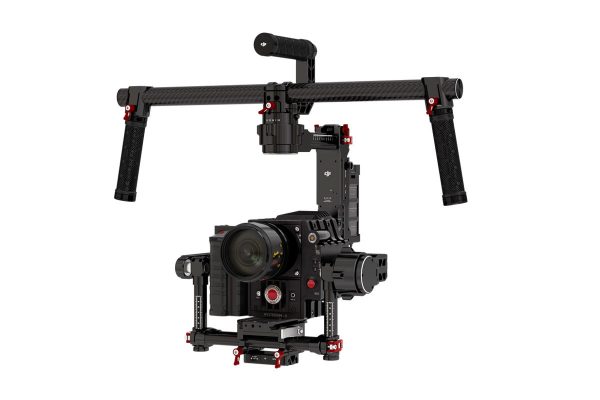

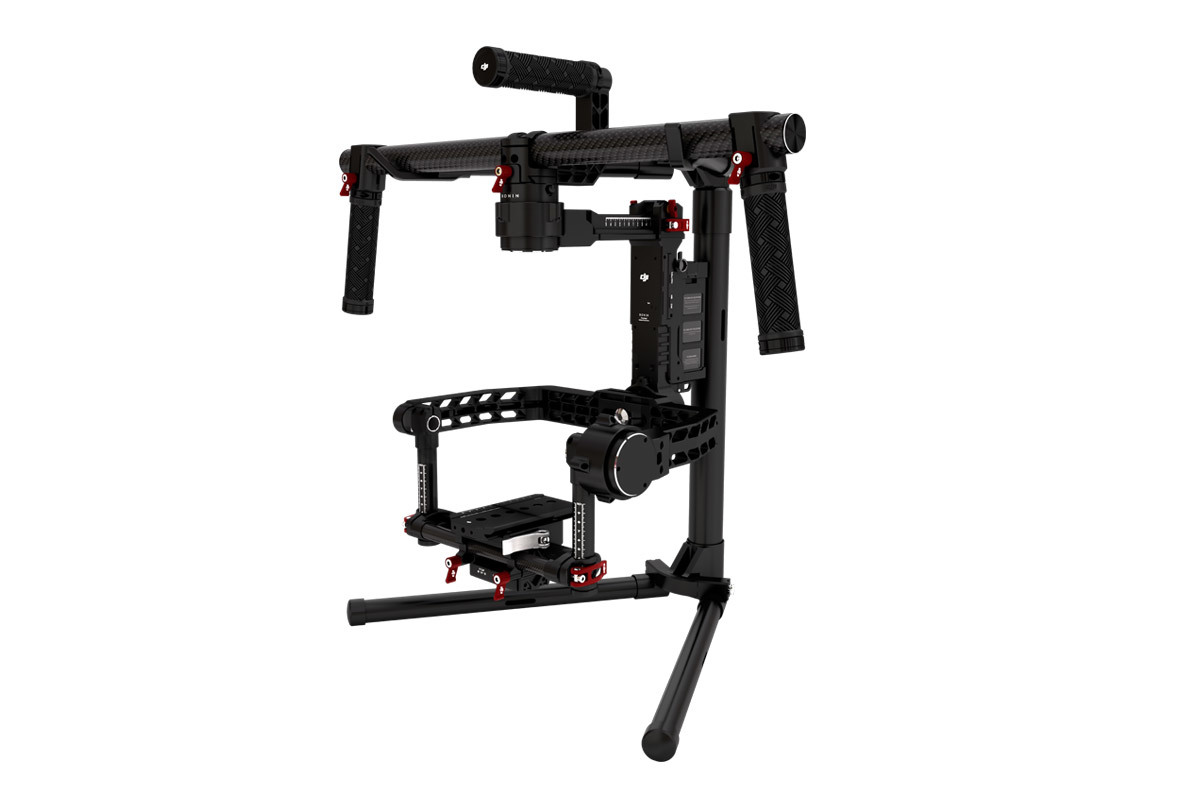

DJI Ronin (Including case)

  • Supports Cameras up to 16 Pounds
  • Precision of Control: ±0.02°
  • Transmitter for Remote Pan/Tilt Control
  • Tool-Less Balance Adjustment System
  • Assistant Software for iOS and Windows
  • Bluetooth Wireless Interface for Setup
  • 15mm Rods + Mount Points for Accessories
  • USB and PowerTap Power Outputs

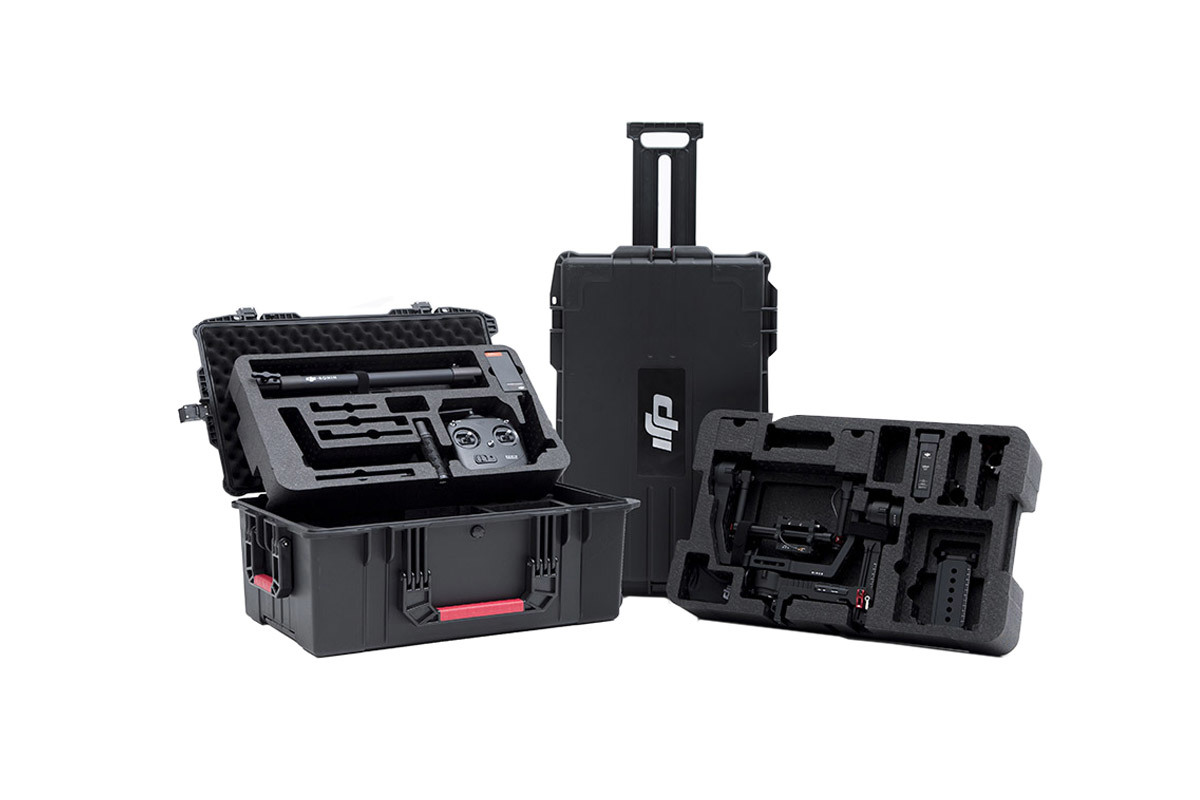

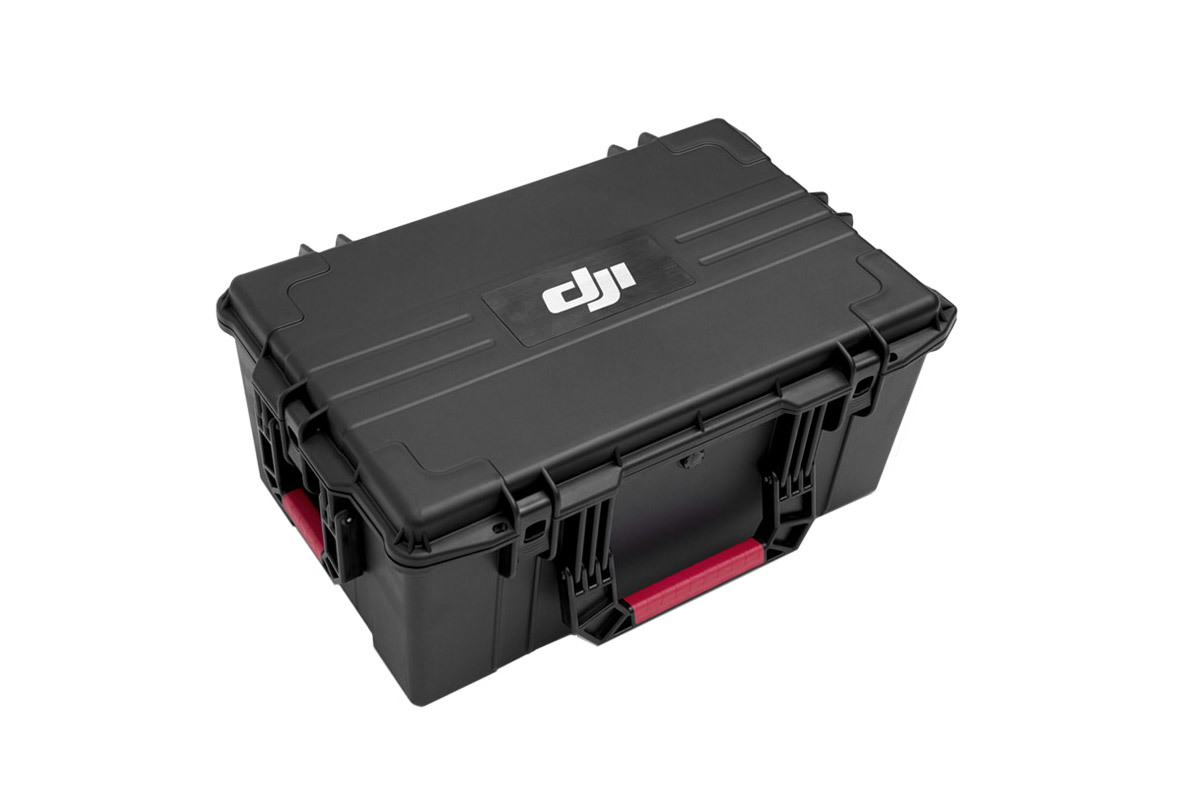

  • Included Hard Case Holds Gimbal and More

Inquire Now
Category

General
Built-In Functions
  1. Three Operation Modes
    · Underslung Mode
    · Upright Mode
    · Briefcase Mode
  2. Built-in independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus Supported

Peripheral
Accessory Power Connections
12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power
4S Ronin Battery
Connections
2.4GHz Remote Control, Bluetooth, USB
PC Assistant Software Requirements
Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mobile Assistant Software Requirements
iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 5 , iPad 3, iPad 4, iPad mini

Mechanical & Electrical Characteristics
Working Current
Static current: 300mA (@16V)
Dynamic current: 600mA (@16V)
Locked motor current: Max 10A (@16V)
Operating Temperature
-15°C ~ 50°C (5°F ~ 120°F)
Weight
4.20kg (9.26lbs) fully loaded with handlebar
Gimbal Dimensions
620mm(W) x 280-380mm (D)x 500mm(H)
Supported Camera Dimensions
Maximum depth at center of mass on camera base plate: 140mm
Maximum height measured from top of camera base plate: 225mm
Maximum width: 195mm

Working Performance
Load Weight (Reference Value)
7.25kg (16lbs)
Angular Vibration Range
± 0.02°
Maximum Controlled Rotation Speed
Pan axis: 90°/sec
Tilt axis: 100°/sec
Roll axis: 30° /sec
Controlled Rotation Range
Pan axis control: 360°
Tilt axis control: Up 45° to Down 120°
Roll axis control: ± 25°
Show less
