DJI Matrice 600 Pro drone water sampling device

DJI Matrice 600 Pro drone water sampling collection, using the drone to water sample, collecting water sample with drone, for water quality monitoring and testing, especially in deep water or wide range area.

Category

DJI Matrice 600 Pro drone water sampling collection, using the drone to water sample, collecting water sample with drone, for water quality monitoring and testing, especially in deep water or wide range area.

  1. The drone water sampling is particularly suitable for dense vegetation in rivers and deeper water depth, or remote and large area water.
  2. It is used in shallow complex environments and has been used in environmental protection water extraction projects in many provinces and cities, gets very positive feedback.
  3. The water environment sampling system is a remote automatic water sampling instrument, which can clean the pipeline automatically before collection and stop automatically when the water is full
  4. The pump suction method can collect 1 bottle of 1l water collecting bottle in two different places within one sortie. The collected water volume and water depth (0.5m by default) can be customized
  5. Deep integration with drone, command transmission through DJI data link, safe and reliable.

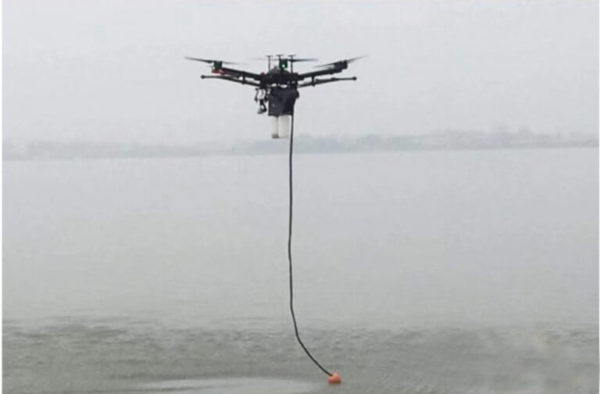

The water sampling collection device of this system adopts the pump suction method, in which the pump is a diaphragm pump, and the pump body is submerged into the water for collection.

Specification :

Size 400 * 340 * 200mm
Weight 2.1Kg (without water)
Volume 1L X 2
Control DJI Controller
Sampling way Pump

drone water sampling device

Category:
GPR system: Radar Systems Zond Aero LF (low frequency)

Extra-lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Comes with 3x sets of dipoles for the 300, 150, and 100 MHz.

Utilizes Real Time Sampling (RTS) with high hardware stacking, delivering high-resolution low-noise data.

Buy
Laser Falcon methane detector

Laser Falcon is sensitive only to methane, so no false readings of other gases are possible. It is a class 3R eye-safe laser.

The concept is based on Infrared Absorption Spectroscopy. The laser emits light (spectral range of 1,65 μm), which reflects back and is captured by the sensor. The outgoing and incoming signals are compared with the built-in reference cell. If methane is present along the laser path, the laser light is partially absorbed. An algorithm calculates the gas concentration in ppm×m (parts per million multiplied by meter). The value is instantly transferred to the remote control (RC) of the drone pilot and to UgCS software.

Buy
EchoLogger ECT D052S echo sounder

EchoLogger ECT D052S dual-frequency echo sounder with tilt and temperature sensor, harness, housing, and mountings for the drone.

HS Code: 90158040 (hydrographic instruments)

Buy
GPR system: Radar Systems Zond Aero 1000

Lightweight GPR system, suitable for medium-sized drones like DJI M300 RTK.

Includes a transportation box and mountings for the DJI M300 RTK or DJI M600 Pro drone.

HS Code: 90158020 (meteorological, hydrological, geophysical instrument

Buy
