DJI Matrice 300 RTK- Available

15 km Max Transmission1
UAV Health Management System
IP45 Rating
55-min Max Flight Time2
-20°C to 50°C Operating Temperature
6 Directional Sensing & Positioning
Hot-swappable Battery
Primary Flight Display

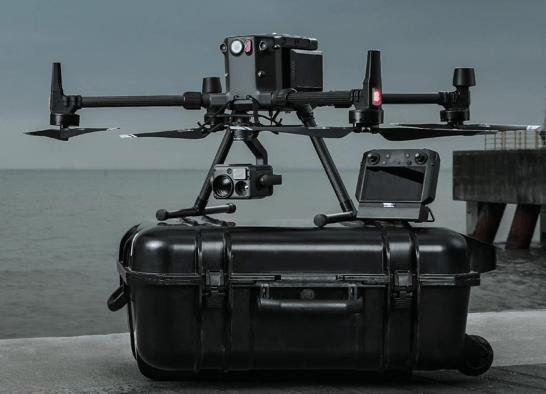

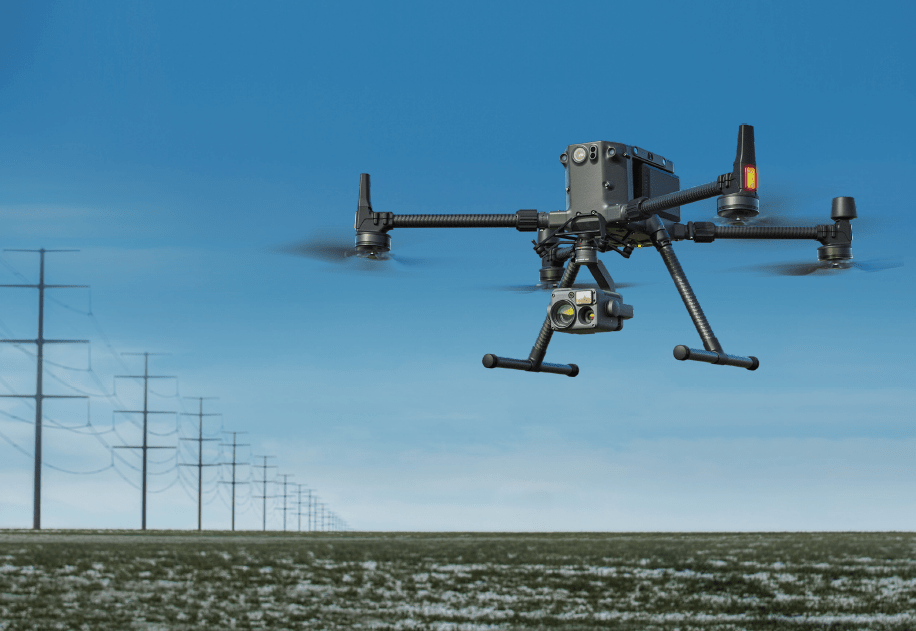

The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

  • 15 km Max Transmission1
  • UAV Health Management System
  • P45 Rating
  • 55-min Max Flight Time2
  • -20°C to 50°C Operating Temperature
  • 6 Directional Sensing & Positioning
  • Hot-swappable Battery
  • Primary Flight Display

Improved Transmission System

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

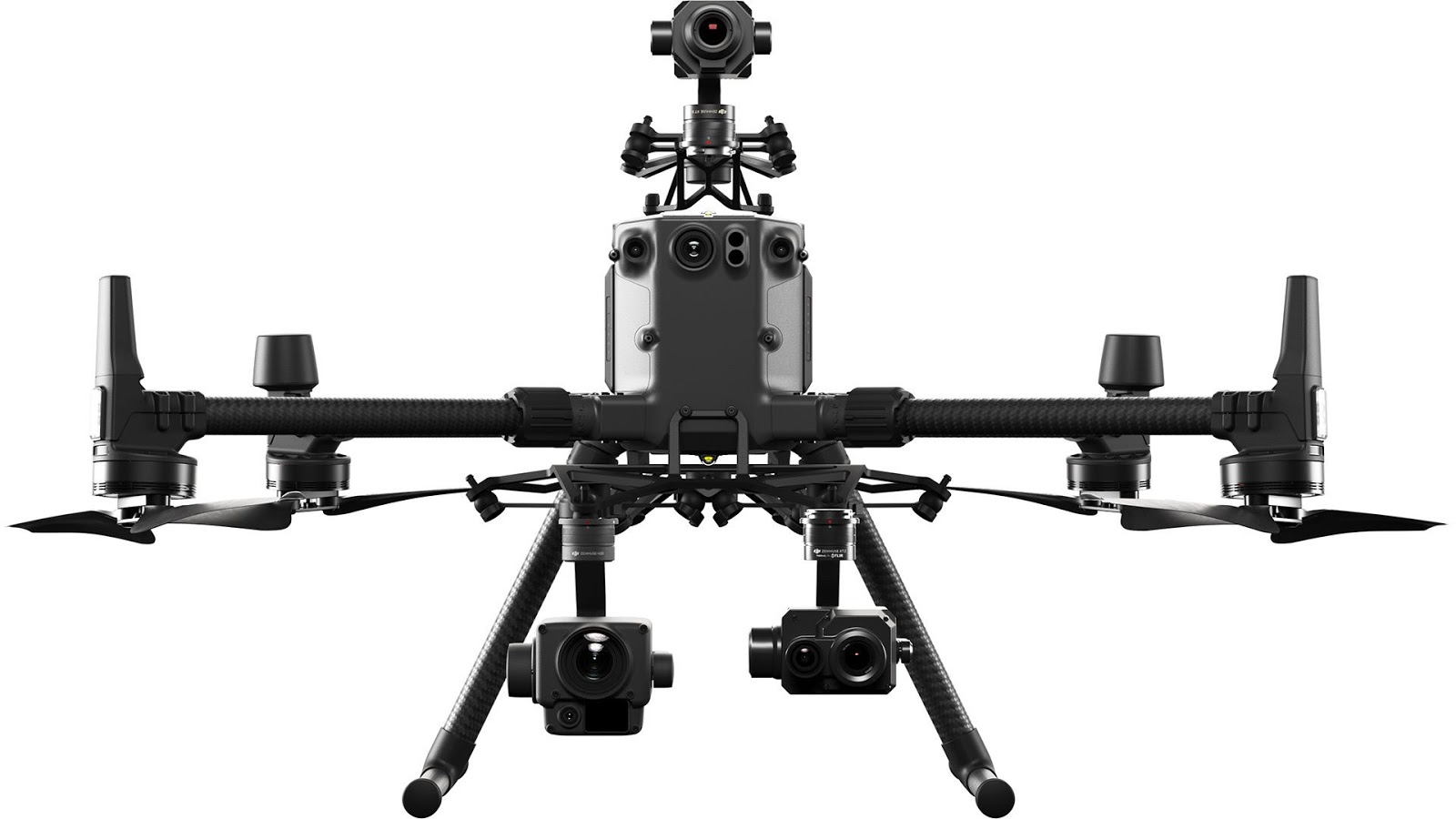

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

Live Mission Recording
Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.
AI Spot-Check7
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.
Waypoints 2.0
Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.
Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
Location Sharing
While either PinPoint or Smart Track is enabled, the subject’s location can be projected across multiple camera views, to another remote controller, or shared through online platforms such as DJI FlightHub9.

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.
Flight Information
Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.
Navigation Display
Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.
Advanced Dual Control
Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.


A Powerful Vision System You Can Rely On

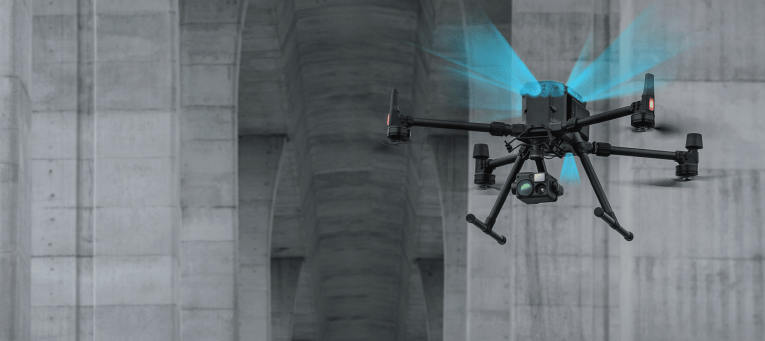

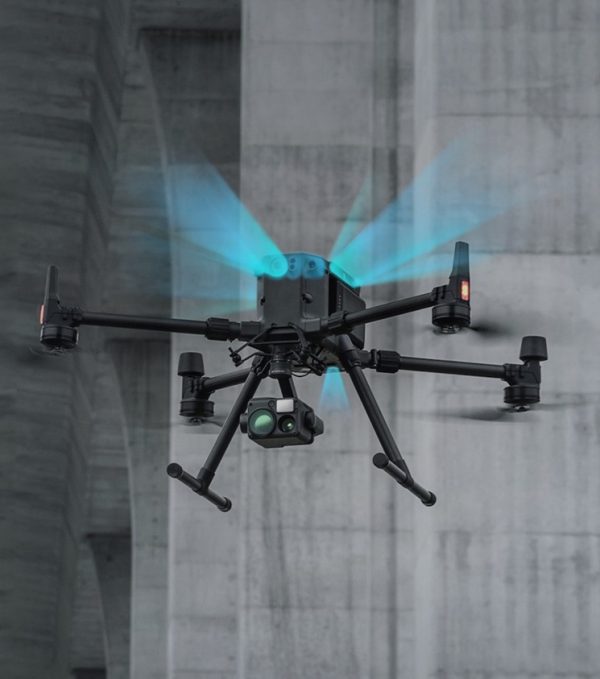

To enhance in-flight safety and aircraft stability, dual-vision and TOF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.


Professional Maintenance for Your Drone Fleet

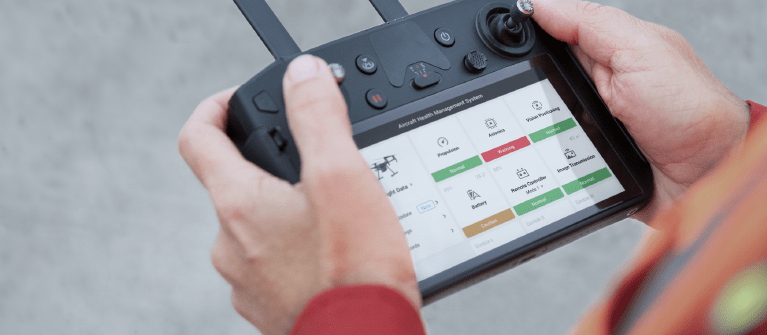

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.


Redundancy Systems for Safer Flights
The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

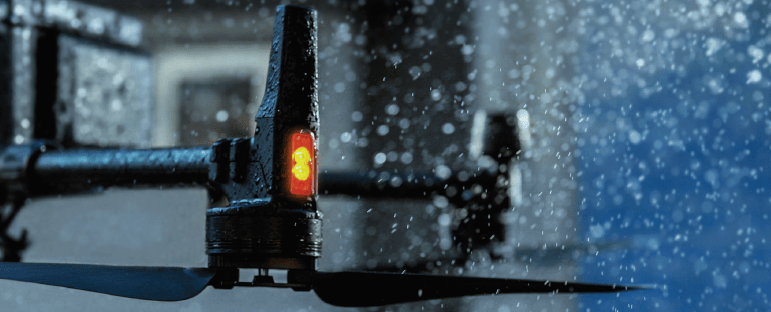

IP45
Self-Heating Battery
-20°C to 50°C
Anti-Collision Beacon
AirSense ADS-B Receiver

D-RTK 2 Mobile Station
Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 High Precision GNSS Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.

CSM Radar
For an added safety measure, a Circular Scanning Millimeter-Wave (CSM) Radar with a detection range between 1 to 30 m can be mounted on top of the aircraft.


Accessories

Battery Station
The battery station manages up to 8 flight batteries and 4 remote controller batteries, while fast charging allows you to conduct your missions without running out of power.
TB60 Intelligent Flight Battery
The high-capacity, hot-swappable TB60 Intelligent Flight Battery lets operators change batteries without powering off, saving time during critical missions.
DJI Smart Controller Enterprise
The DJI Smart Controller Enterprise comes with an ultra-bright 5.5-inch 1080p display that maintains clear visibility even in direct sunlight.

PAYLOAD SDK
Integrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors,
and more. Payload SDK supports DJI SkyPort, DJI SkyPort V2, and DJI X-Port. These greatly reduce
the payload development lifecycle and maximize the potential of your payloads in more diverse scenarios.
ONBOARD SDK
Harness the full computing power of your M300 RTK. Onboard SDK
supports customized development of a wide range of features such as 6
Directional Sensing and Positioning, UAV Health Management System, Waypoints 2.0, and more.
MOBILE SDK
With a large network of 3rd party mobile applications, you can unlock
the capabilities of your drone platform to meet specialized mission
needs. Utilizing Mobile SDK, the M300 RTK supports highly customizable
mobile app development.

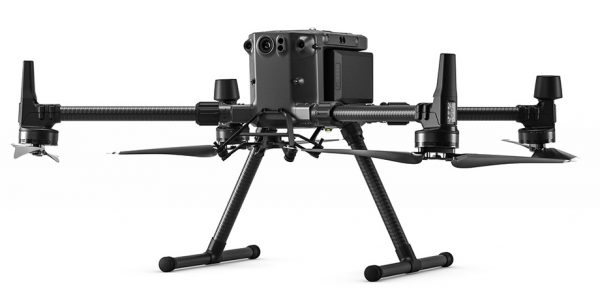

Aircraft

Dimensions Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
Diagonal Wheelbase 895 mm
Weight (with single downward gimbal) Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Max Payload 2.7 kg
Max Takeoff Weight 9 kg
Operating Frequency 2.4000-2.4835 GHz
5.725-5.850 GHz
EIRP 2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
Hovering Accuracy (P-mode with GPS) Vertical:
±0.1 m(Vision System enabled)
±0.5 m(GPS enabled)
±0.1 m(RTK enabled)
Horizontal:
±0.3 m(Vision System enabled)
±1.5 m(GPS enabled)
±0.1 m(RTK enabled)
RTK Positioning Accuracy When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Max Angular Velocity Pitch: 300°/s, Yaw: 100°/s
Max Pitch Angle 30° (P-mode, Forward Vision System enabled: 25°)
Max Ascent Speed S mode:6 m/s
P mode:5 m/s
Max Descent Speed (vertical) S mode:5 m/s
P mode:3 m/s
Max Descent Speed (tilt) S Mode:7 m/s
Max Speed S mode:23 m/s
P mode:17 m/s
Service Ceiling Above Sea Level 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
Max Wind Resistance 15 m/s

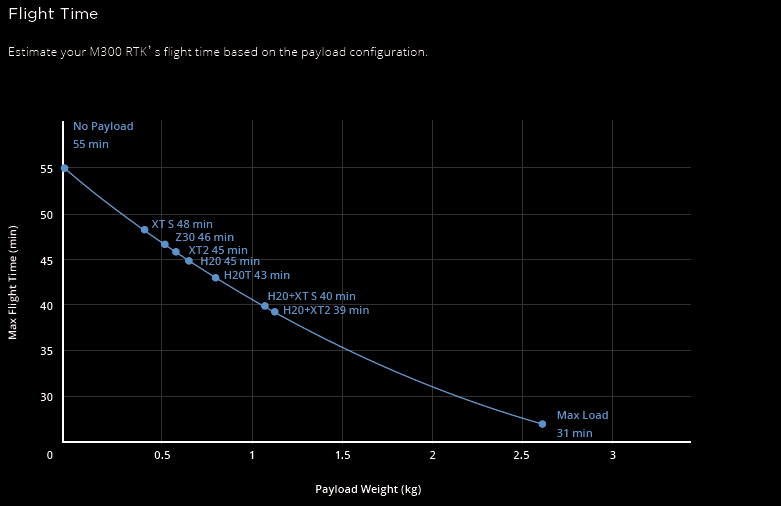

Max Flight Time 55 min
Supported DJI Gimbals Zenmuse XT2 /XT S /Z30 /H20 /H20T
Supported Gimbal Configurations Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Ingress Protection Rating IP45
GNSS GPS+GLONASS+BeiDou+Galileo
Operating Temperature -20°C to 50°C (-4°F to 122° F)

Remote Controller

Operating Frequency 2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance(unobstructed, free of interference)) NCC/FCC:15 km
CE/MIC:8 km
SRRC:8 km
EIRP 2.4000-2.4835 GHz:
29.5 dBm(FCC);18.5dBm(CE)
18.5 dBm(SRRC);18.5dBm(MIC)
5.725-5.850 GHz:
28.5 dBm(FCC);12.5dBm(CE)
20.5 dBm(SRRC)
External battery Name:WB37 Intelligent Battery
Capacity:4920 mAh
Voltage:7.6V
Type:LiPo
Energy:37.39Wh
Charging time(using BS60 Intelligent Battery Station ):70 minutes(15°C to 45°C);130 minutes(0°C to 15°C)
Built-in battery Type:18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power:17 W
Charging time:2 hours15 minutes(Use a USB charger with specification of 12V / 2A)
Battery Life Built-in battery:Approx. 2.5h
Built-in battery+External battery:Approx. 4.5h
USB Power Supply 5 V / 1.5 A
Operating Temperature -20°C to 40°C (-4 °F to 104 °F)

Intelligent Flight Battery

Name TB60
Сapacity 5935 mAh
Voltage 52.8 V
Battery Type LiPo 12S
Energy 274 Wh
Net Weight Approx. 1.35 kg
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Ideal storage temperature 71.6°F to 86°F (22°C to 30°C)
Charging Temperature -4° to 104° F(-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time Using BS60 Intelligent Battery Station:
220V input:60 minutes (fully charge two TB60 batteries), 30 minutes (charge two TB60 batteries from 20% to 90%)
110V input:70 minutes (fully charge two TB60 batteries), 40 minutes (charge two TB60 batteries from 20% to 90%)

BS60 Intelligent Battery Station

Dimensions 501*403*252mm
Net Weight 8.37kg
Maximum Capacity TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
Input 100-120 VAC,50-60 Hz / 220-240 VAC,50-60 Hz
Max. Input Power 1070W
Output Power 100-120V:750W
220-240V:992W
Operating Temperature -4°F to 104°F (-20°C to 40°C)

Vision System

Vision System Obstacle Sensing Range Forward/ backward/ Left/ Right:0.7-40m
Upward/ downward:0.6-30m
FOV Forward/ backward/ downward:65°(H),50°(V)
Left/ right/ upward:75°(H),60°(V)
Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared Sensing System Obstacle Sensing Range 0.1-8m
FOV 30° (±15°)
Operating Environment Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light Effective lighting distance 5m
FPV Camera Resolution 960p
FOV 145°
Frame rate 30fps

Aircraft

Can the downward single gimbal connector be replaced with a dual gimbal connector?

Yes.
To ensure safety, before replacing the gimbal connector, it is recommended to power off the aircraft and remove the TB60 Intelligent Flight Batteries.

What is the ingress protection rating of the M300 RTK? Can I fly in the rain?

The Matrice 300 RTK has a protection rating of IP45. However, the protection rating is not permanently effective and may decrease due to wear and tear. Do not fly in rain heavier than 100mm/24h.

Which propellers come with the M300 RTK?

The M300 RTK comes with standard 2110 propellers. You could also use the 2195 high altitude low noise propellers.

Battery

How long does it take to fully charge two TB60 Intelligent Flight Batteries?

With 220V power supply: It takes about 60 minutes to fully charge two TB60 Intelligent Flight Batteries; and about 30 minutes to charge them from 20% to 90%.
With 110V power supply: It takes about 70 minutes to fully charge two TB60 Intelligent Flight Batteries, and about 40 minutes to charge them from 20% to 90%.

How many batteries can the Battery Station charge at the same time?

It can simultaneously store eight TB60 Intelligent Flight Batteries and four WB37 Intelligent Batteries. It can charge two TB60 Intelligent Flight Batteries and one WB37 Intelligent Battery at the same time. Batteries with the highest battery levels will be recharged first, followed by the ones with lower levels.

How do I maintain the TB60 Intelligent Flight Battery?

  1. Before using, mark two TB60 Intelligent Flight Batteries as a pair that will always be charged/discharged together to ensure optimal performance.
  2. Do not charge immediately after a flight. Let the battery cool down to room temperature before charging.
  3. The ideal charging temperature of TB60 Intelligent Flight Battery is 15 °C – 40 °C;
  4. The ideal storage temperature of TB60 Intelligent Flight Battery is 22 °C – 30 °C. Make sure they are stored in an environment that is free of moisture and not in direct sunlight.
  5. If a battery won’t be in use for more than 10 days, please discharge it until the battery level drops to 40% – 65%, and store it properly. Charge and then discharge the battery every 3 months to keep it healthy.

Can the TB60 Intelligent Flight Battery be used in low-temperature environments?

The operating temperature of the TB60 Intelligent Flight Battery is -20°C to 50°C. When the battery is used in a low-temperature environment, note that the battery life will be reduced. To optimize performance in the cold, it is recommended to warm the battery up to 15 °C before use.
When charging the batteries in an environment between -20 °C and 5 °C, the self-heating function will be activated to raise the battery’s temperature to above 5 °C.
Once installed on the aircraft and the power is turned on, if the battery’s temperature is low, it will automatically self-heat to keep the temperature at about 16 °C to 20 °C.

Does the M300 RTK support TB50 / TB55 Intelligent Flight Batteries?

No.

Can TB60 Intelligent Flight Battery be carried onboard an airplane?

The capacity of the TB60 Intelligent Flight Battery is 274 Wh and cannot be carried on board airplanes according to airline regulations.

Why is the battery warm while in storage?

When the battery is stored for a long time, to ensure storage safety and to extend battery life, the battery will automatically start self-discharging to about 65%. It’s normal for the battery to feel slightly warm during this process.

Can the drone take off when two batteries are at different battery levels?

The M300 RTK can take off if the voltage discrepancy of the two batteries is within 0.7 V. If it is unable to take off, the app will inform you that “the power discrepancy in the two batteries is too large”.

Remote Controller

Are remote controllers of M300 RTK compatible with the other DJI products?

No.

What type of image output port does the DJI Smart Controller Enterprise provide?

HDMI port.

What transmission system is used in the DJI Smart Controller Enterprise use?

OcuSync Enterprise.

What are the screen size, resolution, and maximum brightness of the DJI Smart Controller Enterprise?

It comes with a built-in 5.5-inch 1920×1080p high-brightness touch screen with a maximum brightness of 1000 cd/m².

Does the DJI Smart Controller Enterprise support 4G dongles?

Yes. It supports the ZTE MF833V dongle.

Does the DJI Smart Controller Enterprise support CrystalSky?

No. Due to the limited processing power of the CrystalSky, it cannot support advanced intelligent functions of the M300 RTK.

Transmission

How many camera feeds can be viewed at the same time?

  • Dual Remote Controller Mode: view up to 3 live feeds simultaneously (including FPV camera);
  • Single Remote Controller Mode: view of up to 2 live feeds simultaneously (including FPV camera).

Can I capture photos or videos using the FPV camera?

No.

Payloads

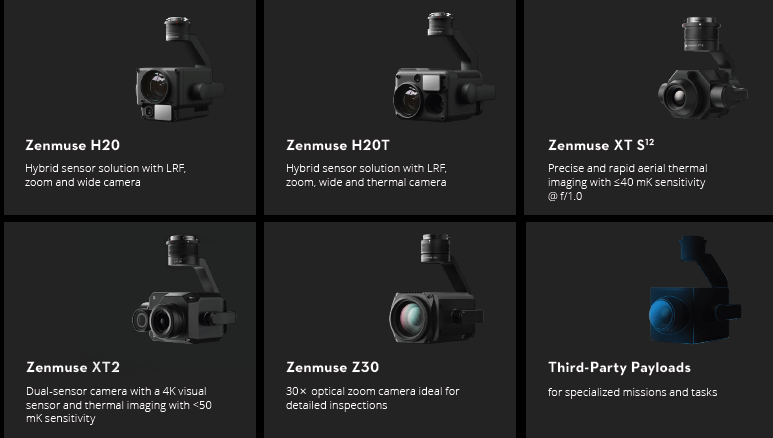

Which payloads are compatible with M300 RTK?

The M300 RTK is compatible with DJI’s L1, P1, Zenmuse H20 series, Zenmuse XT S, Zenmuse XT2, Zenmuse Z30, and third-party payloads developed using DJI Payload SDK.Please download the latest firmware of the payloads and update the firmware before using them with M300 RTK.

How many payloads can be mounted at the same time?

M300 RTK can carry 3 payloads at the same time using the dual downward gimbal connector and the upward gimbal connector.

What payload configurations does the M300 RTK support?

The M300 RTK supports the following payload configurations:

  • Single downward gimbal: Zenmuse XT2, Zenmuse XT S, Zenmuse Z30, Zenmuse H20, Zenmuse H20T, and third-party payloads developed on PSDK. Dual gimbals: Zenmuse XT2 + Zenmuse Z30; Zenmuse XT2 + Zenmuse H20; Zenmuse XT S + Zenmuse Z30; Zenmuse XT S + Zenmuse H20; and one of the above single gimbal with a third-party payload developed on PSDK
  • Three gimbals: one of the above dual gimbal configurations + a third-party payload developed on PSDK
    Note: The Zenmuse XT2 can only be mounted on the right downward gimbal port (Left and right are determined from the perspective of looking directly at the drone from the front).

Can I control multiple gimbals simultaneously?

You can control the movements of each gimbal simultaneously, but you can’t take photos/videos simultaneously.

Can I control the angle of the FPV camera through a remote controller?

No, the angle of the FPV camera cannot be changed.

Does the M300 RTK support the Zenmuse XT, Zenmuse X4S, Zenmuse X5S, or Zenmuse X7?

No.

RTK

Does the M300 RTK support PPK technology?

Support for PPK is coming soon.

Is the M300 RTK capable of delivering survey-grade data?

When equipped with a third-party payload designed to capture data at survey-grade accuracy, the M300 RTK can be used to conduct surveying missions. The specific data accuracy depends on the performance and compatibility of the third-party cameras. For more information, please fill out the Contact Us form at the bottom of the page, and we will reach out to you as soon as possible.

Is the M300 RTK compatible with the D-RTK 2 Mobile Station for the M210 RTK V2 or the one for Phantom 4 RTK?

Yes. Please refer to the user manual of the M300 RTK and upgrade the firmware of the D-RTK 2 Mobile Station. Please note that different modes need to be selected when using the Mobile Station with the M210 RTK V2, Phantom 4 RTK, or M300 RTK. The D-RTK 2 mobile station only supports one of the three models at a time. For more details, please refer to the user manual.

How does the M300 RTK acquire real-time differential data?

The M300 RTK obtains real-time differential data in the following two ways:

  1. By connecting to the D-RTK 2 Mobile Station (RTCM3.2)
  2. By connecting the remote controller to an NTRIP network RTK service through a 4G dongle or a WiFi hotspot (supports RTCM3.0/RTCM3.1/RTCM3.2)

Can one D-RTK 2 Mobile Station support multiple M300 RTK drones simultaneously?

Yes, there is no limit to the number of drones that can be used simultaneously.

Software

How do I update the firmware?

  1. Via computer: use DJI Assistant 2 For Matrice by connecting to a computer to update the firmware of the aircraft, remote controller, and D-RTK 2 Mobile Station.
  2. Via DJI Pilot app: update the firmware of the aircraft, remote controller, and BS60 Intelligent Battery Station.

Please refer to the user manual for details.

What apps and software are supported by the M300 RTK?

Currently only DJI Pilot App (Android version) is supported.

Which SDKs are available on the M300 RTK?

M300 RTK supports DJI Onboard SDK, Payload SDK, and Mobile SDK. For technical support.

Other

Can I use my M300 RTK across different regions/countries?

No. Before purchasing, please confirm with your DJI Enterprise dealer about where the drone can be used.

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “DJI Matrice 300 RTK- Available”

There are no reviews yet.

DJI Zenmuse H30T

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Buy
DJI Zenmuse H30

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Buy
DJI Zenmuse L2 (LiDAR)
  • High Precision
  • Exceptional Efficiency
  • Superior Penetration
  • 250m/450m Detection Range
  • 5 Returns
  • Turnkey Solution
  • Point Cloud LiveView
  • One-Click Processing on DJI Terra
Buy
M30 PSDK ADAPTER BRACKET

The PSDK load can be fixed to the M30 series flight platform, and different types of PSDK loads can be quickly removed and replaced.

Buy

Inquire price for

    ×
