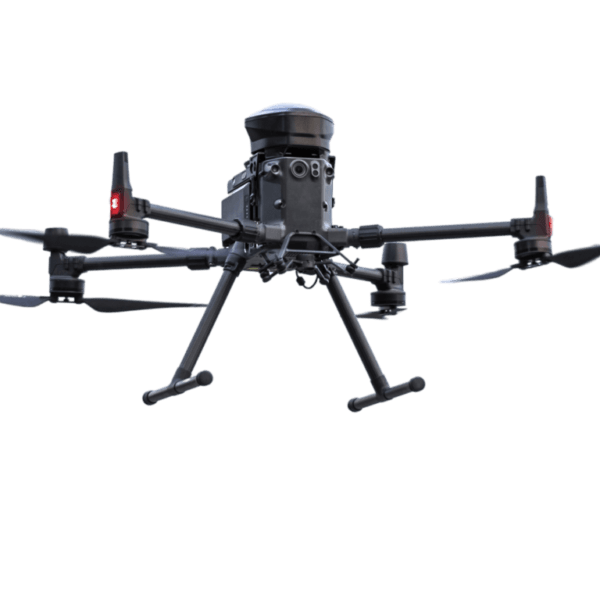

DJI Matrice 300 RTK – Drone Parachute System

Dual-sensor real-time monitoring of drone flight attitude, develop on DJI Matrice 300 OSDK to obtain real-time UAV sensor data, the two data fusion judgment, as the basis for opening the umbrella, the reliability is doubled.

Category

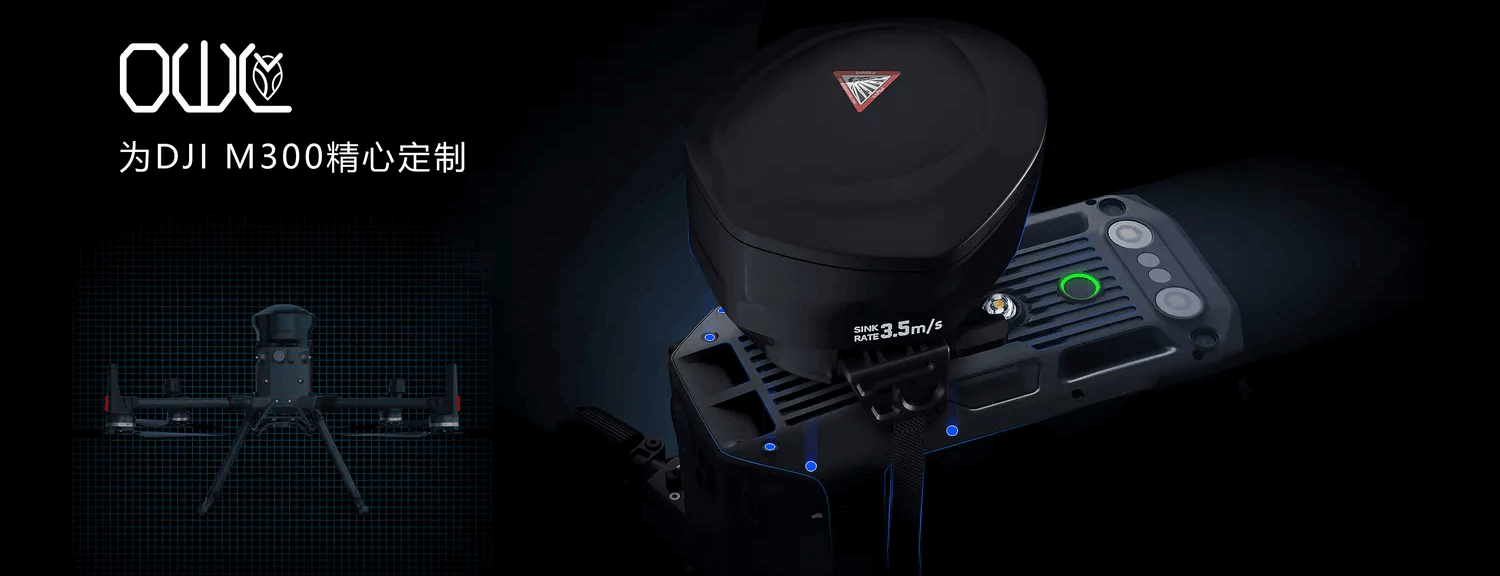

The OWL Parachute for DJI M300 drone, specially designed for DJI Matrice 300, ensures industrial drone flight safety and also meets the flight regulations in some countries, save your DJI M300 drone from crashing. only 800g, Dual-sensor real-time monitoring of drone flight attitude, develop on DJI Matrice 300 OSDK to obtain real-time UAV sensor data, the two data fusion judgment, as the basis for opening the umbrella, the reliability is doubled. The two data fusion judgments are used as the basis for triggering the parachute, and the reliability is doubled.

The DJI Matrice 300 parachute is equipped with a safety algorithm, and the response time to danger is as low as 0.5 s. In case of sudden situations, the parachute will be opened quickly and the speed will be stabilized at 3.5 /s.

Quick-release design, Install OWL parachute, remove the DJI M300 drone arm screws (please refer to the manual installation tutorial for details), use the OWL parachute replacement screws to install the bottom bracket in place in only 50 seconds (the bottom bracket does not need to be disassembled), which perfectly matches the DJI M300 drone, After removing the device compartment, the bottom pylon will not affect the folding of the aircraft. When using OWL parachute, you can install the umbrella warehouse in just three steps, no need to wait, and immediately deployed.

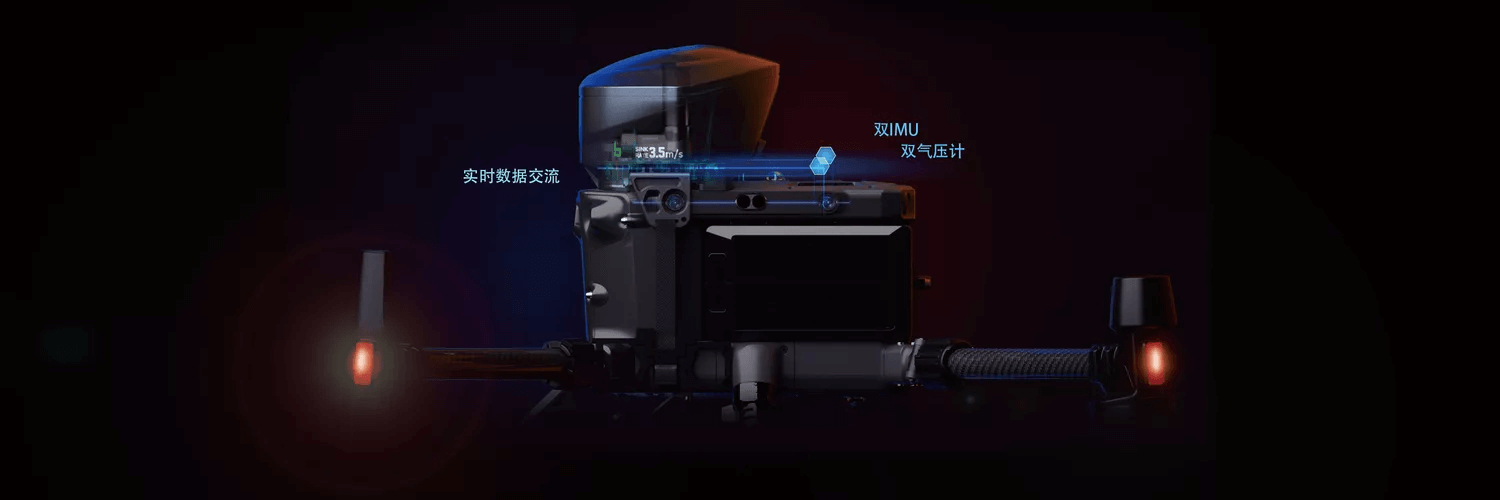

Ultra-high reliability, dual IMU dual barometers, automatic fusion of DJI M300 drone flight sensor data, OWL important sensor hardware dual redundant design, Firefly safety algorithm seamlessly integrates DJI environmental perception data and its own sensor data, once a dangerous situation occurs, OWL parachute can quickly identify and send the parachute opening and suspension instructions within 0.5 seconds to protect the safety of ground personnel and property. Make drone flight more at ease.

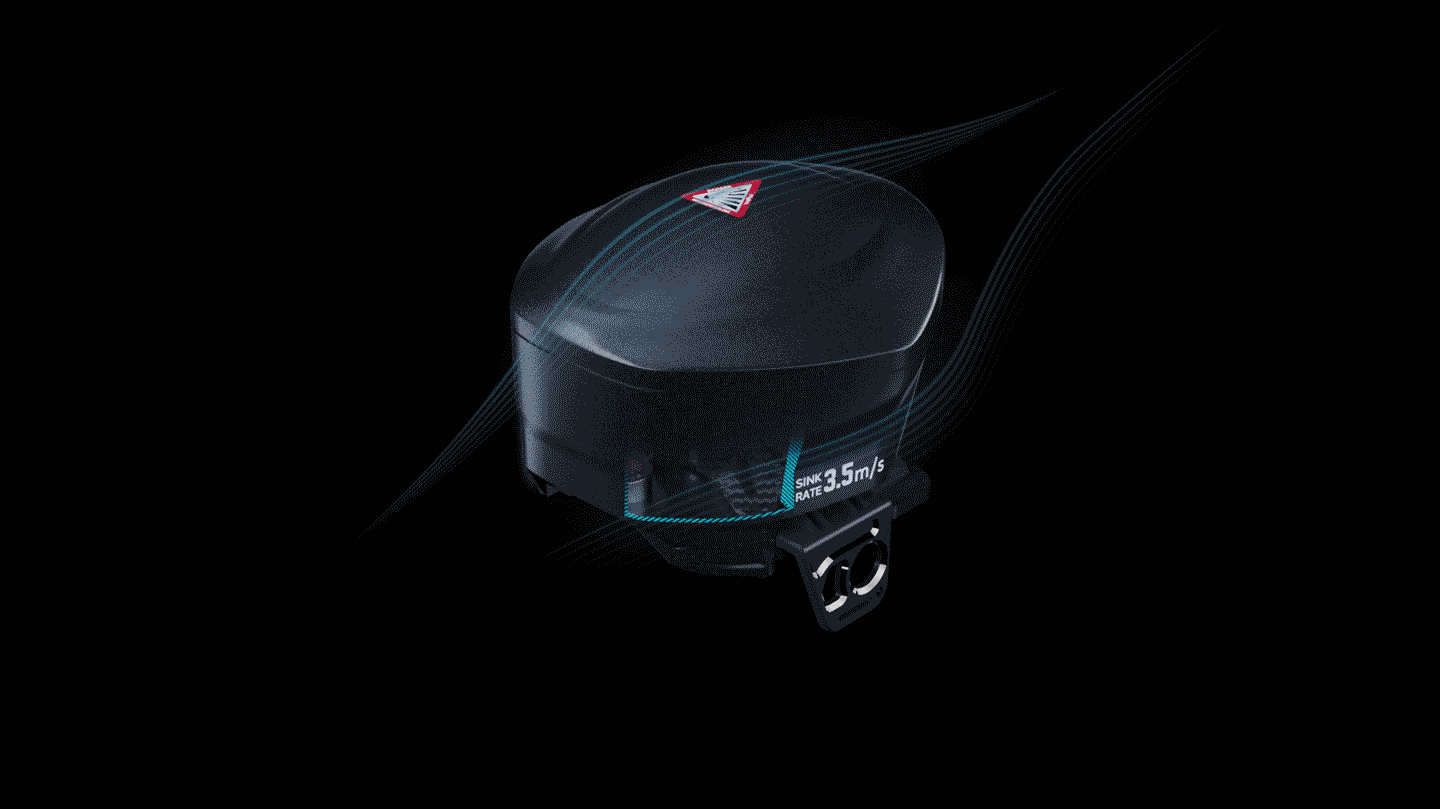

Lightweight and anti-wind resistance, fluid appearance design effectively reduces wind resistance and reduces the additional endurance loss caused by wearing OWL parachute during operation. It fully fits the back of the DJI M300 drone for a smooth flight and does not affect all functions of the lower load. The base is reinforced with carbon fiberboard, which is lighter in weight and stronger in structure. Protect the parachute and DJI M300 at the moment of opening the device. Thanks to the use of ABS engineering materials and 7075—T6 (sn) metal materials by Firefly engineers, the maximum structural strength and optimal performance are achieved when the product quality is the smallest (800g). M300’s battery life impact is only 4 minutes and 15 seconds.

Parachute control/software upgrade
DJI M300 Parachute integrates a manual parachute opening mode. In an emergency, the pilot can skip the system and directly open the parachute manually to ensure the safety of ground personnel and property. we promise to provide strong backup for every consumer who purchases OWL. Our engineers continue to combine new test data optimization algorithms. Upload the data package to the cloud, and consumers can download it with one click and automatically upgrade.

The DJI Matrice 300 parachute specification:

Suit for DJI MATRICE 300
Weight 800g
Size 19dm²
The parachute cloth size 7.29m²
Minimum opening height 20m,Only when the height is more than 20m,
the parachute opening function will be activated
Max Carry  Weight 9kg(Ensure that the payload at landing within 3-4m/s)
Protection Level IP45
Operating temperature  -20℃~50℃
Working altitude ≤3500M
Response time 500ms~700ms
Response distance  8.59m~20.96m
Speed of descent 3m/s—4.5m/s,
Endurance time 1 Hour (its own power, without drone battery, powered)
board battery capacity 210mA Motherboard
TF card capacity 16g,Can record 100 flight
Data cable  OSDK cable
