DJI Matrice 30 TB30 Intelligent Flight Battery

5,880 mAh LiPo battery for the DJI Matrice 30 Series of commercial drones. Each pair of TB30 batteries yields a maximum flight time of about 41 minutes, or about 36 minutes in hover on the M30 and M30T.

Category

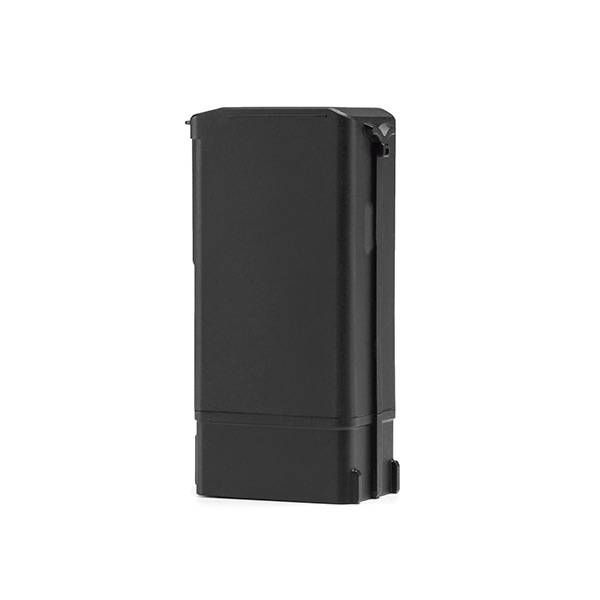

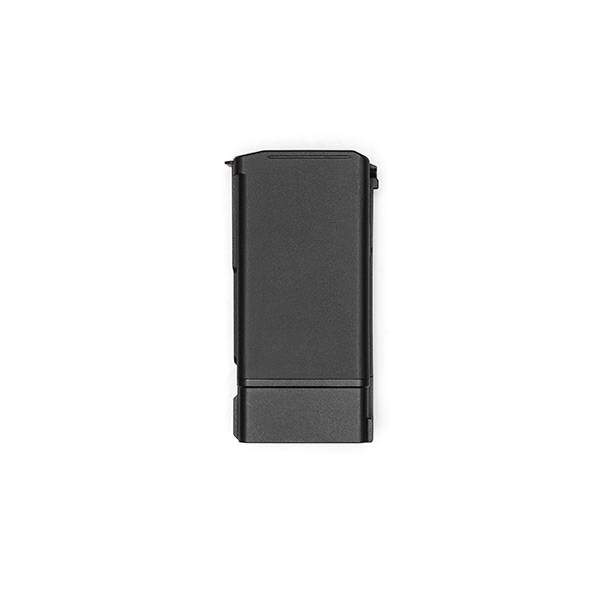

The DJI Matrice 30 TB30 Intelligent Flight Battery is a 5,880 mAh LiPo battery for the DJI Matrice 30 (M30) lineup of commercial drones. The TB30 battery has a maximum flight time of 41 minutes, or about 36 minutes in hover. TB30 batteries are charged using the DJI Matrice 30 BS30 Charging Station. Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles for increased operational efficiency.

NOTE: The TB30 can achieve up to 400 charge cycles within a 12-month period if it’s charged to 90% or higher for fewer than 120 days combined. Battery-related information can be viewed in the Health Management System on the DJI Pilot 2 App.

Category:
Capacity 5880 mAh
Voltage 26.1 V
Battery Type LiPo 6S
Energy 131.6 wH
Net Weight Approx. 685 grams
Operating Temperature -20 to 50°C (-4° to 122°F)
Storage Temperature 20° to 30°C (68° to 86°F)
Charging Temperature -20° to 40°C (-4° to 104°F)
(When the temperature is lower than 10°C (50°F), the self-heating function will be automatically enabled. Charging in a low temperatures may shorten the lifespan of the battery)
Chemical System LiNiMnCoO2

Frequently Asked Questions

1) What is the charge time of the TB30 Batteries for the Matrice 30?
When using the Matrice 30 BS30 Battery Charging Station it takes about 50 minutes to fully charge two TB30 batteries, or about 40 minutes to charge up to 90%. If you are charging from 20% to 90% you can expect a charge time of about 30 minutes.

2) Can I take Matrice 30 TB30 Batteries on an airplane?
The TB30 is 131.6 Wh. You will need to check local airline regulations to see what the maximum allowed watt hour (Wh) per battery is and how many batteries a specific airline or regulatory authority will allow for you to take onboard.

3) Are there any other batteries for the DJI M30 (Matrice 30)?
No, there is only one model of battery for the DJI M30, the TB30 Battery. The WB37 Battery is used in the M30’s RC Plus Controller.

4) How long is DJI’s warranty on their TB30 Batteries for the Matrice 30?
12 Months (for batteries with up to 400 charge cycles and stored with a charge of 90% or above for no more than 120 days)
